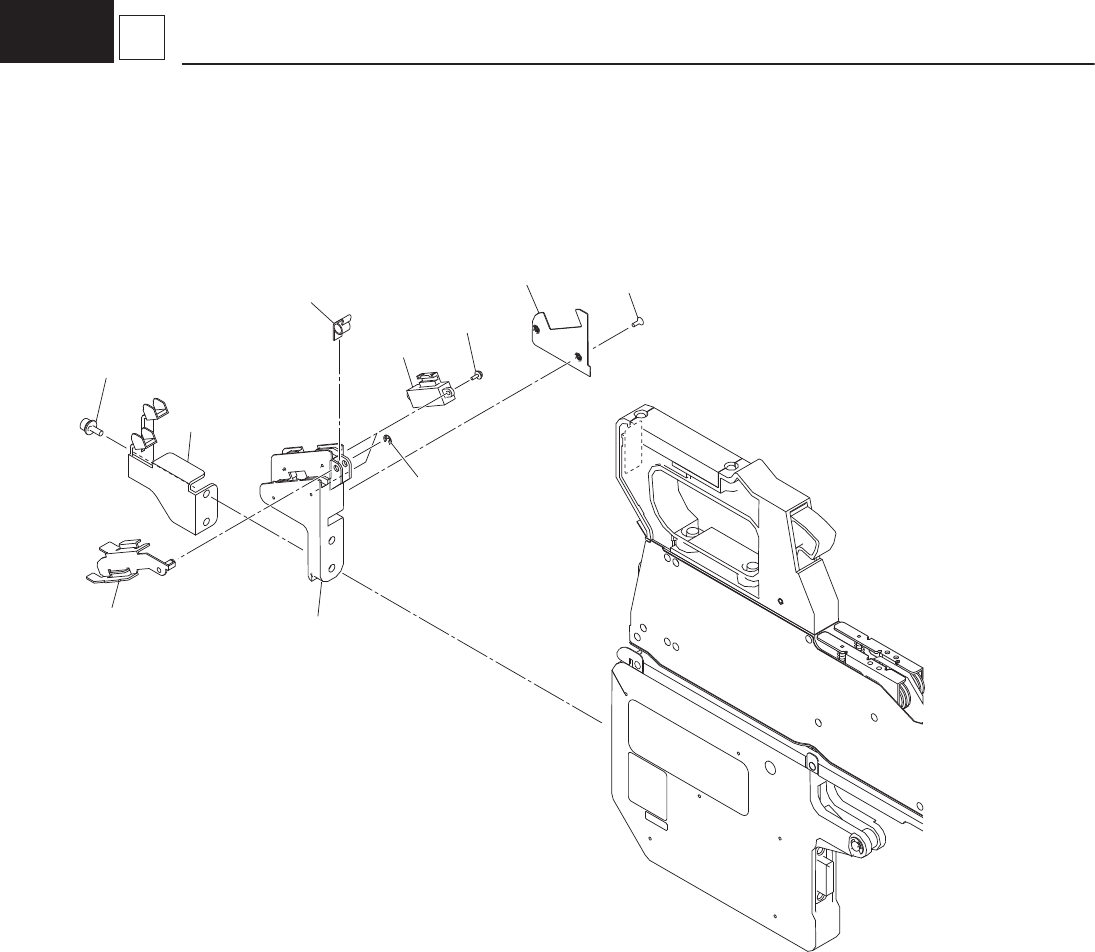

Tape Feeder GD-28081,28083
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi
GD-28081 GD-28083
627 90990-01J150 221AA098 BOLT,HEX.S/H WW 2 2 M4L20 SW+FW
681 KYH-M8613-00 0926J000 FRAME 1 1
682 KYD-MC10U-00 016S0729 ASSY_LEVER 1 1
683 KYM-M863P-00 211A8923 COVER 1 1
684 KYD-MC13U-00 222P0183 SPRING_TORSION 1 1
685 90440-01J025 221KB002 RING_E_025W 1 1 E RING
686 KYD-MC140-00 23G10090 SENSOR_PHOTO 2 2
687 90166-12J206 221DA065 MACHINE_SCREW 4 4 PAN M2L6 SW+FWS
688 90167-02JA06 221DA103 MACHINE SCREW 2 2 FLT M2.5L6
689 KYM-M863Y-00 212A2269 GUIDE 1 1
