- - 5. BASEFRAME COMPONENTS(5) (TYPEXL)

100%1 / 246
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-18337 BASE_PLATE_ASSY 1
2 402-17387 BASE_PLATE_L (1)
3 402-17388 BASE_PLATE_C (1)
4 HX-0009600-0A EDGING (1.3)
5 L110E-121-000 BASEPLATENUT (8)
6 402-17389 BASE_PLATE_R (1)
7 HX-0055700-00 TIEMOUNT (6)
8 HX-0029400-00 FIXEDBASE (8)
9 SM-4040801-SC SCREWM4X0.7L=8 (8)
10 SL-6052592-TN BOLT (8)
11 SM-4061201-SC SCREWM6L=12 (1)
12 400-94475 BPWASHER (8)
13 NM-6100001-SC NUTM10X1.5TYPE1 (4)
14 401-83540 ACINPUTUNIT 1
15 401-91282 NOISEFILTER (1)
16 SL-6040692-TN SCREWM4L=6 (4)
17 HN-0040100-00 NOISEFILTER 1
18 400-94475 BPWASHER 6
19 400-44814 WASHERPLATE 4
20
#02
SM-9124503-SB SCREWM12L=45 2
21 NM-6120001-SC NUTM12X1.75TYPE1 4
22 100-04109 GROUNDMARK 3
23 CM-2001000-01 PEMARKLABEL 1
24 HX-0051900-00 FIXINGBASE 1
25 SL-4040691-SC SCREWM4L=6 19
26 HX-0018800-0F GROMMET 1
27
#02
HX-0057900-00 PERFECTROCK 1
28 402-18343 EJECTOR_ASSY 1
29 SL-6051092-TN SCREWM5L=10 (2)
30 PJ-3040852-01 ELBOWUNION8XPT1/4 (3)
31 402-01542 EJECTOR (1)
32 SL-6041092-TN SCREWM4L=10 (4)
33 402-06568 BUSHING (1)
34 PV-0253010-00 CHECKVALVE (1)
35 402-01547 EXHAUST_HOSE (0.11)
36 402-01546 HOSE_JOINT (1)
37 PX-0553030-00 SILENCER (1)
38 402-17383 EJECTOR_BASE (1)
39 SL-6040892-TN SCREWM4L=8 (2)
40 402-05717 EJSVCABLEASM (1)
41 SM-4040601-SC SCREWM4X0.7L=6 31
42
#01
401-91280 TRANSFORMER 1
43
#01
HN-0040100-00 NOISEFILTER 1
44 HX-0029400-00 FIXEDBASE 31
45
#02
402-15431 TRANS_SCREW_XL 2
- -

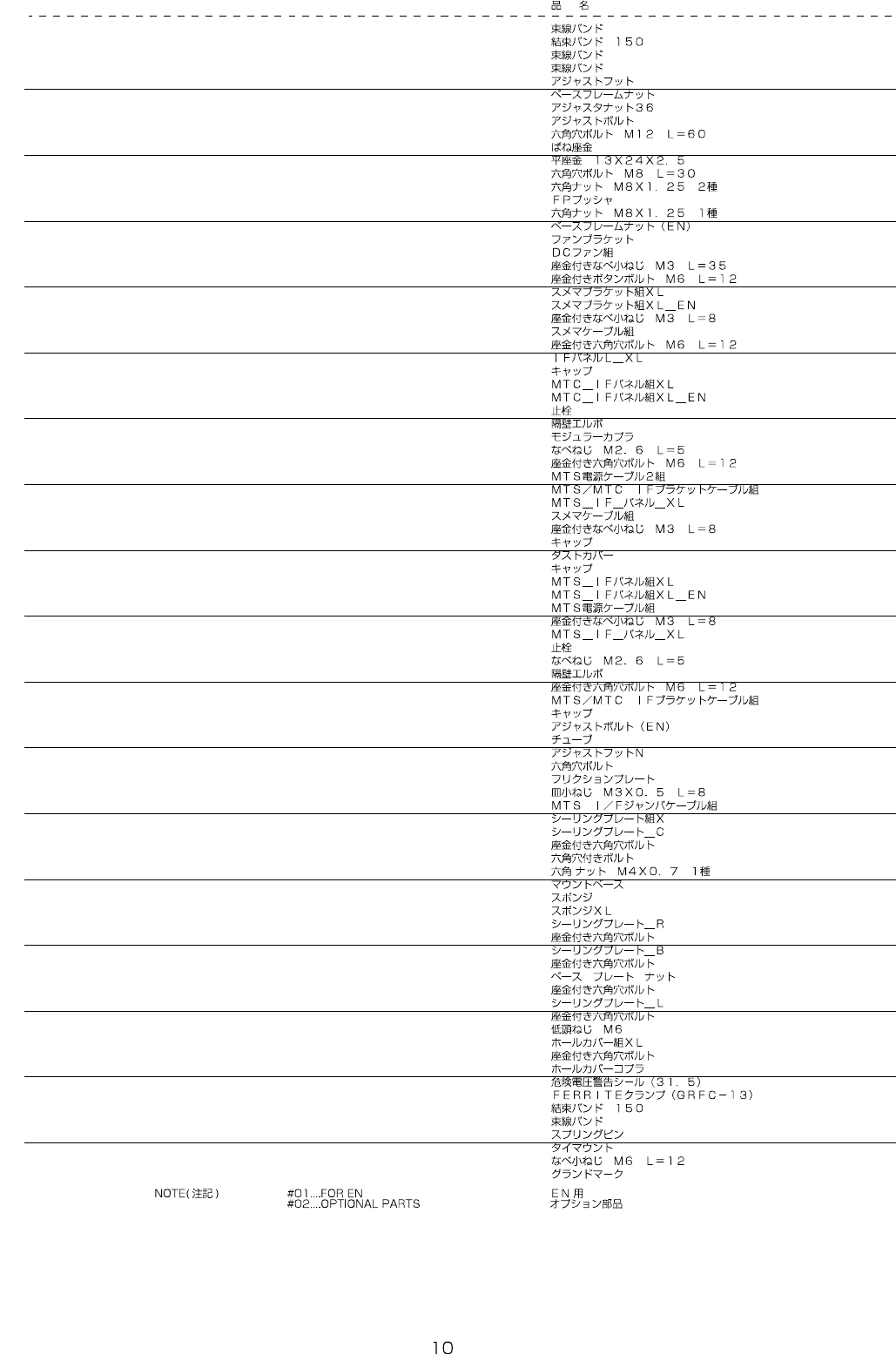

5. BASEFRAMECOMPONENTS(5)(TYPEXL)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 EA-9500B01-00 CABLEBAND 50
2 EA-9500B02-00 CABLEBAND150 120
3 HX-0006500-0B CABLEBAND 50
4 HX-0006500-0C CABLEBAND 5
5 E1035-729-000 ADJUSTERFOOT 4
6 400-00519 BASEFRAMENUT 4
7 E1044-729-000-A ADJUSTERNUT36 4
8 400-00403 ADJUSTBOLT 4
9 SM-6126002-TN SCREWM12L=60 12
10 WS-1220002-KN SPRINGWASHER 12
11 WP-1302501-SC WASHER13X24X2.5 12
12 SM-6083002-TN SCREWM8L=30 24
13 NM-6080002-SC NUTM8X1.25TYPE2 12
14
#02
400-13307 FPPUSHER 12
15
#02
NM-6080001-SC NUTM8X1.25TYPE1 12
16
#01
400-00535 BASEFRAMENUT(EN) 4
17 401-08337 FANBR 4
18 401-89090 DCFANASM 4
19 SL-4033591-SC SCREWM3L=35 8
20 SL-3061232-TN SCREWM6L=12 8
21 402-15197 SMEMA_BR_ASSY_XL 1
22
#01
402-15200 SMEMA_BR_ASSY_XL_EN 1
23 SL-4030881-SC SCREWM3L=8 (2)
24 401-29031 SMEMACABLEASM (1)
25 SL-6061292-TN SCREWM6L=12 (2)
26 402-15099 IF_PANEL_L_XL (1)
27
#01
HK-0429901-4A CAP (1)
28 402-15198 MTC_IF_PANEL_ASSY_XL 1
29
#01
402-15201 MTC_IF_PANEL_ASSY_XL_EN 1
30 PX-9500010-00 PLUG (1)
31 PJ-3040600-04 PARTITIONELBOW (1)
32 HK-0651200-80 MODULARKAPLA (1)
33 SM-4860501-SB SCREWM2.5L=5 (2)
34 SL-6061292-TN SCREWM6L=12 (2)
35 401-94687 MTSPWRCABLE2ASM (1)
36 402-08426 MTS/MTCIFBRCABLEASM (1)
37 402-15095 MTS_IF_PANEL_XL (1)
38 401-29031 SMEMACABLEASM (1)
39 SL-4030881-SC SCREWM3L=8 (4)
40
#01
HK-0429901-4A CAP (1)
41
#01
HX-0066000-00 DUSTCOVER (1)
42
#01
HK-0429900-7A CAP (1)
43 402-15199 MTS_IF_PANEL_ASSY_XL 1
44
#01
402-15202 MTS_IF_PANEL_ASSY_XL_EN 1
45 401-83500 MTSPWRCABLEASM (1)
46 SL-4030881-SC SCREWM3L=8 (2)
47 402-15095 MTS_IF_PANEL_XL (1)
48 PX-9500010-00 PLUG (1)
49 SM-4860501-SB SCREWM2.5L=5 (2)
50 PJ-3040600-04 PARTITIONELBOW (1)
51 SL-6061292-TN SCREWM6L=12 (2)
52 402-08426 MTS/MTCIFBRCABLEASM (1)
53
#01
HK-0429900-7A CAP (1)
54
#01
400-00404 ADJUSTBOLT(EN) 4
55 HX-0060700-00 TUBE 0.4
56
#02
E6600-729-000 ADJUSTFOOTN 4
57
#02
SM-6082502-TN BOLT 12
58
#02
400-13306 FLICTIONPLATE 12
59
#02
SM-1030801-SC SCREWM3L=8 36
60 401-84382 MTSI/FJUMPERCABLEASM 2
61 402-15205 CELING_PLATE_ASSY_XL 1
62 402-15062 CEILING_PLATE_C (1)
63 SL-6061292-TN SCREW (4)
64 SM-6043552-TN SCREWM4L=35 (2)
65 NM-6040001-SC NUTM4X0.7TYPE1 (2)
66 HX-0070600-0A MOUNTBASE (1)
67 400-80833 SPONGE (6)
68 402-15068 SPONGE_XL (4)
69 402-15059 CEILING_PLATE_R (1)
70 SL-6061292-TN SCREW (2)
71 402-15060 CEILING_PLATE_B (1)
72 SL-6061292-TN SCREW (2)
73 L110E-121-000 BASEPLATENUT (1)
74 SL-6052592-TN BOLT (1)
75 402-15061 CEILING_PLATE_L (1)
76 SL-6061292-TN SCREW (4)
77 401-78630 LOW_HEAD_SCREW_M6 (2)
78 402-15194 HOLE_COVER_ASSY_XL 1
79 SL-6061292-TN SCREW (4)
80 402-11485 HOLE_COVER_COPLA (1)
81
#01
CM-3001000-01 LABEL 2
82
#01
EZ-1482181-11 FERRITECLAMP(GRFC-13) 5
83
#01
EA-9500B02-00 CABLEBAND150 2
84
#01
EA-9500B01-00 CABLEBAND 5
85 PS-0400122-KP SPRINGPIN 8
86 HX-0055700-00 TIEMOUNT 11
87 SM-4061201-SC SCREWM6L=12 11
88
#01
100-04109 GROUNDMARK 2
