- - 32. COVERCOMPONEN TS(14)(RS-1R)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-96671 COVER_CUL_ASM_CD 1

2 401-96684 COVER_CUL (1)

3 SL-3061232-TN SCREWM6L=12 (10)

4 401-36850 MOTOR_COVER_R (1)

5 400-81751 B_COVER_SCREW (4)

6 401-47149 COVER_BR_B (1)

7 SL-6061292-TN SCREW (2)

8 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)

9 401-96672 COVER_CUR_ASM_CD 1

10 SL-6061292-TN SCREWM6L=12 (4)

11 SL-3061232-TN SCREWM6L=12 (12)

12 401-83469 CONNECTOR_BR (1)

13 HX-0029400-00 FIXEDBASE (2)

14 SM-4040601-SC SCREWM4X0.7L=6 (2)

15 401-89268 CB_BRACKET_RS (1)

16 SM-6061202-TN SCREW (4)

17 401-10219 FC_SUPPORT_Y_V2 (1)

18 SM-6060802-TN SCREW (2)

19 401-29009 SIGNALTOWERCABLEASM (1)

20 SL-6041292-TN SCREWM4L=12 (4)

21 401-83384 COVER_CUR (1)

22 401-96690 COVER_STAY_CUR (1)

23 SM-1051052-TN PLATESCREWM5L=10 (8)

24 401-96673 COVER_CUC_ASM_CD 1

25 SL-6061292-TN SCREWM6L=12 (4)

26 SL-6051292-TN SCREWM5L=12 (24)

27 401-89090 DCFANASM (3)

28 SL-4033591-SC SCREWM3L=35 (6)

29 SL-4031091-SC SCREWM3L=10 (4)

30 HX-0051900-00 FIXINGBASE (4)

31 NM-3034000-SF FLANGENUT (10)

32 401-96685 COVER_CUC (1)

33 401-83447 ASSIST_HINGE (4)

34 HX-0034400-00 HARNESSPARTS (3)

35 SM-4040601-SC SCREWM4X0.7L=6 (3)

36 401-96676 COVER_SUR_ASM_CD 1

37 400-81751 B_COVER_SCREW (8)

38 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)

39 401-83440 COVER_SUR (1)

40 SL-3061232-TN SCREWM6L=12 (7)

41 401-47149 COVER_BR_B (1)

42 SL-6061292-TN SCREWM6L=12 (2)

43 401-47150 MTC_SHUTTLE_COVER (1)

44 401-96692 SUR_MOTOR_COVER (1)

#01

401-87790 CONVEYOR_COVER_L_ASM 1

#02

401-87791 CONVEYOR_COVER_R_ASM 1

47 E1143-721-000 WOOLENCLOTHPAPER (4)

48 401-47167 CONVEYOR_COVER_L (2)

49 401-47168 CONVEYOR_SIDE_COVER_L (2)

50 401-47169 CONVEYOR_UPPER_COVER_L (2)

51 401-47170 CONVEYOR_COVER_STOPPER (2)

52 400-01484 CONVEYORSHUTTERU(LEN) (2)

53 400-01485 CONVEYORSHUTTERB(LEN) (2)

54 SM-0040601-SC SCREWM4X0.7L=6 (38)

55 400-01490 TAPE (3)

- -

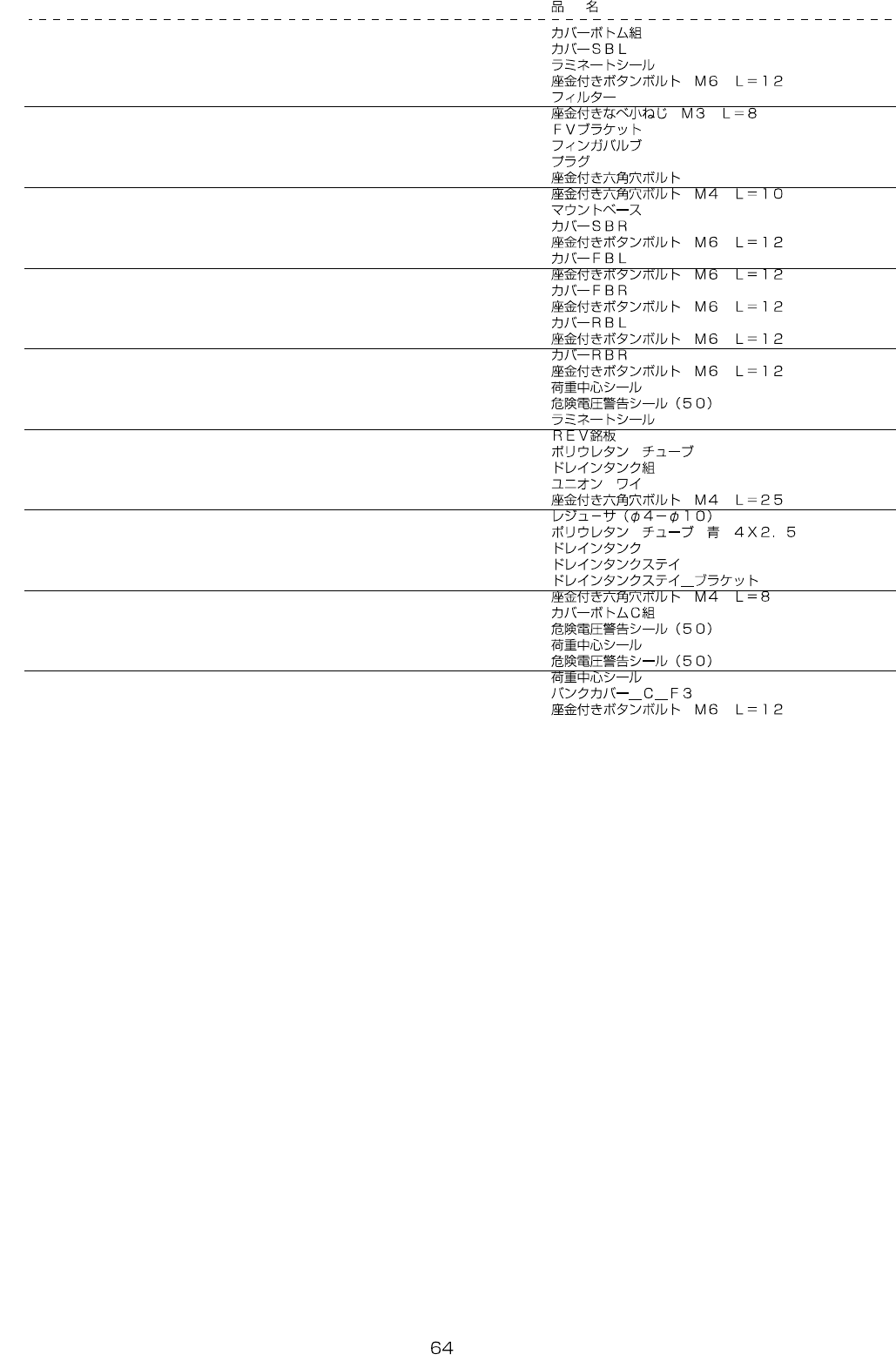

32.COVERCOMPONENTS(14)(RS-1R)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-18347 COVER_BOTTOM_ASM 1

2 401-47105 COVER_SBL (1)

3 401-11970 LAMINATING_SEAL (1)

4 SL-3061232-TN SCREWM6L=12 (6)

5 HM-0010100-10 FILTER (2)

6 SL-4030891-SC SCREWM3L=8 (4)

7 400-00550 FVBRACKET (1)

8 PV-0152120-00 FINGERVALVE (1)

9 PJ-0252000-03 PLUG (1)

10 SL-6032542-TN SCREW (2)

11 SL-6041092-TN SCREWM4L=10 (2)

12 HX-0070600-0A MOUNTBASE (2)

13 401-47107 COVER_SBR (1)

14 SL-3061232-TN SCREWM6L=12 (5)

15 401-47082 COVER_FBL (1)

16 SL-3061232-TN SCREWM6L=12 (4)

17 401-47083 COVER_FBR (1)

18 SL-3061232-TN SCREWM6L=12 (4)

19 401-87352 COVER_RBL (1)

20 SL-3061232-TN SCREWM6L=12 (4)

21 401-87353 COVER_RBR (1)

22 SL-3061232-TN SCREWM6L=12 (4)

23 168-70206 GRAVITYSEAL (2)

24 CM-3001000-04 DANGERLABEL(50) (3)

25 401-81150 LAMINATING_SEAL (1)

26 E9635-455-000 REVISIONSEAL (1)

27 BT-1000651-EB POLYURETHANETUBE (1.7)

28 400-93785 ASM_DRAIN_TANK (1)

29 PJ-3081000-01 UNIONY (1)

30 SL-6042592-TN SCREWM4L=25 (1)

31 PJ-3090400-03 REDUCER4-10 (1)

32 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.16)

33 400-16815 DRAINTANK (1)

34 400-16814 DRAINTANKSTAY (1)

35 400-93721 DT_STAY_BR (1)

36 SL-6040892-TN SCREWM4L=8 (4)

37 402-22173 COVER_BOTTOM_C_ASM (1)

38 CM-3001000-04 DANGERLABEL(50) (1)

39 168-70206 GRAVITYSEAL (1)

40 CM-3001000-04 DANGERLABEL(50) (1)

41 168-70206 GRAVITYSEAL (1)

42 402-22165 BANK_COVER_C_F3 (2)

43 SL-3061232-TN SCREWM6L=12 (8)
