RS-1_RS-1-XL_RS-1R-Rev16.pdf - 第20页

- - 7. BASEFRAME ELECTRICAPPARAT USCOMPONENT S(1)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-15193 BASE_PLATE_ASSY_XL 1

2 402-15096 BASE_PLATE_CB (1)

3 402-15097 BASE_PLATE_R_XL (1)

4 402-15098 BASE_PLATE_L_XL (1)

5 L110E-121-000 BASEPLATENUT (12)

6 SL-6052592-TN SCREWM5L=25 (12)

7 400-94475 BPWASHER (4)

8 400-44814 WASHERPLATE (2)

9 400-94474 TRANS_BOLT (2)

10 NM-6120001-SC NUTM12X1.75TYPE1 (2)

11 100-04109 GROUNDMARK (3)

12 CM-2001000-01 PEMARKLABEL (1)

13 401-95247 BASE_PLATE_C (1)

14 HX-0051900-00 FIXINGBASE (1)

15 SL-4040691-SC SCREWM4L=6 (19)

16

#02

HX-0018800-0F GROMMET 1

17

#03

HX-0057900-00 PERFECTROCK 1

18 402-15195 EJECTOR_ASSY_XL 1

19 SL-6051092-TN SCREWM5L=10 (2)

20 PJ-3040852-01 ELBOWUNION8XPT1/4 (3)

21 402-01542 EJECTOR (1)

22 SL-6041092-TN SCREWM4L=10 (4)

23 402-06568 BUSHING (2)

24 PV-0253010-00 CHECKVALVE (1)

25 402-01547 EXHAUST_HOSE (0.18)

26 402-01546 HOSE_JOINT (1)

27 PX-0553030-00 SILENCER (1)

28 402-15093 MUFFLER_COVER (1)

29 402-15094 EJECTOR_BASE (1)

30 SL-6040892-TN SCREWM4L=8 (4)

31 402-05717 EJSVCABLEASM (1)

32 401-83540 ACINPUTUNIT 1

33 401-82379 NOISEFILTER (1)

34 SL-6040692-TN SCREWM4L=6 (2)

35 SM-4040601-SC SCREWM4X0.7L=6 31

36

#01

401-91280 TRANSFORMER 1

37

#01

HN-0040100-00 NOISEFILTER 1

38 HX-0029400-00 FIXEDBASE 31

39 400-94475 BPWASHER 4

40 NM-6100001-SC NUTM10X1.5 4

- -

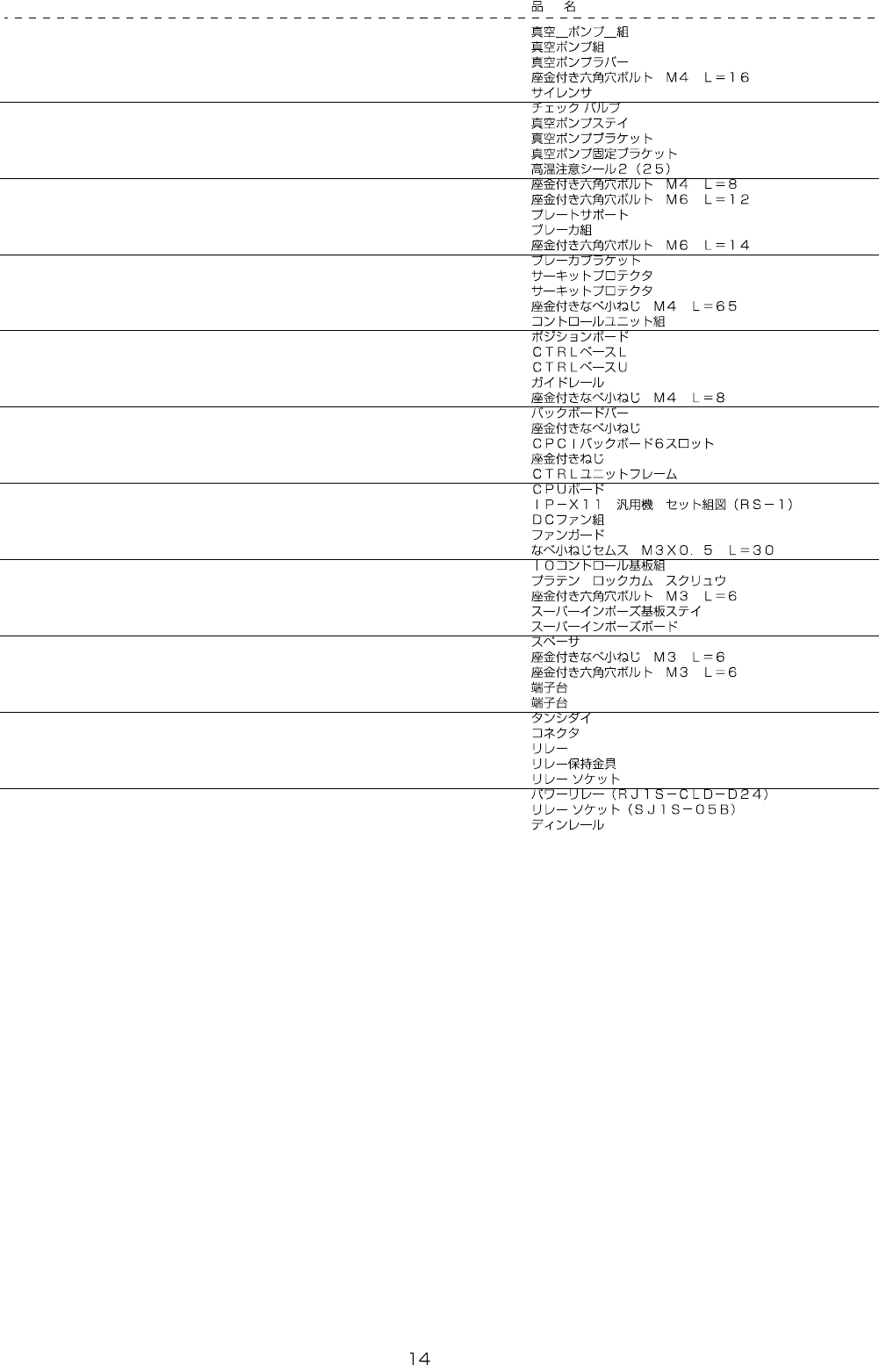

7. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(1)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-47582 VACUUM_PUMP_ASM 1

2 401-29244 VACUUMPUMPASM (1)

3 401-66451 VP_RUBBER (2)

4 SL-6040642-TN SCREWM4L=6 (2)

5 PX-0553020-00 SILENCER (1)

6 PV-0253010-00 CHECKVALVE (1)

7 401-66450 VP_STAY (1)

8 401-66448 VP_BR (1)

9 401-66449 VP_FIX_BR (2)

10 CM-3003000-02 LABEL2(25) (1)

11 SL-6040892-TN SCREWM4L=8 (4)

12 SL-6061292-TN SCREWM6L=12 4

13 401-47523 PLATE_SUPPORT 2

14 401-83539 BREAKER_ASM 1

15 SL-6061492-TN SCREWM6L=14 (2)

16 401-83474 BREAKER_BR (1)

17 401-82380 CIRCUITPROTECTOR (1)

18 401-82381 CIRCUITPROTECTOR (1)

19 SL-4046581-SC SCREWM4L=65 (2)

20 401-83537 CTRL_UNIT_ASM 1

21 401-96265 POSITIONBOARD (1)

22 401-47545 CTRL_BASE_L (1)

23 401-47544 CTRL_BASE_U (1)

24 HX-0002600-00 GUIDERAIL (14)

25 SL-4040891-SC SCREWM4X8 (8)

26 400-47087 BACK_BOAD_BAR (1)

27 SL-4031491-SC SCREWM3X14 (3)

28 401-72512 CPCIBACKBOARD6SLOT (1)

29 SL-4851091-SC SCREW (16)

30 401-47546 CTRL_UNIT_FRAME (1)

31 401-23242 CPUBOARD (1)

32 401-90921 IP-X11SETGENASM(RS-1) (1)

33 401-89090 DCFANASM (1)

34 HM-0003300-30 FANGUARD (1)

35 SL-4033091-SC SCREWM3L=30 (2)

36 401-28871 IOCONTROLPCBASM (1)

37 E1038-871-000 PLATENLOCKCAMSCREW (2)

38 SL-6030692-TN SCREWM3L=6 (2)

39 401-82995 SUPER_INPAUSE_PWB_STAY (1)

40 401-97864 SUPERIMPOSEBOARD (1)

41 HX-0035400-0S SPACER (4)

42 SL-4030681-SC SCREWM3L=6 (4)

43 SL-6030692-TN SCREWM3L=6 (1)

44 HK-0691900-0B BLOCKTERMINAL (4)

45 HK-0693500-10 BLOCKTERMINAL (4)

46 HK-0696900-00 BLOCKTERMINAL (1)

47 HK-0863100-60 CONNECTOR (1)

48 HB-0018100-00 RELAY (1)

49 HB-0002100-10 RELAY (2)

50 HB-0004800-10 RELAY (1)

51 EZ-1755690-11 RELAYPOWER(RJ1S-CLD-D24) (4)

52 EZ-1755691-11 SOCKETRELAY(SJ1S-05B) (4)

53 400-47145 DIN_RAIL (1)
