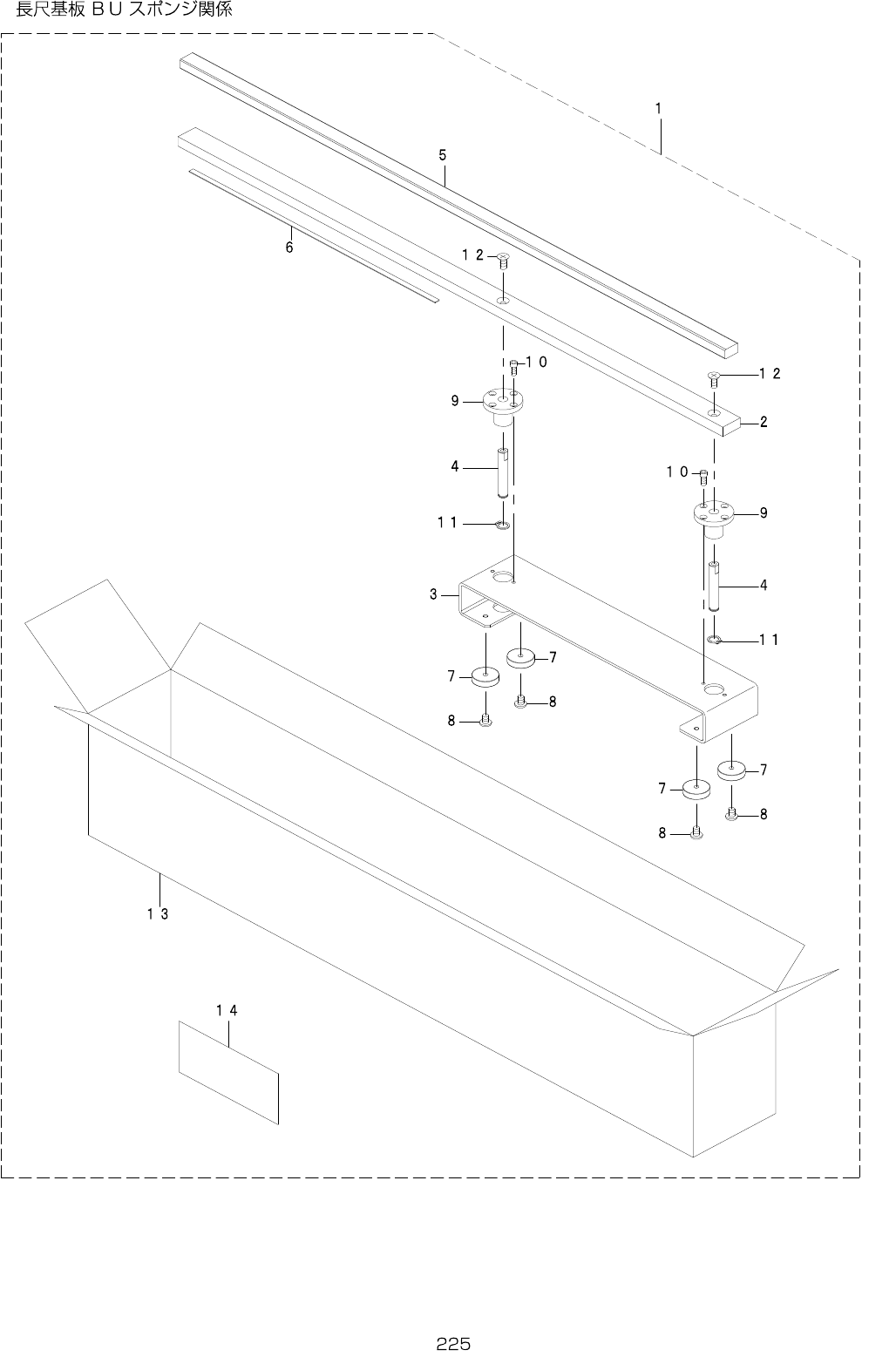

113.LONGBOARDBUSPONGECOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-11593 LONG_BOARD_BU_SPONGE_ASM 1

2 402-11619 SPONGE_BASE (1)

3 402-11621 BU_SPONGE_BASE (1)

4 402-14192 BU_SLIDE_SHAFT (2)

5 401-96546 EMIGASKET (1)

6 401-28507 SLIDE_SHEET (1)

7 401-34189 MAGNET (4)

8 SM-4040601-SC SCREWM4X0.7L=6 (4)

9 SB-8080001-00 BEARING (2)

10 SM-6030802-TN SCREW (4)

11 RC-0740811-KP C-RING8(7.4) (2)

12 SM-1041001-SC SCREWM4X0.7L=10 (2)

13 400-99436 S_CARTON_L_SIZE (1)

14 E6953-861-B00 CONTENTLABEL (1)

- -
