46 Bosch Rexro th Corporation Electric Drives and Controls Go T o | USC00017/10.2021 IndraControl XM - F unc tion Modules Go T o Focuse d Del ive r y Progr am: M otion Contr ol PAC IndraContr ol XM - F unction Modules In…
USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 45
Part Number Description Max. Quantity Shipment (Business Days)
R911370639 XM2100.01-01-31-31-301-NN-100NNNN 1 5 day(s)
R911375025 XM2100.01-01-31-31-001-NN-101NNNN 1 5 day(s)
R911391308 XM2100.01-01-31-31-001-NN-111NNNN 1 5 day(s)
R911370704 XM2100.01-01-31-31-301-NN-101NNNN 1 5 day(s)
R911391313 XM2100.01-01-31-31-301-NN-111NNNN 1 5 day(s)
R911388677 XM2200.01-01-31-31-001-NN-101NNNN 1 5 day(s)
R911391318 XM2200.01-01-31-31-001-NN-111NNNN 1 5 day(s)
R911370638 XM2200.01-01-31-31-301-NN-101NNNN 1 5 day(s)
R911391324 XM2200.01-01-31-31-301-NN-111NNNN 1 5 day(s)
R911342844 FWS-XM21**-MLC-OCI****-00-NNNN 1 5 day(s)
R911342843 FWS-XM21**-MLC-OPCUA**-00-NNNN 1 5 day(s)
R911389263 FWS-XM21**-MLC-ROCO**B-00-NNNN 1 5 day(s)
R911342839 FWS-XM21**-MLC-TECH***-00-NNNN 1 5 day(s)
R911344247 FWS-XM22**-MLC-HYD****-00-NNNN 1 5 day(s)
R911344250 FWS-XM22**-MLC-OCI****-00-NNNN 1 5 day(s)
R911344249 FWS-XM22**-MLC-OPCUA**-00-NNNN 1 5 day(s)
R911344246 FWS-XM22**-MLC-ROCO***-00-NNNN 1 5 day(s)
R911389265 FWS-XM22**-MLC-ROCO**B-00-NNNN 1 5 day(s)
R911344245 FWS-XM22**-MLC-TECH***-00-NNNN 1 5 day(s)
46 Bosch Rexroth Corporation Electric Drives and Controls GoTo | USC00017/10.2021
IndraControl XM - Function Modules
GoTo Focused Delivery Program: Motion Control PAC
IndraControl XM - Function Modules
IndraControl XFE are the modular extension for all IndraControl XM
controls from performance class XM21. The extension modules can expand
the function and integration capability of the system easily. The concept
enables up to three extension modules on one control at the same time.
Communication modules are available for Multi-Ethernet and PROFIBUS as
a master/slave interface.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToMotionControl_PAC
Features
• Top hat rail mounting
• IP20 rating
• Ambient temperature (in operation): -25 ... +60 °C
• Multi-Ethernet and PROFIBUS eldbus interfaces
• Master/slave modules to reduce the version numbers
• Powerful system activation via PCIexpress
Part Number Description Max. Quantity Shipment (Business Days)
R911173397 XFE01.1-FB-03 1 5 day(s)
USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 47

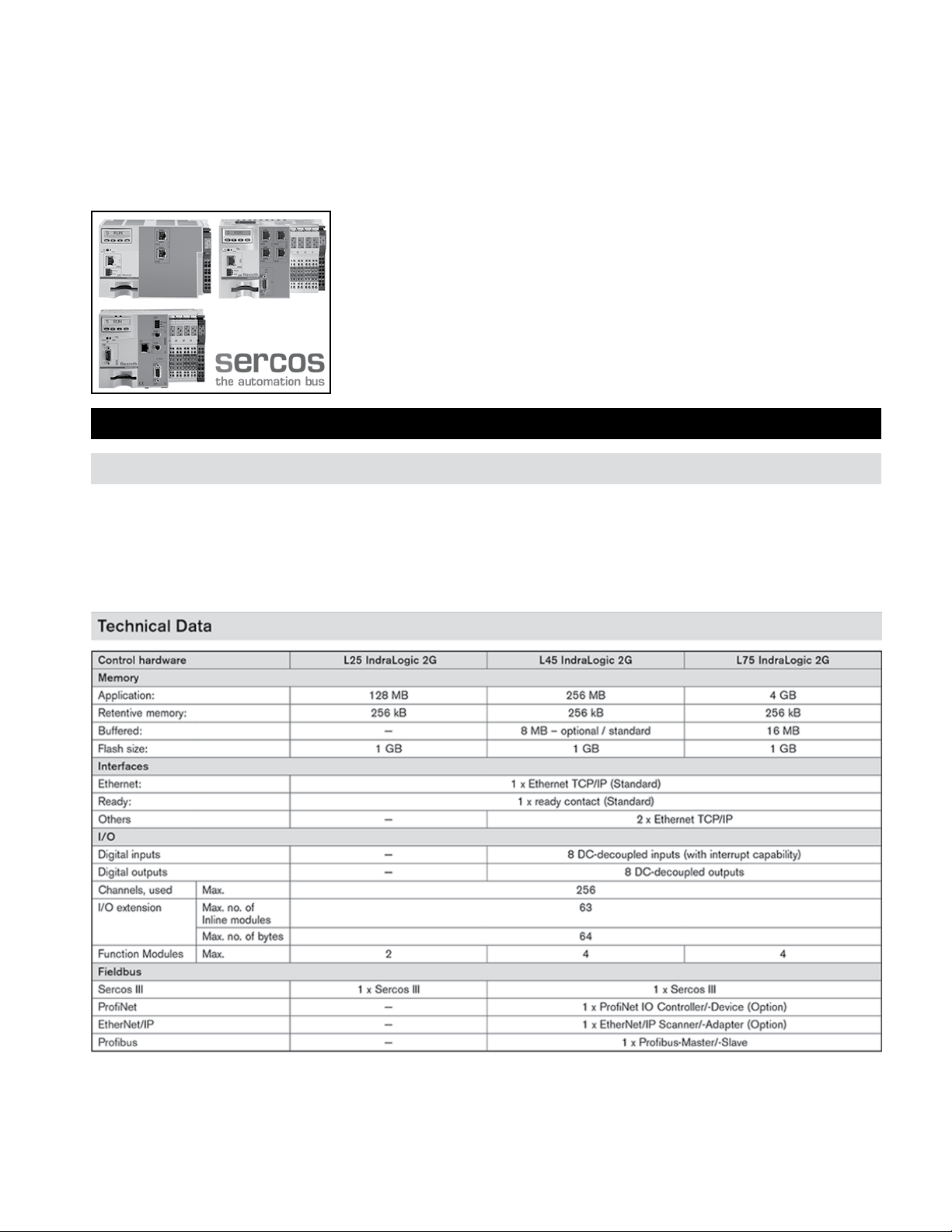

IndraControl L
GoTo Focused Delivery Program: Motion Control PAC
IndraControl L
IndraControl L the rack-based platform from Rexroth allows easy and
consistent automation for all centralized and distributed architectures.
IndraControl L is the exible congurable hardware platform for open
control architectures. Whether you intend to implement a motion control,
a CNC or a PLC application - it is always the same hardware you use. Your
application is only dened by the software.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToMotionControl_PAC
Features
• Scalable hardware platform
• Standardized communication interfaces
• Optional expansion through function and technology modules
• Ideal for centralized and distributed control
• Individually expandable with high-grade Human-Machine Interface (HMI) components
• Modular I/O units
