USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 81
Communication Modules
GoTo Focused Delivery Program: I/O
Inline - Cabinet Mount (IP20) - Communication Modules
These Communication modules are designed for use within an Inline
station. It is used to operate standard I/O devices with serial interfaces on
a bus system Parameterization and data exchange is carried out via the bus
using process data.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• 4 KB receive buffer and 1 KB transmit buffer
• Wiring terminals easily removed to allow module replacement without rewiring
• Serial modules can be congured to read and write different frames and baud rates
• Diagnostic and status indicators.
Part Number Description Max. Quantity Shipment (Business Days)
R911170440 R-IB IL RS232-PRO-PAC 5 3 day(s)
R911170442 R-IB IL RS485/422-PRO-PAC 5 3 day(s)
82 Bosch Rexroth Corporation Electric Drives and Controls GoTo | USC00017/10.2021
Motion and Counter Modules
GoTo Focused Delivery Program: I/O
Inline - Cabinet Mount (IP20) - Motion and Counter
Modules
Compact modules utilizing spring-cage I/O connectors. Provide the
capability to do basic motion control without resorting to complex motion-
controller PLCs. Step and direction control of steppers is also available.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• Wiring terminals easily removed to allow module replacement without rewiring
• Inputs can read from 5 V DC to 24 V DC inputs
• Incremental and Absolute Encoder Input modules available
• CNT module can count events, calculate frequency and generate pulse streams
Part Number Description Max. Quantity Shipment (Business Days)
R911170788 R-IB IL CNT-PAC 5 3 day(s)
R911308491 R-IB IL INC-IN-PAC 5 3 day(s)
R911308594 R-IB IL SSI-PAC 5 3 day(s)
USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 83

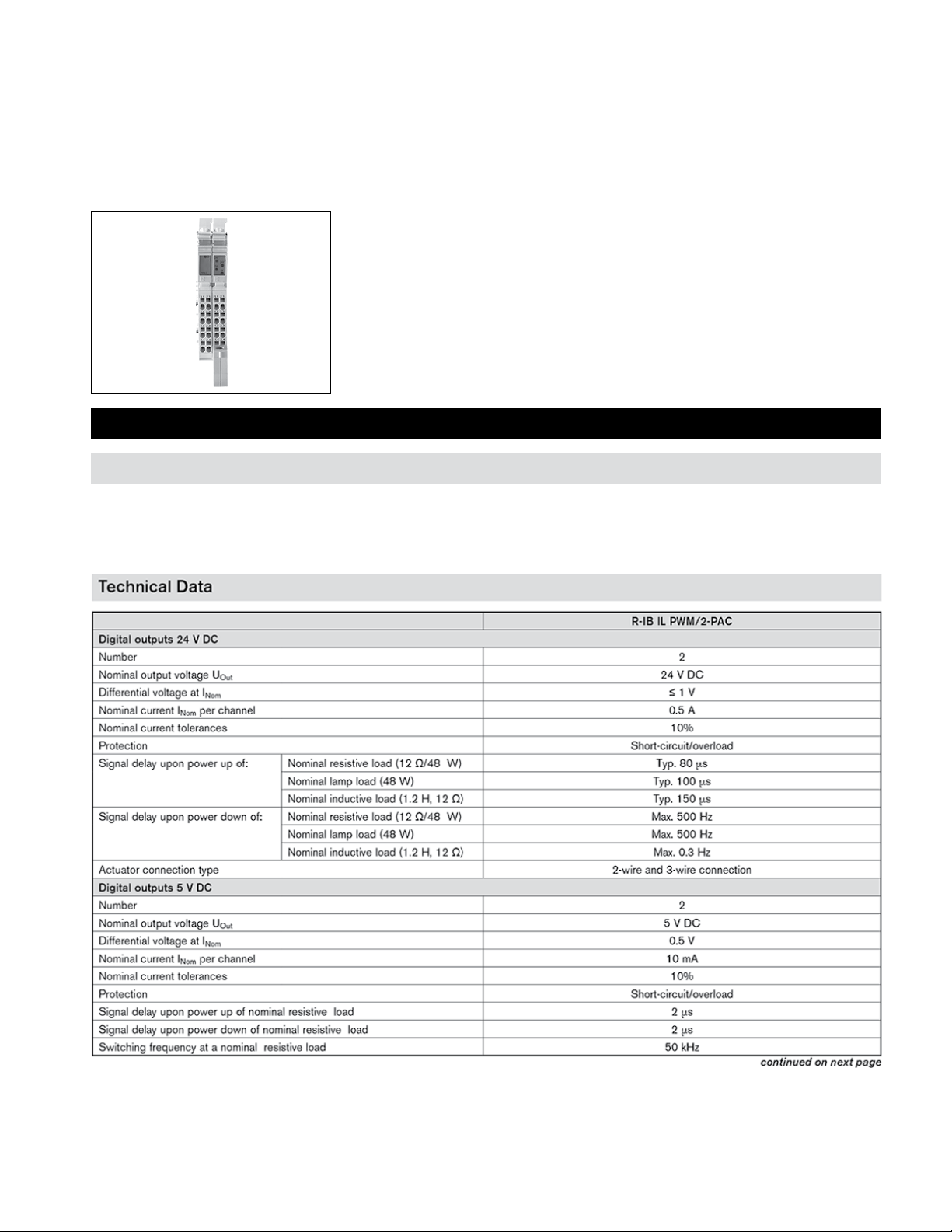

PWM Output Module
GoTo Focused Delivery Program: I/O
Inline - Cabinet Mount (IP20) - PWM Output Module
The terminal is designed for use within an inline station. It can be used
in the four different operating modes: PWM (pulse width modulation),
frequency generator, single shot (single pulse generator), and pulse
direction signal.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• Two independently operating channels
• Output signals as 5 V or 24 V signals
• Short-circuit protected and overload protected outputs
• Diagnostic and status indicators
