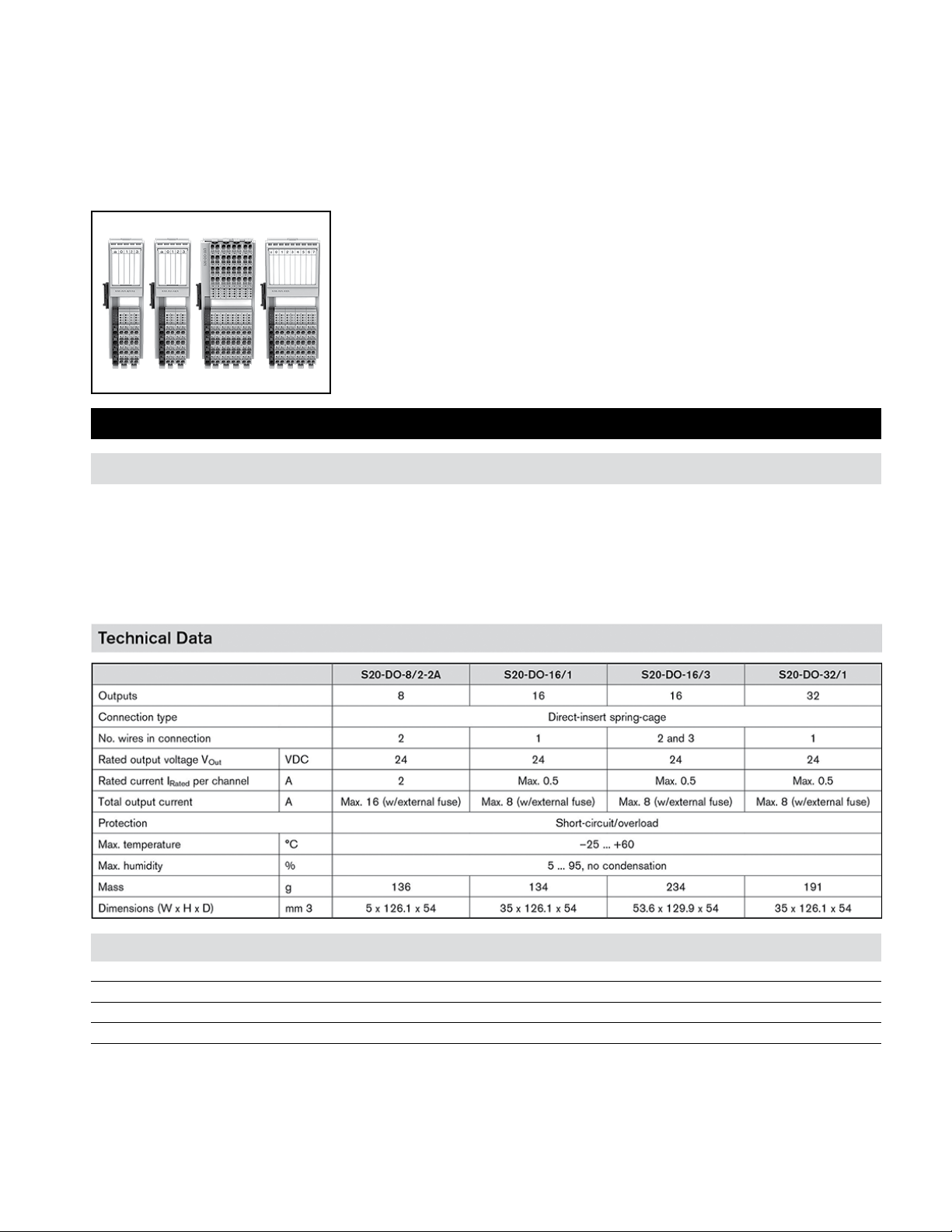

Digital Output Modules
GoTo Focused Delivery Program: I/O
IndraControl S20 (IP20) - Digital Output Modules
The IndraControl S20 modules are used for recording digital input signals
e.g. keys, limit switches or proximity switches. They are connected locally
to the IndraControl XM controller or remotely using an IndraControl S20
eldbus coupler.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• IP20 rating
• Electronic device nameplate
• Diagnostic and status indicators
• 16, 32, and up to 64 digital inputs 24 VDC
• 1-,2-,3- and 4-wire sensor connection
• Min. update time: < 5 μs
• Filter times can be set in stages: < 5 μs, 100 μs, 1000 μs, or 3000 μs
Part Number Description Max. Quantity Shipment (Business Days)
R911172542 S20-DO-16/1 3 5 day(s)
R911172534 S20-DO-16/3 3 5 day(s)
R911172535 S20-DO-32/1 3 5 day(s)
R911172541 S20-DO-8/2-2A 3 5 day(s)
60 Bosch Rexroth Corporation Electric Drives and Controls GoTo | USC00017/10.2021
Digital In/Output Modules
GoTo Focused Delivery Program: I/O
IndraControl S20 (IP20) - Digital In/Output Modules
This IndraControl S20 module is used to acquire and output digital signals.
The digital inputs are used for recording sensors and the digital outputs are
used for outputting 24 VDC signals. Sensors or actuators can be connected
in 1-wire technology. The module is connected locally to the IndraControl
XM controller or remotely using an IndraControl S20 eldbus coupler.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• IP20 rating
• Electronic device nameplate
• Diagnostic and status indicators
• 8 digital inputs
• 8 digital outputs
• 1-wire sensor and actuator connection
• Reverse polarity protection on the inputs
• Short-circuit-proof outputs
Part Number Description Max. Quantity Shipment (Business Days)
R911173745 S20-DIDO-8/1 3 5 day(s)
USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 61
Analog Input Modules
GoTo Focused Delivery Program: I/O
IndraControl S20 (IP20) - Analog Input Modules
The IndraControl S20 modules record analog voltage or current signals.
They are connected locally to the IndraControl XM controller or remotely
using an IndraControl S20 eldbus coupler.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• IP20 rating
• Electronic device nameplate
• Diagnostic and status indicators
• 4, 8 analog inputs
• Current and voltage measuring ranges
• 500 Ω and 5 kΩ linear inputs
• Linear voltages of -100 mV...+100 mV
• Switchable or programmable lters
Part Number Description Max. Quantity Shipment (Business Days)
R911173249 S20-AI-4-I 3 5 day(s)
R911173256 S20-AI-4-U 3 5 day(s)
R911172536 S20-AI-8 3 5 day(s)
