3-2 Check and Solutions
3-2-1 Disk is Write Protected

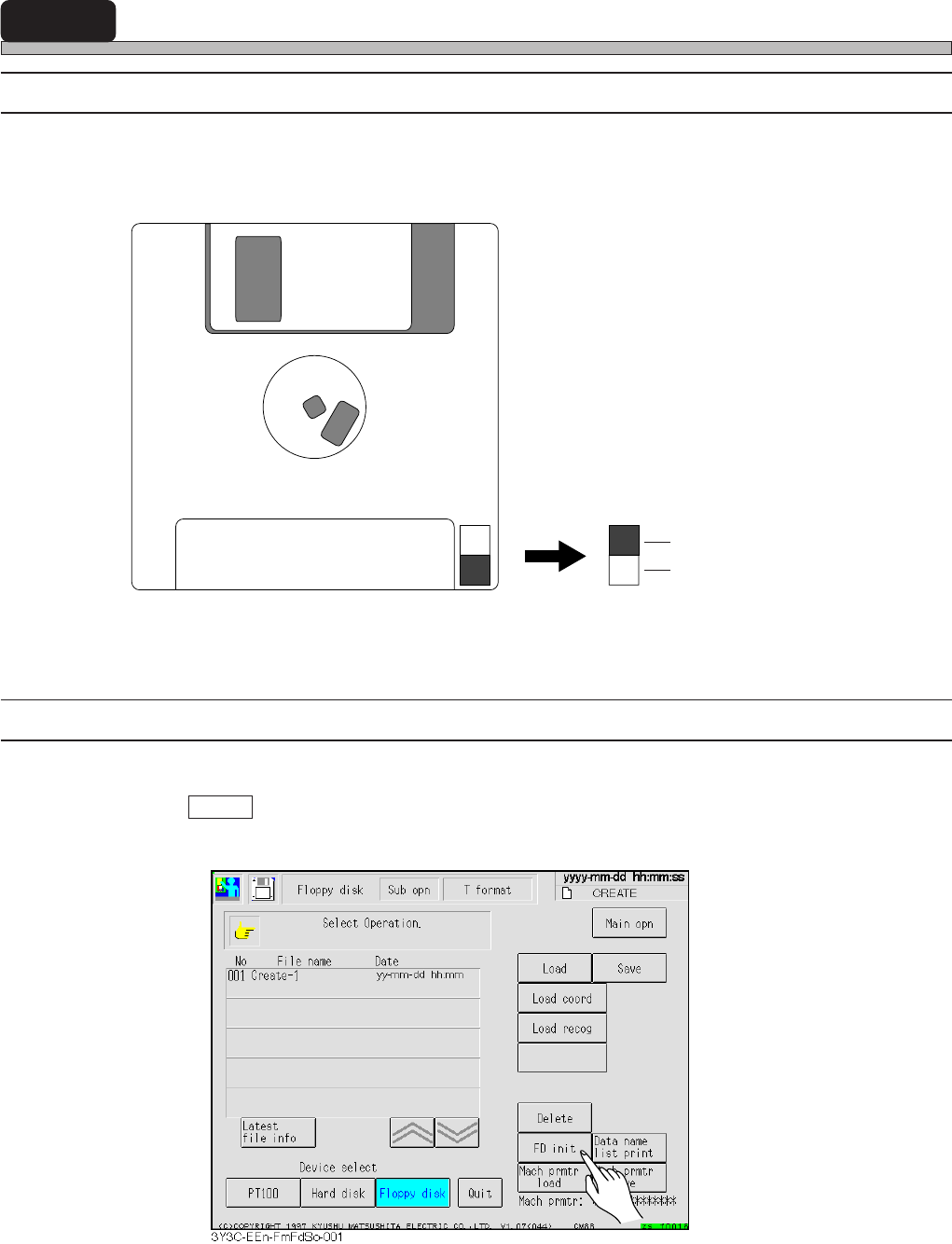

1. Making the floppy disk for writing
If the disk is for writing, make it able to write, and repeat the operation.
2. Preparing other floppy disk.
3-2-2 Format Error
1. Initializing the floppy disk
Select FD init on the “File operation” screen, and initialize the floppy disk.
Able to write
Unable to write
433C-109E
Page 3-11
SOLUTIONS FOR ERROR
3
3Y3C-E-MMD03-A02-01
Check and Solutions
3-2-3 Emergency Switch ON
1 Resetting the emergency stop button.
Pull the button forward to reset.
3-2-4 Servo Switch OFF
1 Turning ON servo switch.
Turn the switch to the right.
4G3C-AA01
E
M
E
R
G
E
N
C
Y
S
T
O
P
OFF ( )
ON ( )
SERVO
At the rear side of machine
(3 points)
E
M
E
R
G
E
N
C
Y
S
T
O
P
At the front side of machine
(2 points)
4G3C-AA01
At the rear operation panel
At the front operation panel
OFF ( )
ON ( )
SERVO
Page 3-12
3Y3C-E-MMD03-A02-02
Check and Solutions
3-2-5 Air Pressure Drop
1. Adjusting the air pressure
If the proper air pressure [0.5 MPa to 0.8 MPa] is not supplied, adjust the pressure to the specified
one in the following order.
2. Setting the air pressure detection value
If the air pressure is not set to the specified one, [0.4 MPa], set it to the specified air pressure
detection value in the following way.
1
Unlock valve.
2
Adjust it.
3
Lock it.
Valve
4G3C-AA01
3Y3C-090P
3Y3C-089P
Set
Air pressure adjustment
Setting the detection value
