1007-001 Fig. A1-2 駆動部 Driving Section 108 179 177 180 1A1 1A2 1A5 1A6 1A3 1A4 1A7 1 15 1C3 1C6 1C2 1C4 1C1 155 1 16 1C5 1 14 1A9 152 153 1C8 1C9 1B0 1D6 1D5 1 D1 1D4 1D3 1D0 1B1 175 174 176 1A9 1A8 186 1D2 A 175 173 176…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1007-001
Fig. A1-1
8 0924000P PLATE_NOTICE 1 109240000H-008
9 0924000Q PLATE_NAME 1 109240000H-009
10 0924000R PLATE_INDEX 1 109240000H-010
12 08040000 PLATE_INDEX 1 109240000H-012
13 210A2657 BASE 1 109240000H-013
34 211FD071 BRACKET 1 109240000H-034
35 0924B100 HANDLE 1 109240000H-035
37 211DB929 PLATE 1 109240000H-037
38 211G5105 BLOCK(KIBAN) 1 109240000H-038
39 016S0872 ASSY_LEVER 1 109240000H-039
40 216D0517 PIN_HINGE 1 109240000H-040
41 016S1022 ASSY_LEVER 1 109240000H-041
42 222P0207 SPRING_TORSION 1 109240000H-042
43 216D0448 PIN_HINGE 1 109240000H-043
44 213C0206 ROLLER 1 109240000H-044
45 216F0879 PIN_GUIDE(ROLLE 1 109240000H-045
46 211G3564 BLOCK 1 109240000H-046
47 212C0358 SLIDE(BASE) 1 109240000H-047
55 226H0070 CLAMP 1 109240000H-055
69 221A1024 SROHS_HEX-SCT 4 109240000H-069
71 221A1026 SROHS_HEX-SCT 2 109240000H-071
72 221A1031 SROHS_HEX-SCT 2 109240000H-072
75 221H1004 SFW04 4 109240000H-075
76 221H1016 SSW04 4 109240000H-076
77 221A1042 SROHS_HEX-SCT 2 109240000H-077
79 221H1005 SFW05 2 109240000H-079
80 221H1017 SSW05 2 109240000H-080
81 221KB001 SSET_SCREW 2 109240000H-081
82 221D1028 SMACHINE_SCREW 1 109240000H-082
84 221DA051 SEMS_PANHEADSCR 2 109240000H-084
85 221D1005 SMACHINE_SCREW 2 109240000H-085
88 211A8626 COVER(HAISEN) 1 109240000H-088
89 0804000M MECH_PARTS 1 109240000H-089
FX-G200
1007-001

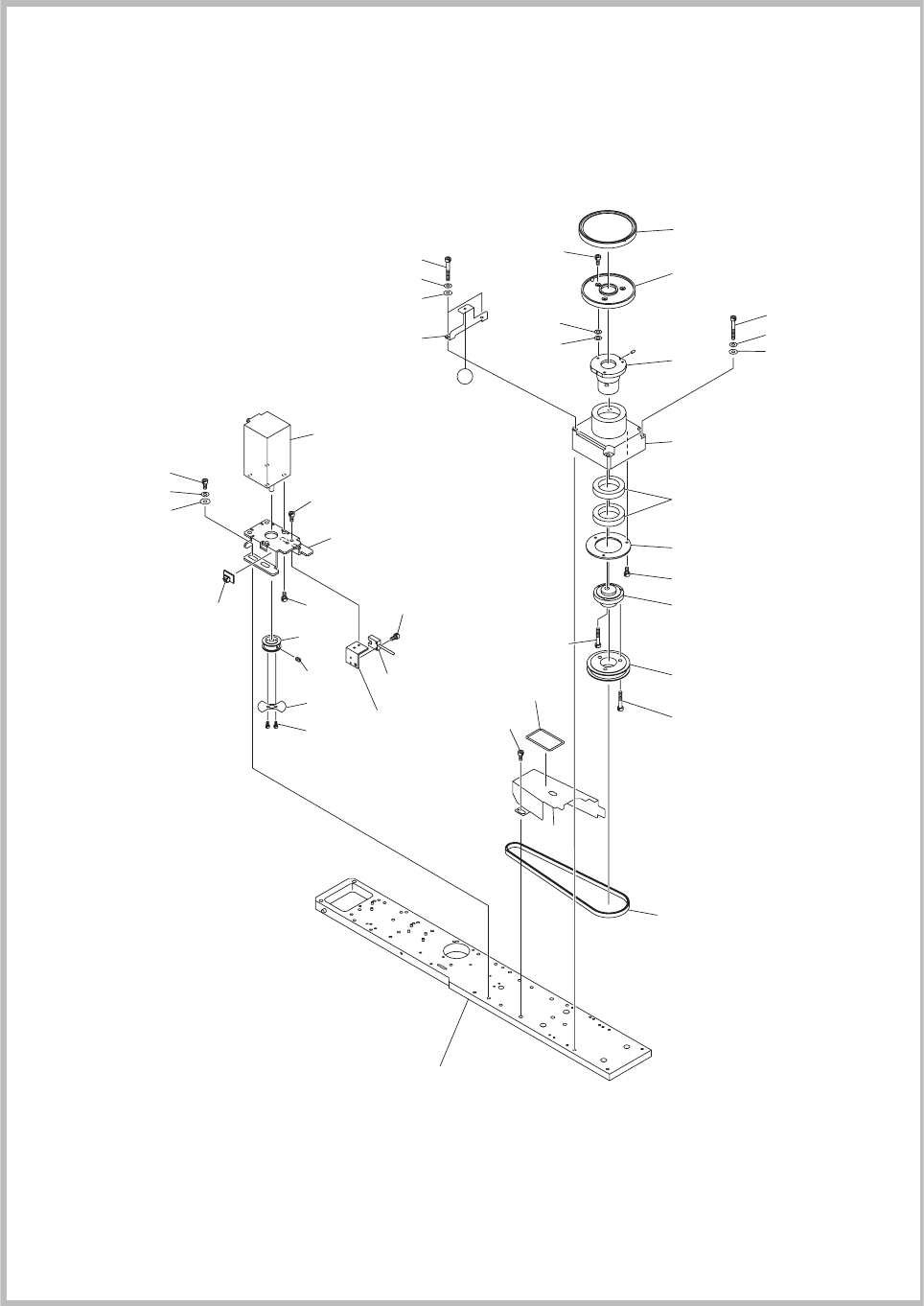

Fig. A1-2
駆動部
Driving Section
108
179
177
180
1A1
1A2
1A5
1A6
1A3
1A4
1A7
115
1C3
1C6
1C2
1C4
1C1
155
116
1C5
114
1A9
152
153
1C8
1C9
1B0
1D6
1D5
1
D1
1D4
1D3
1D0
1B1
175
174
176
1A9
1A8
186
1D2
A
175
173
176
See Fig A1-1
Key No.13
Fig. A1
フラックス塗布ユニット
FLUX DISPENSING UNIT
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1007-001
Fig. A1-2
108 0924000P PLATE_NOTICE 1 109240000H-008
114 211AC595 COVER 1 109240000H-014
115 223L0378 BELT_TIMING 1 109240000H-015
116 211FB059 BRACKET 1 109240000H-016
152 216L0191 RING(0_01T) 4 109240000H-052
153 216L0179 RING(0_02T) 4 109240000H-053
155 226H0070 CLAMP 1 109240000H-055
173 221A1034 SROHS_HEX-SCT 2 109240000H-073
174 221A1036 SROHS_HEX-SCT 2 109240000H-074
175 221H1004 SFW04 4 109240000H-075
176 221H1016 SSW04 4 109240000H-076
177 221A1042 SROHS_HEX-SCT 4 109240000H-077
179 221H1005 SFW05 4 109240000H-079
180 221H1017 SSW05 4 109240000H-080
186 221D1012 SMACHINE_SCREW 2 109240000H-086
1A1 213D1270 DISK 1 309240000D-001
1A2 213D1254 DISK 1 309240000D-002
1A3 211DB483 PLATE 1 309240000D-003
1A4 213A1305 SHAFT 1 309240000D-004
1A5 213A1354 SHAFT 1 309240000D-005
1A6 211G4795 BLOCK 1 309240000D-006
1A7 223Q0596 PULLEY_TIMING 1 309240000D-007
1A8 222D0424 BEARING_RADIAL 2 309240000D-008
1A9 221A1006 SROHS_HEX-SCT 6 309240000D-009
1B0 221A1026 SROHS_HEX-SCT 3 309240000D-010
1B1 221A1047 SROHS_HEX-SCT 1 309240000D-011
1C1 211FD070 BRACKET 1 309240000E-001
1C2 211DD405 PLATE 1 309240000E-002
1C3 211FD072 BRACKET 1 309240000E-003
1C4 223Q0676 PULLEY_TIMING 1 309240000E-004
1C5 4M170006 MOTOR 1 309240000E-005
1C6 09240005 ASSY_SENSOR 1 309240000E-006
1C8 221C2005 SSET_SCREW 2 309240000E-008
1C9 221AA121 ROHS_HEX-SCT 2 309240000E-009
1D0 221A0245 BOLT_HEX-SCT 2 309240000E-010
1D1 221A1007 SROHS_HEX-SCT 2 309240000E-011
1D2 221A1024 SROHS_HEX-SCT 4 309240000E-012
1D3 221H1001 SFW02 2 309240000E-013
1D4 221H1013 SSW02 2 309240000E-014
1D5 221H1003 SFW03 2 309240000E-015
1D6 221H1015 SSW03 2 309240000E-016
FX-G200
