Fig. A1-4 塗布部 Dispensing Section 1007-001 for 10cc for 30cc 3A0 3A8 3B4 3B6 3B1 317 397 396 3B6 3B4 3A9 3A6 3A5 379 378 380 394 3A1 392 391 3B6 3B4 3A9 3B7 3B5 3B3 368 367 366 3B2 399 393 3C1 3C3 3C2 355 324 395 323 322 …
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1007-001
Fig. A1-3
205 09240000 ASSY_FIBER 1 109240000H-005
206 09240001 ASSY_SENSOR 1 109240000H-006
228 23G00215 SENSOR_PELEC 1 109240000H-028
229 211FB283 BRACKET 1 109240000H-029
230 211FB284 BRACKET 1 109240000H-030
231 211FB356 BRACKET 1 109240000H-031
232 226G0060 PLUNGER 1 109240000H-032
233 226G0064 PLUNGER 1 109240000H-033
236 211FB123 BRACKET 1 109240000H-036
248 211G4794 BLOCK 1 109240000H-048
249 226J2146 SIM-0_01T 4 109240000H-049
250 226J2147 SIM-0_02T 4 109240000H-050
251 226J2148 SIM-0_03T 4 109240000H-051
254 211G4658 BLOCK 1 109240000H-054
259 221D1036 SMACHINE_SCREW 2 109240000H-059
260 221H1001 SFW02 2 109240000H-060
261 221H1013 SSW02 2 109240000H-061
262 221A1006 SROHS_HEX-SCT 2 109240000H-062
263 221A1008 SROHS_HEX-SCT 2 109240000H-063
264 221A1009 SROHS_HEX-SCT 4 109240000H-064
265 221A1014 SROHS_HEX-SCT 2 109240000H-065
267 221H1003 SFW03 2 109240000H-067
268 221H1015 SSW03 2 109240000H-068
290 23N30632 WIRING 10 109240000H-090
291 221DA053 MACHINE_SCREW 10 109240000H-091
292 23N30737 ACCESS_WIRING(M 10 109240000H-092
293 221FA010 NUT_HEX 1 109240000H-093
294 221FA012 NUT_HEX 1 109240000H-094
FX-G200

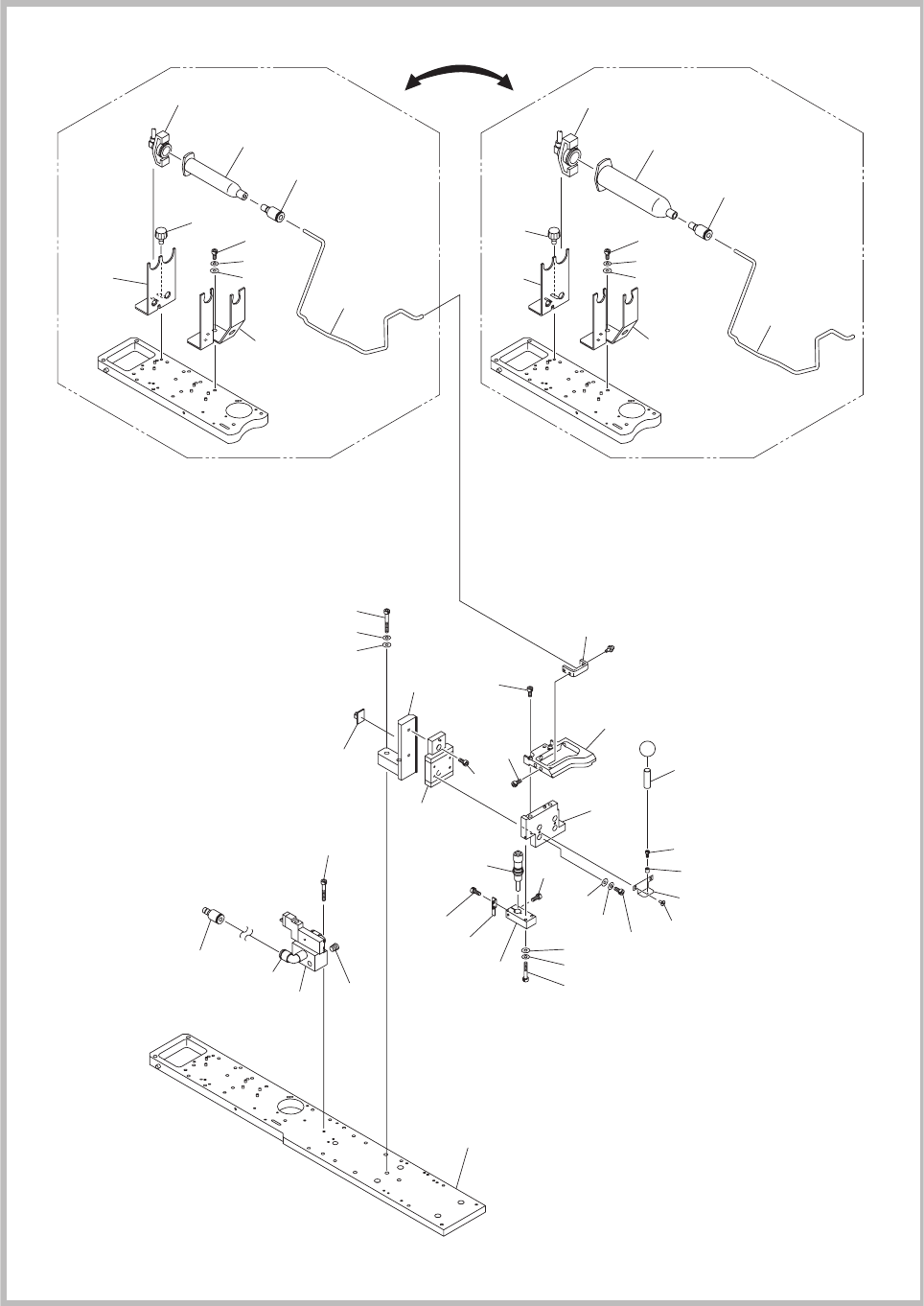

Fig. A1-4
塗布部
Dispensing Section
1007-001
for 10cc for 30cc
3A0
3A8
3B4
3B6
3B1
317
397
396
3B6
3B4
3A9
3A6
3A5
379
378
380
394
3A1
392
391
3B6
3B4
3A9
3B7
3B5
3B3
368
367
366
3B2
399
393
3C1
3C3
3C2
355
324
395
323
322
326
319
320
318
323
321
325
375
371
376
3B0
324
319
320
318
375
371
376
327
A
See Fig A1-1
Key No.13
Fig. A1
フラックス塗布ユニット
FLUX DISPENSING UNIT
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1007-001
Fig. A1-4
317 222M0103 SPRING_COMP 1 109240000H-017
318 211FB352 BRACKET 1 109240000H-018
319 211FB351 BRACKET 1 109240000H-019
320 211E0362 BOLT 1 109240000H-020
321 226J2254 MECHPARTS 1 109240000H-021
322 226J2270 MECHPARTS 1 109240000H-022
323 225F0666 PIPE_FITTINGS 1 109240000H-023
324 225G0332 TUBE 1 109240000H-024
325 225G0330 TUBE 1 109240000H-025
326 225G0331 TUBE 1 109240000H-026
327 225F0495 PIPE FITTING 1 109240000H-027
355 226H0070 CLAMP 1 109240000H-055
366 221A1017 SROHS_HEX-SCT 2 109240000H-066
367 221H1003 SFW03 2 109240000H-067
368 221H1015 SSW03 2 109240000H-068
371 221A1026 SROHS_HEX-SCT 1 109240000H-071
375 221H1004 SFW04 1 109240000H-075
376 221H1016 SSW04 1 109240000H-076
378 221A1050 SROHS_HEX-SCT 2 109240000H-078
379 221H1005 SFW05 2 109240000H-079
380 221H1017 SSW05 2 109240000H-080
391 211G4791 BLOCK 1 309240000C-001
392 211G4840 BLOCK 1 309240000C-002
393 211G4793 BLOCK 1 309240000C-003
394 211G4799 BLOCK 1 309240000C-004
395 211FB282 BRACKET 1 309240000C-005
396 211FB058 BRACKET 1 309240000C-006
397 216A1277 COLLAR 1 309240000C-007
399 222L0837 GUIDE_LINEAR 1 309240000C-009
3A0 228B0143 TOOL_MEASURE 1 309240000C-010
3A1 211FB293 BRACKET 1 309240000C-011
3A5 221A1001 SROHS_HEX-SCT 1 309240000C-015
3A6 221D1005 SMACHINE_SCREW 2 309240000C-016
3A8 221A1006 SROHS_HEX-SCT 2 309240000C-018
3A9 221A1007 SROHS_HEX-SCT 6 309240000C-019
3B0 221A1009 SROHS_HEX-SCT 1 309240000C-020
3B1 221A1012 SROHS_HEX-SCT 2 309240000C-021
3B2 221A1026 SROHS_HEX-SCT 2 309240000C-022
3B3 221A1042 SROHS_HEX-SCT 2 309240000C-023
3B4 221H1003 SFW03 3 309240000C-024
3B5 221H1005 SFW05 2 309240000C-025
3B6 221H1015 SSW03 3 309240000C-026
3B7 221H1017 SSW05 2 309240000C-027
3C1 09240006 ASSY_VALVE 1 309240000F-001
3C2 225F0550 PIPE FITTINGS 2 309240000F-002
