Fig. A1-3 ベース部２ Base Section 2 1007-001 236 231 230 264 232 294 293 267 262 268 229 228 264 261 260 259 205 206 263 265 248 233 254 251 250 249 291 290 292 See Fig A1-1 Key No.13 Fig. A1 フラックス塗布ユニット FLUX DISPENSING UNIT
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1007-001
Fig. A1-2
108 0924000P PLATE_NOTICE 1 109240000H-008
114 211AC595 COVER 1 109240000H-014
115 223L0378 BELT_TIMING 1 109240000H-015
116 211FB059 BRACKET 1 109240000H-016
152 216L0191 RING(0_01T) 4 109240000H-052
153 216L0179 RING(0_02T) 4 109240000H-053
155 226H0070 CLAMP 1 109240000H-055
173 221A1034 SROHS_HEX-SCT 2 109240000H-073
174 221A1036 SROHS_HEX-SCT 2 109240000H-074
175 221H1004 SFW04 4 109240000H-075
176 221H1016 SSW04 4 109240000H-076
177 221A1042 SROHS_HEX-SCT 4 109240000H-077
179 221H1005 SFW05 4 109240000H-079
180 221H1017 SSW05 4 109240000H-080
186 221D1012 SMACHINE_SCREW 2 109240000H-086
1A1 213D1270 DISK 1 309240000D-001
1A2 213D1254 DISK 1 309240000D-002
1A3 211DB483 PLATE 1 309240000D-003
1A4 213A1305 SHAFT 1 309240000D-004
1A5 213A1354 SHAFT 1 309240000D-005
1A6 211G4795 BLOCK 1 309240000D-006
1A7 223Q0596 PULLEY_TIMING 1 309240000D-007
1A8 222D0424 BEARING_RADIAL 2 309240000D-008
1A9 221A1006 SROHS_HEX-SCT 6 309240000D-009
1B0 221A1026 SROHS_HEX-SCT 3 309240000D-010
1B1 221A1047 SROHS_HEX-SCT 1 309240000D-011
1C1 211FD070 BRACKET 1 309240000E-001
1C2 211DD405 PLATE 1 309240000E-002
1C3 211FD072 BRACKET 1 309240000E-003
1C4 223Q0676 PULLEY_TIMING 1 309240000E-004
1C5 4M170006 MOTOR 1 309240000E-005
1C6 09240005 ASSY_SENSOR 1 309240000E-006
1C8 221C2005 SSET_SCREW 2 309240000E-008
1C9 221AA121 ROHS_HEX-SCT 2 309240000E-009
1D0 221A0245 BOLT_HEX-SCT 2 309240000E-010
1D1 221A1007 SROHS_HEX-SCT 2 309240000E-011
1D2 221A1024 SROHS_HEX-SCT 4 309240000E-012
1D3 221H1001 SFW02 2 309240000E-013
1D4 221H1013 SSW02 2 309240000E-014
1D5 221H1003 SFW03 2 309240000E-015
1D6 221H1015 SSW03 2 309240000E-016
FX-G200

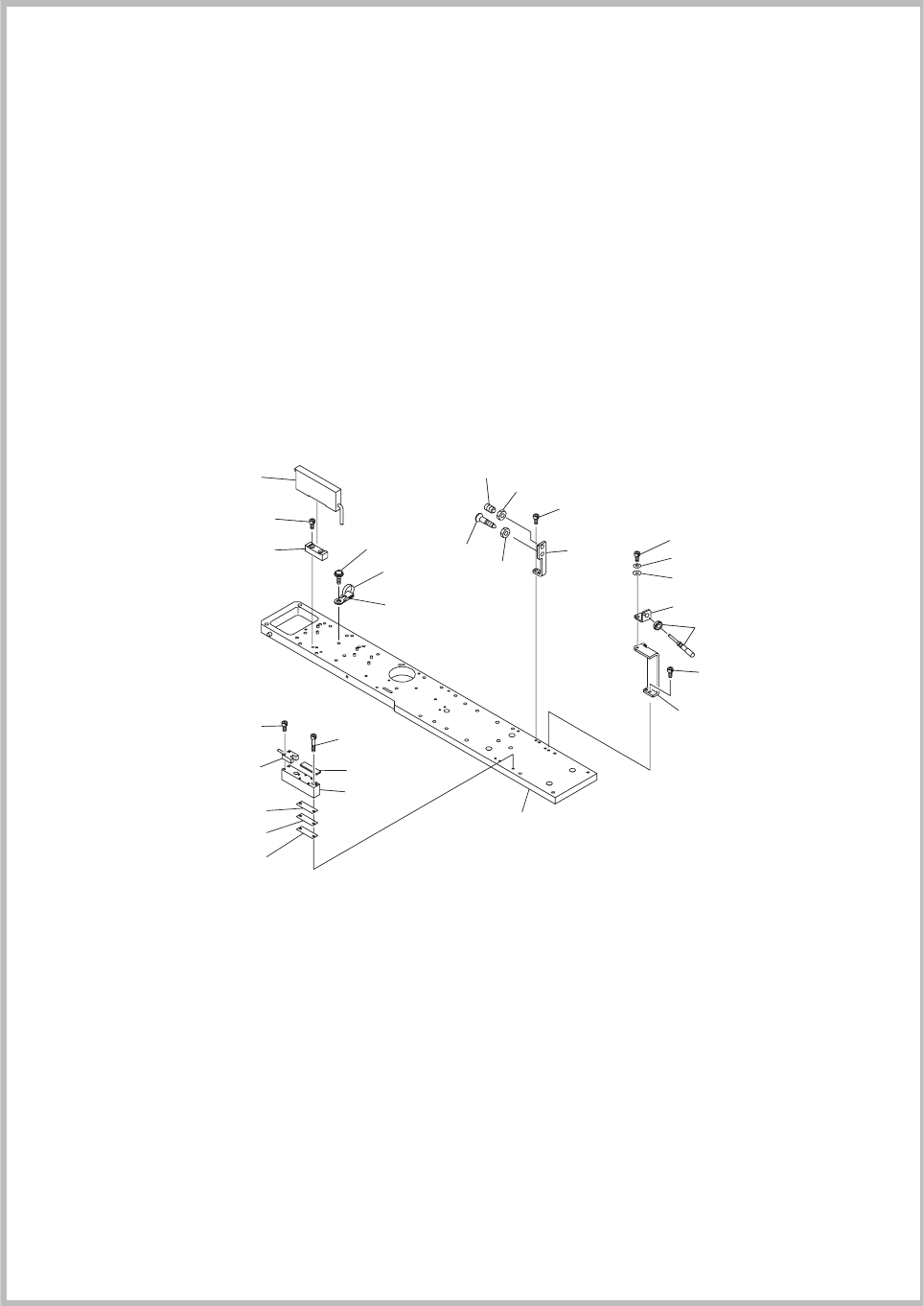

Fig. A1-3
ベース部２
Base Section 2
1007-001
236
231
230
264
232
294
293
267
262
268
229
228
264
261
260
259
205
206
263
265
248
233
254
251
250
249
291
290
292
See Fig A1-1
Key No.13
Fig. A1
フラックス塗布ユニット
FLUX DISPENSING UNIT
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1007-001
Fig. A1-3
205 09240000 ASSY_FIBER 1 109240000H-005
206 09240001 ASSY_SENSOR 1 109240000H-006
228 23G00215 SENSOR_PELEC 1 109240000H-028
229 211FB283 BRACKET 1 109240000H-029
230 211FB284 BRACKET 1 109240000H-030
231 211FB356 BRACKET 1 109240000H-031
232 226G0060 PLUNGER 1 109240000H-032
233 226G0064 PLUNGER 1 109240000H-033
236 211FB123 BRACKET 1 109240000H-036
248 211G4794 BLOCK 1 109240000H-048
249 226J2146 SIM-0_01T 4 109240000H-049
250 226J2147 SIM-0_02T 4 109240000H-050
251 226J2148 SIM-0_03T 4 109240000H-051
254 211G4658 BLOCK 1 109240000H-054
259 221D1036 SMACHINE_SCREW 2 109240000H-059
260 221H1001 SFW02 2 109240000H-060
261 221H1013 SSW02 2 109240000H-061
262 221A1006 SROHS_HEX-SCT 2 109240000H-062
263 221A1008 SROHS_HEX-SCT 2 109240000H-063
264 221A1009 SROHS_HEX-SCT 4 109240000H-064
265 221A1014 SROHS_HEX-SCT 2 109240000H-065
267 221H1003 SFW03 2 109240000H-067
268 221H1015 SSW03 2 109240000H-068
290 23N30632 WIRING 10 109240000H-090
291 221DA053 MACHINE_SCREW 10 109240000H-091
292 23N30737 ACCESS_WIRING(M 10 109240000H-092
293 221FA010 NUT_HEX 1 109240000H-093
294 221FA012 NUT_HEX 1 109240000H-094
