Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE Fig. A1 1007-001 Fig. A1-5 FX-G200 408 0924000P PLA TE_NOTICE 1 109240000H-008 456 4U240443 UNIT_DRIVER 1 109240000H-056 457 4W203643 CORD 1 109240000H-057 458 21 1AA971 C…

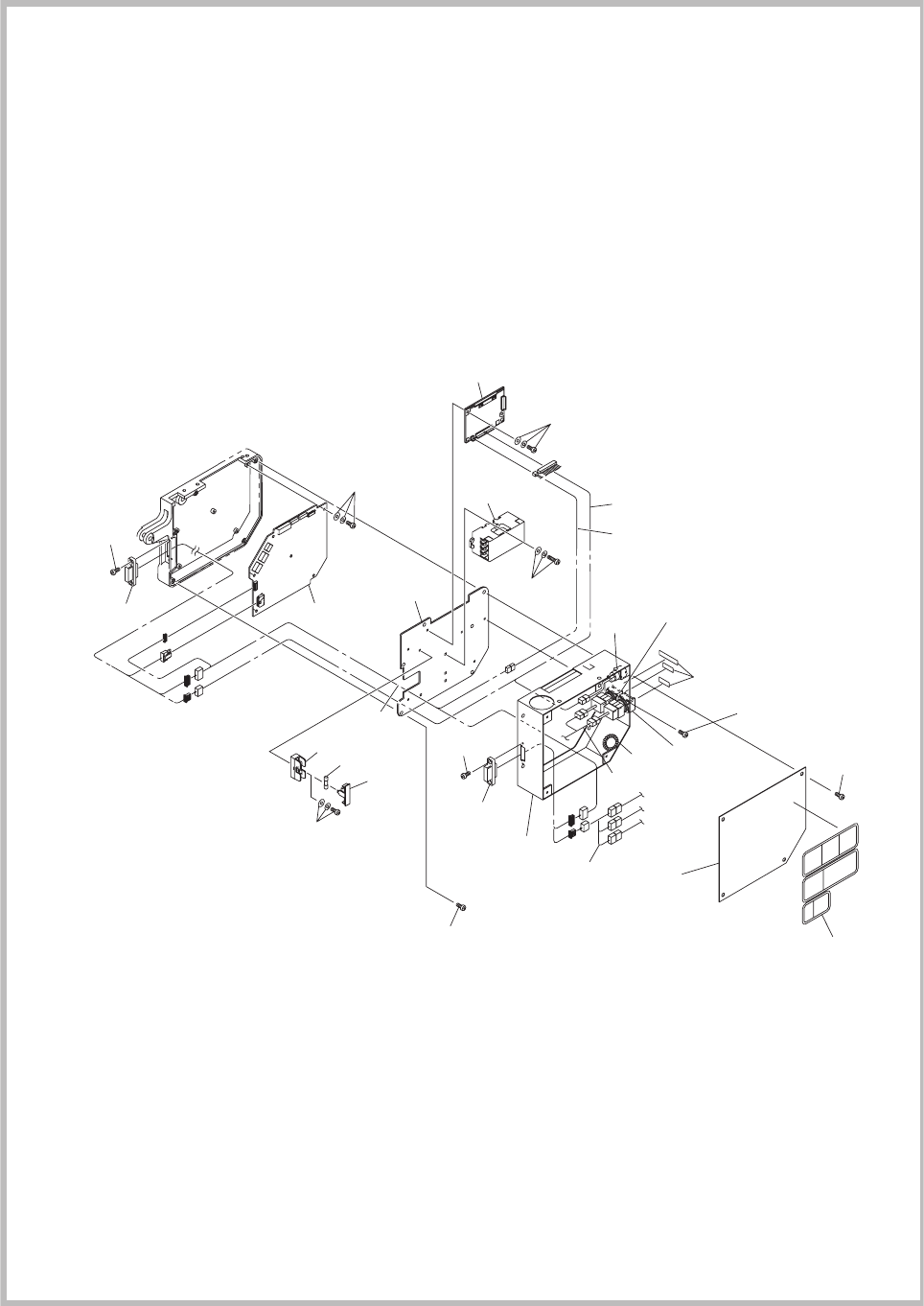

Fig. A1-5
電装部
Electrical Section
1007-001
457
496
4B0
4A0
4B3
4B5
4B1
4B4
456
4B2
483
4A8
4A5
4A5
484
499
498
497
4A7
4A4
458
485
408
4A6
4A9
4A1
4A3
4A2
4A3
492
491
493
494
487
Fig. A1
フラックス塗布ユニット
FLUX DISPENSING UNIT
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1007-001
Fig. A1-5
FX-G200
408 0924000P PLATE_NOTICE 1 109240000H-008
456 4U240443 UNIT_DRIVER 1 109240000H-056
457 4W203643 CORD 1 109240000H-057
458 211AA971 COVER 1 109240000H-058
483 221DA007 MACHINE_SCREW 2 109240000H-083
484 221DA051 SEMS_PANHEADSCR 6 109240000H-084
485 221D1005 SMACHINE_SCREW 4 109240000H-085
487 221DA103 MACHINE_SCREW 4 109240000H-087
491 211DB876 PLATE 1 3092400003-001
492 211AB118 COVER 1 3092400003-002
493 4M170006 MOTOR 1 3092400003-003
494 4S200112 RELAY 1 3092400003-004
496 4W203644 CORD 1 3092400003-006
497 4J200037 FUSE_HOLDER 1 3092400003-007
498 4S300033 FUSE 250V 3.15A 1 3092400003-008
499 23N30631 ACCESS_WIRING 1 3092400003-009
4A0 0924000B ASSY_REGISTER 1 3092400003-010
4A1 09240007 ASSY_SW 1 3092400003-011
4A2 0S1B0008 ASSY_SWITCH_BUTTON 1 3092400003-012
4A3 23H20079 ACCESSORY_SW 2 3092400003-013
4A4 0921E204 ACCESSORY_WRING 1 3092400003-014
4A5 221DA051 SEMS_PANHEADSCR 3 3092400003-015
4A6 221DA053 MACHINE_SCREW 5 3092400003-016
4A7 221DA063 MACHINE_SCREW 2 3092400003-017
4A8 221E0298 BOLT 2 3092400003-018
4A9 09240014 NAME PLATE_PARTS 1 3092400003-019
4B0 4W203644 CORD 1 3092400003-020
4B1 0W201338 CORD 1 3092400003-021
4B2 4W203651 CORD 1 3092400003-022
4B3 0924000G ASSY_CABLE_B 1 3092400003-023
4B4 09240009 ASSY_SWITCH_BUTTON 1 3092400003-024
4B5 0W201337 CORD 1 3092400003-025
