Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 162 221AA031 ROHS_HEX-SCT 2 20920042A8-002 163 221HA005 W ASHER 2 20920042A8-003 164 221HA105 W ASHER 2 20920042A8-004 165 23N30737 ACCESS_WIRING(M 2 20920042A8-005 171 09…

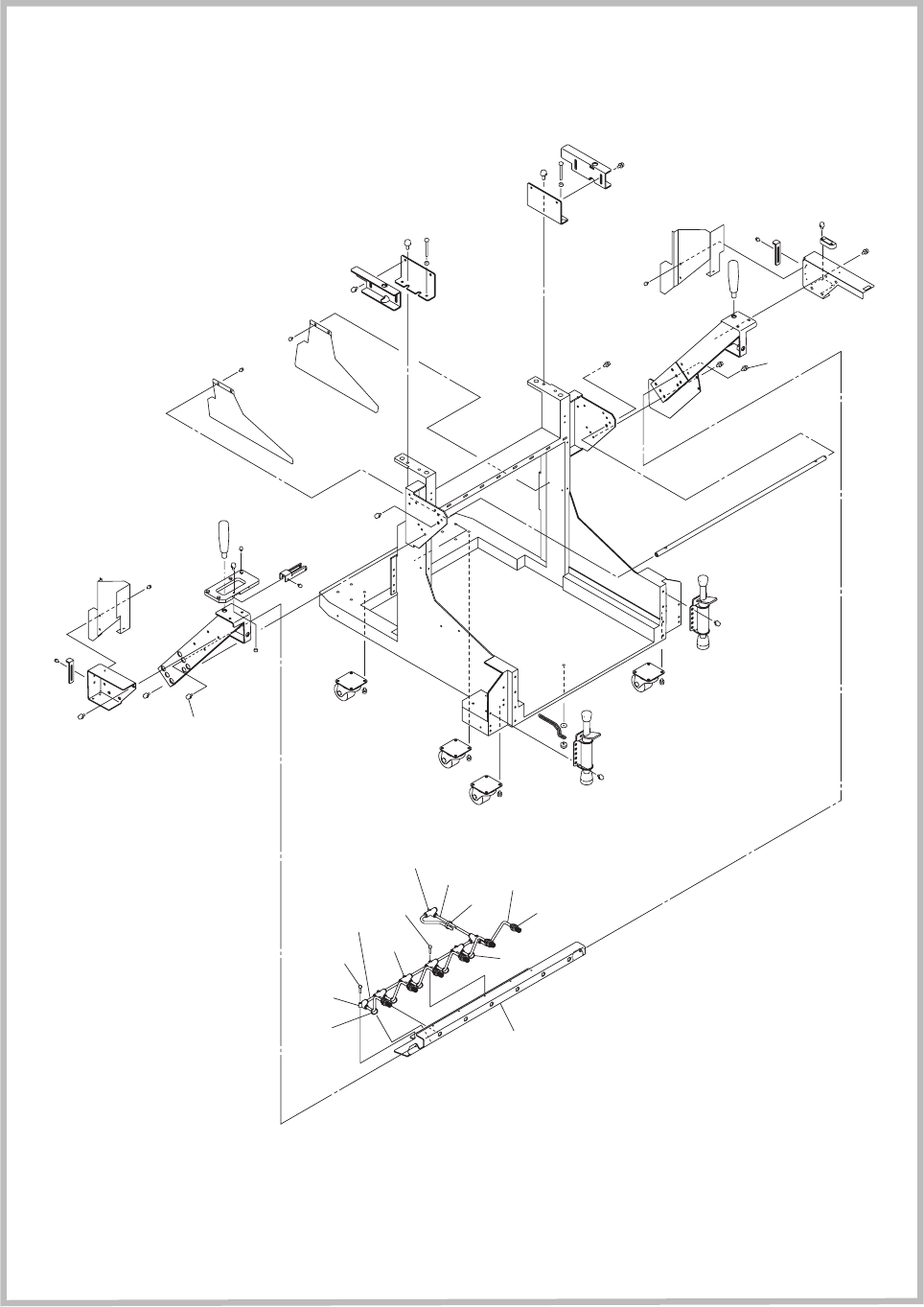

Fig. C1-2
フレーム部
Frame Section
1007-001
171
177
177
174
176
173
175
175
165
162
163
164
162
163
164
173
176
172
175
Fig. C1
フラックス塗布ユニット搭載カート対応
FLUX DISPENSING UNIT FOR ITS MOUNTING CAR
T
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
162 221AA031 ROHS_HEX-SCT 2 20920042A8-002
163 221HA005 WASHER 2 20920042A8-003
164 221HA105 WASHER 2 20920042A8-004
165 23N30737 ACCESS_WIRING(M 2 20920042A8-005
171 0920E2A6 PLATE 1 20920042A7-001
172 225F0353 PIPE_FITTINGS 6 20920042A7-002
173 225F0452 PIPE_FITTINGS 6 20920042A7-003
174 225F0183 PIPE FITTINGS 1 20920042A7-004
175 0917C302 TUBE_D6 1 20920042A7-005
176 221AA020 ROHS_HEX-SCT 6 20920042A7-006
177 23N30737 ACCESS_WIRING(M 6 20920042A7-007
Fig. C1
1007-001
Fig. C1-2
GS-FX010
Fig. C1-6
クランプレバー
Clamp Lever
1007-001
See Fig C1-2
Key No.173
Fig. C1
フラックス塗布ユニット搭載カート対応
FLUX DISPENSING UNIT FOR ITS MOUNTING CAR
T
