QP-242E PARTS LIST ver11

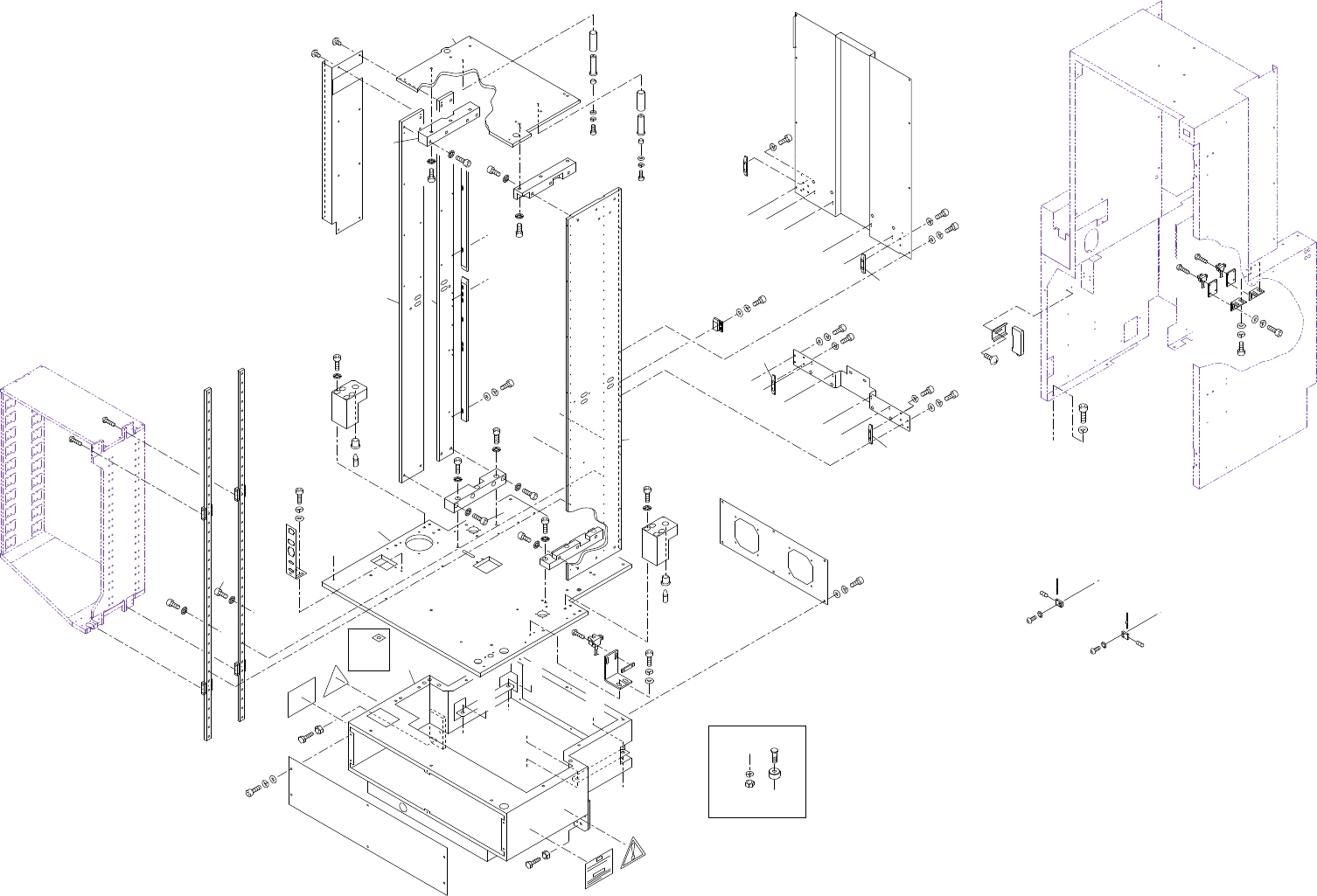

77.1.MTU-71E TZ軸(BHTC)
77.1.MTU-71E TZ axis(BHTC)
77 - 1
77.MTU-71E TZ軸(BHTC)
77.MTU-71E TZ axis(BHTC)
Ref.33-7
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
D
E
E
D
E
D
E
D
E
A
B
B
A
C
F
G
F
G
C
x12.5
119
119
86
117
102
117
102
102
117
117
102
26
27
5
3
4
22
21
57
14
64
114
105
94
85
95
105
114
23
114
105
92
94
105
134
95
105
114
102
117
117
102
117
102
25
102
117
102
117
102
117
103
117
15
68
36
97
106
115
2
103
117
15
68
98
106
111
50
1
24
126
83
44
51
93
105
110
35
115
106
97
121
76
121
76
87
108
121
73
74
90
116
90
116
11
11
123
123
127
128
129
132
131
131
132
133
92
105
92
105
133
133
105
92
105
92
133
92
105
114
110
101
107
124
80
80
124
110
105
92
110
105
92
45
45
46
46
83
84
125
125
130
135
122
81
136
135
122
81
136
H
I
H
I
H
I
H
I
H
I
130
57
14
64
114
105
94
D
137
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
77.1.MTU-71E TZ軸(BHTC)
77.1.MTU-71E TZ axis(BHTC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No.
Drg. No. & Code No.
QTY Description Rating Remarks
1 BHTC0011 1 PLATE, BASE ﾌﾟﾚｰﾄ ﾍﾞｰｽ
2 BHTC0023 1 PLATE ﾌﾟﾚｰﾄ
3 BHTC0030 1 PLATE ﾌﾟﾚｰﾄ
4 BHTC0040 1 PLATE ﾌﾟﾚｰﾄ
5 BHTC0051 1 PLATE ﾌﾟﾚｰﾄ
11 BHTC0110 2 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ
14 BHTC0140 2 STOPPER ｽﾄｯﾊﾟ
15 BHTC0150 2 BLOCK, LOCATING ﾌﾞﾛｯｸ 位置決め
21 BHTC0210 1 GUIDE ｶﾞｲﾄﾞ
22 BHTC0221 1 GUIDE ｶﾞｲﾄﾞ
23 BHTC7620 1 BKT BKT
24 BHTC0240 1 BKT BKT
25 BHTC0250 1 BKT BKT
26 BHTC0260 1 BKT BKT
27 BHTC0270 1 BKT BKT
35 BHTC0361 1 COVER, FRONT ｶﾊﾞｰ ﾌﾛﾝﾄ
36 BHTC0370 1 COVER ｶﾊﾞｰ
44 BHTC0460 1 BKT, SENSOR BKT ｾﾝｻ
45 BHTC0470 2 BKT, SENSOR BKT ｾﾝｻ
46 BHTC0480 2 BKT, SENSOR BKT ｾﾝｻ
50 BHTC0520 1 BKT, WIPING BKT 配線
51 BHTC0530 2 NUT ﾅｯﾄ
57 BHTC0590 2 COLLAR ｶﾗｰ
64 IPA5260 2 COLLAR ｶﾗｰ
68 ABHTA1020 2 BUSHING, GUIDE ﾌﾞｯｼｭ ｶﾞｲﾄﾞ
73 H4452Z 4
BEARING, ROLLER
ﾍﾞｱﾘﾝｸﾞ ﾛｰﾗ NAST10ZZU
74 S20035 4
SHAFT
ｼｬﾌﾄ RFN10-36
76 H5123R 2
BOLT, CLAMP
ﾎﾞﾙﾄ ｸﾗﾝﾌﾟ HRSM10-40
80 A1038D 1
AMPLIFIER
ｱﾝﾌﾟ E3X-DA11-N 2M
81 H3001T 1 FIBER UNIT ﾌｧｲﾊﾞ ﾕﾆｯﾄ E32-M21 2M
83 S4040W 2
SENSOR, PHOTO
ｾﾝｻ ﾌｫﾄ EE-SPX305-W2A
84 S4040Y 1
SENSOR, PHOTO
ｾﾝｻ ﾌｫﾄ EE-SPX405-W2A
85 BHTC7630 1 COVER, FRONT ｶﾊﾞｰ ﾌﾛﾝﾄ
86 BHTC2060 1 COVER, SAFETY ｶﾊﾞｰ 安全
87 BHTC3011 1 BODY 本体
90 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L
92 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
QP-242E PARTS LIST ver11
77 - 2
77.1.MTU-71E TZ軸(BHTC)
77.1.MTU-71E TZ axis(BHTC)
77.1.MTU-71E TZ軸(BHTC)
77.1.MTU-71E TZ axis(BHTC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No.
Drg. No. & Code No.
QTY Description Rating Remarks
93 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L
94 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L
95 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15L
97 H52966
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X6L
98 H5297A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X8L
101 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X15L
102 .
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X18L
103 H5344A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X35L
105 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
106 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
107 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
108 W1026A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M
110 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
111 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
114 W1041A
WASHER, FLAT
ﾜｯｼｬ 平         
4M/MX0.8X9(1W-4)
115 W1050A
WASHER, FLAT
ﾜｯｼｬ 平         
5M/MX1.0X10(1W-5)
116 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
117 W1014A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-8-H
119 K5209A
SCREW, TRUSS
ｺﾈｼﾞ ﾄﾗｽ M4X8L
121 N1092A
NUT, HEX
ﾅｯﾄ 六角         
M10 P=1.5
122 K5255T 16 SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M3X6L
123 .
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋        
M2.6X5L
124 K5206A
SCREW, TRUSS
ｺﾈｼﾞ ﾄﾗｽ M4X4L
125 K5178T
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋        
M3X12L
126 .
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋        
M3X15L
127 BHTC3020 3 SPACER ｽﾍﾟｰｻ
128 BHTC3030 6 SPACER ｽﾍﾟｰｻ
129 BHTC3040 3 SPACER ｽﾍﾟｰｻ
130 DBTN0430 8 SPACER ｽﾍﾟｰｻ
131 KPA0890 2 SEAL ｼｰﾙ
132 BHUF0650 2 SEAL ｼｰﾙ
133 BHTC0630 4 GUIDE ｶﾞｲﾄﾞ
134 BHTC0691 1 STOPPER ｽﾄｯﾊﾟ
135 W1010A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
136 N4016A SCREW, HEX SOCKET SET ﾈｼﾞ六角穴止め M2X2L
137 BHPP1880 1 RAIL ﾚｰﾙ ･
QP-242E PARTS LIST ver11
77 - 3
77.1.MTU-71E TZ軸(BHTC)
77.1.MTU-71E TZ axis(BHTC)
