Page +$1:+$ 128 DECAN L2 Head (5/5)
Page
+$1:+$
127
DECAN
L2
Page
+$1:+$
128
DECAN
L2
Head (5/5)
Page
+$1:+$
129
DECAN
L2
Head (5/5)

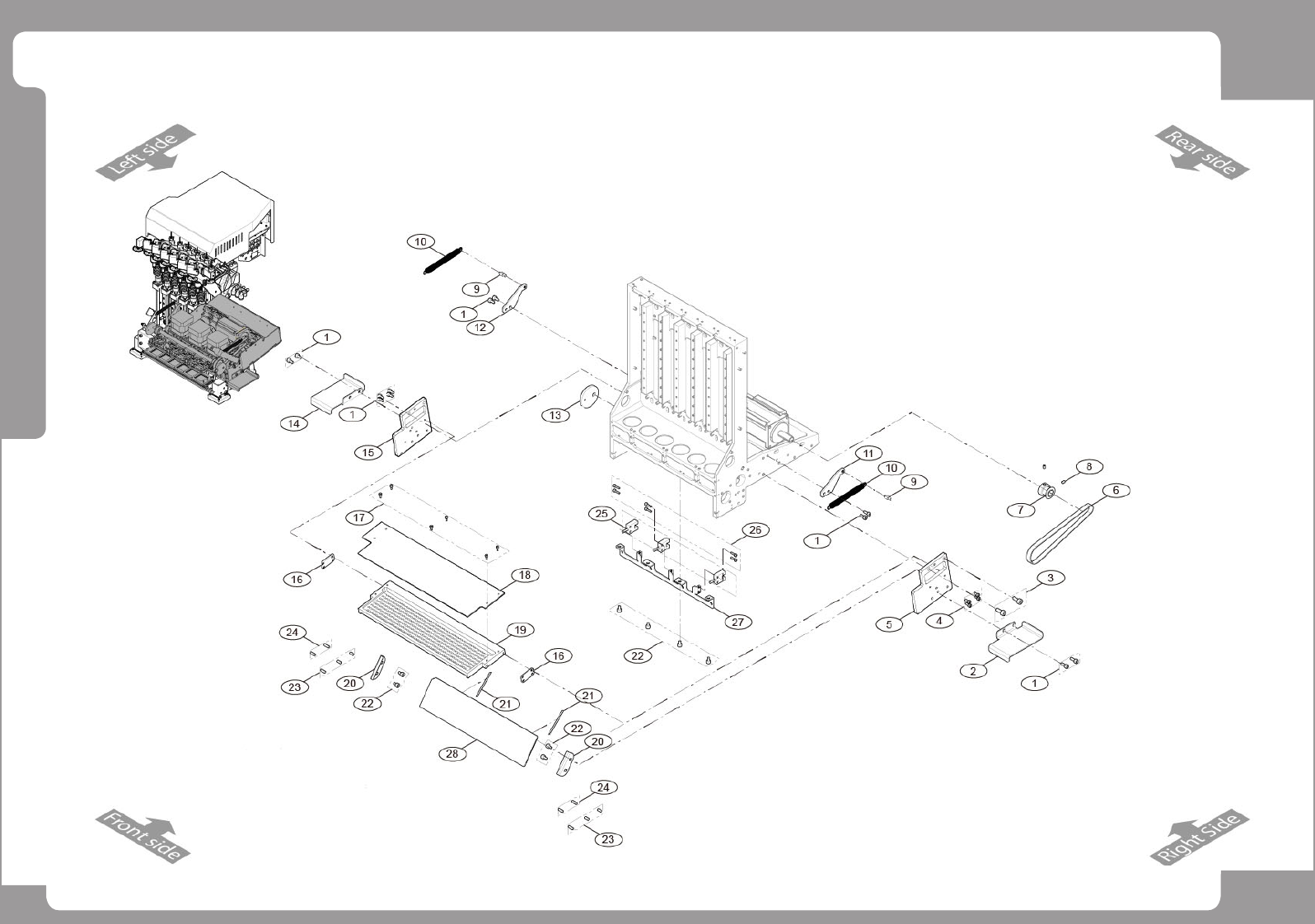

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC18-902719 SOCKET HEAD CAP SCREW 58
2 FC09-004874A BRACKET-FID_COVER_1 1
3 FC18-902741 SOCKET HEAD CAP SCREW 4
4 FC18-902710 SOCKET HEAD CAP SCREW 44
5 FC09-006538A BLOCK-ILLU BKT 1 1 FC07-001729A
6 MC05-900055 TIMING_BELT 1
7 J7155523A PULLEY (S-AXIS 2) 1
8 FC18-902841 SOCKET SET SCREW [M3*4 (BL/ZN)] 12
9 FC29-004275A BRACKET-SPRING_POST1 2
10 FC38-900011 SPRING 2
11 FC09-002292A SPRING_BKT_R 1
12 FC09-002292A SPRING_BKT_L 1
13 J7055143B CAM 1
14 FC09-004875A BRACKET-FID_COVER_2 1
15 FC09-006539A BLOCK-ILLU BKT 2 1 FC07-001731A
16 FC09-004862A BRACKET-ILL BKT 3 1
17 FC18-902704 SOCKET HEAD CAP SCREW 51
18 AM03-026523A ASSY,BOARD-COAXIAL LED PCB 1 AM06-003329A
AM06-005408A ASSY,PCB SMD 1 POLAR LENS
19 FC07-003229A BLOCK-HOLE COAXIAL L2 1 FC07-001732A
20 FC09-004861A BRACKET-BS BKT 2
21 FC28-000855A PAD-BS BKT RUBBER 2
22 FC18-902718 SOCKET HEAD CAP SCREW 8
23 FC18-901191 DOWEL_PIN MS3-8 6
24 FC18-001608 DOWEL_PIN MS3-6 12
25 EP19-900123 MICRO PHOTO SENSOR 9
26 FC18-902706 SOCKET HEAD CAP SCREW M2*8 (NI/ZN) 19
27 FC18-902719 SOCKET HEAD CAP SCREW 58
28 EP12-001003A MIRROR,OPTICS-BEAM SPLITTER L2 1 EP12-000076A
