Page +$1:+$ 366 DECAN L2 Motor IF Board (17/18)
Page
+$1:+$
365
DECAN
L2
Motor IF Board (16/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-014690A CABLE ASSY-RSW_DRV_COMMAND 5 AM03-010981A
2 AM03-014687A CABLE ASSY-RSW_MOTOR_PWR 1 AM03-010890B
3 AM03-026274A CABLE ASSY-FLAT 2 1 AM03-010516C
4 AM03-015237A CABLE ASSY-SWING MOTOR 1
5 AM03-010891A CABLE ASSY-RSW_MOTOR_ENC 1
Page
+$1:+$
366
DECAN
L2
Motor IF Board (17/18)
Page
+$1:+$
367
DECAN
L2
Motor IF Board (17/18)

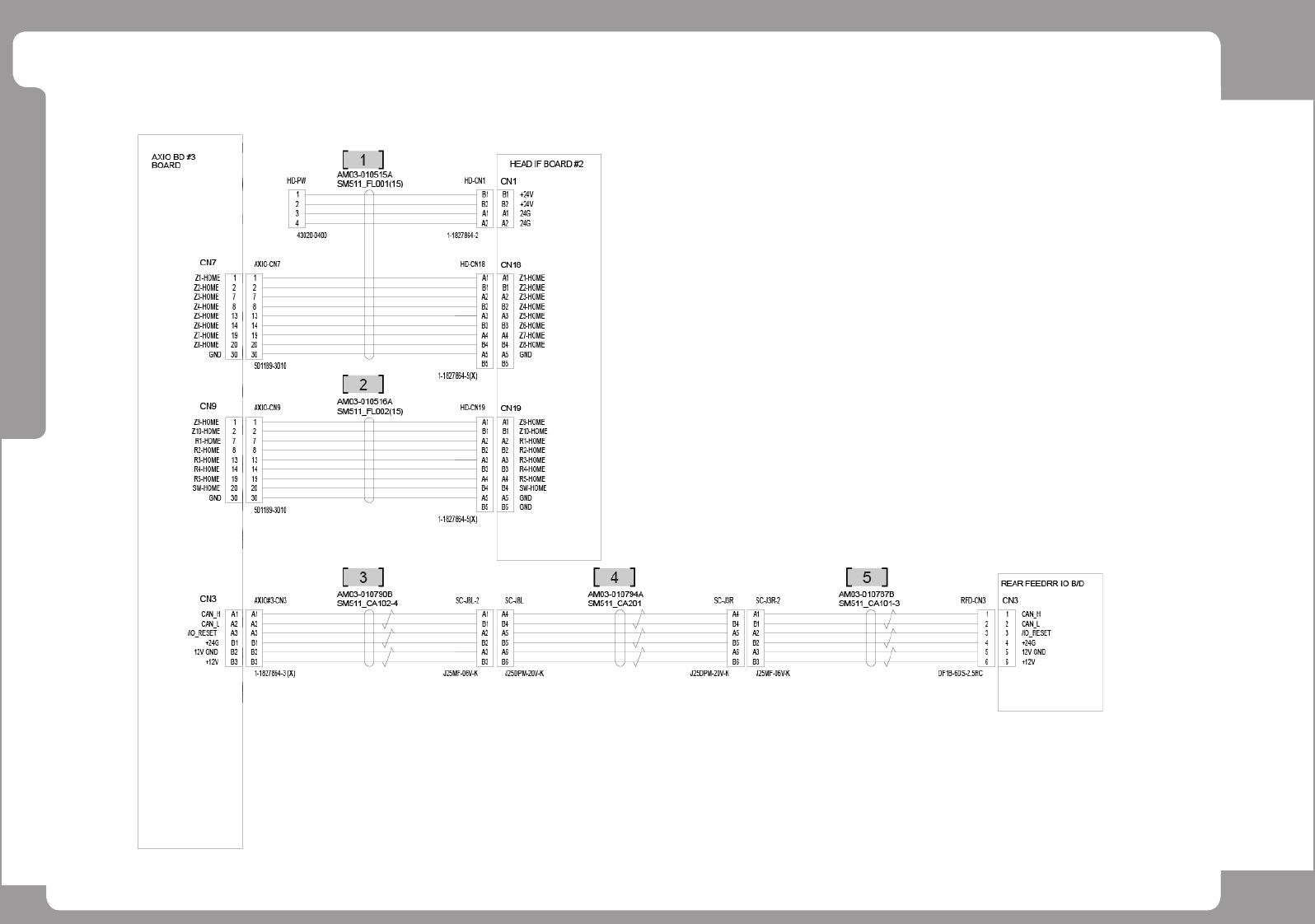

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-026275A CABLE ASSY-FLAT 1 1 AM03-010515C/ AM03-010515D
2 AM03-026274A CABLE ASSY-FLAT 2 1 AM03-010516C
3 AM03-010790C CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L 1 AM03-010790B
4 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1
5 AM03-010787B CABLE ASSY-AXIO_BD_3_RFD_CAN_J3R 1
