DECAN_L2_TRM(Ver4.4_CS20.12).pdf - 第168页
Page +$1:+$ 164 DECAN L2 Single Conveyo r L800(1/3)
Page
+$1:+$
163
DECAN
L2
Air (6/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 HP06-000235 FITTING 1
2 HP06-000234 FITTING 1
3 HP09-000127 MANIFOLD 1
4 HP13-000037A TUBE,PNEUMATIC 1
5 HP06-900089 STRAIGHT_FITTING 1
Page
+$1:+$
164
DECAN
L2
Single Conveyor L800(1/3)
Page
+$1:+$
165
DECAN
L2

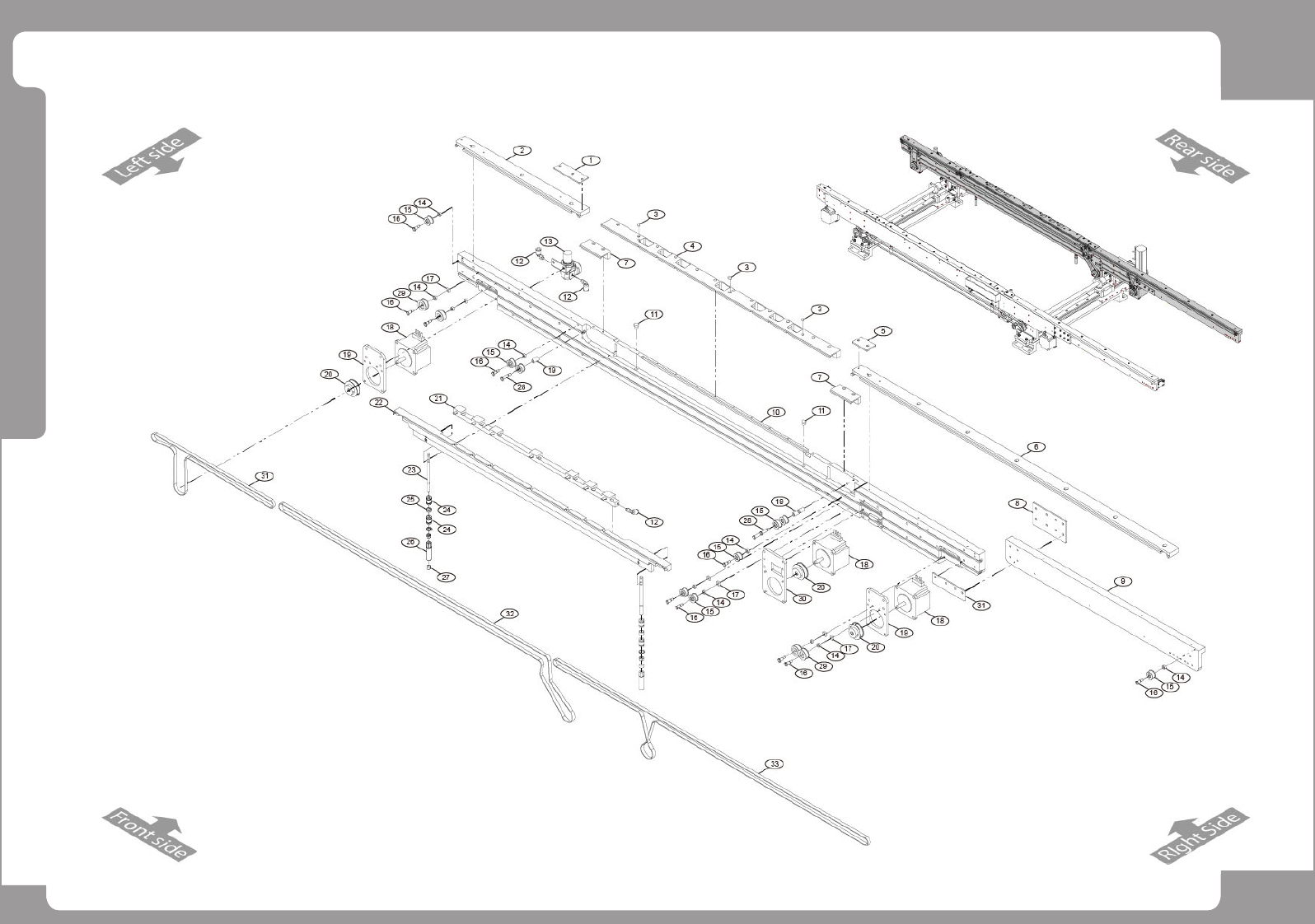

Single Conveyor L800(1/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-006205A BRACKET-GUIDE PCB ADD 70 1 OPTION
2 FC29-003067B GUIDE-PCB_END_S 1
3 J7153373A FIDUCIAL DISK 3
4 J70531211A PCB_GUIDE_RC 1
5 FC09-006206A BRACKET-GUIDE PCB ADD 40 1
6 FC29-006263A GUIDE-PCB_M_EX_871 1
7 J70531762A PCB_GUIDE_RC_S 2
8 J70531091A PLATE_LONG_OUT 1
9 FC39-003079A FRAME-EXTEND_M_530 1
10 FC39-001581A FRAME-REAR_CONVEYOR_S 1
11 FC29-004427A STOPPER-CONV_DOWN_STOPPER 2
12 J6711001A ELBOW FITTING 3
13 J67090018B REGULATOR 1
14 FC18-001478A SPACER-IDLER-S_CONV 10
15 J7253007A IDLER 2 8
16 J7053009A IDLER-SHAFT-S2 10
17 J7053184A SQUARE NUT M4 6
18 EP08-900073 STEP_MOTOR 3 WITH CABLE
19 FC09-006208A BRACKET-BELT MOTOR S EXT 2
20 J7153111A STEP MOTOR PULLEY 3
21 HP03-900039 EDGE CYLINDER 1
22 J71531269A CLAMP_REAR_FRAME 1
23 J7153034A CLAMP SHAFT 2
24 MC06-900006 BALL_BUSH 4
25 FC18-001480A SPACER-BUSH_CONVEYOR 2
26 FC01-000022A ADJUSTER-SHAFT_CONV 2
27 FC29-004426A STOPPER-CLAMP_SHAFT_STOPPER 2
28 J7053770A IDLER SHAFT-M 3
29 J7253006A IDLER 1 2
30 J70531085A BRACKET_BELT_MOTOR_M 1
31 MC05-000254 BELT 1
