3.3 Error Message

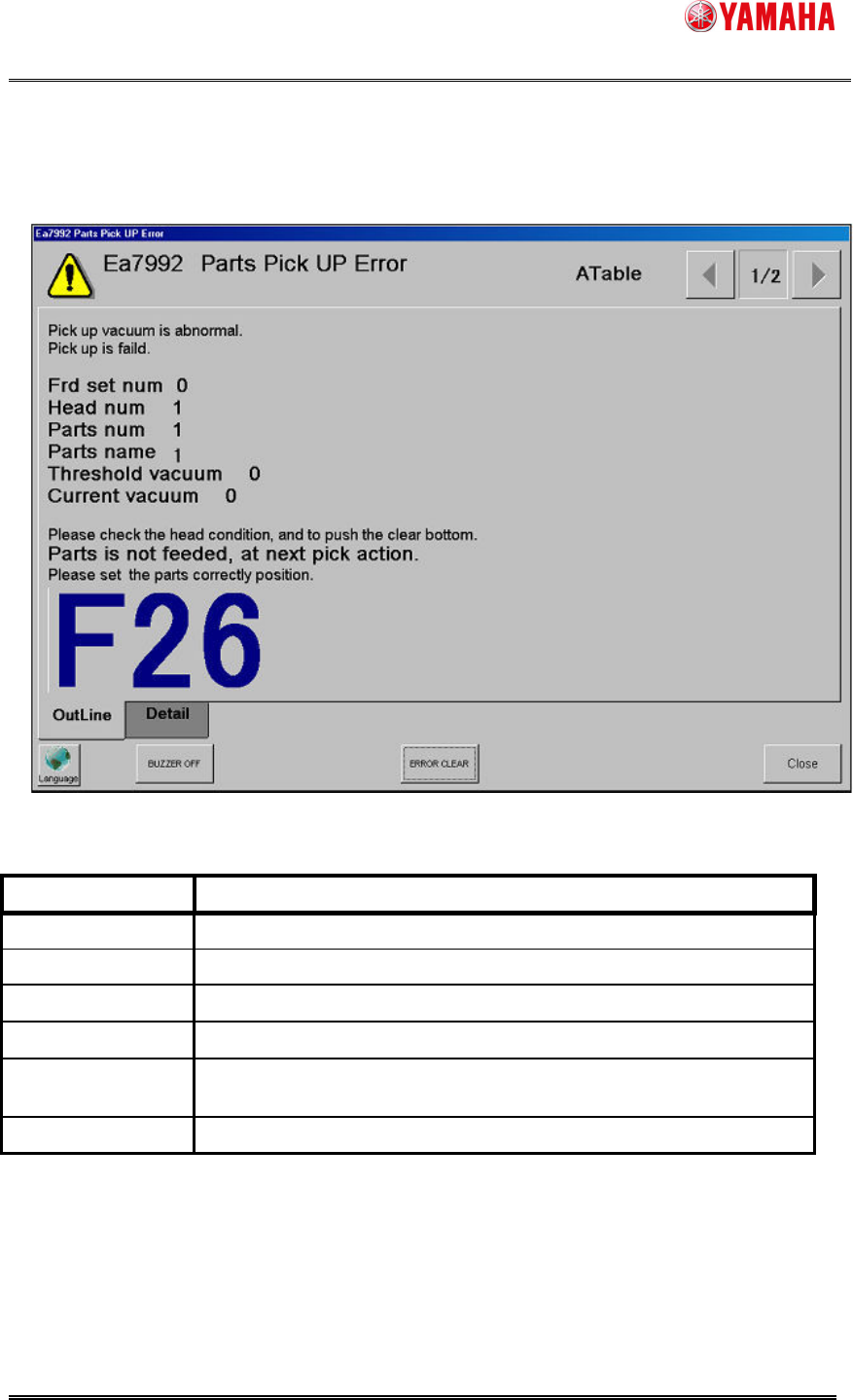

The following error message is displayed if there is something wrong with vacuum.
Name Contents
Feeder number Feeder number is displayed
Head number
Head number is displayed
Parts number
Parts number is displayed
Parts name
Parts name is displayed
Threshold
vacuum
Threshold vacuum is displayed
Current vacuum
Current vacuum is displayed
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50136
5/10
3.4 Operation after error occurs
After “Ea7992: Parts Pick Up Error” occurs and machine restarts, it works as follows.
With electric drive feeder, parts are considered to be on the pickup position. So pickup action is
performed from the same position without feeding.
With air drive feeder, feeding must be performed automatically because of its structure. Please
feed the parts back by hand before starting auto-running.
3.5 Log
When “Ea7992: Parts Pick Up Error” occurs, the following logs are outputted.

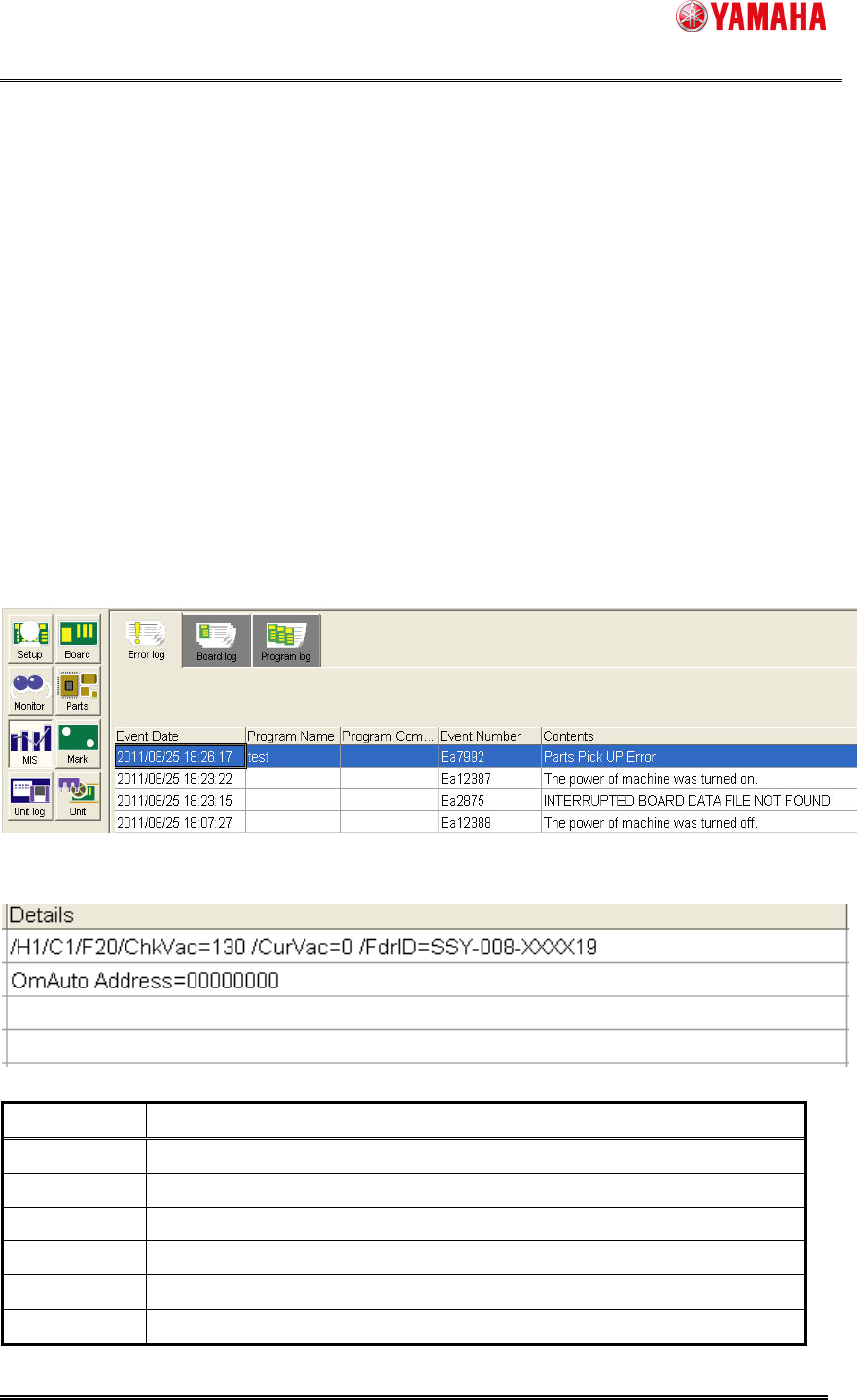

3.5.1 Error Log
Following error numbers and messages are displayed.
The following details are displayed.
名称 内容
H Head number is displayed.
C Camera number is displayed.
F Feeder set number is displayed.
ChkVac= Check vacuum is displayed.
CurVac= Current vacuum is displayed.
FdrID= Feeder ID is displayed.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50136
6/10
3.5.2 Board log
When “Ea7992: Parts Pick Up Error” occurs, PickUp Error is NOT counted.
When the machine is reset, parts are dumped (consumed) and PickUP Error is counted.
3.5.3 Head log
When “Ea7992: Parts Pick Up Error” occurs, Pick Counter, Pick Error Counter and Down
Counter are counted.
