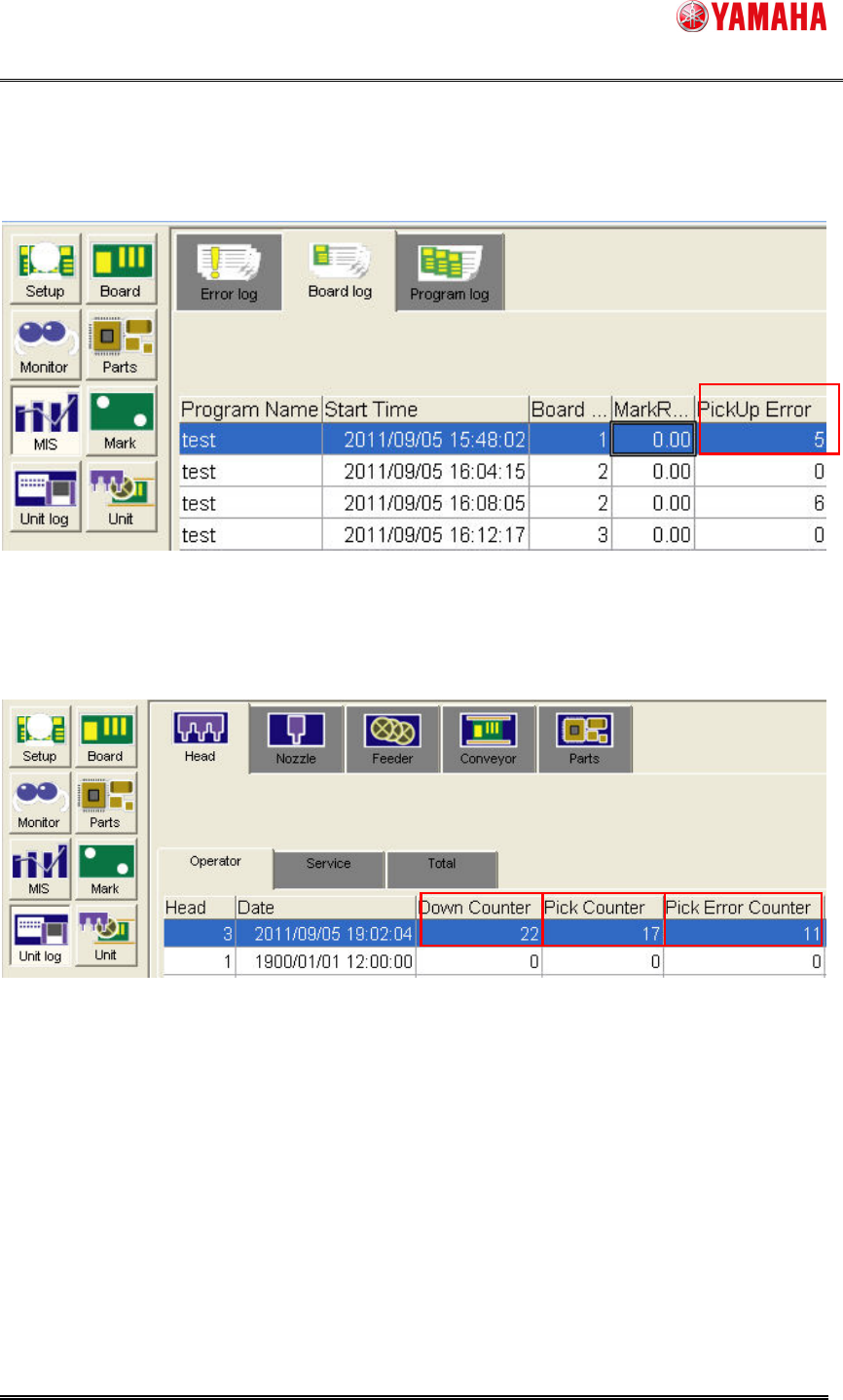

3.5.2 Board log
When “Ea7992: Parts Pick Up Error” occurs, PickUp Error is NOT counted.
When the machine is reset, parts are dumped (consumed) and PickUP Error is counted.
3.5.3 Head log
When “Ea7992: Parts Pick Up Error” occurs, Pick Counter, Pick Error Counter and Down
Counter are counted.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50136
7/10

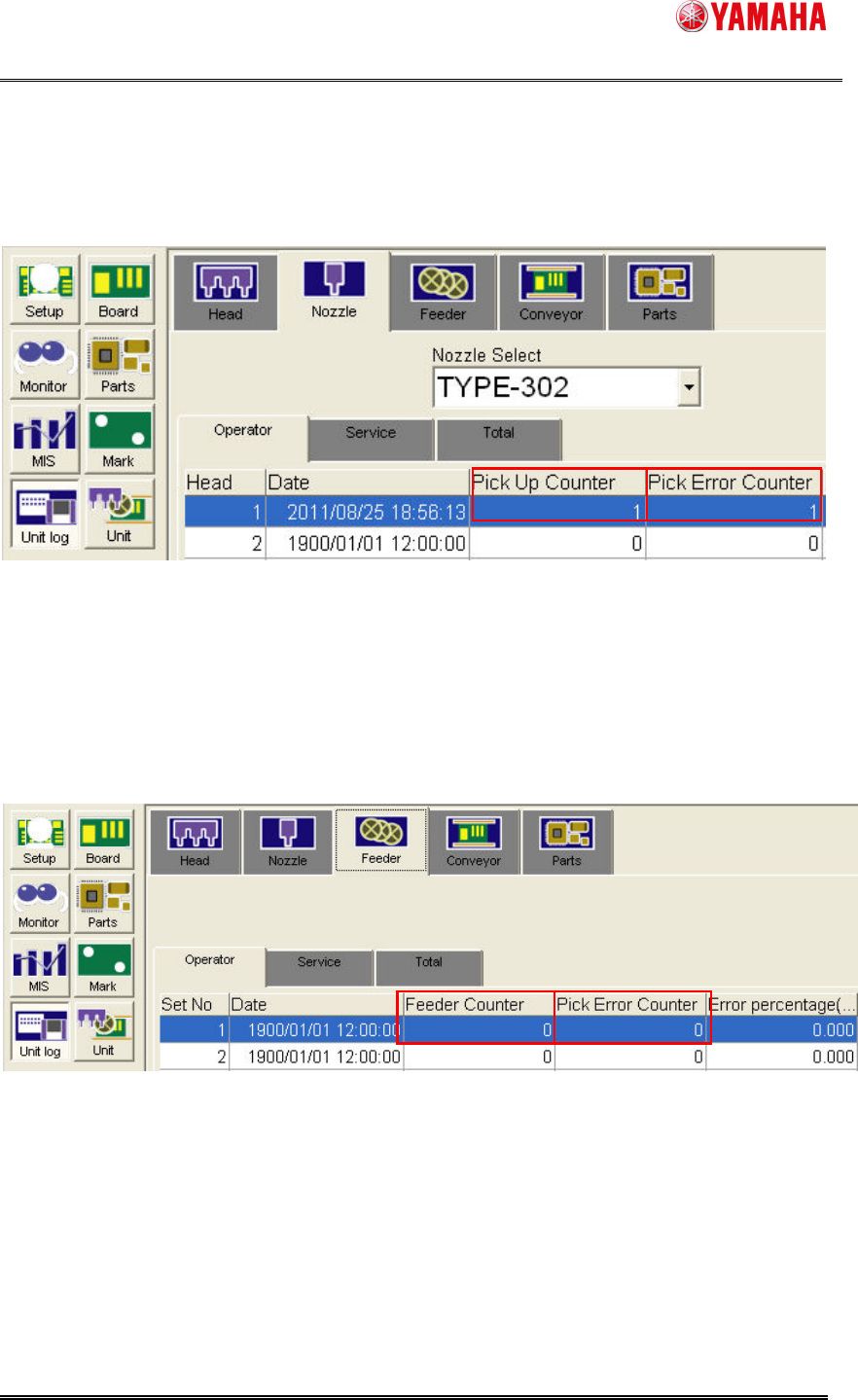

3.5.4 Nozzle log
When “Ea7992: Parts Pick Up Error” occurs, Pick Up Counter and Pick Error Counter are
counted.
3.5.5 Feeder log
When [Ea7992: Parts Pick Up Error] occurs, Feeder Counter and Pick Error Counter are NOT
counted
(because feeding is controlled in this case.)
.
When the machine is reset, parts are dumped (consumed) and PickUP Error is counted.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50136
8/10

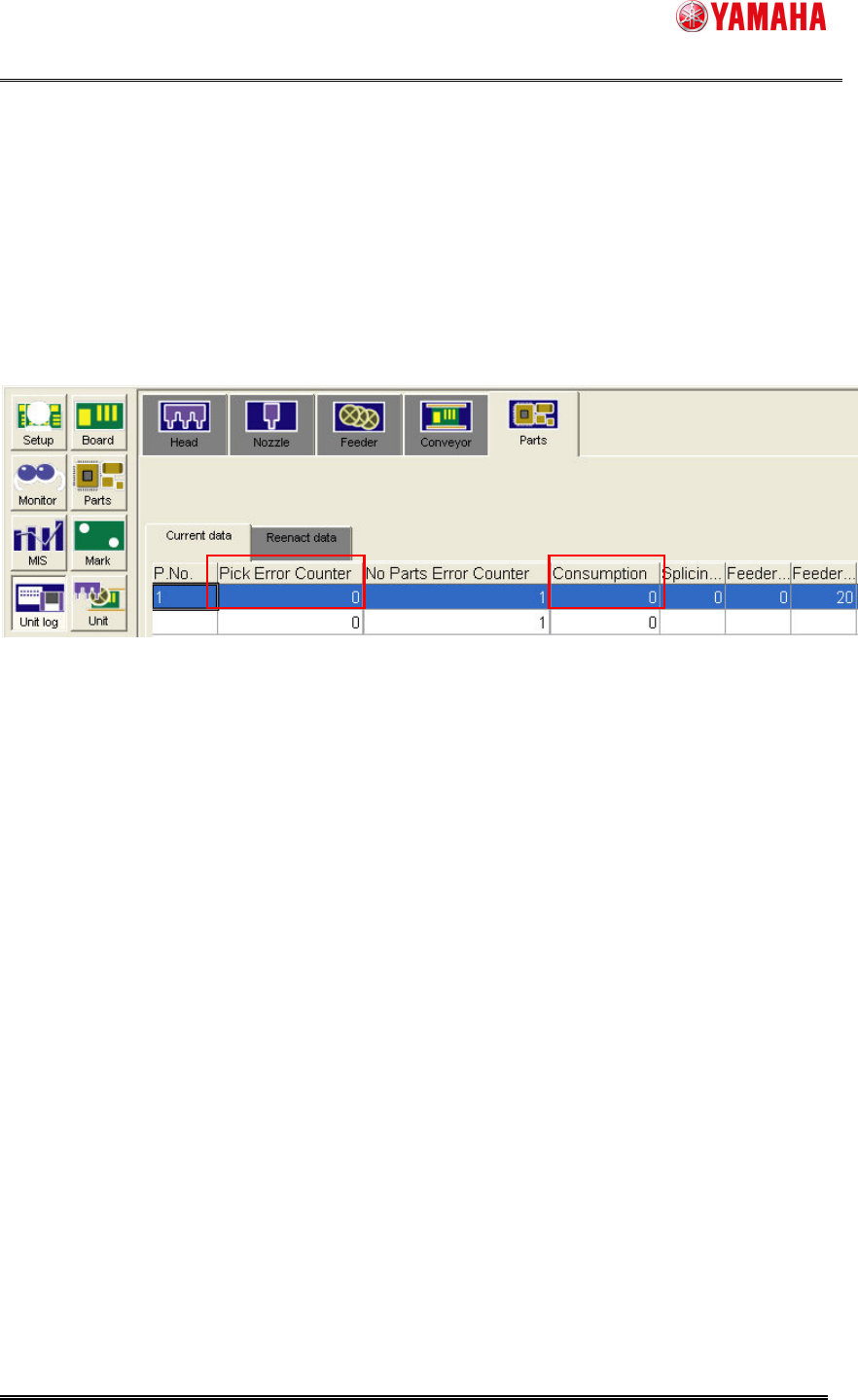

3.5.6 Parts log
When [Ea7992: Parts Pick Up Error] occurs,
Consumption is NOT counted because feeding
is controlled in this case.
Also, PickUp Error Counter is not counted. (because this counter shows error counter of
consumed parts)
When the machine is reset after Ea7992 occurs, parts are dumped (consumed) and PickUP
Error and Consumption are counted.
3.5.7 Board log
When [Ea7992: Parts Pick Up Error] occurs,
Pick Error Counter is NOT counted because
feeding is controlled not to consume the parts in this case.
When the machine is reset, parts are dumped (consumed) and PickUP Error is counted.
