Retrofit Instructions Starting (Incrush) cur rent limiter SIPLACE S-20, F4, F5 10/2005 Edition 18 2 2 2 2 2 2 2 2 2 2 Connection of cont actor K4
Retrofit Instructions Starting (Incrush) current limiter SIPLACE S-20, F4, F5
10/2005 Edition
17
2.5 Circuit diagrams / Power supply
2

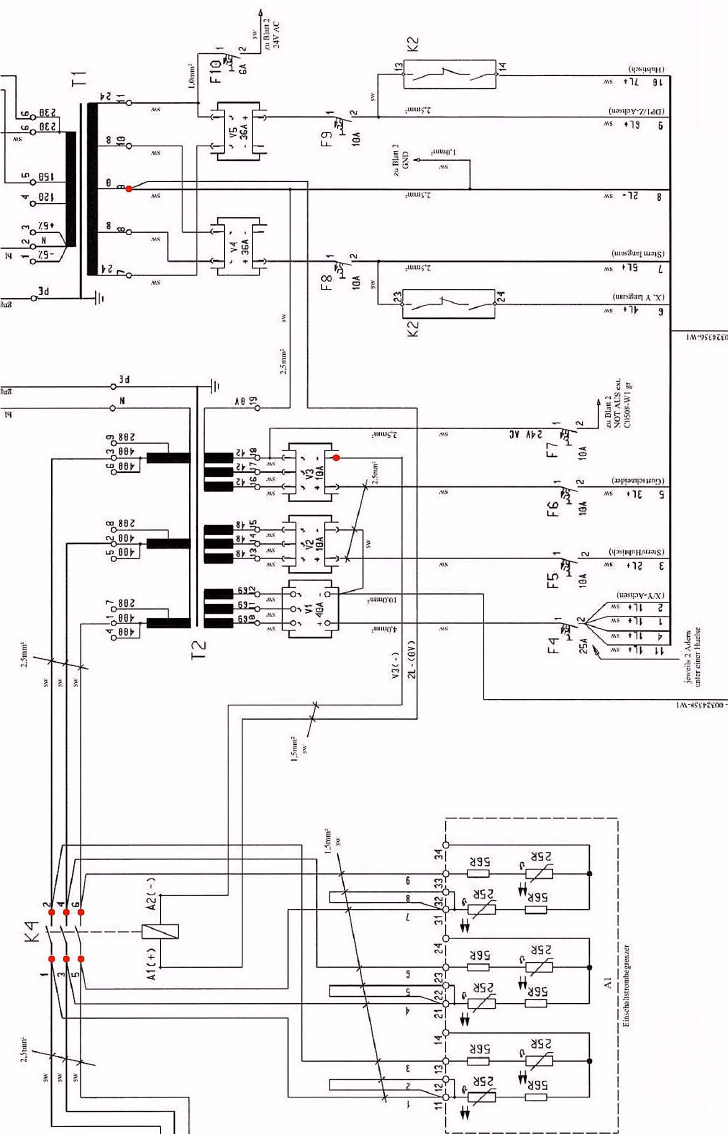

Circuit diagram
Retrofit Instructions Starting (Incrush) current limiter SIPLACE S-20, F4, F5
10/2005 Edition
18
2
2
2
2
2
2
2
2
2
2

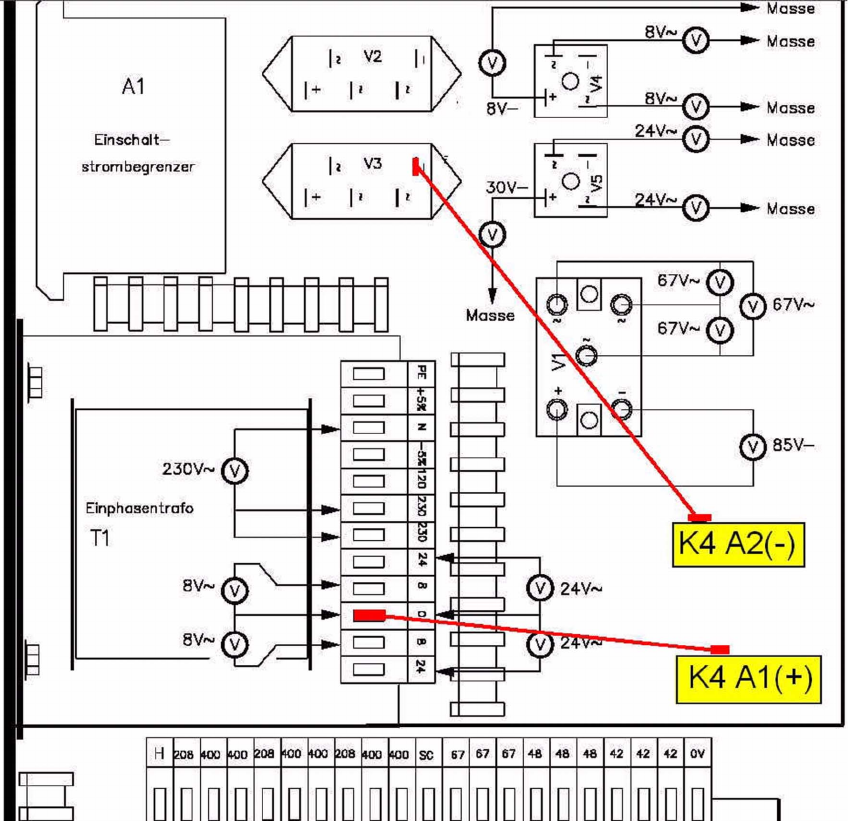

Connection of contactor K4
Retrofit Instructions Starting (Incrush) current limiter SIPLACE S-20, F4, F5
10/2005 Edition
19
2
2

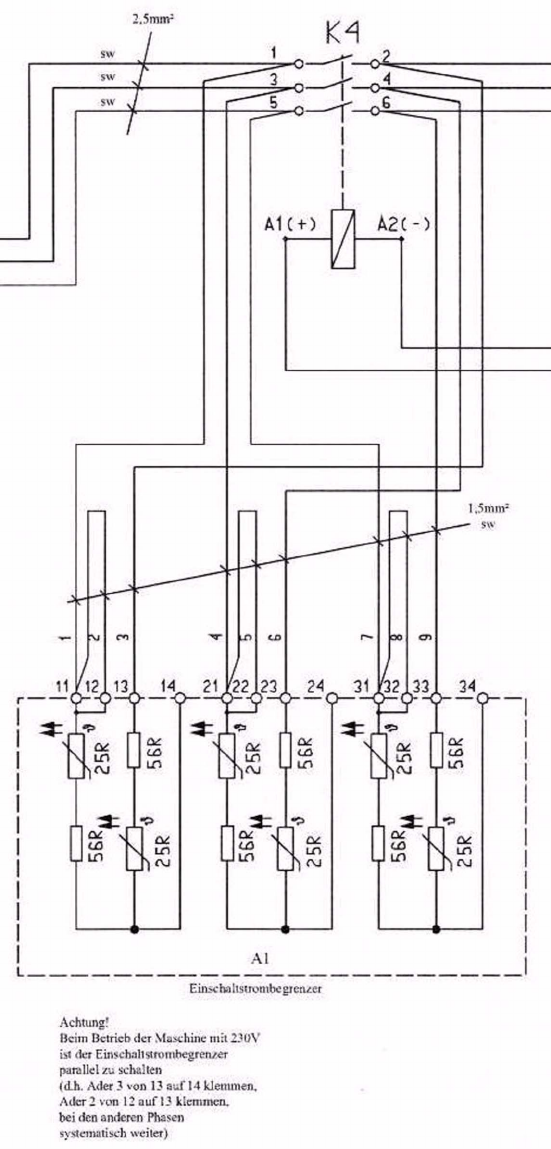

New version of starting current limiter with contactor K4
