3.3 Error Message
The following error message is displayed if there is something wrong with vacuum.
.
Fig.1 Error message for SS feeder
Fig.2 Error message for air feeder (Rev.1 add)
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50136
5/11

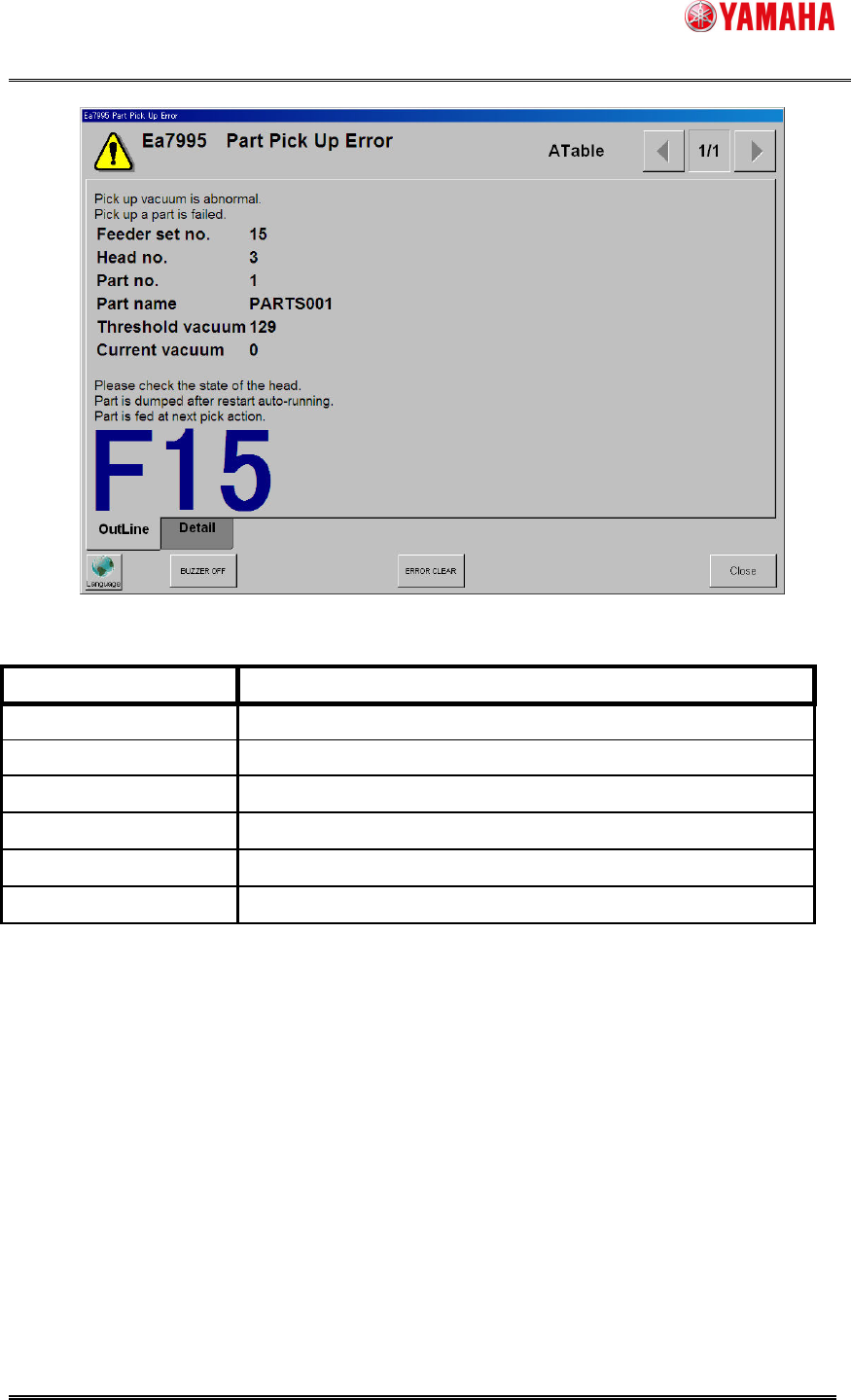

Fig.3 Error message when [dump after 1pickup error] is set to “use” (Rev.1 add)
Name Contents
Feeder set no. Feeder number is displayed
Head no.
Head number is displayed
Parts no.
Parts number is displayed
Parts name
Parts name is displayed
Threshold vacuum
Threshold vacuum is displayed
Current vacuum
Current vacuum is displayed
3.4 Operation after error occurs
After Ea7992, Ea7994(Rev.01add), or Ea7995(Rev.01add) occurs and the machine restarts, it
works as follows.
With SS feeder, parts are considered to be still on the pickup position. So pickup action is
performed at the same position without feeding.
With air drive feeder, feeding must be performed automatically because of its structure. Please
feed the parts back by hand before starting auto-running.
(Rev.01 add) When “Dump after 1pickup error” is set to “Use”, feeder is fed in a next pick
action because it is considered that parts have been adsorbed by heads. In the case of air drive
feeder, it is not necessary to feed the parts back by hand
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50136
6/11
3.5 Log
When one of Ea7992, Ea7994(Rev.01add), or Ea7995(Rev.01add) occurs, the following logs
are outputted.
3.5.1 Error Log
Following error numbers and messages are displayed.
The following details are displayed.
Name Contents
H Head number is displayed.
C Parts number is displayed.
F Feeder set number is displayed.
ChkVac= Check vacuum is displayed.
CurVac= Current vacuum is displayed.
FdrID= Feeder ID is displayed.
