I･pulse F2 Series F2-84 (C type) P 3 No. Code No. Parts Name Q'ty Parts No. LG4-M1A30-021 HOLD LEVER ASSY 1 AS2-A08-8190-C 1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325 2 LG4-M1A17-000 STOPPER PIN 1 FTA-A08-8113 3 LG4-M1A…

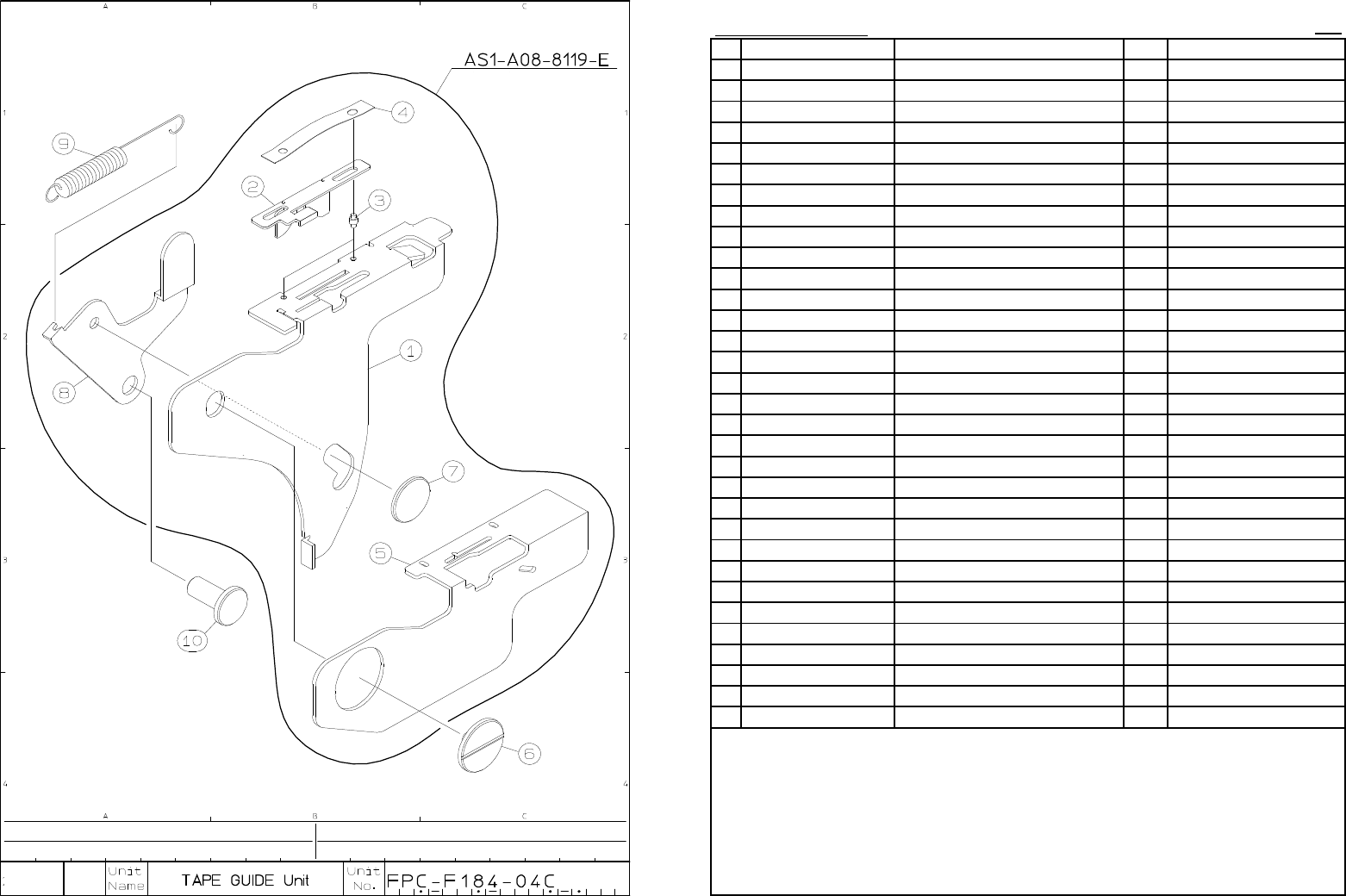

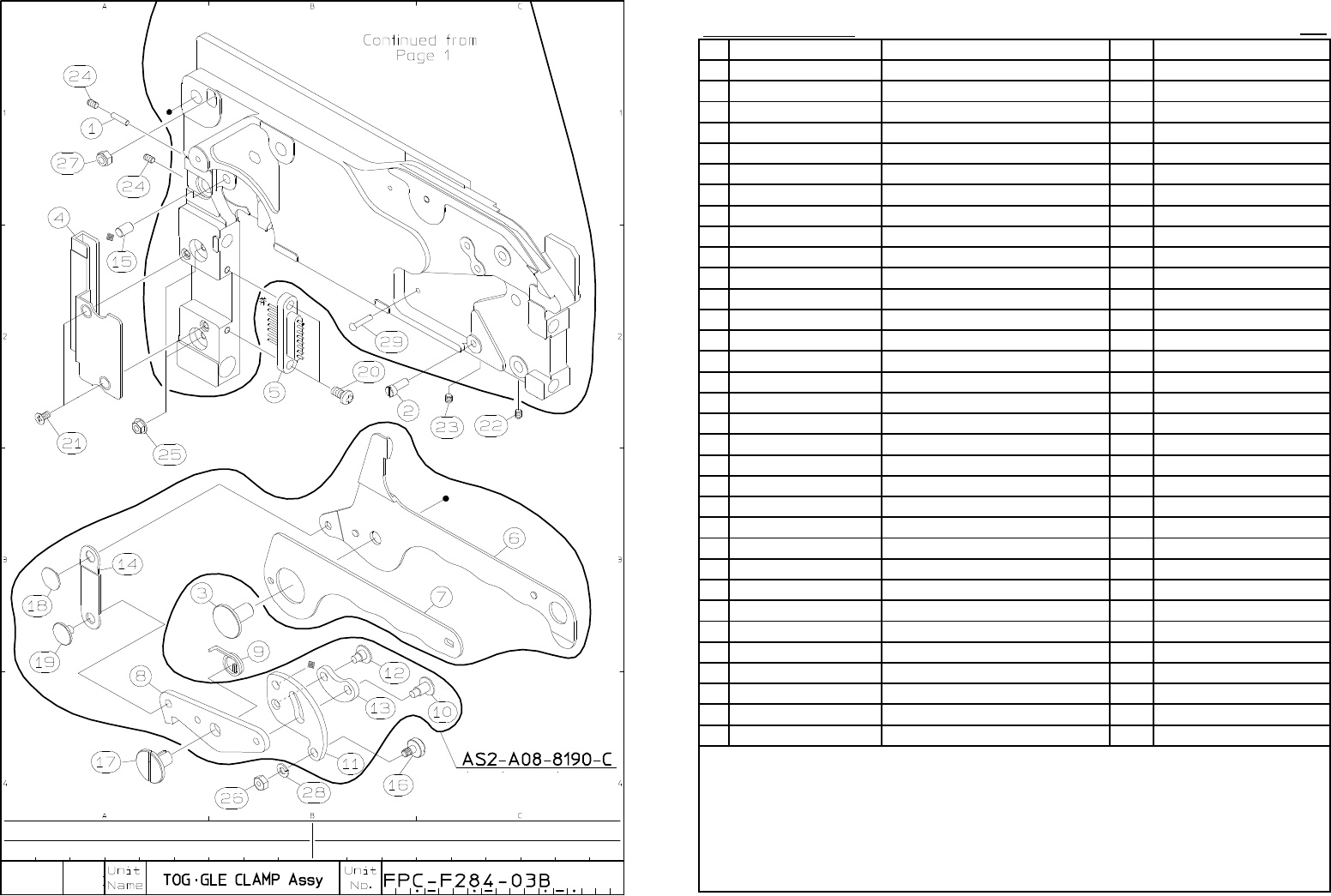

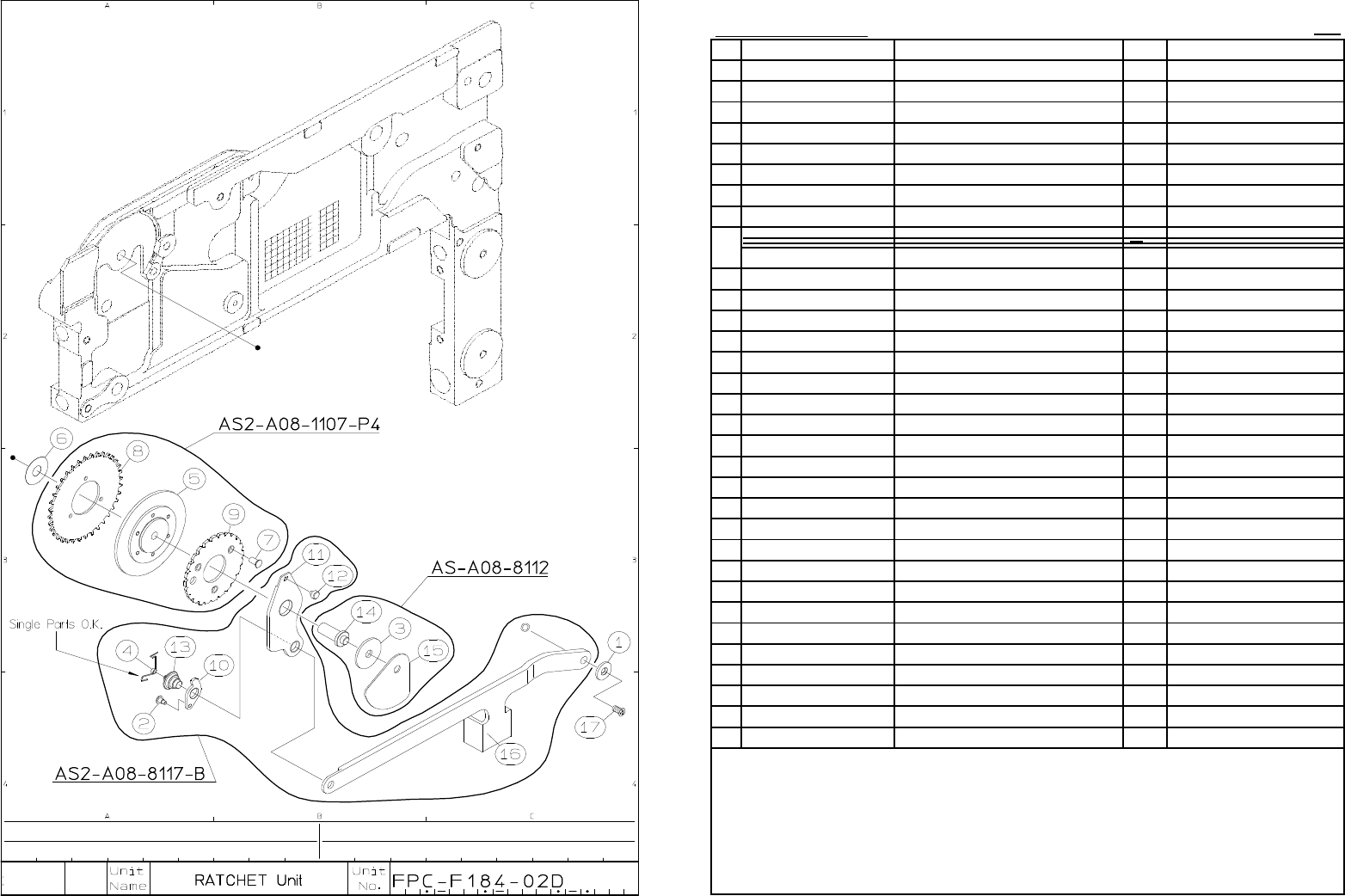

I･pulse F2 Series
F2-84 (C type)
P 2
No. Code No. Parts Name Q'ty Parts No.
KW1-M1120-000 SPROCKET ASSY 1 AS2-A08-1107-P4
LG4-M1A2A-002 RACKING LEVER ASSY 1 AS2-A08-8117-B
LG4-M1A2M-000 RATCHET AXIS ASSY 1 AS -A08-8112
1
K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2
K87-M112F-000 SPRING HOOK PIN 1 CTF-A08- 211-B2
3
K87-M112M-100 FLANGE A 1 CTF-A08- 712-1
4 LG4-M1A2F-000 SCREW COIL SPRING 1
FTA-A08-8111-1
5
K87-M1121-000 METAL 1 FTA-A08-1103
KW1-M11BS-050
WASHER 1 2
FTA-A08-1103-005B
KJK-M119W-000 WASHER 2 FTA-A08-1464-005
7
K87-M1122-000 RIVET 3 FTA-A08-1103-1
8
KW1-M1123-000 SPROCKET 1 FTA-A08-1104-B
9
K87-M1124-000 RATCHET 1 FTA-A08-1107-P4
10
K87-M112G-100 RACKING POLE 1 FTA-A08-1111
11
LG4-M1A2E-000 RACKING LEVER 1 FTA-A08-8108
12
LG4-M1A2D-000 SHUTTER DRIVE PIN 1 FTA-A08-8109
13
LG4 M1A2C 000
RACKING POLE AXIS
1
FTA A08 8110
※1 6
13
LG4-M1A2C-000 RACKING POLE AXIS 1 FTA-A08-8110
14
LG4-M1A2N-000 RATCHET AXIS 1 FTA-A08-8112
15
LG4-M1A2P-000 FLANGE B 1 FTA-A08-8112-2
16
LG4-M1A2B-000 MAIN ARM 1 FTA-A08-8117-B
17
K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB
18
19
20
21
22
23
24
25
26
27
28
29
※1…F2-84-015677C～
I･pulse F2 Series
F2-84 (C type)
P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A30-021
HOLD LEVER ASSY 1
AS2-A08-8190-C
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2 LG4-M1A17-000 STOPPER PIN 1 FTA-A08-8113
3 LG4-M1A1K-000 LEVER AXIS PIN 1
FTA-A08-8130-B
4 LG4-M1A1A-001
COVER PLATE
1
FTA-A08-8149-C
5
LG4-M1AA2-101
SP.CONNECTOR ASSY
1
FTA-A08-8151-12B
6 LG4-M1A31-010
HOLD LEVER M
1 FTA-A08-8190-C
7 LG4-M1A32-000
HOLD LEVER S
1 FTA-A08-8190-1B
8 LG4-M1A34-001
CLAMP LEVER
1 FTA-A08-8191-C
9 LG4-M1A3M-000 SCREW COIL SPRING 1
FTA-A08-8191-SCSp
10 LG4-M1A3A-001
HINGE PIN 1
1
FTA-A08-8191-1C
11
LG4-M1A35-001
CLANK ARM
1 FTA-A08-8192-B
12 LG4-M1A3B-000
HINGE PIN 2
1
FTA-A08-8192-1
13 LG4-M1A36-000
ARM
1
FTA-A08-8193
14
LG4-M1A33-000
LINK PLATE
1
FTA-A08-8194
15 LG4-M1A3L-000
CLANK ARM AXIS PIN
1
FTA-A08-8195
16
LG4 M1A37 010
ADJUST CLAMP PIN
1
FTA A08 8196
16 LG4-M1A37-010 ADJUST CLAMP PIN 1
FTA-A08-8196
17 LG4-M1A3K-001
CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
18
LG4-M1A38-000
LINK PIN T
1
FTA-A08-8198
19 LG4-M1A39-000
LINK PIN U
1
FTA-A08-8199
20 LG4-M1ADC-000
SCREW,PAN HEAD+ 2 3MC-7-P
21 K87-M111S-000
SCREW,FLAT HEAD+
2
3MK-6-P
22 K87-M111T-000 SCREW,SET 1 3MY-3-F
23 K87-M111X-000 SCREW,SET 1 3MY-4-F
24 K87-M111R-000 SCREW,SET 2
3MY-5-F
25 K87-M111U-000
SCREW FLANGE NUT
2
3MH-FS
26 K87-M21BN-000
SCREW NUT
1
3MH-P
27 LG4-M1ADH-000
U-NUT
1
3MH-U-P
28 K87-M21BM-000
SPRING LOCK WASHER
1
3MU-P
29 K87-M1115-000
CIRCULAR RIVET
1
2-10
30
31
32
I･pulse F2 Series
F2-84 (C type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A40-021
T.G. PLATE ASSY 1 AS1-A08-8119-E
1 LG4-M1A41-020
TAPE GUIDE PLATE 1 FTA-A08-8119-E
2
LG4-M1A42-011
SHUTTER PLATE 1 FTA-A08-8120-E
3 LG4-M1A45-010
SHUTTER GUIDE PIN 2 FTA-A08-8121-B
4
LG4-M1A44-001
SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5 LG4-M1A43-020
SHUTTER GUARD PLATE 1 FTA-A08-8123-E
6 LG4-M1A4L-000
T.G. GUIDE SCREW 1 FTA-A08-8124
7 LG4-M1A47-000
T.G. GUIDE PIN 1 FTA-A08-8125
8 LG4-M1A46-000
LOCK LEVER 1 FTA-A08-8127-B
9 LG4-M1A48-001
T.G. PUSH SPRING 1 FTA-A08-8127-50
10 LG4-M1A4K-000
T.G.A. GUIDE PIN 1 FTA-A08-8129
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
