I･pulse F2 Series F2-24 (D type) P 4 No. Code No. Parts Name Q'ty Parts No. LG4-M6A40-012 TAPE GUIDE UNIT 1 AS2-A24-8119-E LG4-M6A4A-001 TAPE GUIDE ASSY 1 AS1-A24-8119-E LG4-M6A4B-000 SHUTTER PLATE ASSY 1 AS-A24-812…

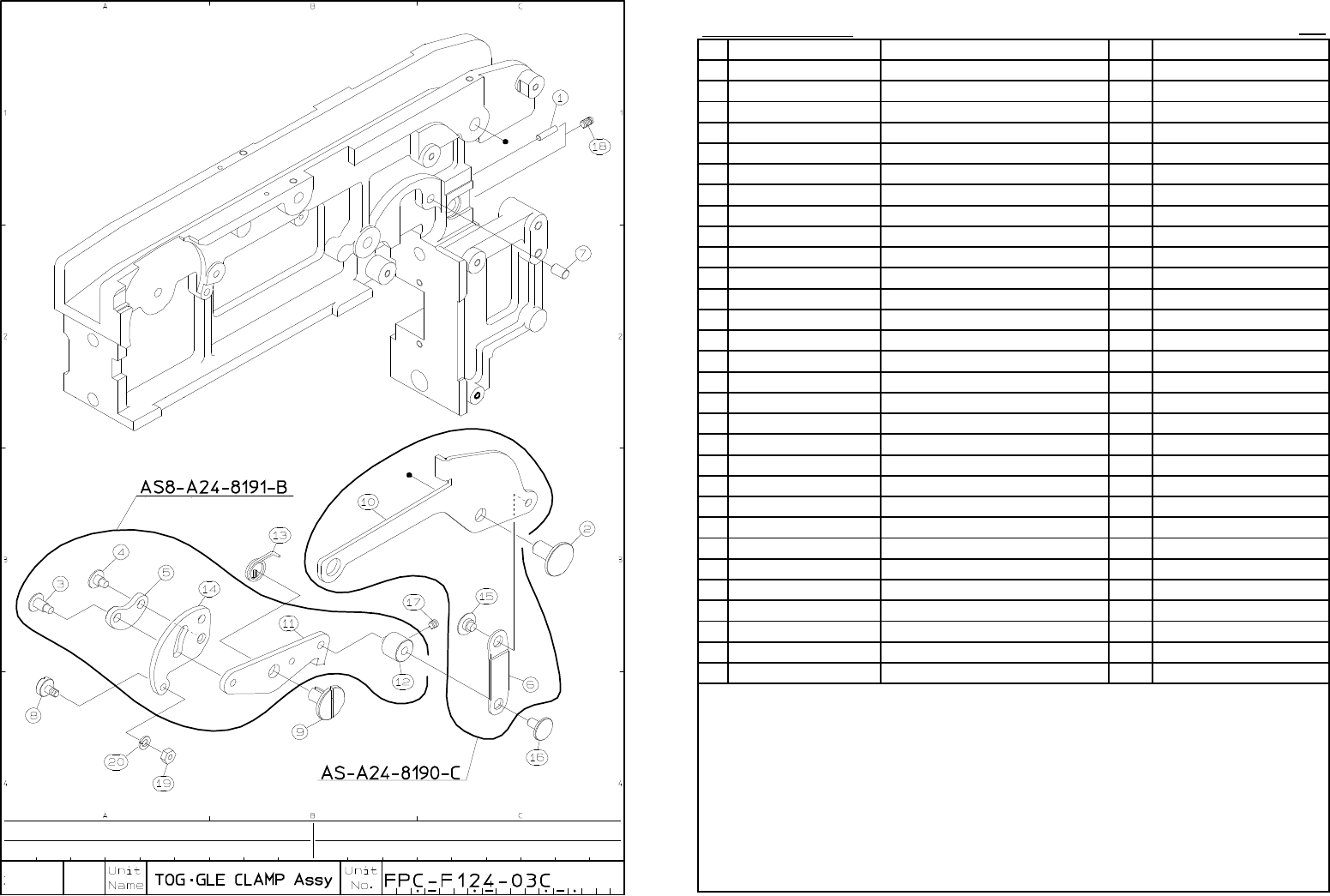

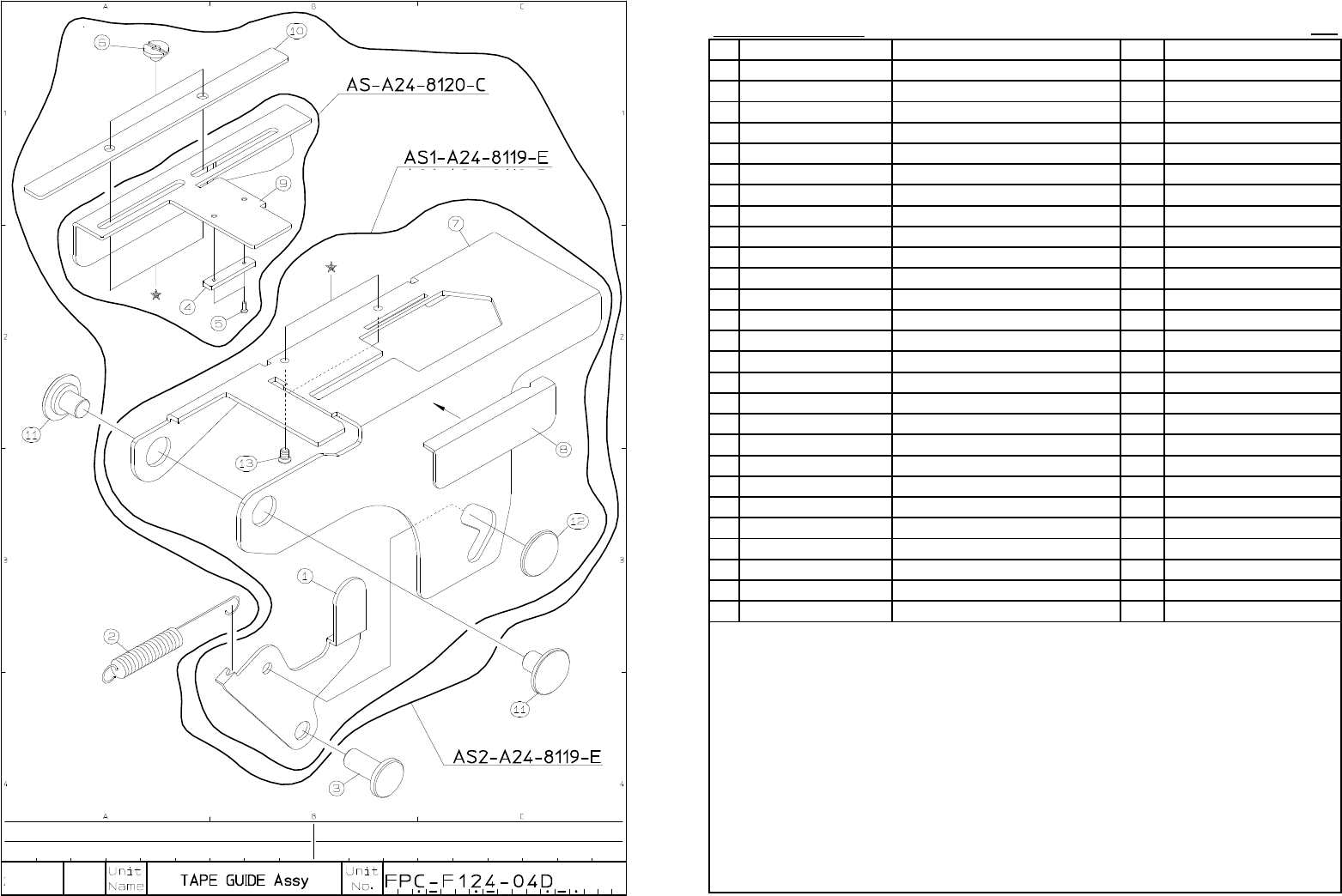

I･pulse F2 Series
F2-24 (D type)
P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A30-010
HOLD LEVER ASSY 1 AS-A24-8190-C
LG4-M6A3A-003
CLAMP LEVER ASSY 1 AS8-A24-8191-B
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1K-000
LEVER AXIS PIN 1
FTA-A08-8130-B
3
LG4-M1A3A-001 HINGE PIN 1
1
FTA-A08-8191-1C
4
LG4-M1A3B-000 HINGE PIN 2
1
FTA-A08-8192-1
5
LG4-M1A36-000 ARM
1
FTA-A08-8193
6
LG4-M1A33-000 LINK PLATE
1
FTA-A08-8194
7
LG4-M1A3L-000 CLANK ARM AXIS PIN
1
FTA-A08-8195
8
LG4-M1A37-000 ADJUST CLAMP PIN
1
FTA-A08-8196
9
LG4-M1A3K-001 CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
10 LG4-M6A31-010 HOLD LEVER
1 FTA-A24-8190-C
11
LG4-M6A3B-001 CLAMP LEVER
1 FTA-A24-8191-B
12
LG4-M6A3D-000
STUD 1 FTA-A24-8191-1
13
LG4-M6A3M-000
SCREW COIL SPRING 1
FTA-A24-8191-SCSp
14 LG4-M6A3C-001 CLANK ARM
1 FTA-A24-8192-B
15
LG4 M6A32 000
LINK PIN T
1
FTA A24 8198
15
LG4-M6A32-000 LINK PIN T
1
FTA-A24-8198
16
LG4-M6A39-000 LINK PIN U
1
FTA-A24-8199
17 K87-M111T-000 SCREW,SET 1 3MY-3-F
18
K87-M111R-000 SCREW,SET 2 3MY-5-F
19 K87-M21BN-000
SCREW NUT
1
3MH-P
20 K87-M21BM-000 SPRING LOCK WASHER 1
3MU-P
21
22
23
24
25
26
27
28
I･pulse F2 Series
F2-24 (D type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A40-012
TAPE GUIDE UNIT 1 AS2-A24-8119-E
LG4-M6A4A-001
TAPE GUIDE ASSY 1 AS1-A24-8119-E
LG4-M6A4B-000
SHUTTER PLATE ASSY 1
AS-A24-8120-C
1 LG4-M1A46-000 LOCK LEVER
1
FTA-A08-8127-B
2
LG4-M6A48-000 T.G. PUSH SPRING
1
FTA-A24-8127-73
3 LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
4 KW1-M4547-000
SHUTTER PIECE
1
FTA-A24-1120-1
5
KW1-M4548-000
RIVET
2
FTA-A24-1120-2
6 LG4-M6A44-000
SHUTTER GUIDE PIN
2
FTA-A24-8121-B
7 LG4-M6A41-011
TAPE GUIDE PLATE 1
FTA-A24-8119-E
8
LG4-M6A4F-000 SIDE COVER
1
FTA-A24-8125-1
9 LG4-M6A42-010
SHUTTER PLATE 1
FTA-A24-8120-C
10
LG4-M6A49-001 COVER PLATE
1
FTA-A24-8123-B
11 LG4-M6A4L-000 TAPE GUIDE AXIS PIN
2
FTA-A24-8124
12
LG4-M6A47-000 T.G. GUIDE PIN
1
FTA-A24-8125
13
K87-M111P-000 SCREW,FLAT HEAD+ 2 P2MK-3
14
14
15
16
17
18
19
20
21
22
23
24
I･pulse F2 Series
F2-24 (D type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A80-000
INDENTATION LEV. ASSY 1
AS-A24-8159
LG4-M6A8A-001
SUB LEVER ASSY 1 AS-A24-8160-B
LG4-M6A84-000
REEL SHAFT ASSY 1 AS-A24-8152
LG4-M6A8N-000
METAL ASSY 1 AS2-A24-1153-D
LG4-M6A8F-000
REEL PLATE ASSY 1 AS-A24-1155-E
1 K87-M119J-000 THRUST WASHER 3 CTF- 42- 60-L
2 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
3 KW1-M459P-000 METAL PIN 2 CTF-A12- 653-1
4 K87-M459Y-000 PLANE WASHER 1 CTF-A12- 656
5 LG4-M6A89-000
SPRING 1 FTA-A24-8159-68
6 KW1-M459T-000 METAL 1 FTA-A24-1153-D
7 KW1-M459V-000 REEL FLANGE 1 FTA-A24-1154-D
8 KW1-M459U-000 REEL PLATE 1 FTA-A24-1155-E
9
LG4-M6A8E-000
SUB ARM 1 FTA-A24-8146-B
10
LG4-M6A85-000
REEL SHAFT 1 FTA-A24-8152
11
LG4-M6A8D-000
ARM STUD 1 FTA-A24-8158
12
LG4 M6A81 000
INDENTATION LEVER
1
FTA A24 8159
12
LG4-M6A81-000
INDENTATION LEVER 1 FTA-A24-8159
13
LG4-M6A8B-001
SUB LEVER 1 FTA-A24-8160-B
14
LG4-M6A2C-000 SHUTTER DRIVE PIN
1
FTA-A24-8116-1
15
LG4-M6A8G-000
INDEX GEAR 1 FTA-A24-8161
16
LG4-M6A83-000
DRIVE GEAR 1 FTA-A24-8162
17
LG4-M6A82-000
GEAR AXIS 1 FTA-A24-8163
18 K87-M219E-100 ONE-WAY CRUTCH 1 FC-6
19 KW1-M119B-000 ONE-WAY CRUTCH 1 OWC4-13-3.1-L
20 K87-M5596-000 OILLESS BEARING 1 80B-0808
21
LG4-M6A8R-000
MAGNET 2 φ6-5
22 K87-M11BF-000 SCREW,FLAT HEAD+ 1 P2MK-4-IB
23 K87-M11BB-000 SCREW,FLAT HEAD+ 4 P2.6MK-5-IB
24 KW1-M45BF-000 SCREW,FLAT HEAD+ 2 3MK-16-P
25 K87-M111S-000 SCREW,FLAT HEAD+ 1 3MK-6-P
26
KW1-M459S-000 STRAIGHT PIN 2 A4×9.8
27
LG4-M6A8H-000
WARNING LABEL 1 FTA-A24-8151-WL
28
