I･pulse F2 Series F2-24 (D type) P 1 No. Code No. Parts Name Q'ty Parts No. LG4-M6A10-020 BODY ASSY 1 AS2-A24-8101-C LG4-M6A10-030 BODY ASSY 1 AS3-A24-8101-C LG4-M6A1M-000 MAIN LEVER ASSY 1 AS-A24-8145 1 LG4-M1A1L-0…
MODEL ： F2-24 (D_type)
CODE No. ： LG4-M6A00-151
Serial No.
F2-24-001521D～

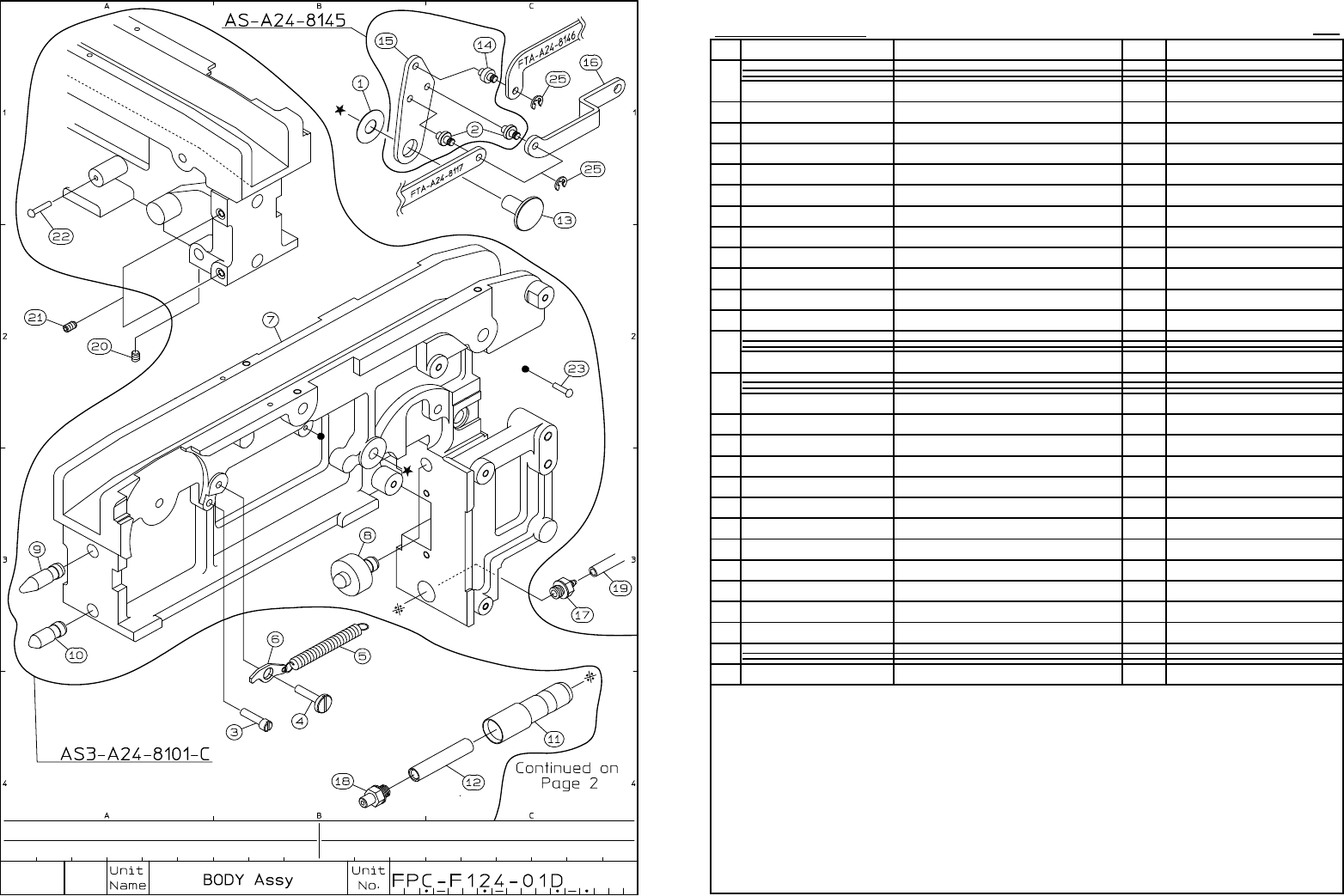

I･pulse F2 Series
F2-24 (D type)
P 1
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A10-020 BODY ASSY
1
AS2-A24-8101-C
LG4-M6A10-030 BODY ASSY
1
AS3-A24-8101-C
LG4-M6A1M-000 MAIN LEVER ASSY
1
AS-A24-8145
1
LG4-M1A1L-000 THRUST WASHER
1
CTF- 53- 38-02
2 KW1-M4578-000 STUD 2 CTF- 54- 44
3
KW1-M221F-100 STOPPER PIN
1
CTF-M12- 313
4
K87-M211B-000 BACK STOPPER AXIS
1
CTF-M12- 315
5 LG4-M6A19-001 BACK STOPPER SPRING
1 FTA-A24-8114-98
6 KW1-M451H-000 BACK STOPPER 1 FTA-A24-1114
7
LG4-M6A11-002
BODY 1
FTA-A24-8101-C
8
LG4-M6A12-020
MAIN GUIDE PIN 1
FTA-A24-8102-C
9
LG4-M1A13-510
LOCATE PIN R 1 FTA-E08-8503-B
10
LG4-M1A14-510
LOCATE PIN F 1 FTA-E08-8504-B
LG4-M4A15-000 PLUG HOLDER GUIDE
1
FTA-A12-8105
LG4-M1A15-010
PLUG HOLDER GUIDE 1 FTA-A08-8105-B
LG4-M1A16-000 PLUG HOLDER
1
FTA-A08-8106
LG4 M1A16 010
PLUG HOLDER
1
FTA A08 8106 B
※
112
※1
※1 11
LG4-M1A16-010
PLUG HOLDER 1 FTA-A08-8106-B
13
LG4-M1A1K-000 LEVER AXIS PIN
1
FTA-A08-8130-B
14
LG4-M6A1R-000
STUD 1 FTA-A24-8144
15
LG4-M6A1N-000 MAIN LEVER
1
FTA-A24-8145
16
LG4-M6A1P-000
ARM 1 FTA-A24-8147
17 K87-M56C1-000
BARB CONNECTOR
1
BF4BU
18
LG4-M1AB2-000 PLUG
1
MA-MC05PM
19
LG4-M6ABA-000 AIR HOSE
1
U4B-180
20 K87-M111Y-000 SCREW,SET 1 3MY-4-F
21 K87-M23B3-000 SCREW,SET 2
3MY-5
22 LG4-M1AD1-000
CIRCULAR RIVET
1
2-8
23
K87-M1115-000 CIRCULAR RIVET
1
2-10
※1 24
LG4-M1AD2-000 CIRCLIP C
1
STW-7
25 K87-M11B9-000
CIRCLIP E
3 E.24
※1…F2-24-001241D～
※1
12
I･pulse F2 Series
F2-24 (D type)
P 2
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A20-001
SPROCKET ASSY 1 AS1-A32-6107
LG4-M6A27-001 RACKING M.LEVER ASSY 1 AS1-A24-8105
LG4-M6A2M-000 RATCHET AXIS ASSY
1
AS-A24-8112
LG4-M6A2A-001
RACKING SUB LEV. ASSY 1 AS1-A24-8116
1 K87-M111G-100 PUSH PIN 3
CTF-M08- 325
2 LG4-M6A2F-000
THRUST WASHER
1
CTF-A32- 08
3 K87-M112M-000 FLANGE A 1
CTF-A08- 412-1
4 K87-M112G-100 RACKING POLE 1
FTA-A08-1111
5 KW1-M4523-000 SPROCKET 1
FTA-A24-1104
6 KW1-M452W-001 STUD 1 FTA-A24-1118-B
7 LG4-M6A21-000 METAL 1
FTA-A24-8103
8 LG4-M6A22-000 RACKING MAIN LEVER 1
FTA-A24-8105
9 LG4-M6A25-000
RACKING POLE AXIS
1
FTA-A24-8110
10 LG4-M6A2G-000 SCREW COIL SPRING 1
FTA-A24-8111-1
11 LG4-M6A26-000 SPRING HOOK PIN 1 FTA-A24-8111-2
12
LG4-M6A2N-000 RATCHET AXIS
1
FTA-A24-8112
13
LG4 M6A2B 000
RACKING SUB LEVER
1
FTA A24 8116
13
LG4-M6A2B-000
RACKING SUB LEVER 1 FTA-A24-8116
14
LG4-M6A2C-000 SHUTTER DRIVE PIN
1
FTA-A24-8116-1
15
LG4-M6A2D-000 MAIN ARM
1
FTA-A24-8117
16 LG4-M6A24-000 RATCHET 1
FTA-A32-6107
17 K87-M231M-000 STRAIGHT PIN 2
A2×6.8
18 K87-M111P-000 SCREW,FLAT HEAD+ 6 P2MK-3
19 K87-M111T-000 SCREW,SET 1 3MY-3-F
20 K87-M111Y-000 SCREW,SET 2 3MY-4-F
21 K87-M23B3-000 SCREW,SET 1 3MY-5
22 K87-M111R-000 SCREW,SET 5 3MY-5-F
23 K87-M11B9-000
CIRCLIP E
1 E.24
