MODEL ： F2-12 (E_type) CODE No. ： LG4-M4A00-171 Serial No. F2-12-004208E～
I･pulse F2 Series

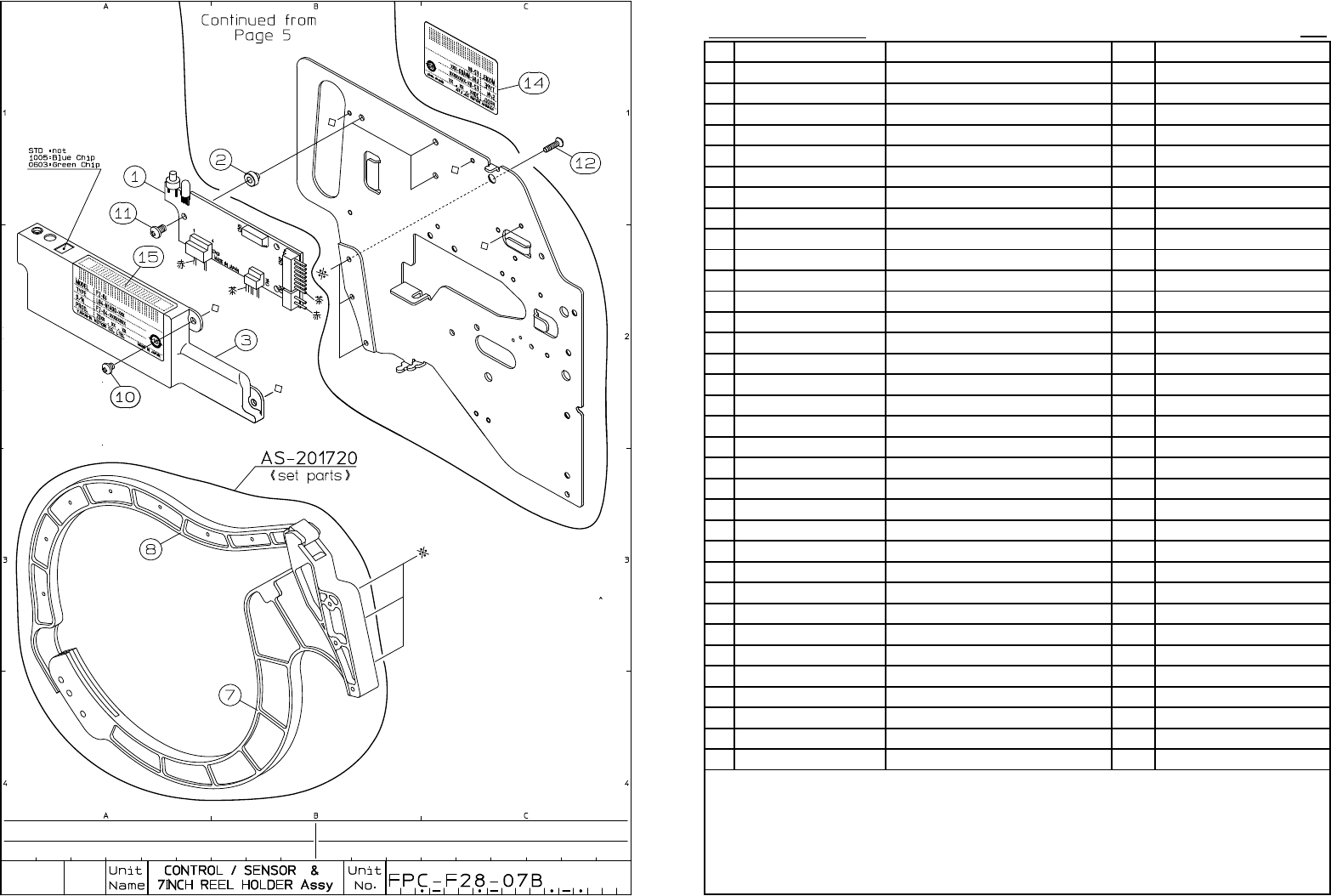

F2-84 （C type)
P 7
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A90-000
REEL HOLDER ASSY
1
AS -201720
1
LG4-M1AH1-021 BOARD ITF (REV.A) 1
2
LG4-M1A6R-010
CONTROL BOARD COLLAR
3
FTA-A08-8152-B
3
LG4-M1A6S-100
CONTROL BOARD COVER
1
FTA-A08-8253
7 LG4-M1A91-000
REEL HOLDER
1
201720
8 LG4-M1A92-000
CLAMP ARM
1
201721
10 K87-M111N-000 SCREW,PAN HEAD+ 3
3MC-3-P
11 K87-M111W-000 SCREW,PAN HEAD+ 3
3MC-5-P
12 LG4-M1ADF-000
2 SCREW,BAIND HEAD+
3
3M-10-P-P-Bi
14 LG4-M1AC1-100 SERIAL NO. STICKER 1
FTA-A08-8250-SNS
15 LG4-M1AC3-100 SERIAL NO. STICKER 1
FTA-A08-8250-SNS1
MODEL ： F2-12 (E_type)
CODE No. ： LG4-M4A00-171
Serial No.
F2-12-004208E～
I･pulse F2 Series
F2-12 (E type)
P 1
No. Code No. Parts Name Q'ty Parts No.
LG4-M4A10-050 BODY ASSY
1
AS1-A12-8101-D
LG4-M4A10-060 BODY ASSY
1
AS2-A12-8101-D
LG4-M4A1M-010 MAIN LEVER ASSY
1
AS3-A12-8131
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1L-000 THRUST WASHER
1
CTF- 53- 38-02
3 K87-M111H-200 BACK STOPPER 1
FTA-A08-1114
4
LG4-M4A1T-000
ARM AXIS PIN 1 FTA-A12-8134
5
LG4-M4A11-030
BODY 1
FTA-A12-8101-D
6 LG4-M1A12-510
MAIN GUIDE PIN
1
FTA-E08-8502-B
7 LG4-M1A13-510
LOCATE PIN R
1
FTA-E08-8503-B
8
LG4-M1A14-510
LOCATE PIN F
1
FTA-E08-8504-B
LG4-M4A15-000 PLUG HOLDER GUIDE
1
FTA-A12-8105
LG4-M1A15-010
PLUG HOLDER GUIDE 1 FTA-A08-8105-B
LG4-M1A16-000 PLUG HOLDER
1
FTA-A08-8106
LG4-M1A16-010
PLUG HOLDER 1 FTA-A08-8106-B
11
KW1-M221F-100 STOPPER PIN
1
CTF-M12- 313
12
LG4 M4A19 001
BACK STOPPER SPRING
1
FTA A08 6164 1600
※1
※1 9
※1 10
12
LG4-M4A19-001 BACK STOPPER SPRING
1
FTA-A08-6164-1600
13
K87-M211B-000 BACK STOPPER AXIS
1
CTF-M12- 315
14
LG4-M1A1K-000 LEVER AXIS PIN
1
FTA-A08-8130-B
15
LG4-M4A1N-000 MAIN LEVER
1
FTA-A12-8131
16
LG4-M4A1P-000 ARM
1
FTA-A12-8135-B
17
LG4-M4A1S-000
ARM AXIS PIN 1
FTA-A12-8139
18 K87-M1186-000
BARB CONNECTOR
1
BF3BU
19
LG4-M1AB2-000 PLUG
1
MA-MC05PM
20
LG4-M4ABA-010 AIR HOSE
1
U3B-167
21 K87-M23B3-000 SCREW,SET 3
3MY-5
22 K87-M111R-000 SCREW,SET 6
3MY-5-F
23
K87-M1115-000 CIRCULAR RIVET
1
2-10
※1 24
LG4-M1AD2-000 CIRCLIP C
1
STW-7
※1…F2-12-003248E～
