I･pulse F2 Series F2-56 (D type) P 7 No. Code No. Parts Name Q'ty Parts No. 1 LG4-M6A1A-000 MICRO SWITCH BRACKET 1 FTA-A24-8135-B 2 LG4-M8A6B-000 C.B.COVER 1 FTA-A44-8137 3 LG4-M6A6C-000 COVER 1 FTA-A24-8138-B 4 LG4…

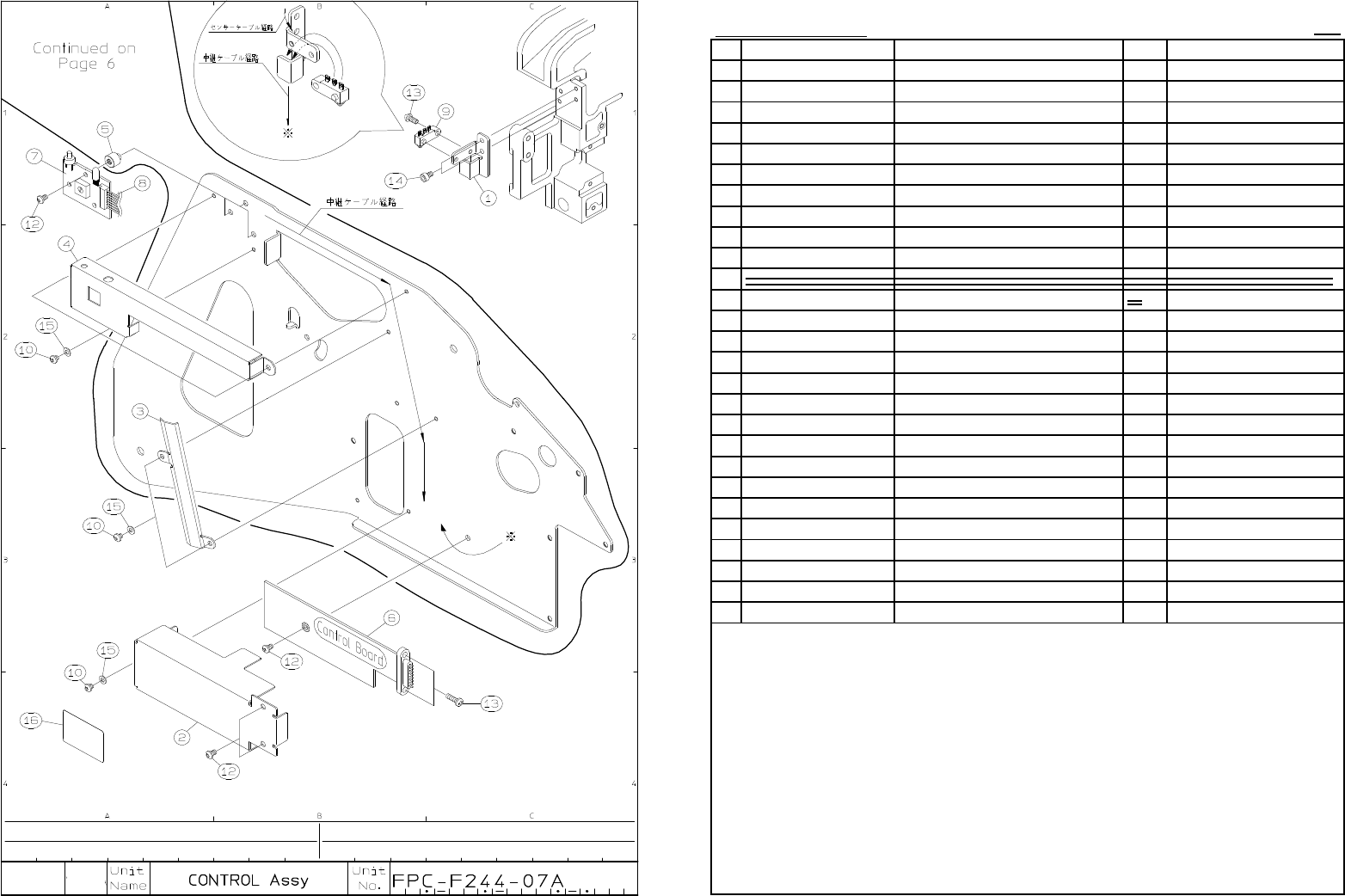

I･pulse F2 Series
F2-56 (D type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M9A60-111
BACK PLATE ASSY 1 AS4-A24-8250-C
1 K87-M2387-000 PLANE WASHER 2 CTF- 54- 66-1
2 KW1-M458E-000 RING SCREW 2 CTF-A12- 566-1
3 K87-M538C-000 POSITION PLATE 1 CTF-A32- 49-2
4
LG4-M1A72-000
CONNECT PIN 1 FTA-A08-8146
5
LG4-M9A63-011
ROLLER SHAFT 1 FTA-A56-8132-D
6
LG4-M9A64-000
SHAFT 1 FTA-A56-8140
7
LG4-M6A71-000
ROD CONNECTER 1 FTA-A24-8142
8
LG4-M6A73-001
ADJUST PLATE 1 FTA-A24-8148-C
9
LG4-M6A74-000
CYLINDER BRACKET 1 FTA-A24-8149-B
10
LG4-M6A61-111
BACK PLATE 1 FTA-A24-8250-C
11
LG4-M7A62-010
REEL SHAFT 1 FTA-A32-8151-B
12
LG4-M6AB1-000
VAL PACK CYLINDER 1 FTA-A24-8157
13 LG4-M8A6A-010
GUIDE PLATE 1 FTA-A44-8177-B
14
LG4-M9A66-000
C.B.COVER SHAFT 1 FTA-A56-8141-B
15 K87-M56C1-000
BARB CONNECTOR
1 BF4BU
16
K87 M111N 000
SCREW PAN HEAD+
2
3MC3P
16
K87-M111N-000
SCREW,PAN HEAD+ 2 3MC-3-P
17 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
18
LG4-M4ADE-000
SCREW,FLAT HEAD+ 2 3MK-7-P
19 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
20 KW1-M45BG-000 SCREW,FLAT HEAD+ 1 3MK-10-P
21 K87-M11B4-100 SCREW,FLAT HEAD+ 4 3MK-12-P
22 LG4-M6ADJ-000 SCREW,FLAT HEAD LEFT 1 4MK-8-P-L
23 LG4-M6ADE-000 SCREW,FLAT HEAD+ 2 4MK-10-P
24 KW1-M111T-000 SCREW,THIN HEAD 1 TH-TP-HS-M3-5
25 K87-M21BN-000 SCREW NUT 1 3MH-P
26 K87-M11D7-000
CIRCLIP E
1 E.32
27 KW1-M458F-000 DOUBLE RING 2 コクヨ リン-17
28
29
30
I･pulse F2 Series
F2-56 (D type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1
LG4-M6A1A-000
MICRO SWITCH BRACKET 1 FTA-A24-8135-B
2
LG4-M8A6B-000
C.B.COVER 1
FTA-A44-8137
3
LG4-M6A6C-000
COVER 1 FTA-A24-8138-B
4
LG4-M6A6D-100
LED,SWITCH COVER 1 FTA-A24-8239
5
LG4-M6A6E-100
COLLER 3 FTA-A24-8239-1
※1
6 LG4-M6AH1-010
BOARD ITG (REV.A) 1
7 LG4-M6AH3-004
BOARD ITGB (REV.A) 1
8
LG4-M6AA4-100 VALVE HARNESS ASSY
1 FTA-A24-8255
9
LG4-M6AA3-000 MICRO SWITCH ASSY
1 FTA-A24-8156
10
K87-M111N-000
SCREW,PAN HEAD+ 6 3MC-3-P
11 K87-M53BS-000 SCREW,PAN HEAD+ 2 3MC-4-P
12
K87-M111W-000
SCREW,PAN HEAD+ 4 , 6 3MC-5-P
13
LG4-M1ADC-000
SCREW,PAN HEAD+ 3
3MC-7-P
14 LG4-M6ADG-000 BOLT,HEX SOCKET HEAD 2 3MX-5-P
15 K87-M11BE-000 THRUST WASHER 6 3V-0.5-8-P
16
LG4-M7AC2-000
SET UP STICKER 1 FTA-A32-8137-SPS
17
17
18
19
20
21
22
23
24
25
26
27
※1…F2-56-000086D～

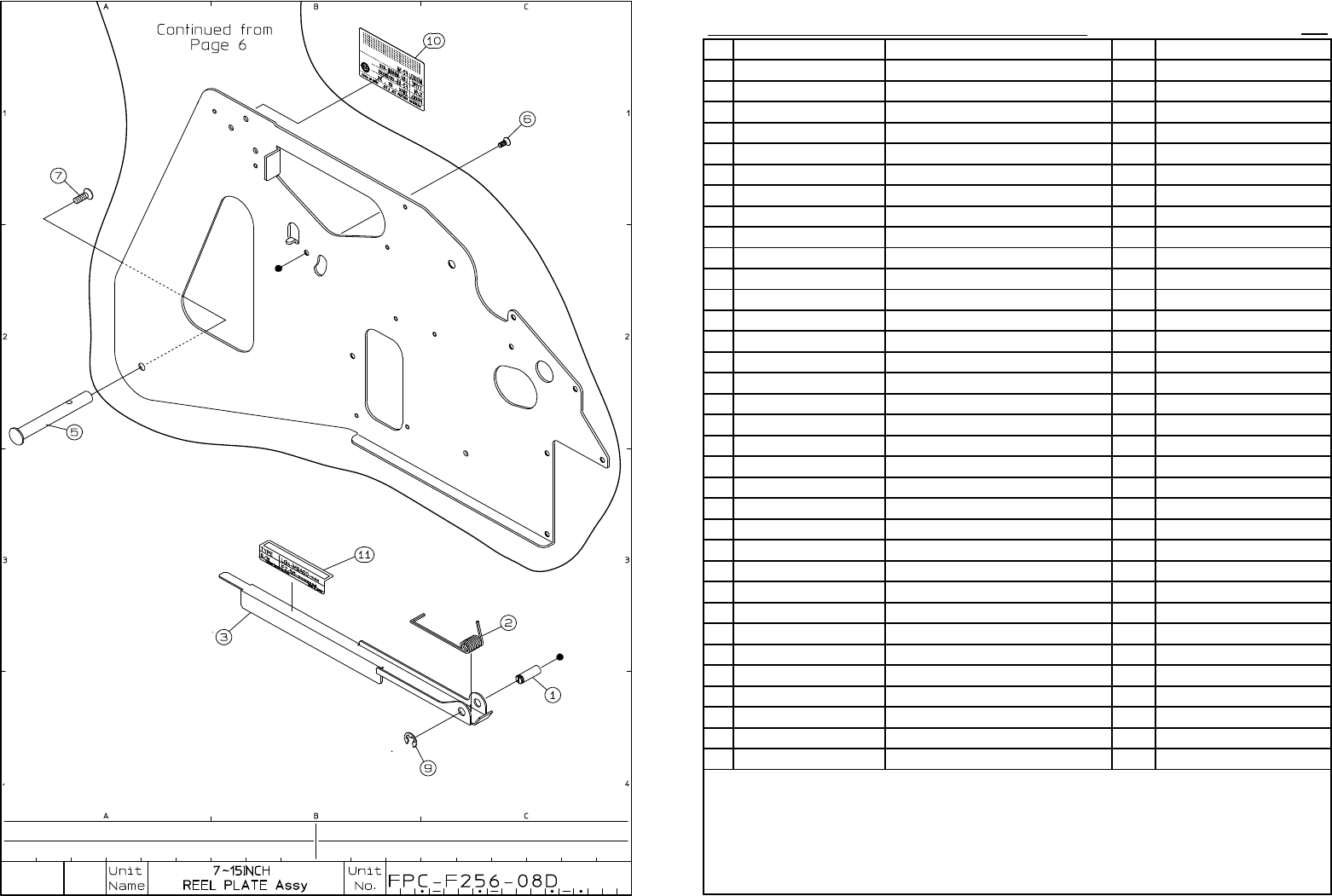

I･pulse F2 Series
F2 - 56 (D type) 56mm
P 8
No. Code No. Parts Name Q'ty Parts No.
1
LG4-M4A92-011
REEL TENTION AXIS 1 FTA-A12-8182-C
2
LG4-M4A9B-002 COIL SPRING
1 FTA-A12-8183-D
3 LG4-M4A9A-003 TENSION LEVER
1
FTA-A12-8181-F
5
LG4-M9A65-010
REEL AXIS 1 FTA-A56-8172-B
6 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
7
LG4-M4ADH-000
SCREW,FLAT HEAD+ 1 4MK-12-P
9
LG4-M4AD4-000 CIRCLIP E
1 E.50
※1
10 LG4-M9AC1-100
SERIAL NO. STICKER 1
FTA-A56-8250-SNS
11
LG4-M9AC3-100
SERIAL NO. STICKER 1
FTA-A56-8250-SNS1
※1…F2-56-000104D～
