SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50181
5/10

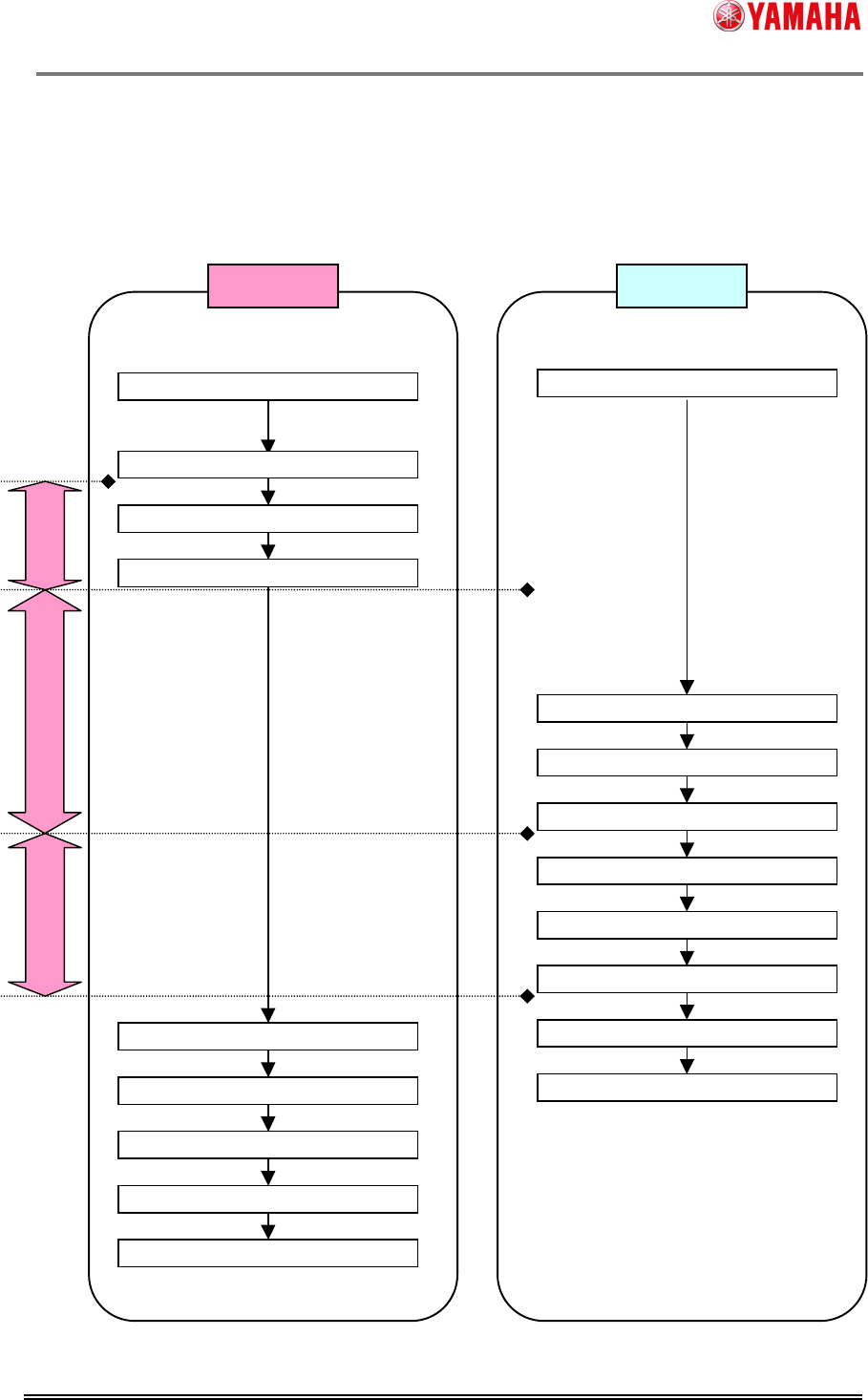

(1) After one table finishes mounting, its mount head moves to the waiting position.
(2) The table stays at the waiting position while the other one mounting and moving to its
waiting position.
(3) The table keeps staying at the waiting position until the other one finishes a PCB
fiducial recognition after mounting.
Mounting
MountingFinished
Mounting
MovingtoWaitPosition（Y-axis）
ArriveatWaitPosition（Y-axis）
MountingFinished
MovingtoWaitPosition（Y-axis）
ArriveatWaitPosition（Y-axis）
PCBfiducialworking
PCBfiducialfinishes
MovingtoWaitPosition
ArriveatWaitPosition
PCBfiducialstarts
PCBfiducialworking
PCBfiducialfinishes
MovingtoWaitPosition
ArriveatWaitPosition
PCBfiducialstarts
Table A Table B
(2)
(3)
(1)
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50181
6/10
4.2 ErrorMessage

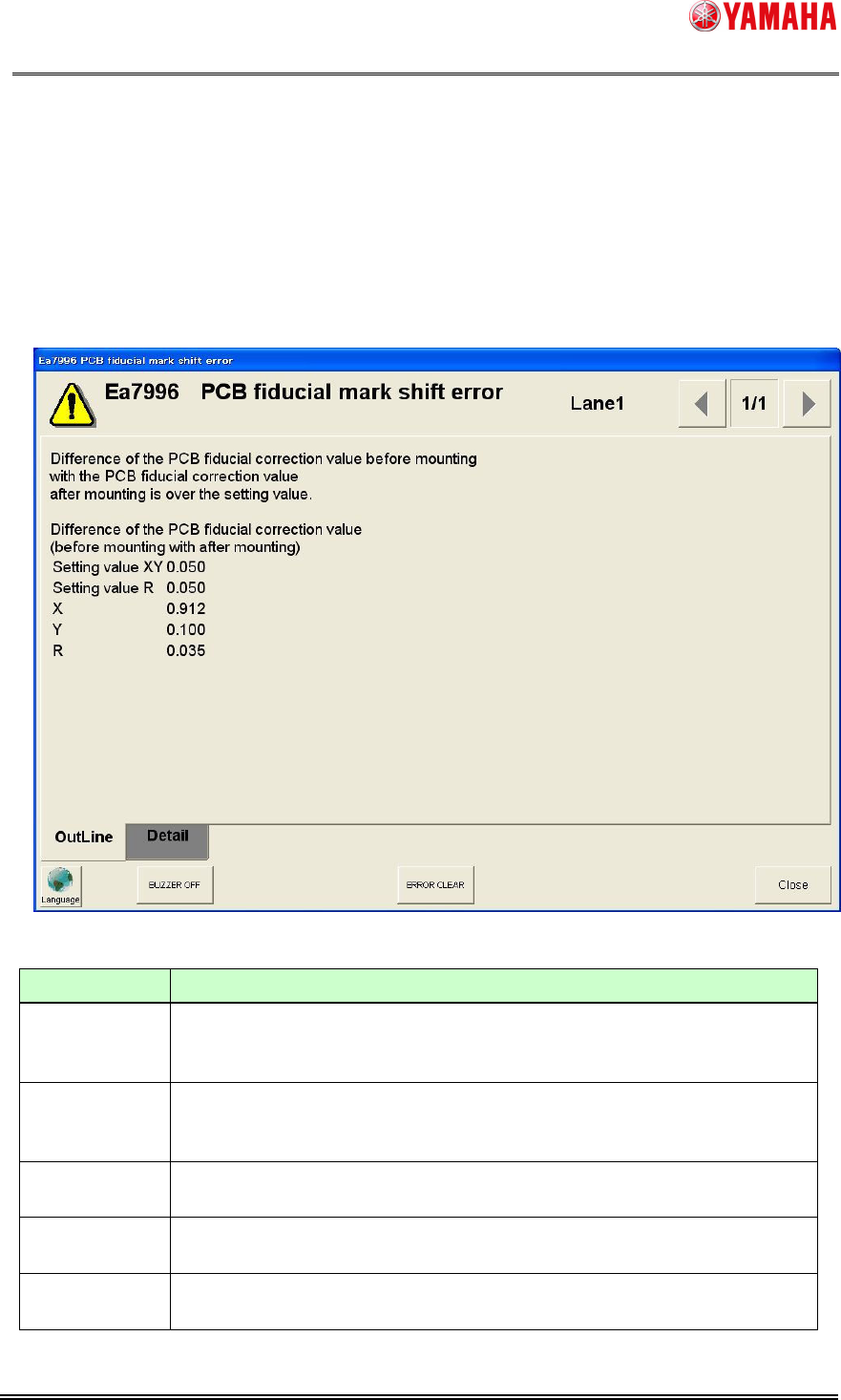

4 2.1 PCB fiducial mark shift error
If a difference check error occurs, the following error messages will be displayed.
[ Outline ]
Name Explanation
Setting
value XY
“The value of [Machine]-[Setting]-[Machine Data]
-[Mechanical]-[Position]-[Table A]-[Mount After FID Check]-[Max Diff
XY(mm)]” is displayed.
Setting
value R
“The value of [Machine]-[Setting]-[Machine Data]
-[Mechanical]-[Position]-[Table A]-[Mount After FID Check]-[Max Diff
R(deg)]” is displayed.
X Absolute value( the PCB fiducial correction value X before mounting -
the PCB fiducial correction value X after mounting)
Y Absolute value( the PCB fiducial correction value Y before mounting -
the PCB fiducial correction value Y after mounting)
R Absolute value( the PCB fiducial correction value R before mounting -
the PCB fiducial correction value R after mounting)
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50181
7/10

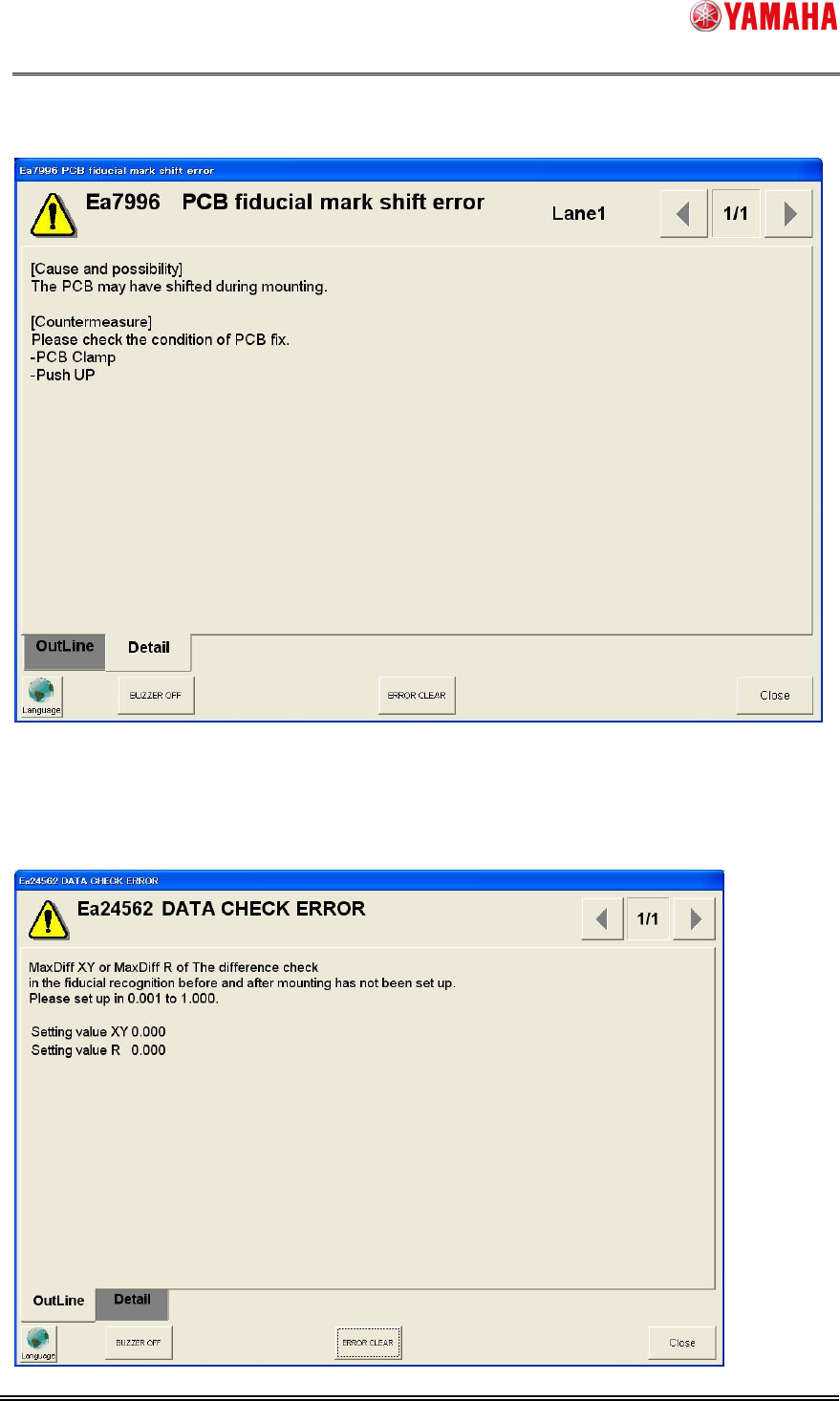

[ Detail ]
4 2.2 Data Check Error
When a board data is read or auto-run is started in the maximum difference XY or the
maximum difference R is a value of "0.000", the following error messages will be displayed.
