[ Detail ]
4 2.2 Data Check Error
When a board data is read or auto-run is started in the maximum difference XY or the
maximum difference R is a value of "0.000", the following error messages will be displayed.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50181
8/10
Name Explanation
Setting value XY “The value of [Machine]-[Setting]-[Machine Data]
-[Mechanical]-[Position]-[Table A]-[Mount After FID Check]-[Max
Diff XY(mm)]” is displayed.
Setting value R “The value of [Machine]-[Setting]-[Machine Data]
-[Mechanical]-[Position]-[Table A]-[Mount After FID Check]-[Max
Diff R(deg)]” is displayed.
4 3 Log

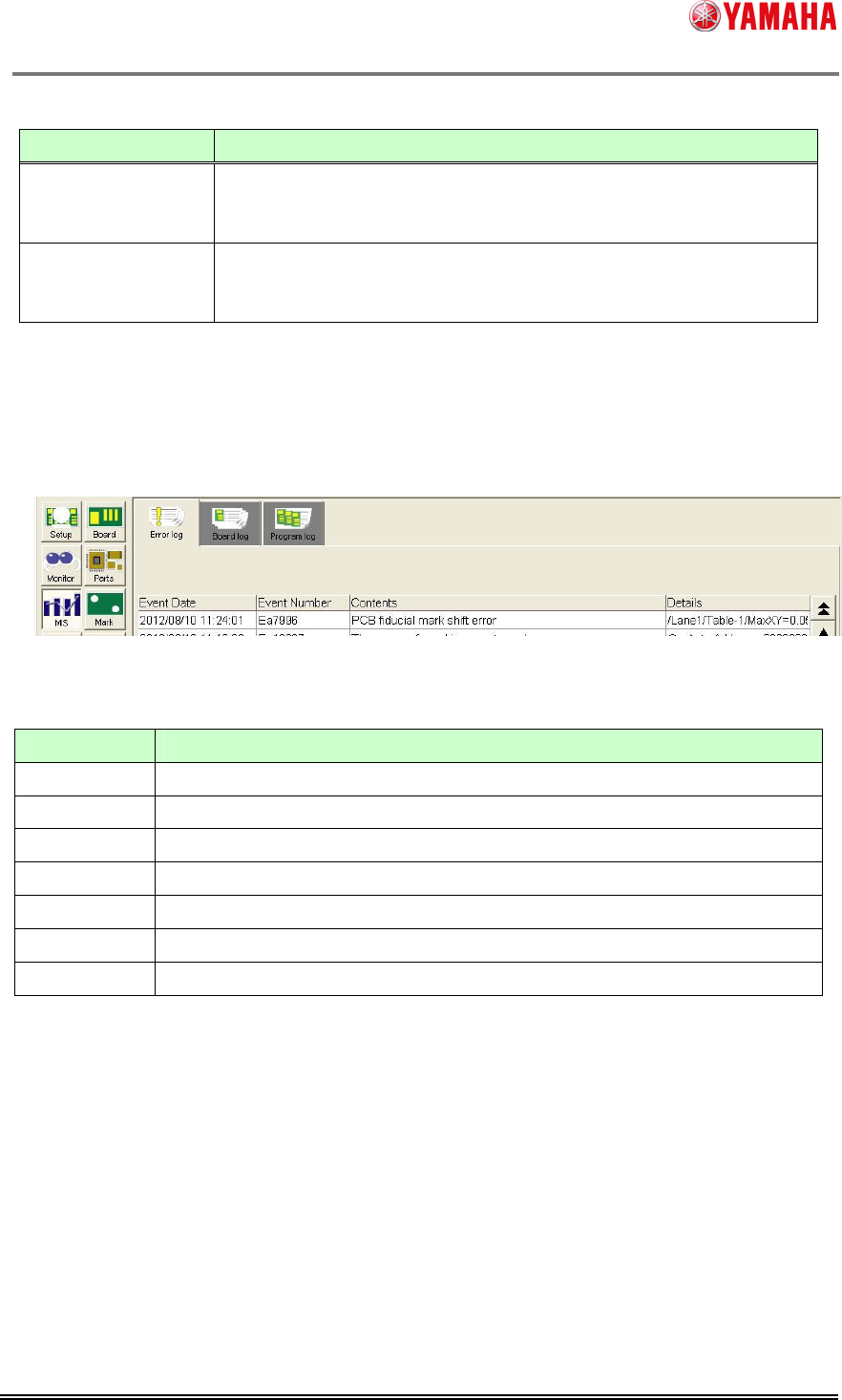

When Ea7996:PCB fiducial mark shift error is occurred, the following error numbers and
the contents of an error are displayed on an error log.
Following contents are displayed in the “Details” column.
Name Contents
Lane Lane number which error occurred.（Only dual lane machine）
Table Mount table number which error occurred.
MaxXY= “Max Diff XY(mm)]” displayed in error message.
MaxR= “Max Diff R(deg)] “ displayed in error message.
DifX= “Difference of the direction of X” displayed in error message.
DifY= “Difference of the direction of Y” displayed in error message.
DifR= “Difference of the direction of R” displayed in error message.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50181
9/10
5 Settings

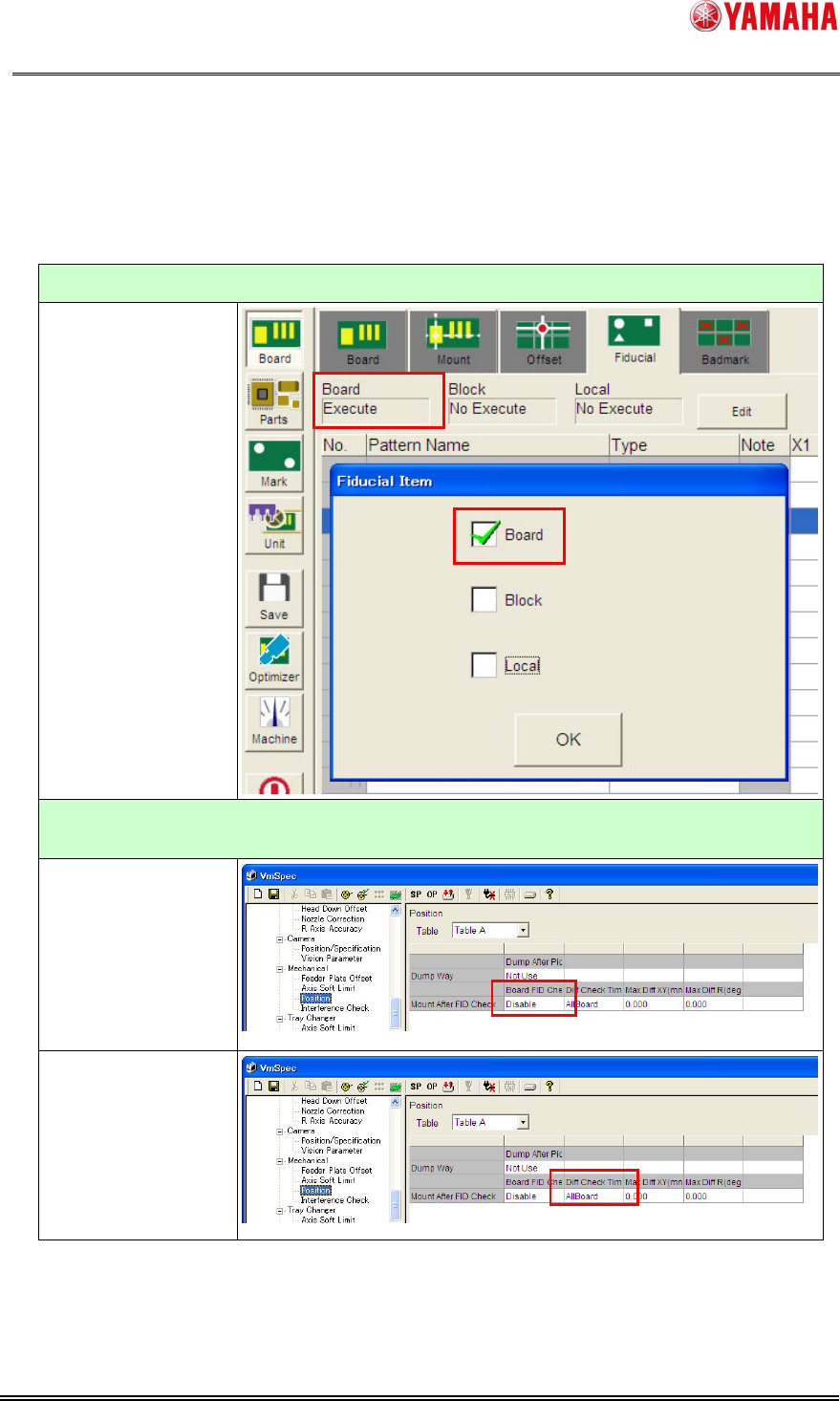

The setting method to use this function is as follows.
▼[Board]-[Fiducial]
Set [Board] to
[Execute].
▼ [Machine]-[Setting]-[Machine Data] -[Mechanical]-[Position]-
[Table A]-[Mount After FID Check]
Set [Board FID
Check] to [Enable].
(Initial value:[Disable])
Choose from the
following inside in
[Diff Check Timing].
･AllBoard
･SwitchBoard
･AutoRun
(
Initiall value:[AllBoard])
