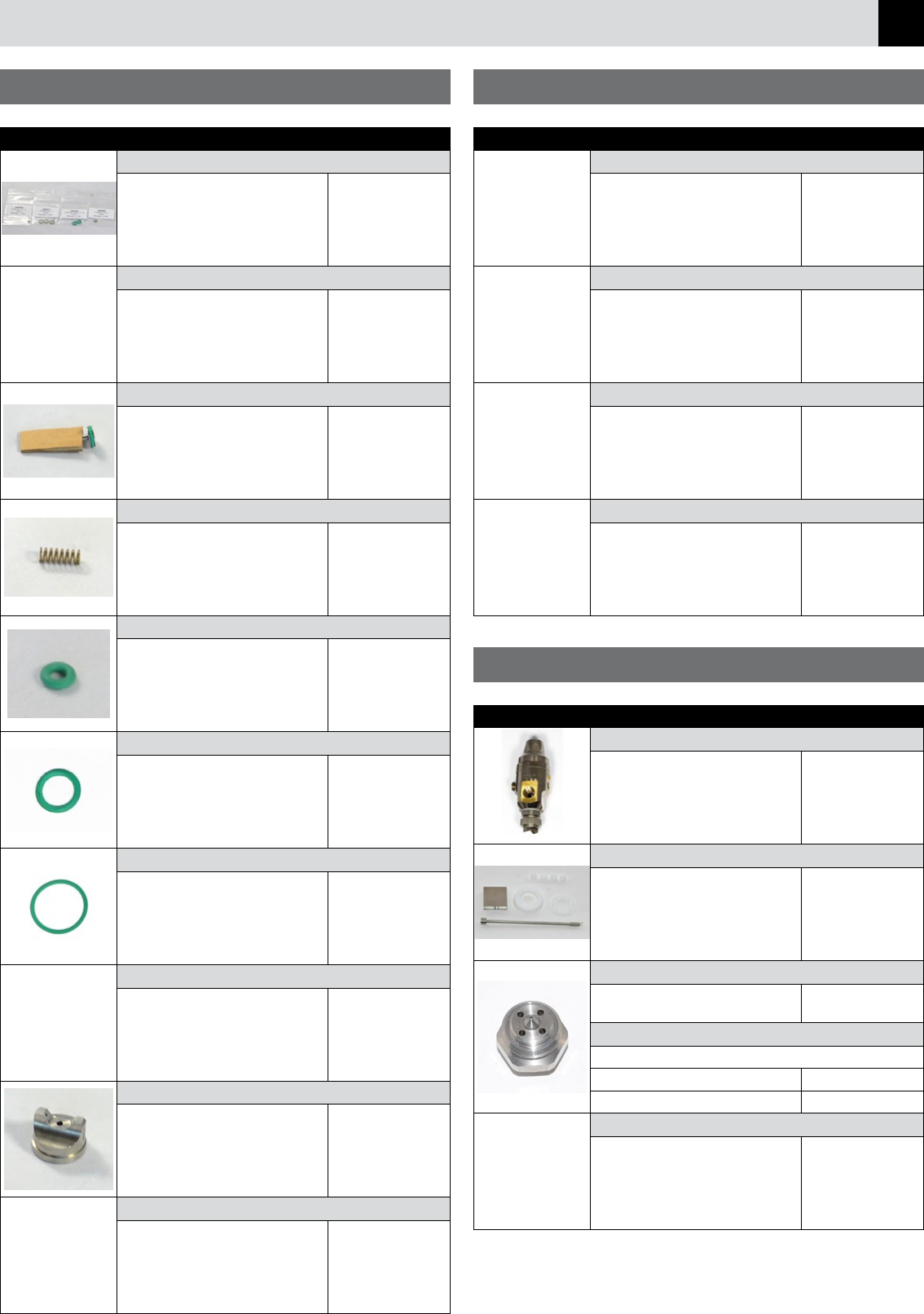

Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
17
Figure Description Order No.
FC-holder(110091) repair kit, sealing
contains all installed seals
164292
Nozzle 0,3 mm Nr.210111 flood gate
fluid nozzle for 110089 with 0,3 mm
diameter
207521
Needle 0,2 / 0,3 mm Nr.111670 flood gate
needle for sprayhead 110089 with 0,3
mm fluid nozzle
245214
Pressure spring 0,7 x 13,5 mm 820017
for sprayhead 110089
233202
O-Ring 2,9x1,78 Viton article-no.:640026
234130
O-Ring 8,5x1,8 Viton Artikel-Nr.:640366
234132
O-RING 18X1,5 Fa. Schütze ART. NR.640006
246024
Cap ring 23x10 mm Nr.410059 flood gate
266004
Spray nozzle air-cap 60° VA, flood gate
224571
Flux head 0,5 mm
fluid nozzle with 0,5 mm for gate
sprayhead. Only usage in conjunction
with the suitable needle 235322
235321
Fluxer Accessories
Fluxer Powerflow Series Fluxer Powerflow Series
Fluxer ETS, EWS and NWAVE Series
Figure Description Order No.
Needle for flux head inox 1.4571
needle for gate sprayhead. Only
usage in conjunction with the fluid
nozzle 235322
235322
Spray head, flood gate jet/needle 0,5
set with needle and fluid nozzle 0,5
mm gate sprayhead. For reconstructi-
on from 0,3 mm to 0,5 mm diameter
136796
Sealing set ISOLAST f. spray head holder
article number company Hofmann 640584
2x O-Ring 3 x 1 Isolast
3x O-Ring 5 x 1 Isolast
1x O-Ring 1,5 x 1 Isolast
2x O-Ring 3,68 x 1,78 Isolast"
186401
Spray head repair kit, sealing
special seal kit for spray head with
ISOLAST sealings
182097
Figure Description Order No.
Spray unit
6ISK171009
Sprayhead-repair-kit
contains all seals and needle
6FLXSPR-14
Spray nozzle 2050 (stainless steel)
replacement fluid nozzle spraying
system standard
6FLXSPR-02
Spray nozzle (stainless steel)
fluid nozzle spraying systems for lower flux quantity
Spray nozzle 1650
6FLXSPR-02-S1
Spray nozzle 2850
6FLXSPR-02-S2
Air nozzle 67228- 45° V2A
6FLXSPR-03
Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
18

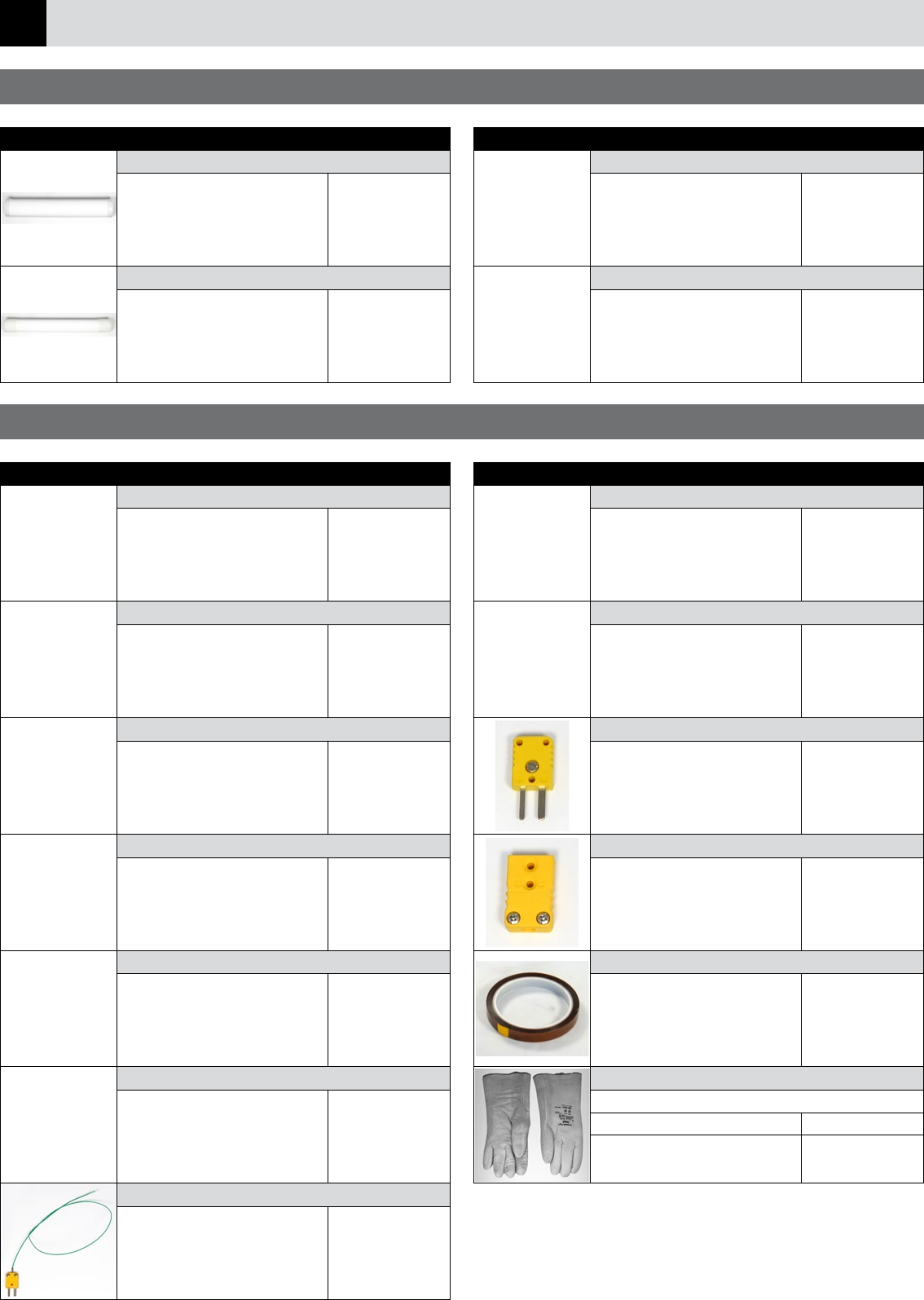

Fluxer Accessories
Foam Fluxer
Sensor Shuttle PTP
Figure Description Order No.
Ersa Sensor Shuttle
PTP temperature recorder for solde-
ring machines. Real time measuremnt
during the passage via bluetooth
connection
131150
Shuttle carrier
carrier for the sensor shuttle PTP
129920
Measurement Board f. Ersa Sensor Shuttle
measurement board for wave solde-
ring machine. Especially for usage
with the sensor shuttle PTP
159916
Li-Ionen Akku globalPoint ICS
replacement battery for the sensor
shuttle PTP
212495
Antenna 50R/SMA-M TX,short stub antenna
replacement stub antenna for the
sensor shuttle PTP
201950
Antenna 50R/SMA-M RX bendable
replacement antenna for the sensor
shuttle PTP
223683
Thermocouple Ni/CrNi with plug
thermal element with the adapter for
Ersa sensor shuttle 500 mm length
6ETHE2x0.20/500
Figure Description Order No.
Thermocouple comp. cable Ni/CrNi diamete
yard goods
6ETHE2x0.20NI
Thermo element compensation cable
yard goods
6ETHE2x0.50NI
Thermo plug "K" Jumo, male
for connection of the thermal sensor
cable at the Ersa sensor shuttle
6ETHE-NI-ST
Thermo coupling "K" Jumo, female
opposite of the thermal plug 6ETH-
NI-ST
6ETHE-NI-KU
Kapton Adhesive tape
high temperature tape for fixing of
the thermal sensors on the tempo-
rary measurement board
6ZT00160
Service gloves (pair)
for the hot area
Size M
6HDSGLGEW-289
Size L
6HDSGLGEW-290
Figure Description Order No.
Foam tube 250 mm, Dia. 41 mm
separately packed! Dust protection
6IN131
Foam tube 330 mm, Dia. 41 mm
middle pore side 10 µm; foam tube
packed separately because of dust
protection
6IN045-1
Figure Description Order No.
Foam tube 400 mm, ø 41 mm
middle pore side 10 µm; foam tube
packed separately because of dust
protection
6IN045-2
Foam tube 450 mm, Dia. 41 mm
middle pore side 10 µm; foam tube
packed separately because of dust
protection
6IN045-3
Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
19

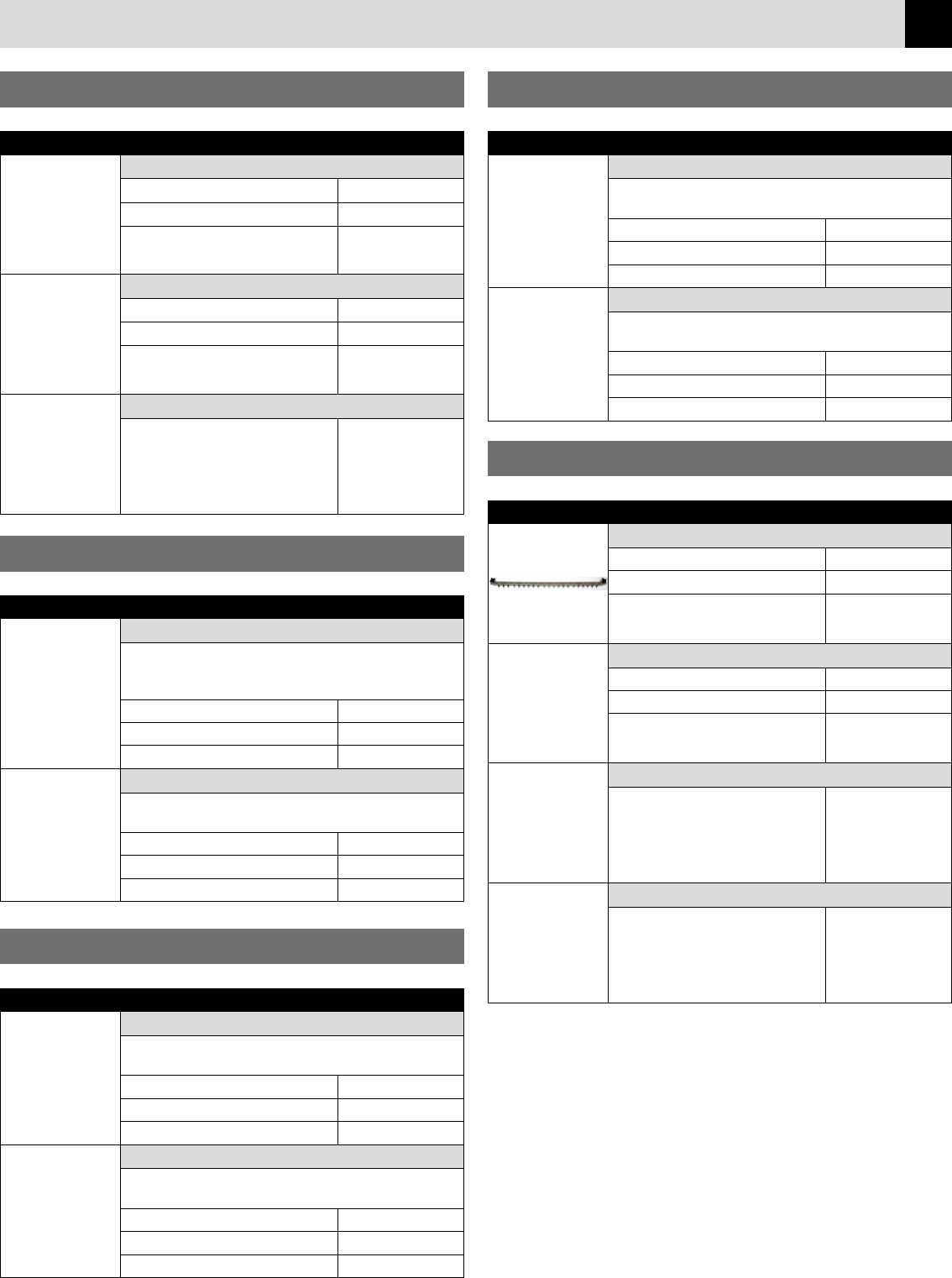

Figure Description Order No.
Solder pallet
solder pallet for Ersa soldering machine with a working width
of 330 mm. Not suitable for ETS 330 soldering machine with
only one conveyor-driving chain.
Length 420 mm
4LRM420-3SC-F
Length 500 mm
4LRM500-3SC-F
Length 600 mm
4LRM600-3SC-F
Soldering frame Transp.
Soldering frame for Ersa Powerflow with separated conveyor
and 330 mm working width.
Length 420 mm
4LRM420-3SC-FL
Length 500 mm
4LRM500-3SC-FL
Length 600 mm
4LRM600-3SC-FL
Solder Frames
Wave Soldering Machines, 330 mm working width
Wave Soldering Machines, 500 mm working width
Wave Soldering Machines, 400 mm working width
Figure Description Order No.
Solder pallet
Solder pallet for Ersa soldering machine with a working width
of 400 mm
Length 420 mm
4LRM420-4SC-F
Length 500 mm
4LRM500-4SC-F
Length 600 mm
4LRM600-4SC-F
Soldering frame Transp.
Soldering frame for Ersa Powerflow with separated conveyor
and 400 mm working width
Length 420 mm
4LRM420-4SC-FL
Length 500 mm
4LRM500-4SC-FL
Length 600 mm
4LRM600-4SC-FL
Figure Description Order No.
Solder pallet
Solder pallet for Ersa soldering machine with a working width of
500 mm
Length 420 mm
4LRM420-5SC-F
Length 500 mm
4LRM500-5SC-F
Length 600 mm
4LRM600-5SC-F
Soldering frame Transp.
Soldering frame for Ersa Powerflow with separated conveyor
and 500 mm working width
Length 420 mm
4LRM420-5SC-FL
Length 500 mm
4LRM500-5SC-FL
Length 600 mm
4LRM600-5SC-FL
Spare Parts, 250 mm working width
Figure Description Order No.
Sidebar ETS 250
Length 360 mm
4KLE25-360-000
Length 420 mm
4KLE25-420-000
Length 500 mm
4KLE25-500-000
Center bar ETS 250
Length 360 mm
4DKLE2-360-000
Length 420 mm
4DKLE2-420-000
Length 500 mm
4DKLE2-500-000
Sidebar stainless steel ETS 250
Length 600 mm
4KLE25-600-000
Center bar stainless steel ETS 250
Length 600 mm
4DKLE0-600-000
Figure Description Order No.
Solder pallet ETS 250
Length 360 mm
4LRM360-250
Length 420 mm
4LRM420-250
Length 500 mm
4LRM500-250
Solder pallet ETS 250
Length 360 mm
4LRM360-250A
Length 500 mm
4LRM500-250A
Length 600 mm
4LRM600-250A
Solder pallet, 360 mm length
solder pallet for Ersa soldering ma-
chines with working width of 330 mm.
Not suitable for ETS 330 soldering
machine with only one conveyor drive
chain. Length 360 mm
4LRM360-3SC-F
Wave Soldering Machines, 250 mm working width
