Nozzle height with variab le Z -A xis Nozzle height with variab le Z -A xis ECOSEL EC T 1 ≤ 90 m m (M) ≤ 85 mm (M) SMART FLO W ≤ 75 mm (M) ----- ECOSEL EC T 2 ≤ 75 mm (K ) ≤ 59 mm (K ) V ER S A F L OW 3 ≤ 85 mm (R) ≤ 59 …
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
5
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 85 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 59 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 59 mm (R)
ECOCELL
≤ 85 mm (R), 75 mm (K) ≤ 59 mm (R, K)
VERSAFLOW 4
≤ 85 mm (R) ≤ 59 mm (R)

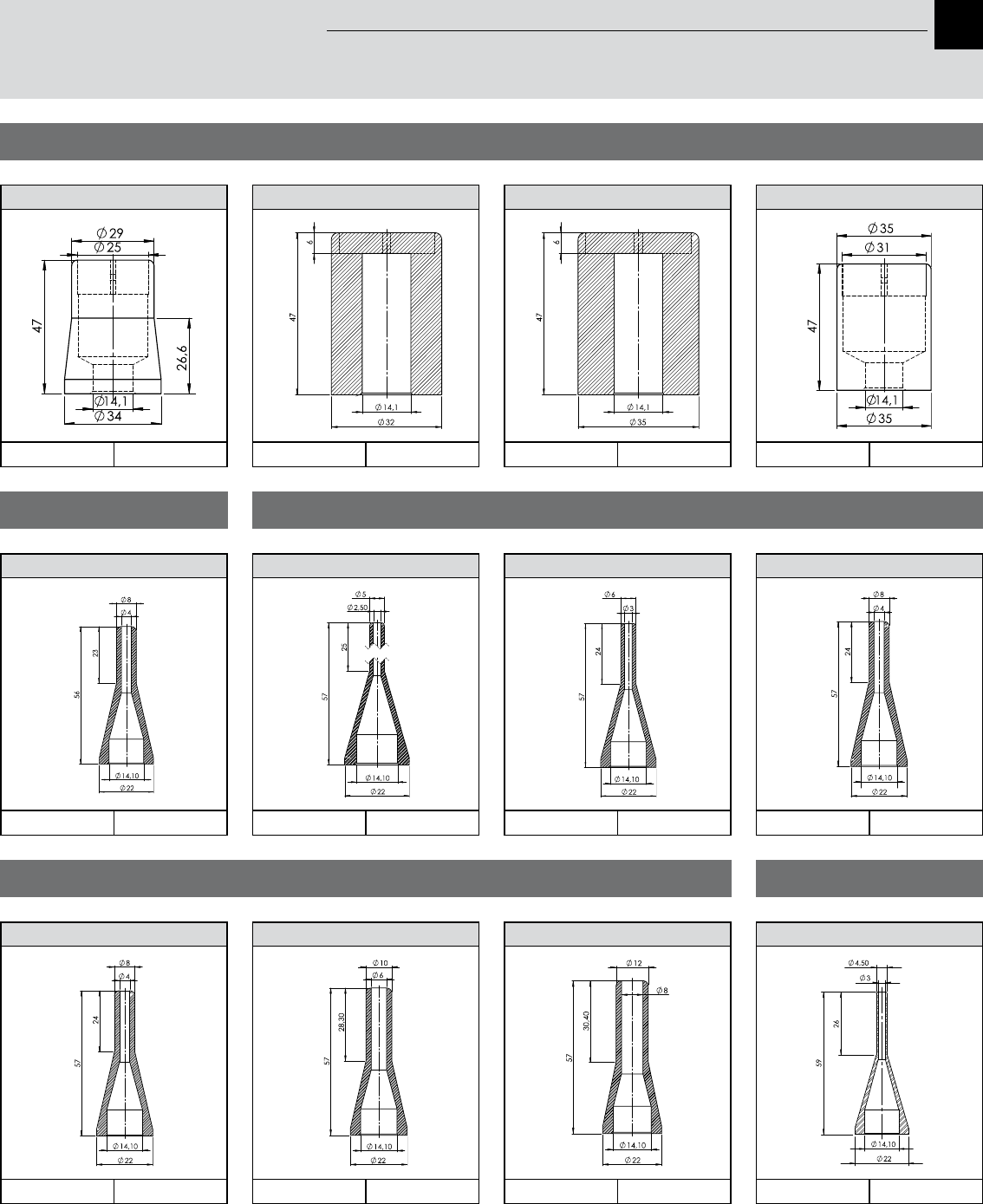

S NOZZLE 25.0/29.0; H=47; B14,1; CROSS
263514
1 pcs.
S NOZZLE 4.0/8.0; H=56; B14,1
179252
1 pcs.
S NOZZLE 28.0/32.0; H=47; B14,1; CROSS
248298
1 pcs.
S NOZZLE 31.0/35.0; H=47; B14,1; CROSS
255975
1 pcs.
S NOZZLE 31.0/35.0; H=47; B14,1; CROSS
263689
1 pcs.
S NOZZLE 2.5/5.0; H=57; B14,1
251602
1 pcs.
S NOZZLE 3.0/6.0; H=57; B14,1
130964
1 pcs.
S NOZZLE 4.0/8.0; H=57; B14,1
189478
1 pcs.
S NOZZLE 4.0/8.0; H=57; B14,1
209365
1 pcs.
S NOZZLE 6.0/10.0; H=57; B14,1
189479
1 pcs.
S NOZZLE 8.0/12.0; H=57; B14,1
203778
1 pcs.
S NOZZLE 3.0/4.5; H=59; B14,1
210391
1 pcs.
Height 56 mm, B14,1 Height 57 mm, B14,1
Height 57 mm, B14,1 Height 59 mm, B14,1
Height 47 mm, B14,1
Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 85 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 59 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 59 mm (R)
ECOCELL
≤ 85 mm (R), 75 mm (K) ≤ 59 mm (R, K)
VERSAFLOW 4
≤ 85 mm (R) ≤ 59 mm (R)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
6

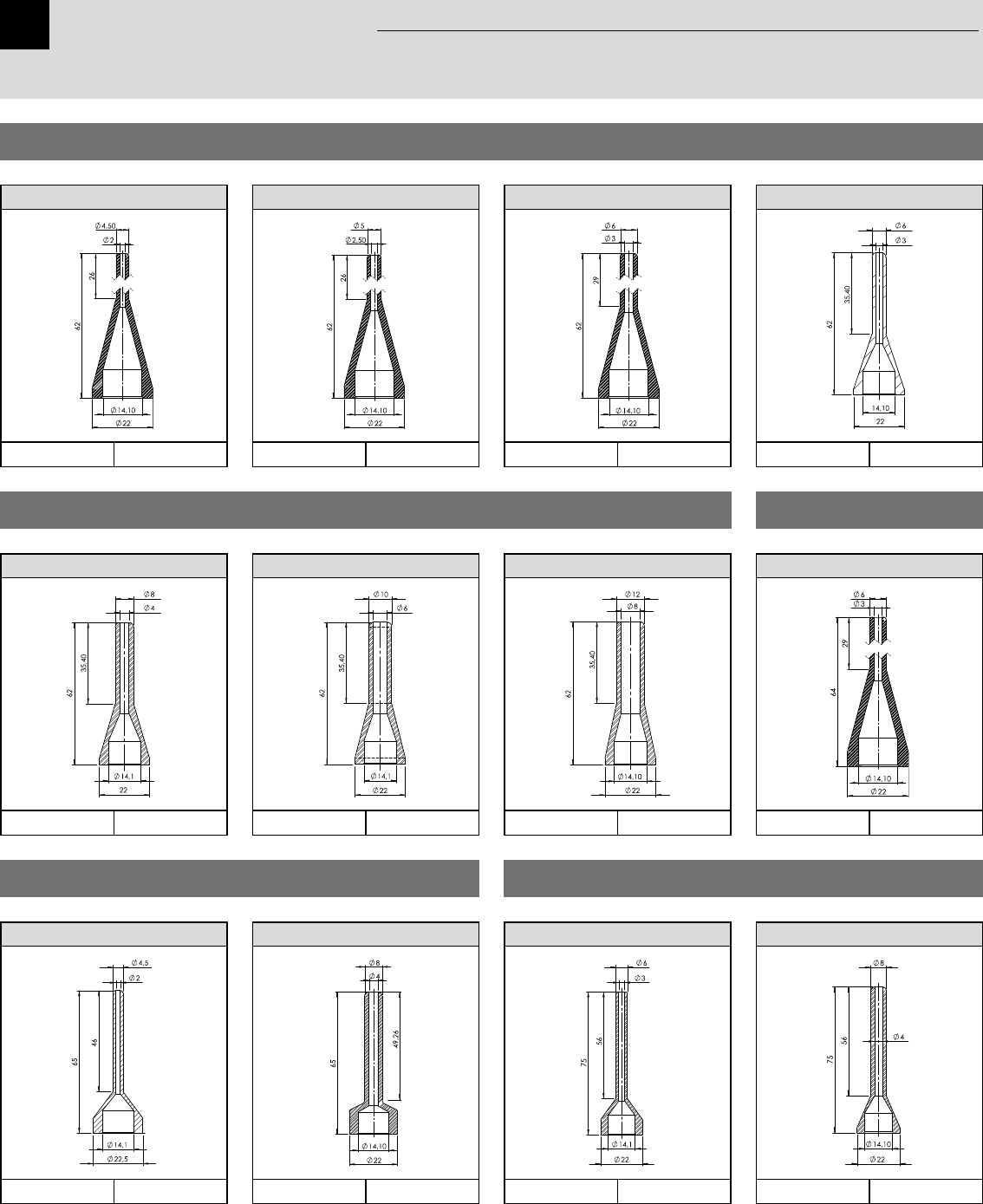

S NOZZLE 2.0/4.5; H=62; B14,1
248354
1 pcs.
S NOZZLE 2.5/5.0; H=62; B14,1
248391
1 pcs.
S NOZZLE 3.0/6.0; H=62; B14,1
178809
1 pcs.
S NOZZLE 3.0/6.0; H=62; B14,1
199983
1 pcs.
S NOZZLE 4.0/8.0; H=62; B14,1
199985
1 pcs.
S NOZZLE 6.0/10.0; H=62; B14,1
199984
1 pcs.
S NOZZLE 8.0/12.0; H=62; B14,1
197404
1 pcs.
S NOZZLE 3.0/6.0; H=64; B14,1
260051
1 pcs.
S NOZZLE 2.0/4.5; H=65; B14,1.5
250821
1 pcs.
S NOZZLE 4.0/8.0; H=65; B14,1
135253
1 pcs.
S NOZZLE 3.0/6.0; H=75; B14,1
216347
1 pcs.
S NOZZLE 4.0/8.0; H=75; B14,1
206293
1 pcs.
Height 62 mm, B14,1
Height 62 mm, B14,1 Height 64 mm, B14,1
Height 65 mm, B14,1 Height 75 mm, B14,1
Selective Soldering Nozzles
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
7
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 85 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 59 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 59 mm (R)
ECOCELL
≤ 85 mm (R), 75 mm (K) ≤ 59 mm (R, K)
VERSAFLOW 4
≤ 85 mm (R) ≤ 59 mm (R)
S NOZZLE 4.0/8.0; H=75; B14,1
206303
1 pcs.
S NOZZLE 6.0/10.0; H=75; B14,1
206294
1 pcs.
S NOZZLE 8.0/12.0; H=75; B14,1
235693
1 pcs.
S NOZZLE 8.0/12.0; H=75; B14,1
251285
1 pcs.
S NOZZLE 3.0/6.0; H=80; B14,1
278549
1 pcs.
S NOZZLE 3.5/7.0; H=80; B14,1
213419
1 pcs.
S NOZZLE 4.0/8.0; H=80; B14,1
213417
1 pcs.
S NOZZLE 4.0/8.0; H=80; B14,1
251318
1 pcs.
S NOZZLE 10.0/14.0; H=75; B14,1
251316
1 pcs.
S NOZZLE 6.0/10.0; H=80; B14,1
211313
1 pcs.
S NOZZLE 6.0/10.0; H=80; B14,1
213418
1 pcs.
S NOZZLE 6.0/10.0; H=80; B14,1
251319
1 pcs.
Height 75 mm, B14,1
Height 80 mm, B14,1
Height 80 mm, B14,1
Height 75 mm, B14,1
Selective Soldering Nozzles
