Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.
20
Solder Frames
Spare Parts, 330 mm - 500 mm working width
Figure Description Order No.
Center bar, length 500 mm
for solder frame with 500 mm length
4DKLE0-500-000
Center bar old version, length 500 mm
old version! Please compare it with
the available system
4DKLE500-A
Center bar stainless steel, length 600 mm
for solder frame with 600 mm length
4DKLE600
Clamping clip 130 mm 6 finger, (SS)
clip for center- and sidebar to rivet
on
6IN127
Clamping clip 65 mm, 3 finger (SS)
clip for center- and sidebar to rivet
on
6IN126
Blind rivet 4,0x4,9AL5 K. BER. 1,6 - 2,9
rivet for rivet on the clamping clip
6IN126 and 6IN127
6NI4.0X04.9B
screw-star handle M4x16 (SS)
for the clamping assembly of the Ersa
center- and sidebar
29548
Figure Description Order No.
Support profiles
Support profile front left
6IN512-0
Support profile front right
6IN513-0
Support profile back right
6IN526-0
Support profile back left
6IN527-0
Movable support rail for frame
for supply of PCBs in Ersa soldering frame
330 mm working width
4ZH-330
400 mm working width
4ZH400
500 mm working width
4ZH500
Rail for frame
Like 4ZH-330, 4ZH400, 4ZH500 - only rail
330 mm working width
6ISK275-02
400 mm working width
6ISK275-03
500 mm working width
6ISK275-04
Mounting plate
for movable support. One sided PCB
holder
6IN490
Center mounting plate
for movable support. two sided PCB
holder
6IN490-1
Sidebar
Length 420 mm
4KLE00-420-000
Length 500 mm
4KLE00-500-000
Length 600 mm
4KLE00-600-000
Sidebar old version stainl. steel, length 420 mm
old version! Please compare it with
the available system
4KLE420-A
Center bar, length 420 mm
for solder frame with 420 mm length
4DKLE0-420-000
Center bar old version, length 420 mm
old version! Please compare it with
the available system
4DKLE420-A
Sidebar old version stainl. steel, length 500 mm
old version! Please compare it with
the available system
4KLE500-A
Spare Parts, 330 mm - 500 mm working width
Unless specified otherwise in the product description, order numbers
refer to a packing unit (pu) of 1 piece.

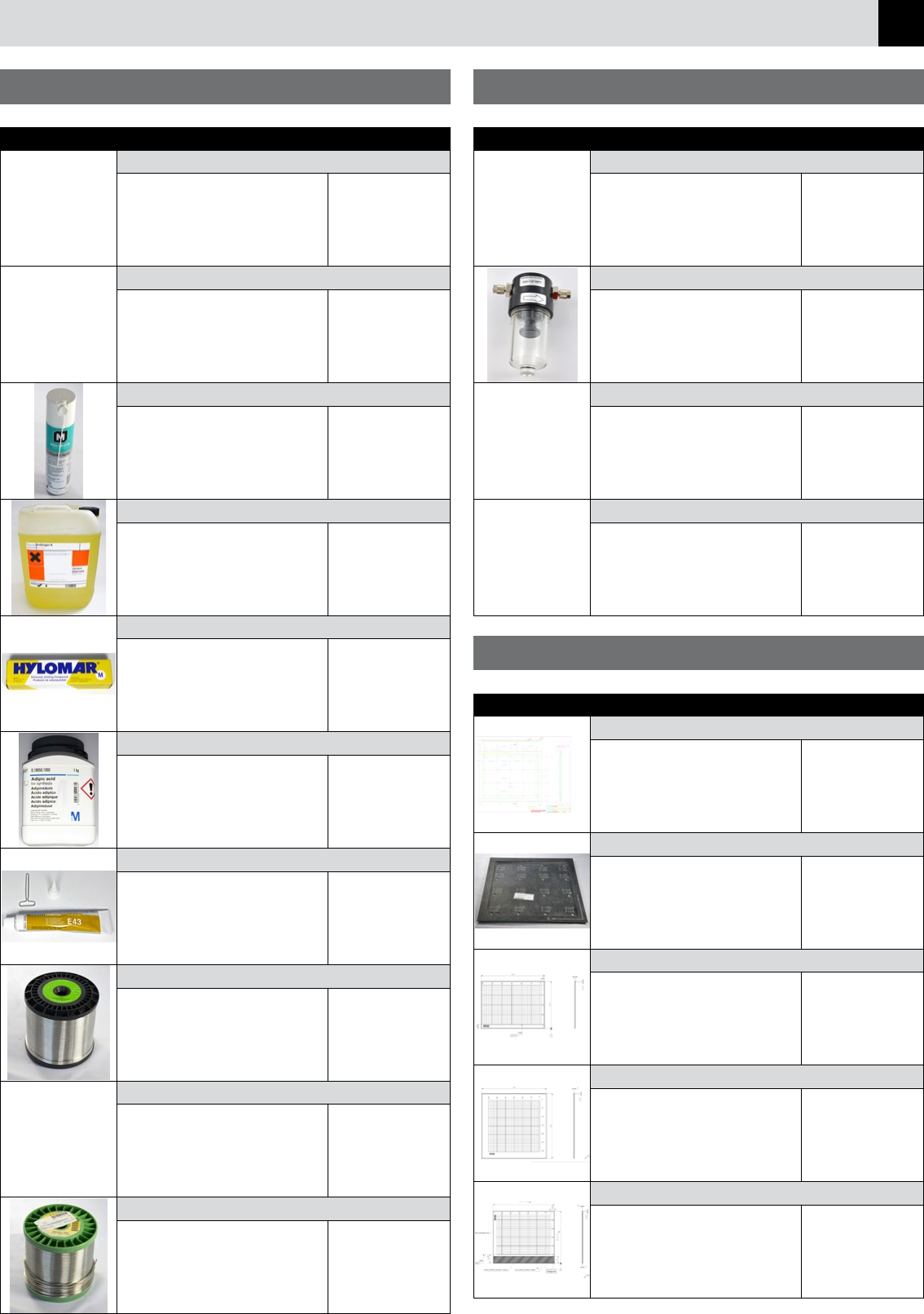

21
Figure Description Order No.
Leak detection spray, 400 ml can
6ZT-SPRAY02
Epoxy glue Art.Nr. 071045600
2 components glue for examplfe
for fixing the thermal sensor on the
measurement board
6X00034
Spray 400 ml Molykote dry slide film
for lubrication at demandng sliding
applications. Temperature range
.-185 to +450 °C. not secreting resin,
high pressure resistance, ageing
resistance
77781
Antifreeze can 30 Liter
for use in cold water - cooling
circulation as Algizid, antifreeze and
corrosion protection
6ZT00167
Hylomar M Universal seal 80 ml
for sealing the gasing caps of the
selective soldering machines
270257
adipic acid in 1 kg can
powder for nozzle activation of wet-
table selective nozzles
89593
SILIC ADHESIVE E43 TUBE 90 cm3
high temperature silicon glue up to
200 °C
6X00028
Solder wire SnAg3,8Cu0,7 ø 2 mm, 4 kg
50273
Solder Wire Sn63Pb37 ø 2 mm, 4 kg
61662
Solder wire SN100CE-SnNi Dia. 2 mm 4 kg
104134
Auxiliaries and Supplies
Auxiliaries and Supplies Auxiliaries and Supplies
Auxiliaries and Accessories
Figure Description Order No.
Solder wire LF Sn96,5Ag3Cu0,5 D 2 mm 4 kg
120268
Filter with screwed connection 5x1 mm
filter housing for the residual oxygen
of different Ersa soldering machines
6FIL-HL-01
Filter cartridge for Filter 6FIL-HL-01
for the use in the filter hosuing
6FIL-HL-01 for the residual oxygen of
different Ersa soldering machines
6FIL-HL-ZT01
O-Ring for Filter 6FL-HL-01
for the transparent plunger of the
filter housing 6FIL-HL-01
6FIL-HL-ZT02
Figure Description Order No.
Reference Fixture
measurement and calibration board
for Ersa selective soldering machines.
390x 480 mm
6ISK47955141
Reference Fixture 350x350
measurement and calibration board
for Ersa selective soldering machines.
350x 350 mm
203532
Glass plate to verify Wave Set-Up
in order to measure the wetting
length Dimensions: 240 x 325 mm
4ZBGS0240x325
Glass plate to verify wave setup
"Size: 380 x 380 mm. Suitable for any
wave soldering machine. Made of
high temperature glass with 10 mm
grid spacing."
4ZBGS0380x380
Glass plate, heat resistant
Grid 300 x 300, black edge for
conveyor of selective solderinge
machines
84584
The Order-No. refers to a packing unit of 1 piece each, unless there is
specified another in the article description.
22
Figure Description Order No.
All purpose pin puller
for cutting the conveyor chains
6ZT00187
Chain rivet remover
for chains with plunger diameter over
3 mm
6ZT00189
Service and Maintenance Trolley
for Wave-/ Multiwave-/ and Dip Sol-
dering machines. Service trolly
Including special lead-free coated
surfaces.
100388
Mounting sheet for tools
tool holder for keeping the soldering
pot cleaning tools
100387
Solder mould
aluminum bowl for keeping solder du-
ring the exhaust of the soldering pot
247629
Tool for gasification ring
for opening the gasing caps of the
Ersa soldering machines
243303
Key for control panel
electrical cabinet key
6VERSCHLÜ2531
Wrench for switch-cupboard
square key for opening special doors
252141
Lock three.corner part 7 mm 2545.000
triangle key for opening special doors
6VERSCHLÜ2554
Light metal precision level
for diverse adjustments
208659
Auxiliaries and Supplies
Auxiliaries and Accessories Auxiliaries and Accessories
Figure Description Order No.
Cleaning brush stainless steel
brush piece 100x 20 mm for example
to cleaning the wettable selective
nozzles
213024
Mould for alloy analysis
for delivery of the tin testing to Ersa
in standardized form / size
6ISK714-05A
Pressing tool
for pressing dowl pins in nozzle
locking shafts
109687
Cotton gloves white
with Ersa- Logo
Size M
47955
Size L
47954
Protective gloves (pair)
heavy, fleecy quality
Men
127380
Women
127382
Service gants (pair), size M
for the high temperature area
6HDSGLGEW-289
Sheet of glass
for measureing the wettable length
at wave soldering machines and for
diverse setup work
6ISK47953002
