Fing er Con ve yor = (M) Rol ler Co nve yor = (R) Pin Cha in Con vey or = (K) 9 Nozzle height with variab le Z -A xis Nozzle height with variab le Z -A xis ECOSEL EC T 1 ≤ 90 m m (M) ≤ 85 mm (M) SMART FLO W ≤ 75 mm (M) -…
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 85 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 59 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 59 mm (R)
ECOCELL
≤ 85 mm (R), 75 mm (K) ≤ 59 mm (R, K)
VERSAFLOW 4
≤ 85 mm (R) ≤ 59 mm (R)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
8

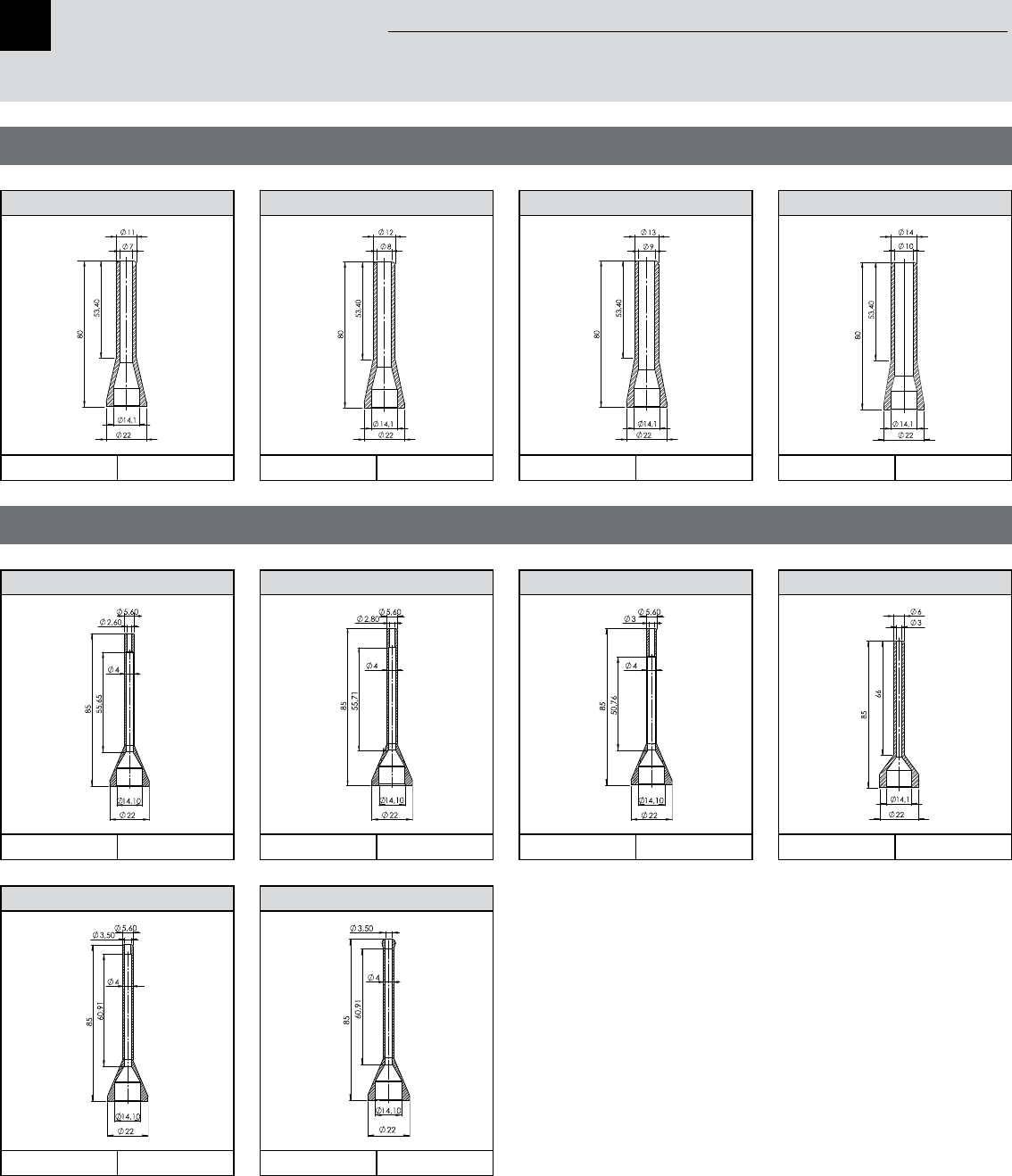

S NOZZLE 7.0/11.0; H=80; B14,1
211557
1 pcs.
S NOZZLE 8.0/12.0; H=80; B14,1
211314
1 pcs.
S NOZZLE 9.0/13.0; H=80; B14,1
211559
1 pcs.
S NOZZLE 10.0/14.0; H=80; B14,1
211315
1 pcs.
S NOZZLE 2.6/5.6; H=85; B14,1
285199
1 pcs.
S NOZZLE 2.8/5.6; H=85; B14,1
282773
1 pcs.
S NOZZLE 3.0/5.6; H=85; B14,1
282775
1 pcs.
S NOZZLE 3.0/6.0; H=85; B14,1
278550
1 pcs.
S NOZZLE 3.5/5.6; H=85; B14,1
229921
1 pcs.
S NOZZLE 3.5/7.0; H=85; B14,1
229923
1 pcs.
Height 80 mm, B14,1
Height 85 mm, B14,1
Selective Soldering Nozzles
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
9
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 85 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 59 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 59 mm (R)
ECOCELL
≤ 85 mm (R), 75 mm (K) ≤ 59 mm (R, K)
VERSAFLOW 4
≤ 85 mm (R) ≤ 59 mm (R)

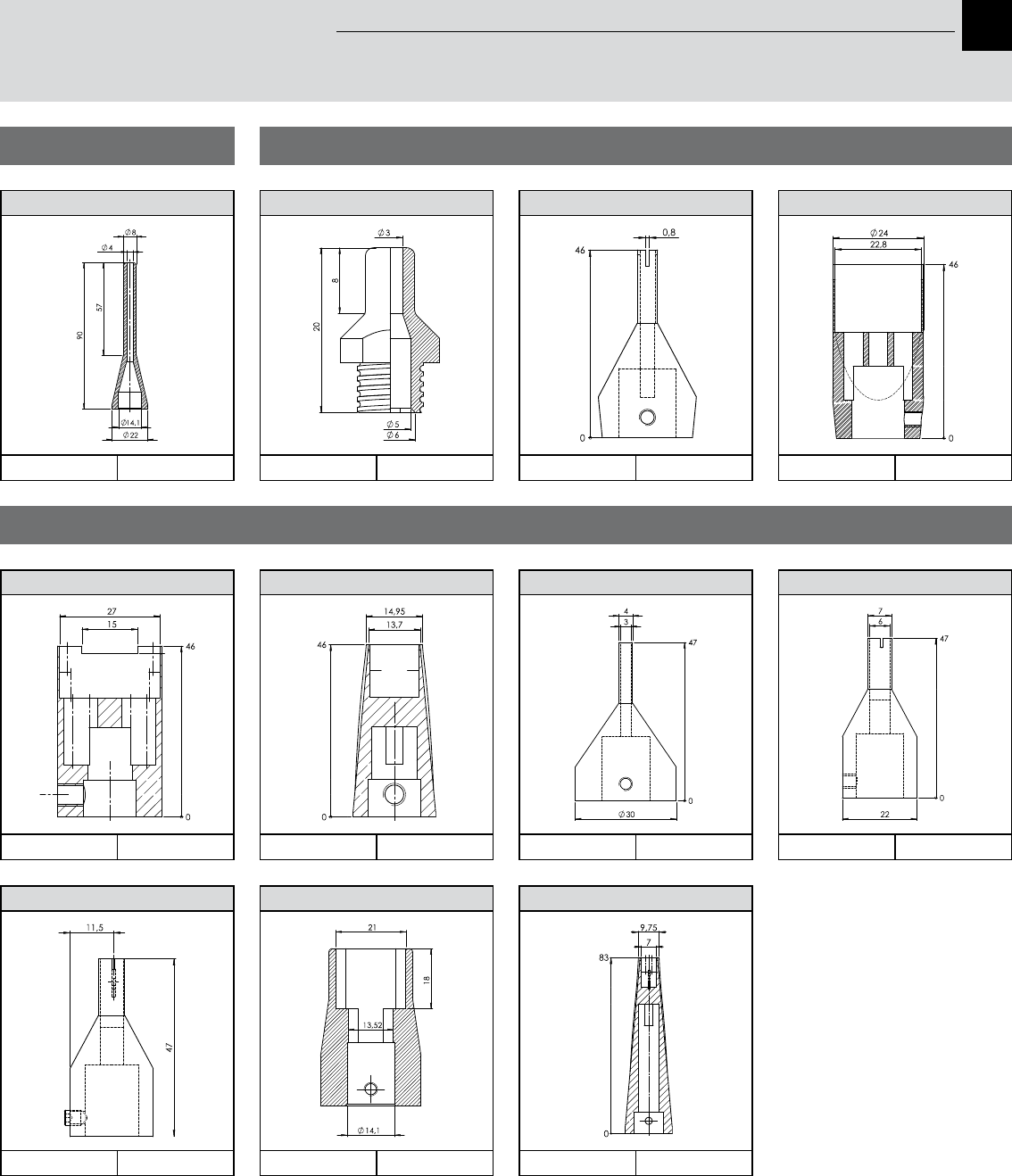

S NOZZLE 4.0/8.0; H=90; B14,1
197665
1 pcs.
S NOZZLE 3.0/6.0; H=20; SPECIAL
289546
1 pcs.
S NOZZLE 5.0/24.0; H=46; SPECIAL
223539
1 pcs.
S NOZZLE 8.0/24.0; H=46; SPECIAL
223544
1 pcs.
S NOZZLE 14.0/28.0; H=46; SPECIAL
272476
1 pcs.
S NOZZLE 15.0/31.0; H=46; SPECIAL
272385
1 pcs.
S NOZZLE 4.0/30.0; H=47; SPECIAL
248276
1 pcs.
S NOZZLE 5.0/20.0; H=47; SPECIAL
266283
1 pcs.
S NOZZLE 5.0/20.0; H=47; SPECIAL
273501
1 pcs.
S NOZZLE 10.0/25.0; H=47; SPECIAL
289533
1 pcs.
S NOZZLE 35.0/8.0; H=83; SPECIAL
273362
1 pcs.
Height 90 mm, B14,1 Special Nozzles, B14,1
Special Nozzles, B14,1
Selective Soldering Nozzles
Nozzle height with variable Z-Axis Nozzle height with variable Z-Axis
ECOSELECT 1
≤ 90 mm (M) ≤ 85 mm (M)
SMARTFLOW
≤ 75 mm (M) -----
ECOSELECT 2
≤ 75 mm (K) ≤ 59 mm (K)
VERSAFLOW 3
≤ 85 mm (R) ≤ 59 mm (R)
ECOCELL
≤ 85 mm (R), 75 mm (K) ≤ 59 mm (R, K)
VERSAFLOW 4
≤ 85 mm (R) ≤ 59 mm (R)
Finger Conveyor = (M)
Roller Conveyor = (R)
Pin Chain Conveyor = (K)
10

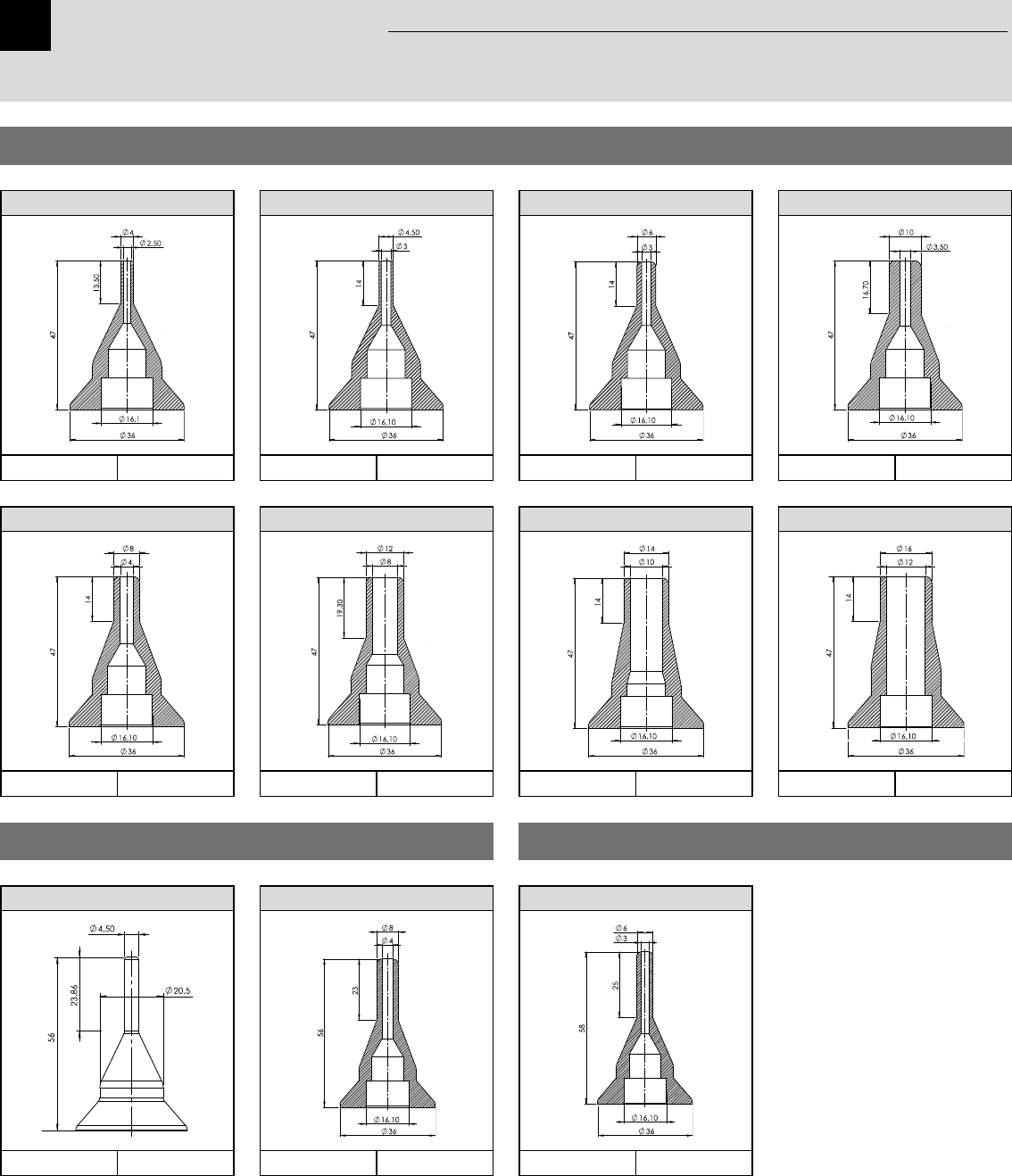

S NOZZLE 2.5/4.0; H=47; B16,1
33143
1 pcs.
S NOZZLE 3.0/4.5; H=47; B16,1
6isk47957021a
1 pcs.
S NOZZLE 3.0/6.0; H=47; B16,1
6isk47957020a
1 pcs.
S NOZZLE 3.5/10.0; H=47; B16,1
25420
1 pcs.
S NOZZLE 4.0/8.0; H=47; B16,1
6isk47957022a
1 pcs.
S NOZZLE 8.0/12.0; H=47; B16,1
25421
1 pcs.
S NOZZLE 10.0/14.0; H=47; B16,1
6isk47957023
1 pcs.
S NOZZLE 12.0/16.0; H=47; B16,1
96112
1 pcs.
S NOZZLE 3.0/4.5; H=56; B16,1
64673
1 pcs.
S NOZZLE 4.0/8.0; H=56; B16,1
64654
1 pcs.
S NOZZLE 3.0/6.0; H=58; B16,1
137134
1 pcs.
Height 47 mm, B16,1
Height 56 mm, B16,1 Height 58 mm, B16,1
Selective Soldering Nozzles
