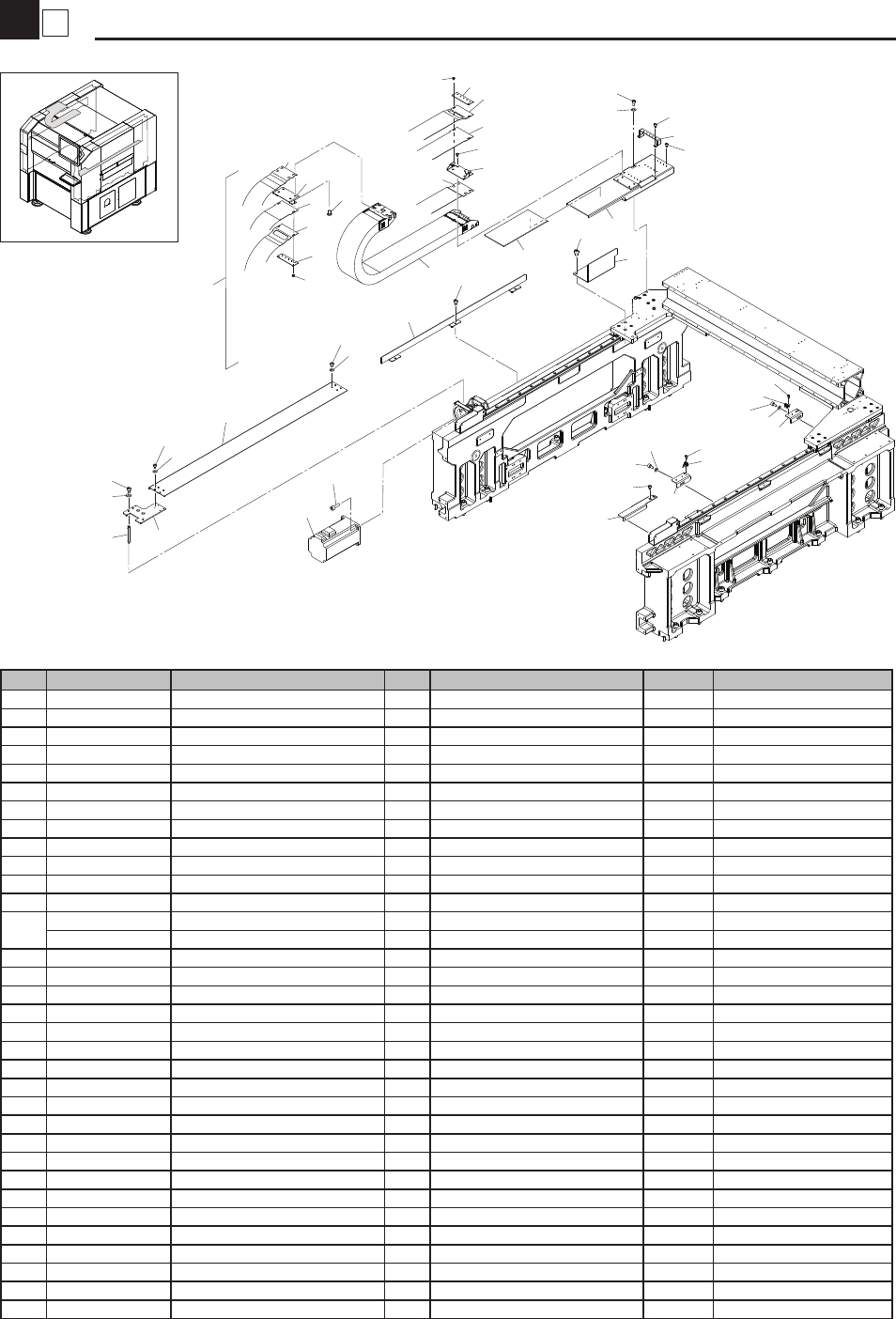

3 3 Y -axis Drive/Frame Moving-axis KKH-1008 32 19 15 10 7 9 3 26 25 27 31 29 18 23 6 8 50 30 21 13 12 4 40 48 42 40 44 37 33 17 28 35 43 39 34 38 16 47 46 24 34 3 10 20 18 19 37 20 32 15 33 7 11 39 31 31 31 31 31 46 46 …
2
3
X-axis Guide/B.S./Stay
Moving-axis
KKH-1008
38
38
20
33
21
44
44
36
31
32
8
3
18
46
48
29
34
24
1
33
18
46
42
45
30
16
17
2
39
13
14
37
40
4
11
11
9
41
47
34
29
27
28
23
25
33
43
26
42
12
15
7
9
13
14
37
5
6
30
10
36
45
41
31
32
36
40
40
22
22
35
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKH-M2211-000 FRAME R, X AXIS 1
2 KHY-M2240-001 SLEEVE,BRG. 1
3 KHN-M2241-000 HOLDER,MOTOR X 1
4 KHY-M2242-003 HOLDER,BRG. 1
5 KHY-M2271-000 BALL SCREW 1
6 KHY-M2276-S0 X-AXIS GUIDE SET 1
7
KHN-M2221-00 SUPPORT UNIT
1
8 KKH-M2261-A0 HOLDER,HEAD R ASSY. 1
9 KHY-M224H-00 DAMPER 2
10 KHN-M224D-00 SPACER 1
11 KHN-M2248-00 SPACER 2
12 KM0-M2220-00 COUPLING,X-AXIS 1
13 KHN-M224J-00 COLLAR A 4
14 KHN-M224K-00 COLLAR B 4
15 KGS-M2628-00 LOCK NUT 1
16 KG2-M9173-00 LOCK NUT 1
17 90990-26J008 BEARING 1
18 KKH-M2213-S0 PLATE X AXIS SET 1
19 Delete
20 KKH-M2236-01 STAY,DUCT 1
21 KKH-M2237-00 STAY,HEAD HNS 1
22 KKH-M2238-00 BRACKET 2
23 KKH-M223H-00 STAY,HNS. 1
24 KKH-M2230-00 STAY,X AXIS 1
25 KKH-M220D-00 TAPE, X AXIS 1 1
26 KKH-M220E-00 TAPE, X AXIS 2 1
27 KKH-M223G-00 STAY,L HNS. 1
28 KKH-M2251-00 BRACKET,CONNECTOR 1
29 KV7-M2231-00 SPACER R,NUT 4
30 92A08-04304 SET SCREW M4X4 2
31 99480-06018 PIN PARALLEL 2
32 99480-04012 PIN,PARALLEL 2
33 91312-04006 BOLT HEX.SOCKET HEAD 6 M4X6
34 91312-04008 BOLT HEX.SOCKET HEAD 23 M4X8
35 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
36 91312-04014 BOLT HEX.SOCKET HEAD 44 M4X14
37 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
38 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
39 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
40 91312-05018 BOLT HEX.SOCKET HEAD 8 M5X18
41 91312-06025 BOLT HEX.SOCKET HEAD 8 M6X26
42 91312-08025 BOLT HEX.SOCKET HEAD 16 M8X25
43 92902-04200 WASHER PLAIN 6
44 KHN-M22F4-000 WASHER,SWR04 16
45 KHN-M22F6-000 WASHER,SWR06 8
46 KHN-M22F8-000 WASHER,SWR08 16
47 KKH-M2239-00 STAY,HEAD HNS 2 1 MF80121-2009/9/1
48 KKH-M2253-00 BRKT,FERRITE CORE 1 1 MF80121-2009/9/1
3
3
Y-axis Drive/Frame
Moving-axis
KKH-1008
32
19
15
10
7
9
3
26
25
27
31
29
18
23
6
8
50
30
21
13
12
4
40
48
42
40
44
37
33
17
28
35
43
39
34
38
16
47
46
24
34
3
10
20
18
19
37
20
32
15
33
7
11
39
31
31
31
31
31
46
46
40
40
25
46
41
41
46
46
49
22
45
36
39
5
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
2
3 KHY-M264A-00 HOLDER,SET Y AXIS 1
4
KHY-M264L-00 SPACER,BRG SET
1
M264M+M264N
5 KHY-M2671-A0 Y AXIS B.S.SUB ASSY 1 ML00154-2014/10/30
6 KHY-M2671-00 BALL SCREW 1
7 KHY-M2676-S0 GUIDE SET,Y AXIS 1
8 KHY-M2666-00 HOLDER,NUT Y AXIS 1
9 KHY-M2648-00 DAMPER 1
10 KHY-M2656-00 BRACKET 1,STOPPER 2
11 KKH-M2695-00 STAY,SENSOR HNS 1 1
12 KKH-M2696-00 STAY,SENSOR HNS 2 1
13 KHW-M224A-A0 SUPPORT UNIT 1
14 KHN-M22F5-00 WASHER,SWR05 20
15 KHN-M2651-00 NYLOCK BOLT (M12X45) 22
16 KG2-M9173-00 LOCK NUT 1
17 KM0-M2220-00 COUPLING,X-AXIS 1
18 KHW-M2654-00 PLATE , DAMPER 2
19
90990-41J180 COLLAR 4 OK ML60128-2014/7/11
KHW-M2656-00 SPACER 4
20 KV7-M2651-00 DAMPER,STOPPER 2
21 KKH-M26F1-00 FRAME L 1
22 KKH-M26F2-00 FRAME R 1
23 KKH-M26F4-00 DUCT,HARNESS 1
24 KKH-M26F5-00 BRACKET 1, FRAME 1
25 KKH-M26F6-00 BRACKET 2, FRAME 2
26 KKH-M26F7-00 BRACKET 3, FRAME 1
27 KKH-M2694-00 BRACKET A, GUIDE 1
28 KHN-M224J-00 COLLAR A 2
29 KHN-M224K-00 COLLAR B 2
30 90172-00J040 WASHER,EXTL.TOOTHED 11
31 90172-00J060 WASHER,EXTL.TOOTHED 12
32 90201-124G9 WASHER,PLAIN 22
33 90990-21J001 PIN 6
34 90990-26J008 BEARING 2
35 90990-41J100 COLLAR 1
36 91312-04008 BOLT HEX.SOCKET HEAD 11 M4X8
37 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
38 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
39 91312-05016 BOLT HEX.SOCKET HEAD 30 M5X16
40 91312-06008 BOLT HEX.SOCKET HEAD 12 M6X8
41 91312-06010 BOLT HEX.SOCKET HEAD 20 M6X10
42 91312-06018 BOLT HEX.SOCKET HEAD 20 M6X18
43 91312-06020 BOLT HEX.SOCKET HEAD 14 M6X20
44 91312-06035 BOLT HEX,SOCKET HEAD 4 M6X35
45 92902-04200 WASHER PLAIN 11
46 92902-06200 WASHER PLAIN(N) 12
47 92A08-04305 SET SCREW M4X5 1
48 99480-05010 PIN,PARALLEL 1
49 KKH-M2693-00 BRKT,FERRITE CORE 2 1 MF80121-2009/9/1
50 KHN-M22F6-00 WASHER,SWR06 4 MG40056-2010/5/18
4
3
Y-axis Duct / Motor / Sensor
Moving-axis
KKH-2105
2
4
3
24
16
8
23
12
26
22
22
10
26
13
11
32
6
20
5
32
6
20
24
7
17
27
15
23
25
30
19
18
29
3
2
4
1
31
14
9
21
28
26
31
23
5
33
23
29
31
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKH-M2678-00 GUIDE,CABLE Y AXIS 1
2 KKH-M260B-00 TAPE,Y DUCT 1
3 KKH-M260C-00 TAPE 2, Y DUCT 1
4 KKH-M260D-00 TAPE 3, Y DUCT 1
5 KHY-M2669-00 BRACKET,HARNESS 2
6 KV7-M2266-00 PLATE,NUT 2
7 KHY-M2657-00 BRACKET 1,HARNESS 1
8 KKH-M2658-00 PLATE,FIX Y AXIS 1
9 KHY-M260A-00 TAPE, Y AXIS 1
10 KKH-M652A-00 SENSOR YOT+ ASSY 1
11 KKH-M652F-00 SENSOR YOT- ASSY 1
12 KKH-M2691-00 BRACKET,SENSOR F 1
