1 4 Head Camera (Before Y23196) Head KKH-1008 5 5 30 31 22 28 1 1 27 29 32 5 12 4 16 6 24 23 25 26 14 14 14 7 1 1 5PIXEL 10PIXEL 18PIXEL 2 2 10 18 17 3 9 13 18 9 8 18 1 1 17 9 15 10 8 L>R R>L 13 19 OLD OLD 19 20 19…
4
3
Y-axis Duct / Motor / Sensor
Moving-axis
KKH-2105
2
4
3
24
16
8
23
12
26
22
22
10
26
13
11
32
6
20
5
32
6
20
24
7
17
27
15
23
25
30
19
18
29
3
2
4
1
31
14
9
21
28
26
31
23
5
33
23
29
31
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKH-M2678-00 GUIDE,CABLE Y AXIS 1
2 KKH-M260B-00 TAPE,Y DUCT 1
3 KKH-M260C-00 TAPE 2, Y DUCT 1
4 KKH-M260D-00 TAPE 3, Y DUCT 1
5 KHY-M2669-00 BRACKET,HARNESS 2
6 KV7-M2266-00 PLATE,NUT 2
7 KHY-M2657-00 BRACKET 1,HARNESS 1
8 KKH-M2658-00 PLATE,FIX Y AXIS 1
9 KHY-M260A-00 TAPE, Y AXIS 1
10 KKH-M652A-00 SENSOR YOT+ ASSY 1
11 KKH-M652F-00 SENSOR YOT- ASSY 1
12 KKH-M2691-00 BRACKET,SENSOR F 1
13
KKH-M2692-01 BRACKET,SENSOR R 1 OK MF60204-2009/6/26
KKH-M2692-00 BRACKET,SENSOR R 1
14 KKH-M2697-00 BRACKET GUIDE,Y AXIS 1
15 KKH-M26C1-00 COVER TOP,BALL SCREW 1
16 KHY-M26C2-01 COVER1,BALL SCREW 1
17 KHY-M26C3-00 COVER2,BALL SCREW 1
18 KKH-M26C5-00 SHAFT,COVER 3
19 KKH-M2655-00 BRKT. COVER Y AXIS 1
20 90990-01J032 BOLT,HEX.SOCKET HEAD 8
21 90K63-611H04 AC SERVO MOTOR 1
22 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
23 91312-04006 BOLT HEX.SOCKET HEAD 12 M4X6
24 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
25 91312-05008 BOLT HEX.SOCKET HEAD 6 M5X8
26 91312-05010 BOLT HEX.SOCKET HEAD 18 M5X10
27 91312-06008 BOLT HEX.SOCKET HEAD 12 M6X8
28 91312-06018 BOLT HEX.SOCKET HEAD 4 M6X18
29 92902-04200 WASHER PLAIN 8
30 92902-05200 WASHER PLAIN 3
31 92902-05600 WASHER PLAIN 8
32 98502-03004 SCREW PAN HEAD 4
33 KKH-M2679-00 GUIDE,CABLE Y ASSY 1
1
4

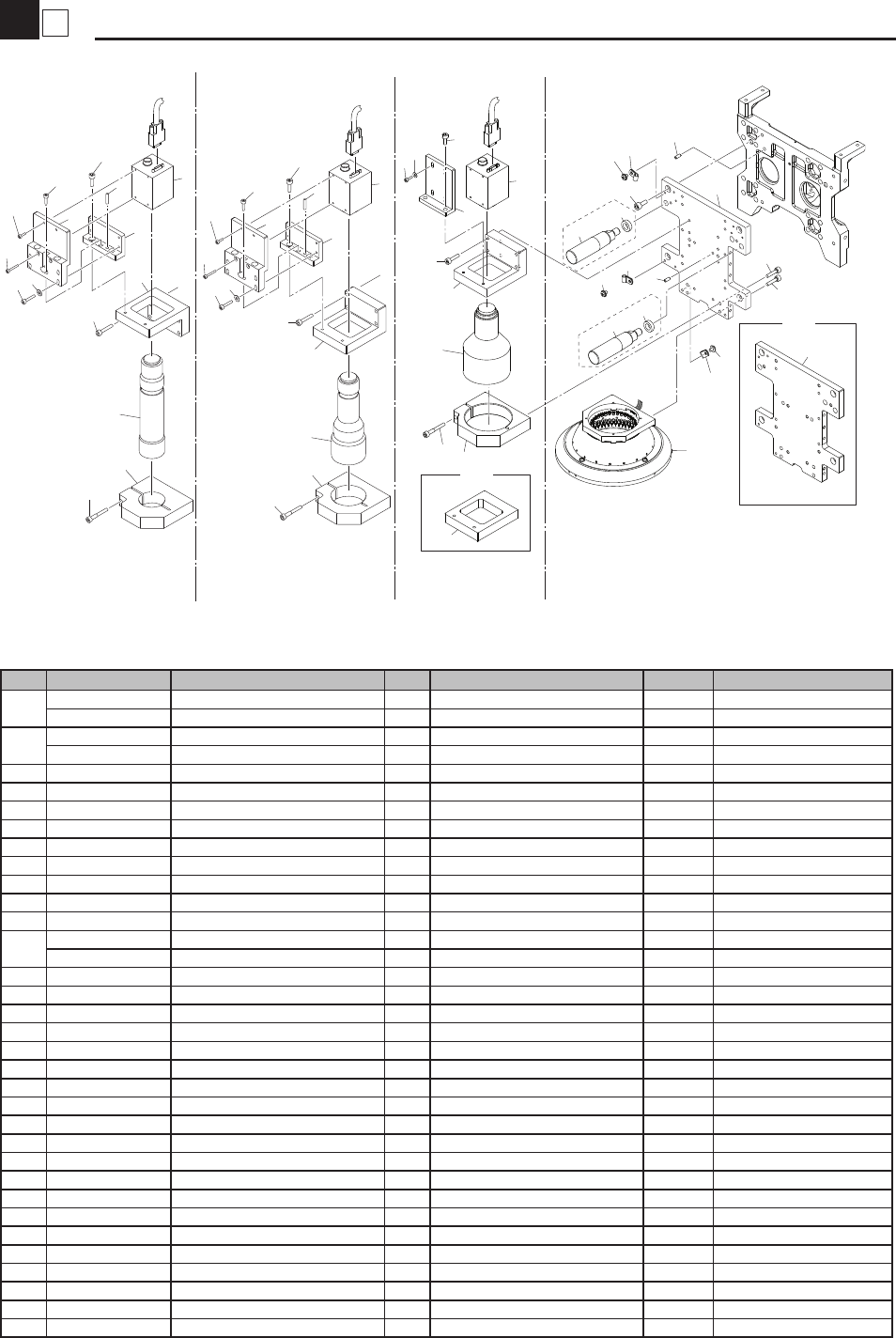

Head Camera (Before Y23196)
Head
KKH-1008
5
5
30
31
22
28
11
27
29
32
5
12
4
16
6
24
23
25
26
14
14
14
7
11
5PIXEL
10PIXEL 18PIXEL
2
2
10
18
17
3
9
13
18
9
8
18
1
1
17
9
15
10
8
L>R
R>L
13
19
OLD
OLD
19
20
19
20
21
30
31
22
28
11
27
29
32
21
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KKH-M7101-01 BASE,CAMERA 1 Six M5 Tap addition NG MF80009
KKH-M7101-00 BASE,CAMERA 1
2
KKH-M7102-01 HOLDER,CAMERA 1 NG MF80009
KKH-M7102-00 HOLDER,CAMERA 1
3 KKH-M7103-01 HOLDER,LENS 1
4 KKH-M7104-00 BRKT.,CAMERA 1
5 KKH-M7107-00 CAMERA 1
6 KKH-M7108-01 LENS 1 18.2UM/Pixel
7 KKH-M7300-A1 ILLUMINATION ASSY. 1
8 KGS-M2256-00 GRIP 1
9 90990-12J002 SCREW BIN.HEAD W/W 3
10 90990-41J106 COLLAR 1
11 91312-03010 BOLT HEX.SOCKET HEAD 6 M3X10
12
91312-05012 BOLT HEX.SOCKET HEAD 2 M5X12 NG MF80009
91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
13 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
14 91312-05035 BOLT HEX.SOCKET HEAD 3 M5X35
15 91312-06014 BOLT HEX.SOCKET HEAD 4 M6X14
16 92902-03200 WASHER PLAIN 4
17 99480-04010 PIN PARALLEL: 4X10 6
18 $NK-3N NYLON CLIP 3
19 91312-05025 BOLT HEX.SOCKET HEAD 12 MF80009
20 KKH-M7102-10 HOLDER,CAMERA 1 MF60089-2009/7/28
21 KKH-M7111-00 BRKT.,CAMERA 1 1 MF60089-2009/7/28
22 KKH-M7112-10 BRKT.,CAMERA 2 1 MF60089-2009/7/28
23 KKH-M7103-10 HOLDER,LENS 1 MF60089-2009/7/28
24 KKH-M7109-00 LENS 1 10UM/Pixel MF60089-2009/7/28
25 KKH-M7103-20 HOLDER,LENS 1 MF60089-2009/7/28
26 KKH-M7110-00 LENS 1 5UM/Pixel MF60089-2009/7/28
27 91312-03020 BOLT HEX.SOCKET HEAD 2 M3X20 MF60089-2009/7/28
28 91312-04014 BOLT HEX.SOCKET HEAD 2 M4X16 MF60089-2009/7/28
29 91312-04020 BOLT HEX.SOCKET HEAD 2 M4X20 MF60089-2009/7/28
30 91312-05016 BOLT HEX.SOCKET HEAD 2 M5X16 MF60089-2009/7/28
31 99480-04018 PIN PARALLEL: 4X18 2 MF60089-2009/7/28
32 92902-04200 WASHER PLAIN 4 MF60089-2009/7/28
2
4
Head Camera (After Y23196)
Head
KKH-1008
5PIXEL
10PIXEL 18PIXEL
40
40
14
15
15
15
34
42
42
32
42
13
3
33
6
2
26
36
26
36
36
36
17
9
8
7
10
10
24
24
25
31
39
31
41
21
20
38
25
20
27
17
32
23
19
22
18
33
33
5
5
5
4
26
3711
25
24
12
28
35
30
35
32
32
14
16
16
L>R
R>L
1
9
8
10
24
31
41
21
20
38
25
20
27
30
35
8
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKH-M7101-01 BASE,CAMERA 1
2 KKH-M7102-02 HOLDER,CAMERA 1
3 KKH-M7103-01 HOLDER,LENS 1
4 KKH-M7104-01 BRKT.,CAMERA 1
5 KKH-M7107-00 CAMERA 1
6 KKH-M7108-01 LENS 1 18.2UM/Pixel
7 KKH-M7112-01 BRKT.,CAMERA 2 1
8 KKH-M7114-00 SPACER 1
9 KKH-M7115-00 BLOCK.,ADJUST 1
10 KKH-M7116-00 BLOCK.,ADJUST 2 1
11 KKH-M7117-00 BLOCK.,ADJUST 3 1
12 KKH-M7118-00 BRKT.,CAMERA 3 1
13
KKH-M7300-A2 ILLUMINATION ASSY. 1 OK MH60090-2011/6/22
KKH-M7300-A1 ILLUMINATION ASSY. 1
14 KGS-M2256-00 GRIP 1
15 90990-12J002 SCREW BIN.HEAD W/W 3
16 90990-41J106 COLLAR 1
17 KKH-M7102-10 HOLDER,CAMERA 1
18 KKH-M7103-10 HOLDER,LENS 1
19 KKH-M7109-00 LENS 1 10UM/Pixel
20 KKH-M7111-00 BRKT.,CAMERA 3 1
21 KKH-M7112-10 BRKT.,CAMERA 2 1
22 KKH-M7103-20 HOLDER,LENS 1
23 KKH-M7110-00 LENS 1 5UM/Pixel
24 91312-03006 BOLT HEX.SOCKET HEAD 6 M3X6
25 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
26 91312-03018 BOLT HEX.SOCKET HEAD 3 M3X18
27 91312-03020 BOLT HEX.SOCKET HEAD 4 M3X20
28 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
29 91312-04016 BOLT HEX.SOCKET HEAD 1 M4X16
30 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
31 91312-05016 BOLT HEX.SOCKET HEAD 2 M5X16
32 91312-05020 BOLT HEX.SOCKET HEAD 8 M5X20
33 91312-05035 BOLT HEX.SOCKET HEAD 1 M5X35
34 91312-06014 BOLT HEX.SOCKET HEAD 4 M6X14
35 92902-04200 WASHER PLAIN 4
36 92A08-03308 SCREW,SET 2
37 95302-03600 NUT,HEXAGON 1
38 95302-04600 NUT,HEXAGON 1
39 99480-03008 PIN PARALLEL: 3X8 2
40 99480-04010 PIN PARALLEL: 4X10 6
41 99480-04018 PIN PARALLEL: 4X18 2
42 $NK-3N NYLON CLIP 3
