KKH_YSi12_PL.pdf - 第9页
2 3 X-axis Guide/B.S./Stay Moving-axis KKH-1008 38 38 20 33 21 44 44 36 31 32 8 3 18 46 48 29 34 24 1 33 18 46 42 45 30 16 17 2 39 13 14 37 40 4 1 1 1 1 9 41 47 34 29 27 28 23 25 33 43 26 42 12 15 7 9 13 14 37 5 6 30 10 …
1
3

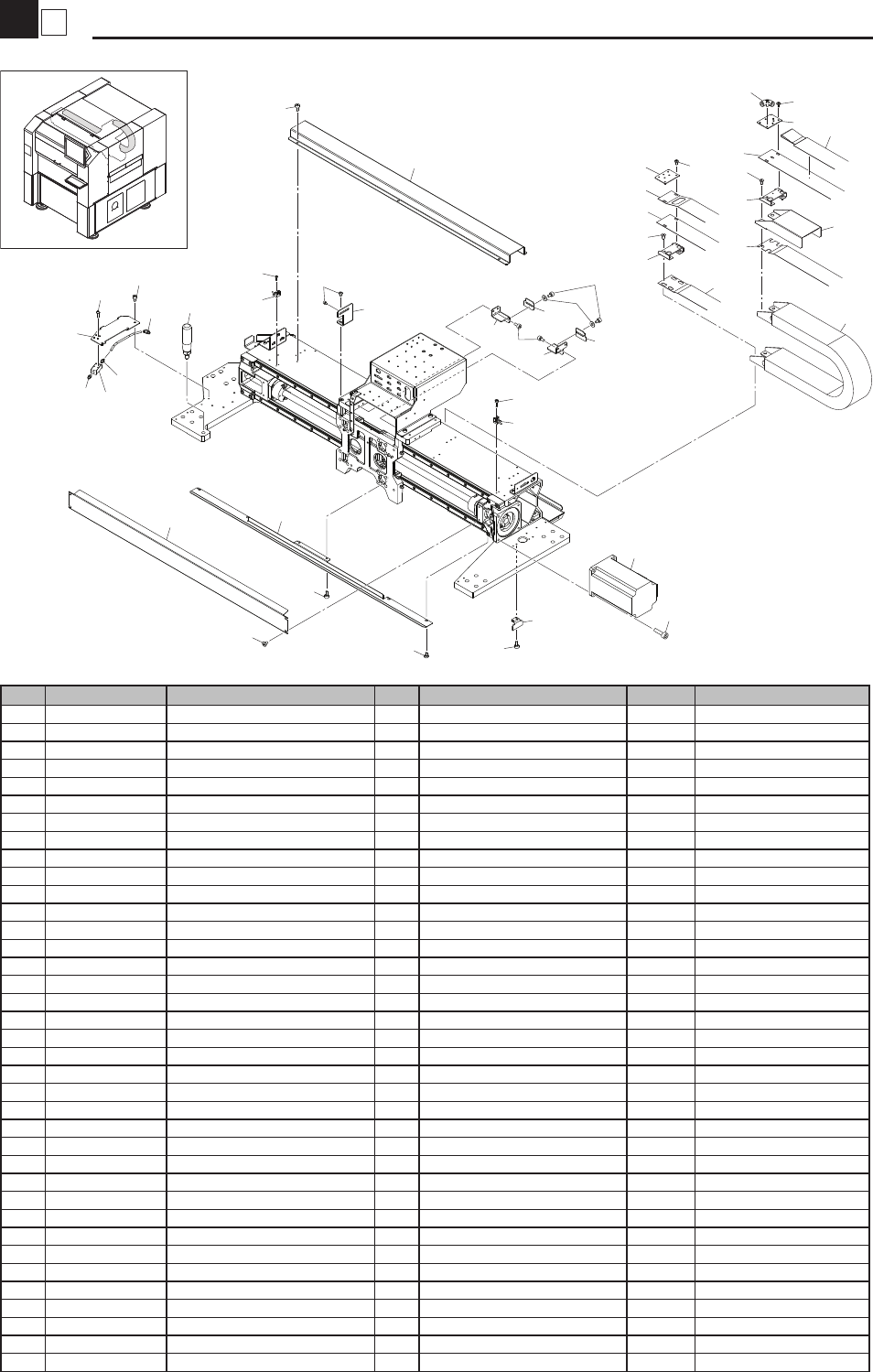

X-axis Duct/Motor/Sensor
Moving-axis
KKH-0908
25
29
16
34
7
34
20
29
19
20
22
21
24
23
26
32
17
28
35
15
18
13
33
10
11
12
14
5
4
2
27
8
3
2
27
9
4
1
6
3
30
30
31
31
31
36
30
31
37
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKH-M2267-00 GUIDE,CABLE X AXIS 1
2 KKH-M220A-00 TAPE ,X DUCT 1
3 KKH-M220B-00 TAPE 2,X DUCT 1
4 KKH-M220C-00 TAPE 3,X DUCT 1
5 KGT-M2266-10 PLATE,NUT 1
6 KHY-M221A-A0 COVER,DUCT ASSY. 1
7 KHY-M2266-00 PLATE,NUT 1
8 KHY-M2268-00 BRACKET 1,TAPE 1
9 KHY-M2269-00 BRACKET 2,TAPE 1
10 KKH-M266A-00 PLATE,PIPE 1
11 KHN-M22AD-00 GREASE NIPPLE 1
12 KHY-M266C-00 BLOCK,JOINT 1
13 KHY-M266D-00 JOINT 1
14 KHY-M266E-00 JOINT 1
15 KKH-M2252-00 PLATE,FIX X AXIS 1
16 KKH-M226A-00 COVER,CABLE 1
17 KHY-M227G-00 COVER,B.S. 1
18 KKH-M652W-01 SENSOR XOT- ASSY 1
19 KKH-M652X-01 SENSOR XOT+ ASSY 1
20 KKH-M2282-00 DOG.ORIGIN,X AXIS 2
21 KKH-M2283-00 STAY,DOG 1 1
22 KKH-M2284-00 STAY,DOG 2 1
23 KKH-M2682-00 DOG,ORIGIN Y AXIS 1
24 KHY-M22C5-00 COVER UNDER,X AXIS 1
25 KGS-M2256-00 GRIP 1
26 90K63-511403 AC SERVO MOTOR 1
27 90990-01J032 BOLT,HEX.SOCKET HEAD 8
28 90990-01J011 BOLT,HEX.SOCKET HEAD 4
29 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
30 91312-04006 BOLT HEX.SOCKET HEAD 11 M4X6
31 91312-04008 BOLT HEX.SOCKET HEAD 14 M4X8
32 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
33 92012-03010 BOLT,BUTTON HEAD 4
34 98902-03006 SCREW BINDING HEAD 4
35 98902-04006 SCREW BINDING HEAD 4
36 92902-04200 WASHER PLAIN 4
37 $UL6 JOINT 1
2
3

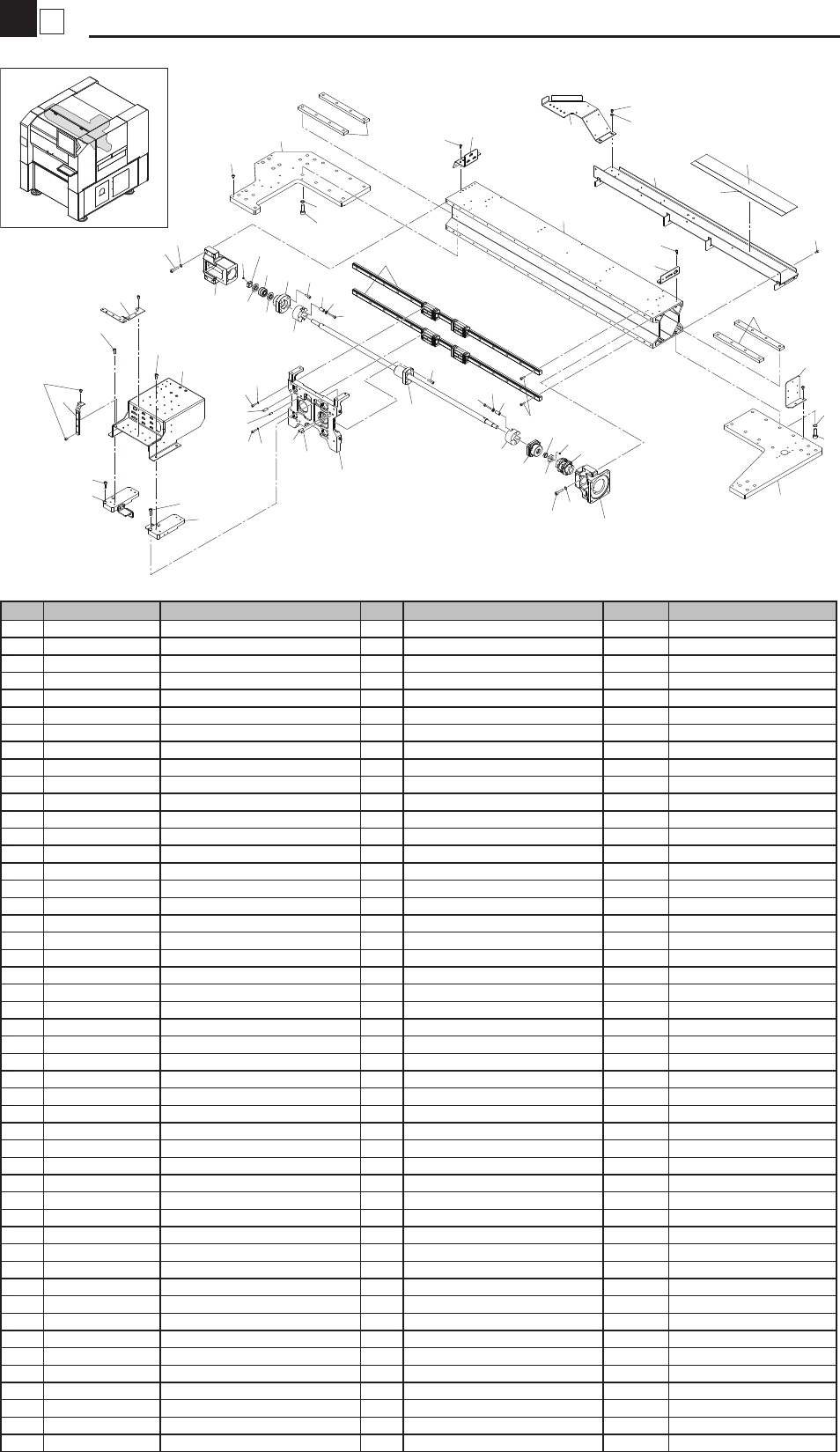

X-axis Guide/B.S./Stay
Moving-axis
KKH-1008
38
38
20
33
21
44
44
36
31
32
8
3
18
46
48
29
34
24
1
33
18
46
42
45
30
16
17
2
39
13
14
37
40
4
11
11
9
41
47
34
29
27
28
23
25
33
43
26
42
12
15
7
9
13
14
37
5
6
30
10
36
45
41
31
32
36
40
40
22
22
35
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKH-M2211-000 FRAME R, X AXIS 1
2 KHY-M2240-001 SLEEVE,BRG. 1
3 KHN-M2241-000 HOLDER,MOTOR X 1
4 KHY-M2242-003 HOLDER,BRG. 1
5 KHY-M2271-000 BALL SCREW 1
6 KHY-M2276-S0 X-AXIS GUIDE SET 1
7
KHN-M2221-00 SUPPORT UNIT
1
8 KKH-M2261-A0 HOLDER,HEAD R ASSY. 1
9 KHY-M224H-00 DAMPER 2
10 KHN-M224D-00 SPACER 1
11 KHN-M2248-00 SPACER 2
12 KM0-M2220-00 COUPLING,X-AXIS 1
13 KHN-M224J-00 COLLAR A 4
14 KHN-M224K-00 COLLAR B 4
15 KGS-M2628-00 LOCK NUT 1
16 KG2-M9173-00 LOCK NUT 1
17 90990-26J008 BEARING 1
18 KKH-M2213-S0 PLATE X AXIS SET 1
19 Delete
20 KKH-M2236-01 STAY,DUCT 1
21 KKH-M2237-00 STAY,HEAD HNS 1
22 KKH-M2238-00 BRACKET 2
23 KKH-M223H-00 STAY,HNS. 1
24 KKH-M2230-00 STAY,X AXIS 1
25 KKH-M220D-00 TAPE, X AXIS 1 1
26 KKH-M220E-00 TAPE, X AXIS 2 1
27 KKH-M223G-00 STAY,L HNS. 1
28 KKH-M2251-00 BRACKET,CONNECTOR 1
29 KV7-M2231-00 SPACER R,NUT 4
30 92A08-04304 SET SCREW M4X4 2
31 99480-06018 PIN PARALLEL 2
32 99480-04012 PIN,PARALLEL 2
33 91312-04006 BOLT HEX.SOCKET HEAD 6 M4X6
34 91312-04008 BOLT HEX.SOCKET HEAD 23 M4X8
35 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
36 91312-04014 BOLT HEX.SOCKET HEAD 44 M4X14
37 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
38 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
39 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
40 91312-05018 BOLT HEX.SOCKET HEAD 8 M5X18
41 91312-06025 BOLT HEX.SOCKET HEAD 8 M6X26
42 91312-08025 BOLT HEX.SOCKET HEAD 16 M8X25
43 92902-04200 WASHER PLAIN 6
44 KHN-M22F4-000 WASHER,SWR04 16
45 KHN-M22F6-000 WASHER,SWR06 8
46 KHN-M22F8-000 WASHER,SWR08 16
47 KKH-M2239-00 STAY,HEAD HNS 2 1 MF80121-2009/9/1
48 KKH-M2253-00 BRKT,FERRITE CORE 1 1 MF80121-2009/9/1
3
3
Y-axis Drive/Frame
Moving-axis
KKH-1008
32
19
15
10
7
9
3
26
25
27
31
29
18
23
6
8
50
30
21
13
12
4
40
48
42
40
44
37
33
17
28
35
43
39
34
38
16
47
46
24
34
3
10
20
18
19
37
20
32
15
33
7
11
39
31
31
31
31
31
46
46
40
40
25
46
41
41
46
46
49
22
45
36
39
5
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
2
3 KHY-M264A-00 HOLDER,SET Y AXIS 1
4
KHY-M264L-00 SPACER,BRG SET
1
M264M+M264N
5 KHY-M2671-A0 Y AXIS B.S.SUB ASSY 1 ML00154-2014/10/30
6 KHY-M2671-00 BALL SCREW 1
7 KHY-M2676-S0 GUIDE SET,Y AXIS 1
8 KHY-M2666-00 HOLDER,NUT Y AXIS 1
9 KHY-M2648-00 DAMPER 1
10 KHY-M2656-00 BRACKET 1,STOPPER 2
11 KKH-M2695-00 STAY,SENSOR HNS 1 1
12 KKH-M2696-00 STAY,SENSOR HNS 2 1
13 KHW-M224A-A0 SUPPORT UNIT 1
14 KHN-M22F5-00 WASHER,SWR05 20
15 KHN-M2651-00 NYLOCK BOLT (M12X45) 22
16 KG2-M9173-00 LOCK NUT 1
17 KM0-M2220-00 COUPLING,X-AXIS 1
18 KHW-M2654-00 PLATE , DAMPER 2
19
90990-41J180 COLLAR 4 OK ML60128-2014/7/11
KHW-M2656-00 SPACER 4
20 KV7-M2651-00 DAMPER,STOPPER 2
21 KKH-M26F1-00 FRAME L 1
22 KKH-M26F2-00 FRAME R 1
23 KKH-M26F4-00 DUCT,HARNESS 1
24 KKH-M26F5-00 BRACKET 1, FRAME 1
25 KKH-M26F6-00 BRACKET 2, FRAME 2
26 KKH-M26F7-00 BRACKET 3, FRAME 1
27 KKH-M2694-00 BRACKET A, GUIDE 1
28 KHN-M224J-00 COLLAR A 2
29 KHN-M224K-00 COLLAR B 2
30 90172-00J040 WASHER,EXTL.TOOTHED 11
31 90172-00J060 WASHER,EXTL.TOOTHED 12
32 90201-124G9 WASHER,PLAIN 22
33 90990-21J001 PIN 6
34 90990-26J008 BEARING 2
35 90990-41J100 COLLAR 1
36 91312-04008 BOLT HEX.SOCKET HEAD 11 M4X8
37 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
38 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
39 91312-05016 BOLT HEX.SOCKET HEAD 30 M5X16
40 91312-06008 BOLT HEX.SOCKET HEAD 12 M6X8
41 91312-06010 BOLT HEX.SOCKET HEAD 20 M6X10
42 91312-06018 BOLT HEX.SOCKET HEAD 20 M6X18
43 91312-06020 BOLT HEX.SOCKET HEAD 14 M6X20
44 91312-06035 BOLT HEX,SOCKET HEAD 4 M6X35
45 92902-04200 WASHER PLAIN 11
46 92902-06200 WASHER PLAIN(N) 12
47 92A08-04305 SET SCREW M4X5 1
48 99480-05010 PIN,PARALLEL 1
49 KKH-M2693-00 BRKT,FERRITE CORE 2 1 MF80121-2009/9/1
50 KHN-M22F6-00 WASHER,SWR06 4 MG40056-2010/5/18
