5.2.3 To Change Pressure Unit Display

Note: The default pressure unit is PSI. To change pressure unit to BAR,

follow the instructions below.

1. Touch the Setup icon to enter the setup screen

2. Touch the “BAR” icon to change pressure unit to BAR

3. Touch the X icon to save and exit

5.2.4 Manual/Purge Dispense Cycle Setting:

1. Touch the Purge icon to select purge cycle.

The Purge icon will turn to green color.

2. Press and hold down the foot switch to activate the purge dispense cycle.

Alternately, touch and hold the Run icon on the display to activate the

purge dispense cycle.

18. Go to the setup screen of the controller and touch the “Remote Server”

icon

19. Enter the Server IPv4 address recorded in step #11 into Remote IP address box

20. Touch the green check mark icon to save

21. The controller is now connected to the webserver site.

13. Go to any computer and open any web browser

14. Type in:

http://localhost:8090/ then touch the enter button

You are now in the webserver site. The below screen will be displayed:

15. Click the “Login” button

16. Enter “admin” in the Login box

17. Enter “1001” in the Password box

5.2.5 Automatic Dispense Cycle Setting:

1. Touch the “Timed” mode icon to set the dispense time.

The icon will turn to green color.

2. Touch the “Dispense” icon to enter the setup screen

3. Touch the Up and Down arrows to set the desired dispense time

4. Touch the Check Mark icon to save and exit

Note: if suck back is needed, touch the “Reverse” icon to

setup motor reverse time

5. Press the foot switch to activate the “Timed” dispense

cycle. Alternately, touch the Run icon to activate the

“Timed” dispense cycle.

Note: The unit has an “Interrupt” mode feature. In this mode, the

“Timed” dispense cycle can be disrupted if the foot switch is released and

resumed when the foot switch is depressed again.

6. Touch the “Interrupt” icon to activate “Interrupt” mode.

The icon will turn to green color.

5.2.6 Teach Mode Setting

In the teach mode, the dispense time will be accumulated as long as the

foot switch is depressed. This is helpful in determining the required

dispense time when dispense output is known.

1. Touch the “Teach” icon to enter the teach mode

2. Touch the “Time Reset” icon to set timer to zero

3. Press and hold down the foot switch, the dispense time will be

accumulated

4. Release the foot switch when the desired amount of fluid has dispensed

5. Touch the “Timed” icon to transfer the dispense time to “Timed” mode

6. The unit is now set to repeat this “Timed” cycle

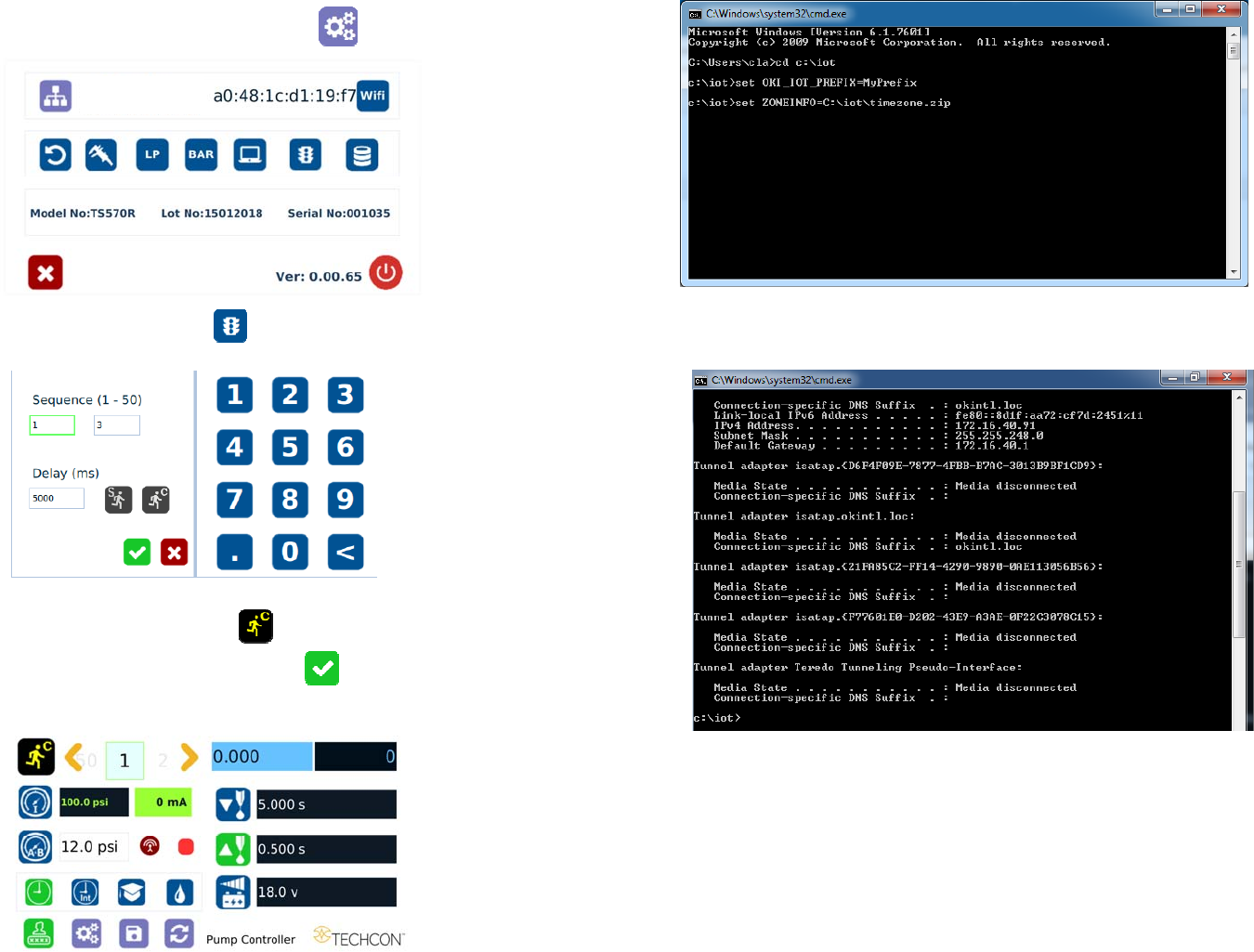

5.2.7 To run in Continous Mode

The controller can be setup to repeat the run continuously.

1. Touch the Setup icon to enter the setup screen

2. Touch the “Run Method” icon

3. Enter the delay time (ex. 5000 ms)

4. Touch the “Countinous Run” icon

5. Touch the Check Mark icon to save and exit

The screen will look similarly to the screen below:

9. Type: “set ZONEINFO=C:\iot\timezone.zip” then touch the “Enter” button

10. Type: “ipconfig” then touch the “Enter” button

11. Record the Server IPv4 address show in the “IPv4 Address” line on the above

screen; For this example, the Server IP address is: 172.16.40.91

This address will be entered in the controller screen later.

12. Type: “.\portal” then touch the Enter button
