14 5. Touch the Up or Down arrows to set the dispense encoder count Note: if suck back is needed, to uch the “Reverse” icon to setup motor reverse encoder co unt 6. Touch the Check Mark icon to save and exit 7. Select de…

7. Type: “cd :\iot” then touch the “Enter” button

8. Type: “set OKI_IOT_PREFIX=MyPrefix” then touch the “Enter” button

Note: If the controller is set to activate memory cell 1 and the delay time is

set at 5000 ms, the controller will activate memory 1 contiuously with 5000

ms delay between each activation.

5.3 Setup for Auger Valve with Encoder Motor

Procedure to control encoder motor valve is very similar to non-encoder valve.

The dispense cycle of encoder motor valve is controlled mainly through

encoder counts.

1. Touch the Setup icon to enter the setup screen

2. Touch the Controller type icon to switch to Encoder controller

“E-Pump Controller”

3. Touch the X icon to save and exit

4. Touch the Dispense icon to enter the setup screen

5. Touch the Up or Down arrows to set the dispense encoder count

Note: if suck back is needed, touch the “Reverse” icon to setup

motor reverse encoder count

6. Touch the Check Mark icon to save and exit

7. Select desired dispense mode to continue (Timed, Interrupt, Teach or Purge)

8. Touch the Voltage icon to set voltage

9. Touch the Up or Down arrows to set input voltage

10. Touch the Check Mark icon to save and exit

6. INTERNET of Thing (IoT)

6.1 Setup webserver on the computer

1. Go to Techcon Website (www.techconsystems.com) and download the

following files to your computer:

a. The “portal.exe” file

b. The “timezone.zip” file

2. Create a new folder and name “IoT” or any desired name

3. Copy the “portal.exe” file and the “timezone.zip” file in the “IoT” folder

4. Click on the “Windows” start icon

5. Type: “cmd” in the box (as show below)

6. Touch the “Enter” button

The screen should appear as shown below

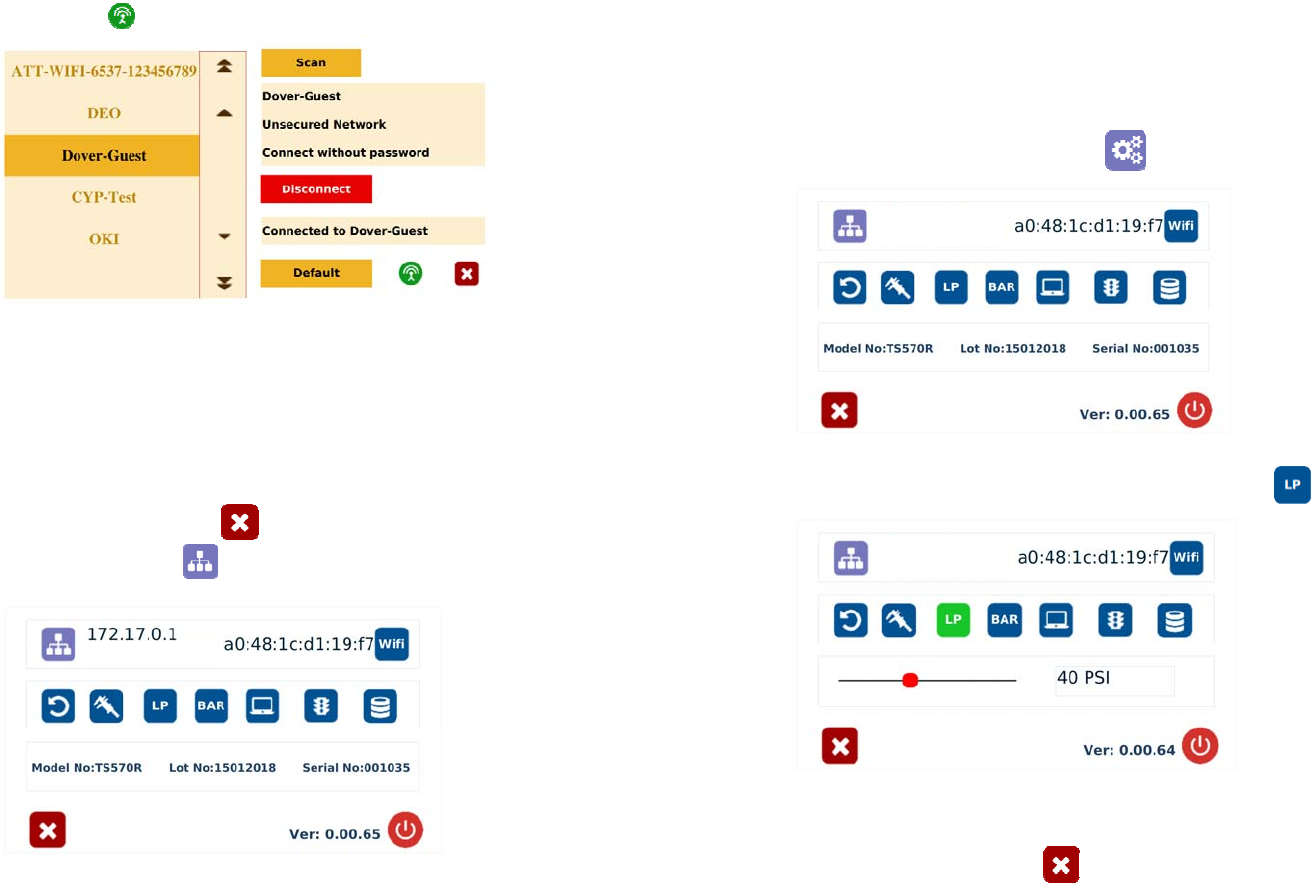

7. Once the unit is successfully connected to the Wi-Fi network, the

“Connect” tab will change to “Disconnect” and the online symbol will

change to green

8. If the selected network is a secured network (password protected), first

create a text file and type the network’s password, then save the file as

“password.txt”

9. Copy the “password.txt” file to a blank USB thumb drive. Note: Do not

put the “password.txt” file inside a folder

10. Insert the USB drive to the USB port located in the back of the unit

11. Touch “Connect” tab to connect. Once the unit is successufully connected

to the Wi-Fi network, remove the USB drive from the USB port

12. Touch X icon to save and exit

13. Touch the IP Address icon

and the unit will show an IP address

Note: Once the unit is turned off, the Wi-Fi connection is lost. To re-connect

the unit back to the same network after the unit is turned on, repeat steps 1-4

and touch the “Default” tab.

5.4 Low Pressure Alarm Setting

Note: This controller is equipped with an adjustable “Low Pressure” alarm

function. If the set pressure dropped below the “Low Pressure” setting, the

controller will not activate. The “Low Pressure” setting is pre-set at the factory

to 70 psi (4.8 bars). When the supplied pressure drops below 70 psi (4.8 bars)

the unit will not function. The “Low Pressure” setting can be adjusted. Follow

instruction below:

1. Touch the Setup icon to enter setup screen

2. Touch the Low Pressure (LP) icon to set the desired low pressure

3. Slide the pressure scale to set the desired low pressure threashold

4. Touch the X icon to save and exit
