Installation manual SIPLACE Pro 4 Installati on of SIPLACE Pro and possible Setup Types Edition 06/2006 US 29 Ste p 7 The "S tart Copying Files" dialog box gives you a last chance to check the information you h…

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 06/2006 US

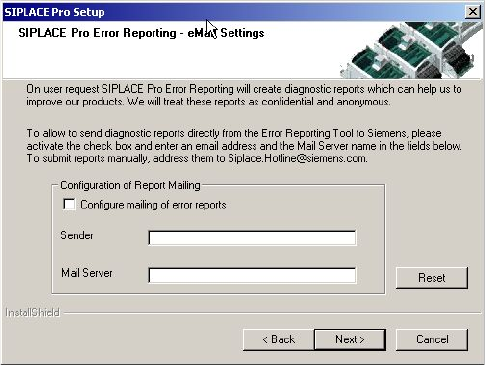

Fig. 4 - 15 Error Reporting

If mailing is configured, the SIPLACE Pro Error Reporting Tool will create diagnostic reports and

will mail these reports to Siemens. 4

The settings are used to configure the SIPLACE Pro Error Reporting Tool. Depending on your set-

tings these reports are automatically mailed to Siemens support personnel or are available for you

to be sent later on. 4

Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types

Edition 06/2006 US

Step 7

The "Start Copying Files" dialog box gives you a last chance to check the information you have

entered during the previous steps. 4

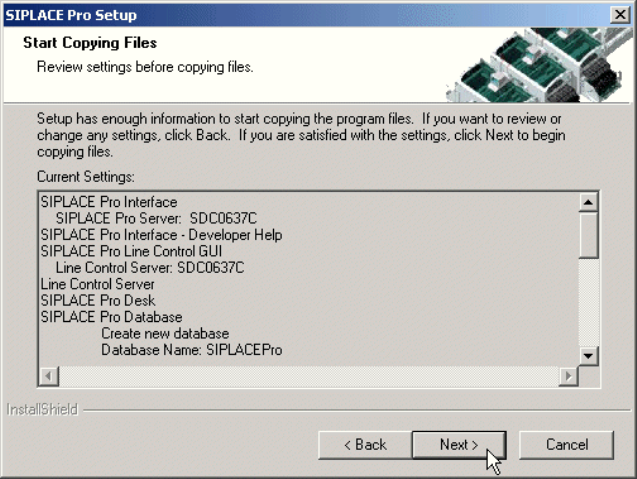

Fig. 4 - 16 The "Start Copying Files" dialog box

Æ Click Next if you accept all the information entered so far.

Æ If you want to alter one or more details, click the Back button until you get back to the dialog

box in question.

Æ There, enter your changes and click Next to continue as usual.

Step 8

– The installation routine is now started.

– The "Setup Complete" window confirms that the installation has been completed successfully.

– If you are prompted to reboot the computer, be sure the CD is still in the drive and leave it there

until the computer has completely rebooted.

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 06/2006 US

4.2.3 Setup Type – SIPLACE Pro Desk

This setup type only contains a "Client" portion of SIPLACE Pro, i.e. the user interface. The

SIPLACE Pro Desk setup requires that the SIPLACE Pro server has already been installed either

locally or remotely. The SIPLACE Pro Desk setup type is used in a distributed system in order to

create additional programming desks which are only operational together with the server. 4

Fig. 4 - 17 Components – SIPLACE Pro Desk (sample configuration)

Step 1

Æ Run through the steps in ”Starting installation – first steps” from page 13.

Æ Select the SIPLACE Pro Desk setup type.

Æ Click Next.

MS SQL Server with

SIPLACE Pro Server and

Database pre-installed

SIPLACE Pro

Desk

SIPLACE Pro

Interface

Setup

COM+

Resource

Manager

COM+

Line computer

master data
