SME_FEEDER_TRM(Ver3.3_CS16.12)..pdf - 第58页
46 SM E 16 mm SME Tape Feeder - Sub NO. LEV EL P ART NO. P AR T NAME Q'T Y T YPE OLD NO. Refere nce 2 J70 6509 78C INS T ALL GUIDE 1 3 FC1 8- 000 205 A B TM L OC' PIN 1 S700 00 001A 4 J70 6509 48B LOC A TI ON F…
45
SME
16

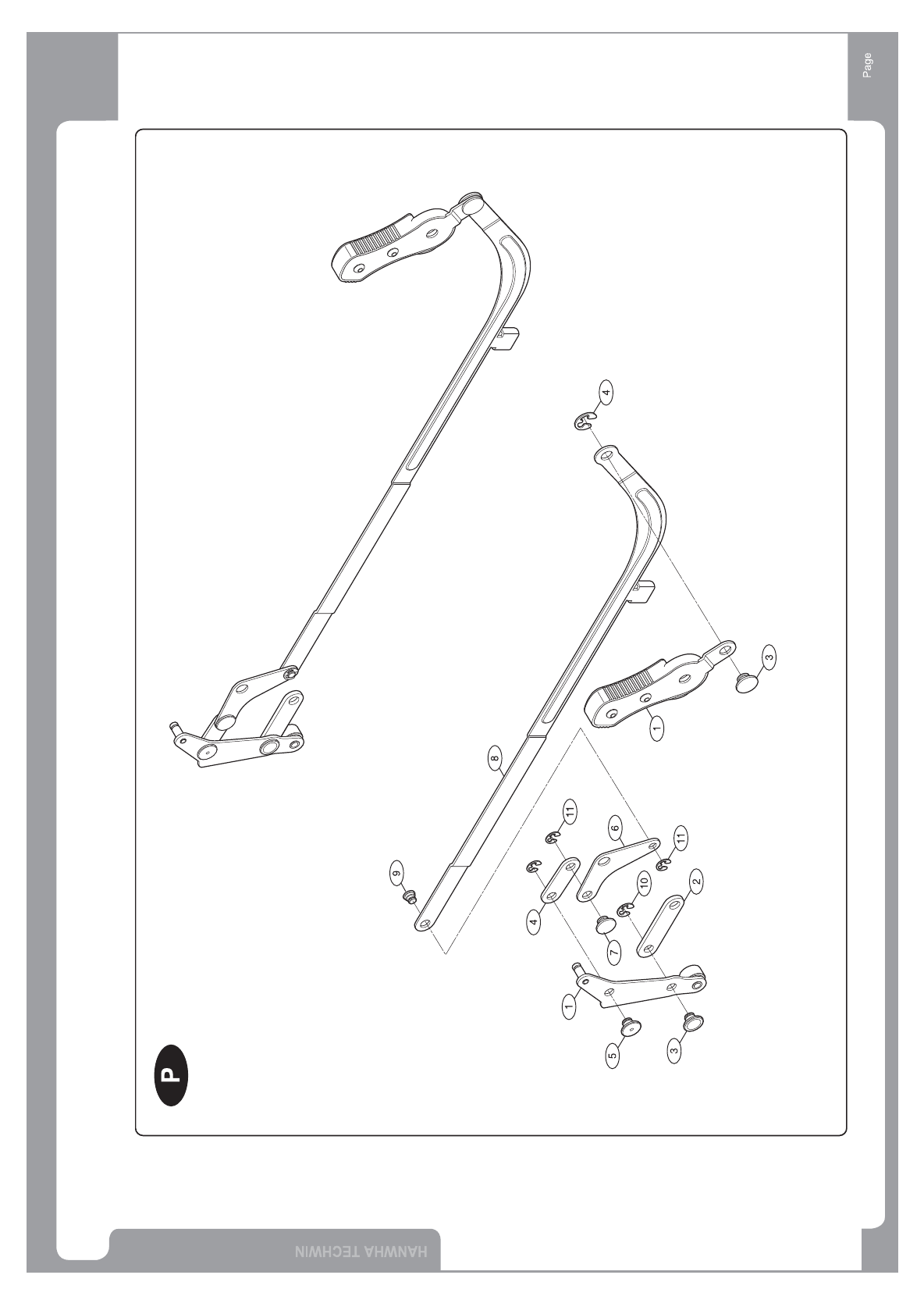

mm SME Tape Feeder - Sub (6)
46
SME
16
mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
2 J70650978C INSTALL GUIDE 1
3 FC18-000205A BTM LOC' PIN 1 S70000001A
4 J70650948B LOCATION FLANGE 1
5 FC18-000204A FRONT GUIDE PIN 1 S70000002A
17 J66011014A BALL_BEARING_F605ZZ-STF100N F605ZZ 1 S66010003A
47
SME
16
mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
D EP08-000035A MOTOR ASSY 1 S90000011A
F AM03-001462A VINYL DISCHARGE ASSY 1 S90000013A
1 FC39-000730A DISCHARGE FRAME 1 S72000010A
2 MC19-000342A VINYL FIX ROLLER PULLEY 1 S72000011A PULLEY FLANGE included
