62 SM E 24 mm SME Tape Feeder - Sub NO. LEVEL P AR T NO. P ART NAME Q'TY TYPE OLD NO. Refe rence 2 J7065 097 8C INST A LL G UID E 1 3 FC18- 0 002 05A BTM L OC' PIN 1 4 J7065 0948 B LOC A T ION FL ANG E 1 5 FC18…
61

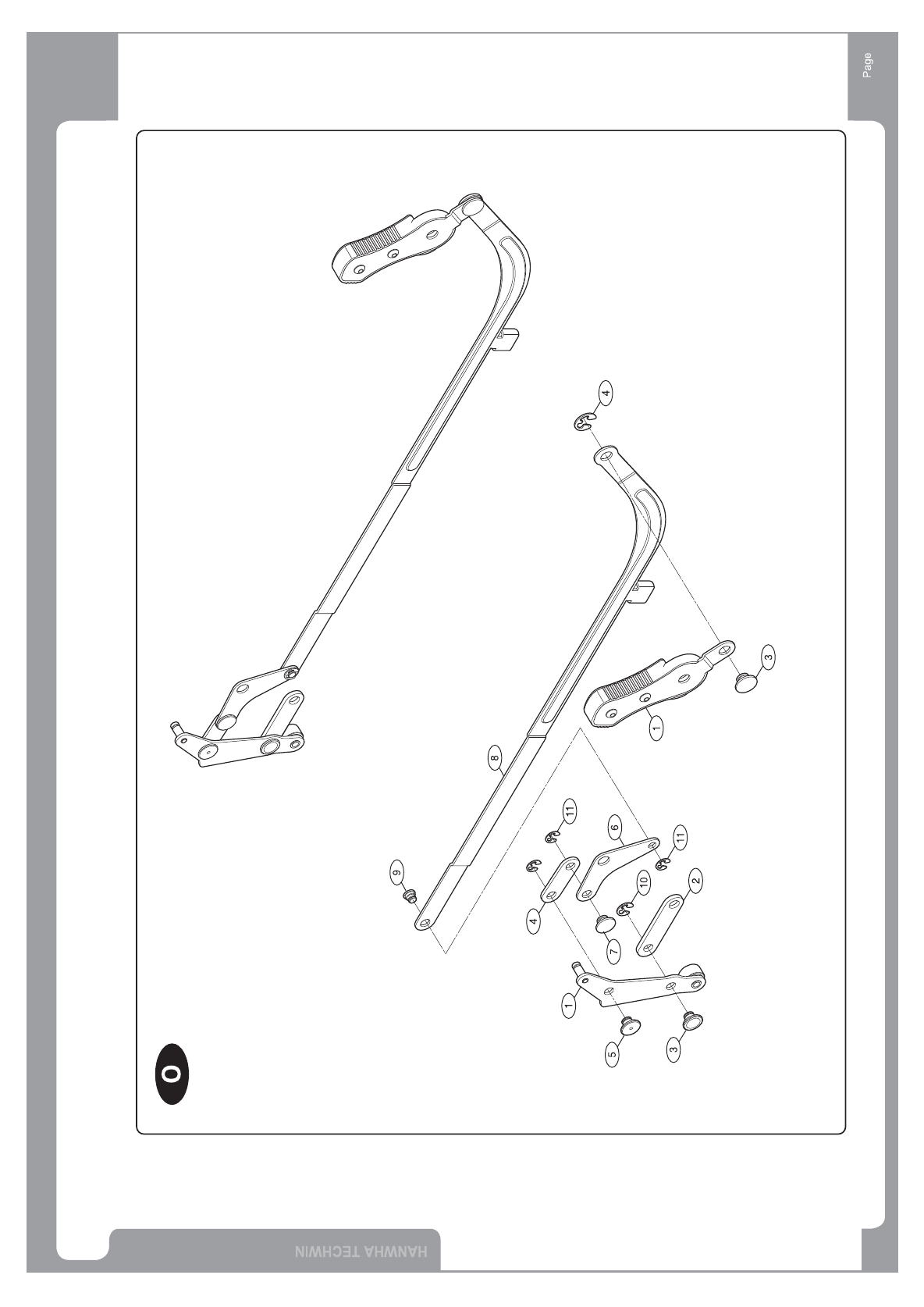

SME
24
mm SME Tape Feeder - Sub (6)
62
SME
24
mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
2 J70650978C INSTALL GUIDE 1
3 FC18-000205A BTM LOC' PIN 1
4 J70650948B LOCATION FLANGE 1
5 FC18-000204A FRONT GUIDE PIN 1
14 J66011014A BALL_BEARING_F605ZZ-STF100N F605ZZ 1 S66010003A
63
SME
24
mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
D EP08-000035A MOTOR ASSY 1 S90000011A
F AM03-001500AA VINYL DISCHARGE ASSY 1 S90000014
1 FC39-000730A DISCHARGE FRAME 1 S72000010A
2 MC19-000342A VINYL FIX ROLLER PULLEY 1 S72000011A PULLEY FLANGE included
