FX-3R Maintenance Guide 15-1 Rev. 1.00 DANGER To prevent any trouble caused by accidental machine start, always shut-down the power before starting the maintenance and adjustment work. WARNING Only service engineers who …
FX-3R Maintenance Guide
14-3

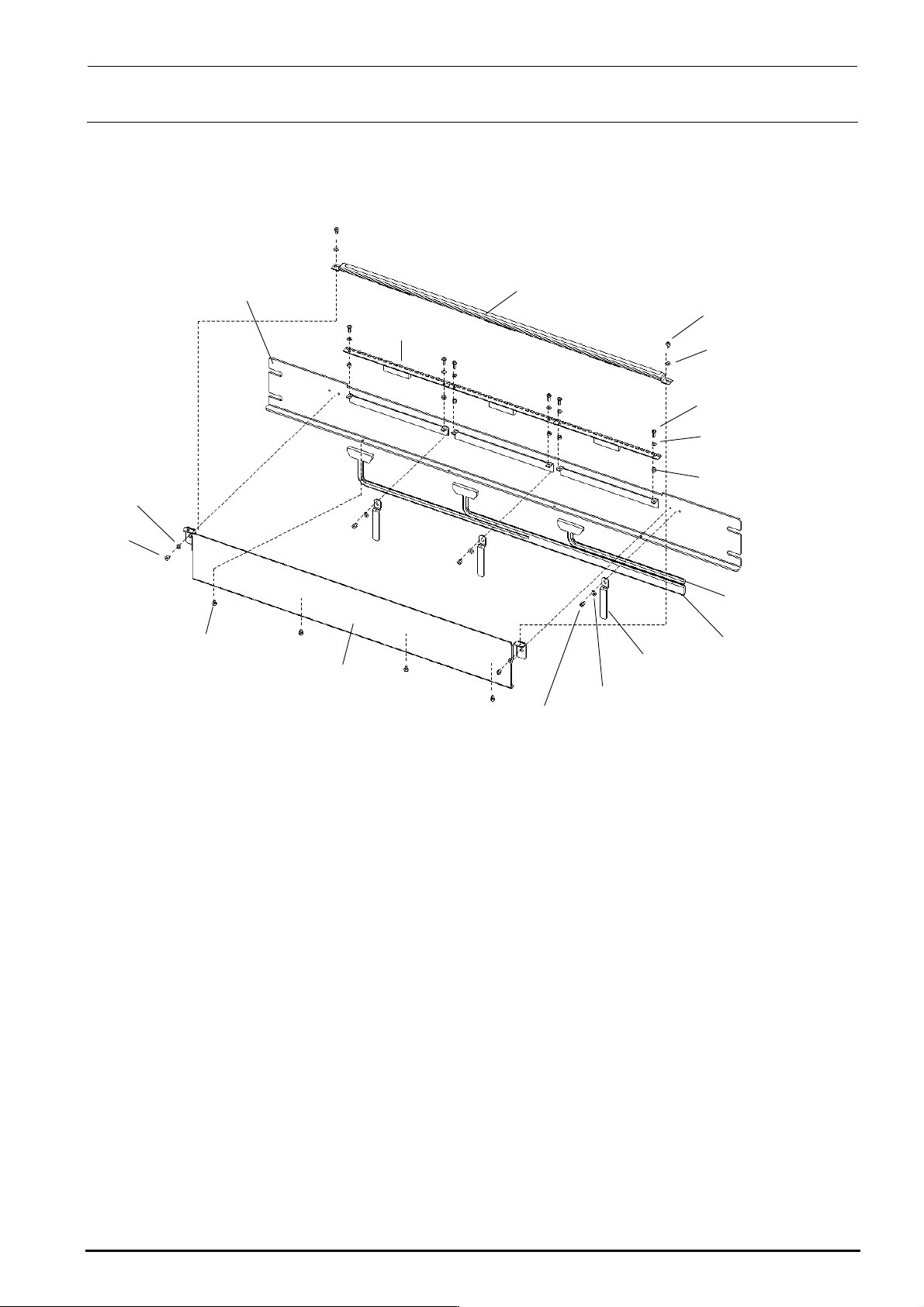

Structure of components inside FPI (Rear)
The following Figure shows the structure drawing of the LR. The FPI cable running direction is
reversed in the structure drawing of the RR.
E6066729000
FPIｶﾊﾞｰU30 1ヶ
SM6030402TN
M3×4 2ヶ
WP0320501SC
平座金M3 2ヶ
40047371
FPIﾌﾞﾗｹｯﾄ 1ヶ
SM5030801SC
M3×8 6ヶ
E4901760000
ﾎﾟﾘｽﾗｲﾀﾞｽﾗｽﾄﾜｯｼｬ 6ヶ
E2143715000
ﾀｲﾏｽﾍﾟｰｻ 6ヶ
E86267290A0
FPI LED基板ｸﾐ 3ヶ
E6065729000
FPIｶﾊﾞｰB30 1ヶ
SM6030402TN
M3×4 2ヶ
SM6030402TN
M3×4 4ヶ
WP0320501SC
平座金M3 2ヶ
E6068729000
ﾊｰﾈｽｸﾗﾝﾌﾟ 3ヶ
WP0320501SC
平座金M3 3ヶ
SM6030402TN
M3×4 3ヶ
CN561
CN551
CN541
40048173
FPI LEDｹｰﾌﾞﾙ2(R)ｸﾐ 1ヶ
40048172
FPI LEDｹｰﾌﾞﾙ1(R)ｸﾐ 1ヶ
Flat washer M3, 2 pcs.
M3 × 4, 2 pcs.
FPI bracket
,
1
p
c.
FPI LED board asse m bly, 3 pcs.
FPI cover U30, 1 pc.
M3 × 4, 2 pcs.
Flat washer M3, 2 pcs.
M3 × 8, 6 pcs.
Plastic slider thrust washer, 6 pcs.
Timer spacer, 6 pcs.
FPI LED cable 2 (R) assembly, 1 pc.
Harness clamp, 3 pcs.
Flat washer M3, 3 pcs.
M3
×
4, 3 pcs.
FPI cover B30, 1 pc.
M3 × 4, 4 pcs.
FPI LED cable 1 (R) assembly, 1 pc.
Figure 14-1-2 Internal Structure of FPI (Rear)
Rev. 1.00
FX-3R Maintenance Guide
15-1
Rev. 1.00
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
WARNING
Only service engineers who have received the replacement
education at the SMT training center are allowed to replace the
movable cutter blade and fixed cutter blade.
[15] TAPE CUTTER (OPTIONAL)
15-1. Overall Drawing
This tape cutter unit is composed of a cutter main unit and discharge guides (upper discharge
guide/lower discharge guide).
Figure 15-1-1 Outside View of Tape Cutter
Upper discharge guide
Lower discharge guide
40084775
Tape cutter main unit
Lot nameplate
The alphabetic
character at the end
shows Rev. No.
09K001 A
FX-3R Maintenance Guide
15-2
Rev. 1.00
15-1-1. Tape Cutter for Electric Fixed Bank Specification
The lower discharge guide shape of the cutter for the electric fixed bank specification is different
from that for the replacement table specification.
Tape cutter for electric fixed bank specification
Lower discharge guide sha pe: This shape is different from the cutter for the
replacement table specification.
Upper discharge guide and cutter
main unit are the same as the
cutter unit for the re placement table
specification.
