Techcon Systems TS5520 Spray Valve User Guide
Techcon Systems
TS5520
Spray Valve
User Guide
2
CONTENTS
Page number
1. Specifications…………………………………………………………………3
2. Unpacking and Inspection……………………………………………………4
3. Description...…………………………………………………….….………...4
4. Theory of Operation…………………………………………….….…………4
5. Setup Instructions……………………………………………….….…………5
6. Typical System Set-Up and Spray Coverage……..…….……….……………6
7. Maintenance and Cleaning…………………………………………………7-8
8. Spare Parts…………………………………………………………………9-10
9. Repair Kits…………………………………………………………………...11
10. Accessories…………………………………………………………………..12
11. Troubleshooting……………………………………………………………...13
12. Warranty……………………………………………………………………..14
14
12. LIMITED WARRANTY
Manufacturer warrants this product to the original purchaser for a period of one (1)
year from date of purchase to be free from defects in material and workmanship,
but not against damages by misuse, negligence, accident, faulty installations and
instructions. Manufacturer will repair or replace (at factory’s option), free of
charge, any component of the equipment thus found to be defective, on return of
the component, “PREPAID” to the factory during the warranty period. In no event
shall any liability or obligation of the Manufacturer arising from this warranty
exceed the purchase price of the equipment. This warranty is only valid if the
defective product is returned as a complete assembly without physical damage.
The Manufacturer’s liability, as stated herein, cannot be altered or enlarged except
by a written statement signed by an officer of the company. In no event shall the
Manufacturer be liable for consequential or incidental damages. A return
authorization is required from Techcon Systems prior to shipping a defective unit
to the factory.
Manufacturer reserves the right to make engineering product modifications
without notice.
All returns must be issued with a Returns Authorization number, prior to return.
Send warranty returns to:
Americas and Asia
OK International
Garden Grove Division
12151 Monarch Street
Garden Grove, Ca 92841
Europe
OK International
Eagle Close
Chandler’s Ford Ind Est
Eastleigh
Hampshire
SO53 4NF
United Kingdom
www.techconsystems.com
Delrin® and Teflon® is a registered trademark of E.I. DuPont.
TSI-0223_B
3
1. SPECIFICATIONS
TS5520
Size
4.2'' Length X 1.12''
(107mm X 28.5mm)
Weight 0.3 lb (136g)
Fluid Inlet Port ⅛'' NPT female
Fluid Outlet Port Nozzle and Spray Cap
Air Inlet Port 10-32 UNF
Auxiliary Air Inlet Port 10-32 UNF
Minimum Air Pressure
70 psi (4.8bar)
Maximum Fluid Pressure 100psi (6.9bar)
Operating Frequency Exceeds 400 cycles/min.
Mounting Port ¼-20 UNC-2B
Wetted Parts
Type 303 SS, Al., Teflon®, Delrin®,
EPR
Fi
g

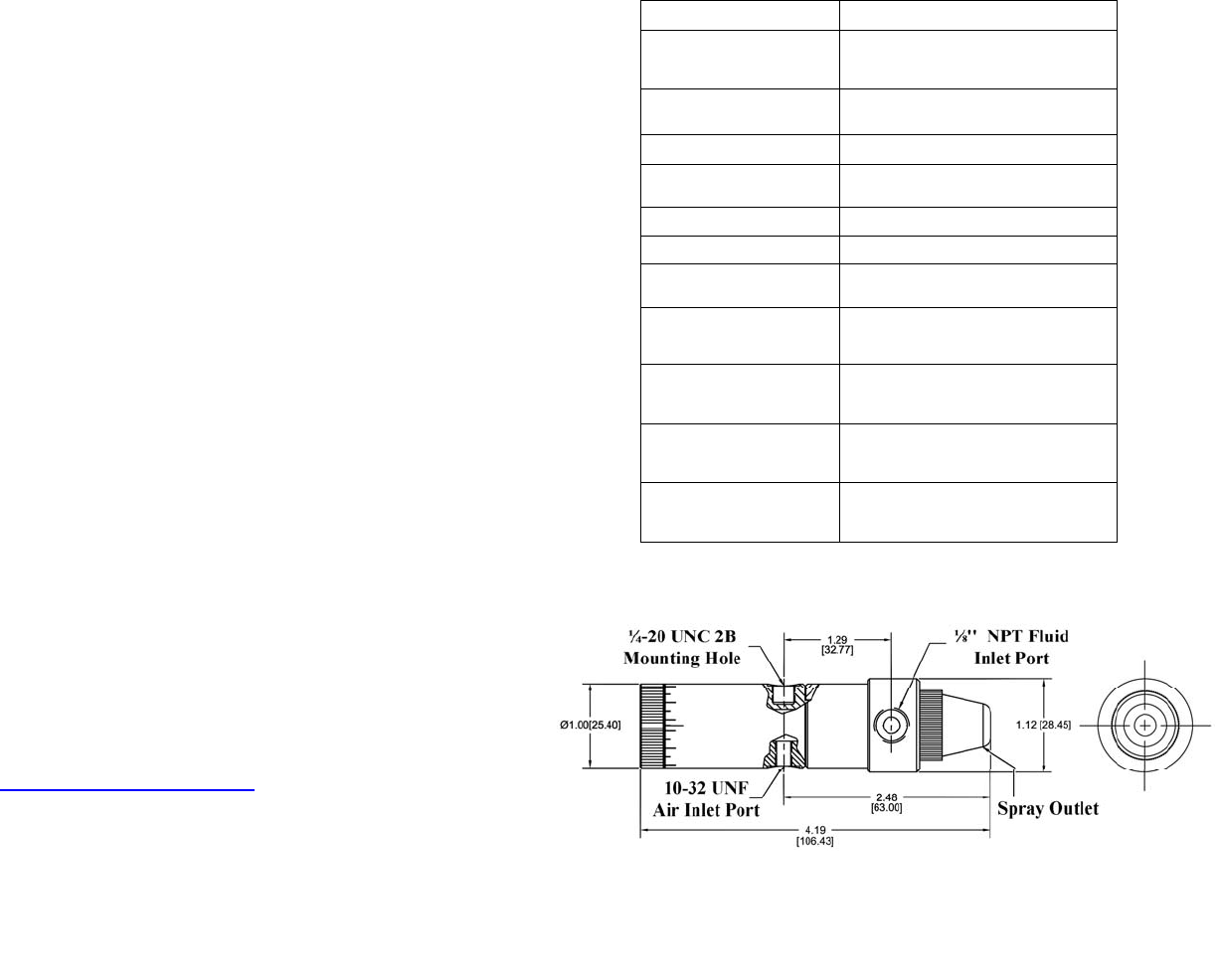

ure 1.0
Dimensions are in inches [mm]
