12. LIMITED WARRANTY

Manufacturer warrants this product to the original purchaser for a period of one (1)

year from date of purchase to be free from defects in material and workmanship,

but not against damages by misuse, negligence, accident, faulty installations and

instructions. Manufacturer will repair or replace (at factory’s option), free of

charge, any component of the equipment thus found to be defective, on return of

the component, “PREPAID” to the factory during the warranty period. In no event

shall any liability or obligation of the Manufacturer arising from this warranty

exceed the purchase price of the equipment. This warranty is only valid if the

defective product is returned as a complete assembly without physical damage.

The Manufacturer’s liability, as stated herein, cannot be altered or enlarged except

by a written statement signed by an officer of the company. In no event shall the

Manufacturer be liable for consequential or incidental damages. A return

authorization is required from Techcon Systems prior to shipping a defective unit

to the factory.

Manufacturer reserves the right to make engineering product modifications

without notice.

All returns must be issued with a Returns Authorization number, prior to return.

Send warranty returns to:

Americas and Asia

OK International

Garden Grove Division

12151 Monarch Street

Garden Grove, Ca 92841

Europe

OK International

Eagle Close

Chandler’s Ford Ind Est

Eastleigh

Hampshire

SO53 4NF

United Kingdom

www.techconsystems.com

Delrin® and Teflon® is a registered trademark of E.I. DuPont.

TSI-0223_B

1. SPECIFICATIONS

TS5520

Size

4.2'' Length X 1.12''

(107mm X 28.5mm)

Weight 0.3 lb (136g)

Fluid Inlet Port ⅛'' NPT female

Fluid Outlet Port Nozzle and Spray Cap

Air Inlet Port 10-32 UNF

Auxiliary Air Inlet Port 10-32 UNF

Minimum Air Pressure

70 psi (4.8bar)

Maximum Fluid Pressure 100psi (6.9bar)

Operating Frequency Exceeds 400 cycles/min.

Mounting Port ¼-20 UNC-2B

Wetted Parts

Type 303 SS, Al., Teflon®, Delrin®,

EPR

ure 1.0

Dimensions are in inches [mm]

2. UNPACKING AND INSPECTION

Carefully unpack the valve and examine the items contained in the carton. These

will include:

• Valve Assembly

• Valve bracket

• User guide

• Valve Air Hose

3. DESCRIPTION

The TS5520 Series Spray Valve is designed to spray low viscosity fluid with very

precise deposits. An external stroke control makes it easy for the operator to fine-

tune fluid flow. Total control of the spray cycle is provided by adjustable fluid

flow and precise control of pre-spray, atomizing air and post-spray with

theTS500Rspray valve controller. Maintenance is made simple by the elimination

of troublesome spring loaded needle packings. The valve’s compact design and

easy mounting hole allow for easy integration into automated applications.

4. THEORY OF OPERATION

The TS5520 Series Spray Valve is a normally closed, adjustable opening, needle

and seat valve. Inlet air pressure through port (2) retracts the needle assembly (7)

from the seat (4) allowing fluid to flow from the valve fluid inlet (6) to the outlet

nozzle (5). Air pressure through port (3) passes around the dispense “orifice”

providing the atomized spray pattern. Relieving the input air pressure allows the

spring (1) to return the needle back to its position to close the material path.

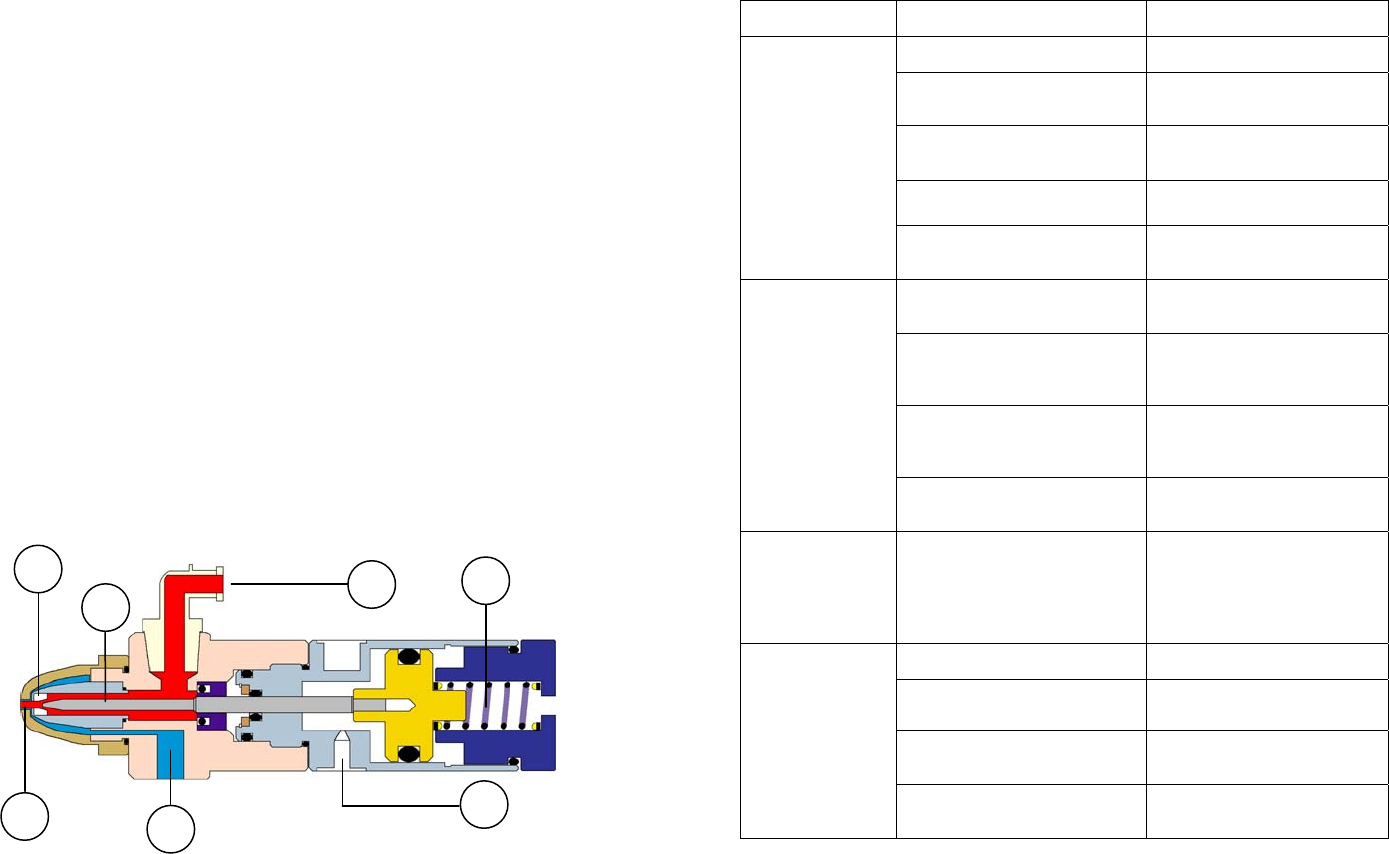

Figure 2.0

11. TROUBLE SHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION

No Fluid Flow

Fluid pressure too low Increase fluid pressure

Operating pressure too low

Increase air pressure to 70 psi

(4.8bar)

Valve is not actuating Check Valve controller

Fluid cured in valve chamber Clean valve thoroughly

The stroke adjustment closed

Open stroke adjustment

counterclockwise

Inconsistent

Fluid Flow

Fluid pressure fluctuating

Make sure fluid pressure is

constant

Valve operating pressure is too

low

Increase valve pressure to 70

psi (4.8bar)

Valve open time is not

consistent

Check to make sure the valve

controller is providing a

consistent output

Air trapped in fluid housing Purge valve

Fluid drools after

the valve closes,

eventually

stopping

Air trapped in fluid housing Purge valve

Fluid flows

through nozzle

but will not spray

Steady drip

Atomize pressure is too low Increase atomize pressure

Dirty needle and seat Perform thorough cleaning

Worn needle and seat

Replace worn or damaged

part

Fluid pressure exceeds 100 psi

(6.9bar)

Lower fluid pressure
