Installation Manual SIPLACE EDM Version 1.1 Issue 07/2005
4 Installation
4.1 Requirements
EDM master server 4.1.1
Minimum Requirements
Hardware Intel Pentium 4.3 GHz
1 GB RAM
1 GB hard disk storage capacity
Network connection
Operating system Windows 2000 Professional SP4
Windows 2003 Server (with or without SP1)
Windows XP Professional SP1 or SP2
MSMQ Runtime must be installed
SIPLACE Pro 3.1 or higher, server installation
Microsoft SQL Server V8.0 SP 4 or MSDE 2000 SP 4 (same as SIPLACE Pro)
.NET Framework V1.1 Service Pack 1
SMTP server
Table 1 EDM master server software requirements
EDM line server 4.1.2
Minimum Requirements
Hardware Intel Pentium 4
1 GB RAM
Network connection
Operating system Windows 2000 Professional SP4
Windows 2003 Server (with or without SP1)
Windows XP Professional SP1 or SP2
MSMQ Runtime must be installed
11 of 64
Installation Manual, SIPLACE EDM Version 1.1 Issue 07/2005
SIPLACE Pro 3.1 or higher, complete installation
License for SPI system monitor interface
Microsoft SQL Server V8.0 SP 4 or MSDE 2000 SP 4 (same as SIPLACE Pro)
.NET Framework V1.1 Service Pack 1
Table 2 EDM line server software requirements
Clearing pool 4.1.3
Minimum Requirements
Hardware Intel Celeron 1.7 GHz
512 MB RAM
Network connection
Operating system Windows 2000 Professional SP4
Windows 2003 Server (with or without SP1)
Windows XP Professional
MSMQ Runtime must be installed
SIPLACE Pro SIPLACE Pro Desk 3.1
Table 3 Clearing pool software requirements
Attention:
Before installing a ClearingPool on your local PC, that has access to a remote EDM master,
you must install SIPLACE Pro Desk on your local system. Thereby, SIPLACE Pro Desk must
also have access to the remote EDM Master.
12 of 64
Installation Manual SIPLACE EDM Version 1.1 Issue 07/2005
4.2 Directory structure
In the following, we will discuss the directory structure created by the default installation.
Programme
Siemens Siplace
SIPLACE EDM
config
Database
DBScripts
de
en
help
templateStorage

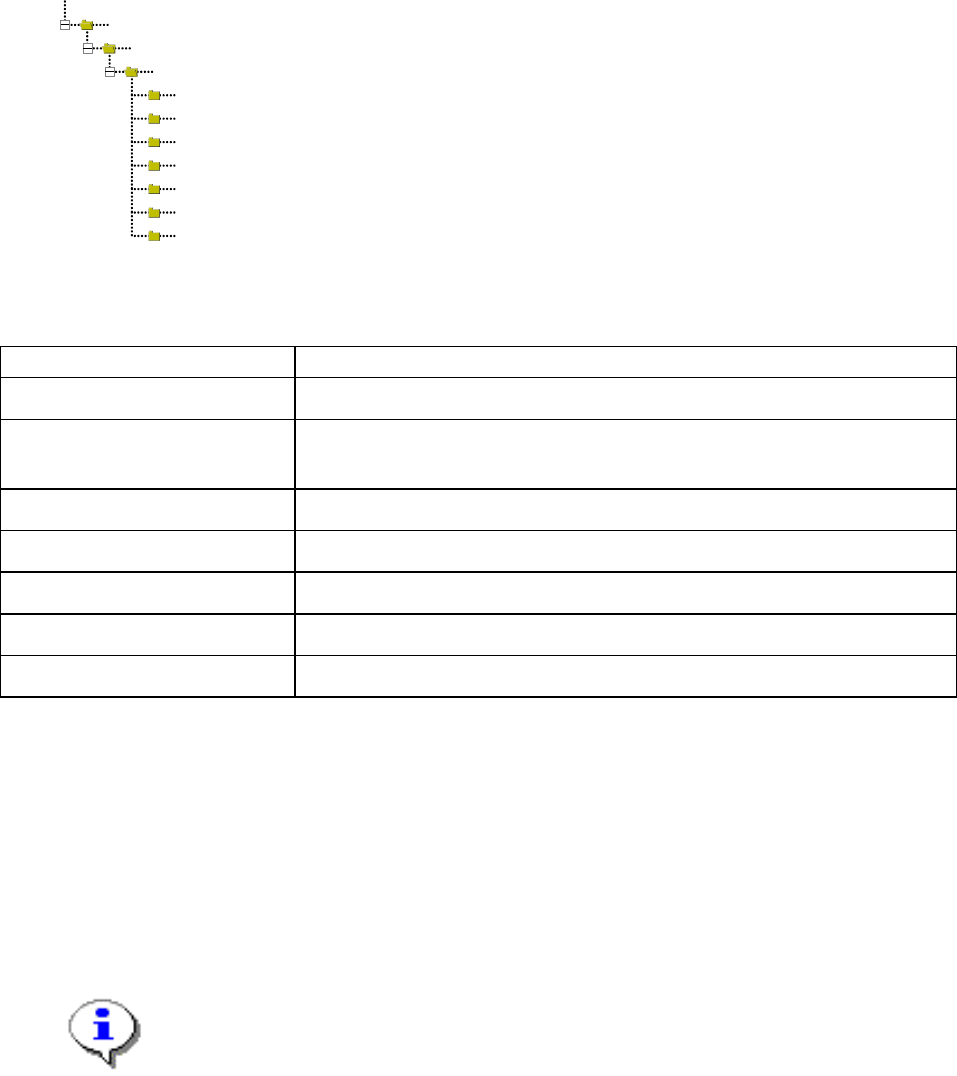

Figure 2 Directory structure of the default installation
Directory Contents
SIPLACE EDM Applications and libraries
config Application configuration, client workflow configuration, filter configuration, email
configuration and logging configuration
Database Database for change notifications and clearing pool (master server only )
DBScripts Scripts to create and access the database (master server only)
de, en, … Language-dependent resources
Help Online documentation
templateStorage Storage location for application templates
Table 4 Directories of the default installation
The installation of the components of the system is performed in the following the order:
1. Installation of the EDM master server
2. The customer-specific application configuration is copied to the master server
3. Installation of the EDM line servers
4. The customer-specific application configuration is copied to the line servers
5. Installation of the clearing pool host
IMPORTANT:
The configuration files created by the customer during the process analysis phase –
currently – need to be distributed manually to the line servers or to the master server
13 of 64
