09.09.2014 Page 10
Parts for Configuration 2
Option WPC on X-Serie S with TH Config upgrade kit WPC 03111747- (110)
1x Sales-Article No.: 00119743-xx COT insert WPC X-Series S
= 03110607-xx COT insert WPC X-Series
Additional parts to be ordered separately:
- 00119827-xx WPC 5 Standard or 00119828-xx WPC 6 Non Stop module
- 03115109-xx Basic assembly NC 2 array WPC basic (for TH)
- 00519845-xx Nozzle changer TH for SX Serie
- 03020578-xx stat. camera SST25 (FC Camera), optional
- 03016339-xx stat. camera SST33 (IC-camera), optional
- 03087508-xx Smart Pin Support SPS Magazine Q10 (optional, if SPS)
+ 03088072-xx Magazine holder Q10cpl.
+ 03099054-xx IC camera adaptor assembly
- 00119995-xx SmartPinSupport set 5 Pins (optional, if SPS)
SIPLACE WPC @ X-Series S
09.09.2014 Page 11

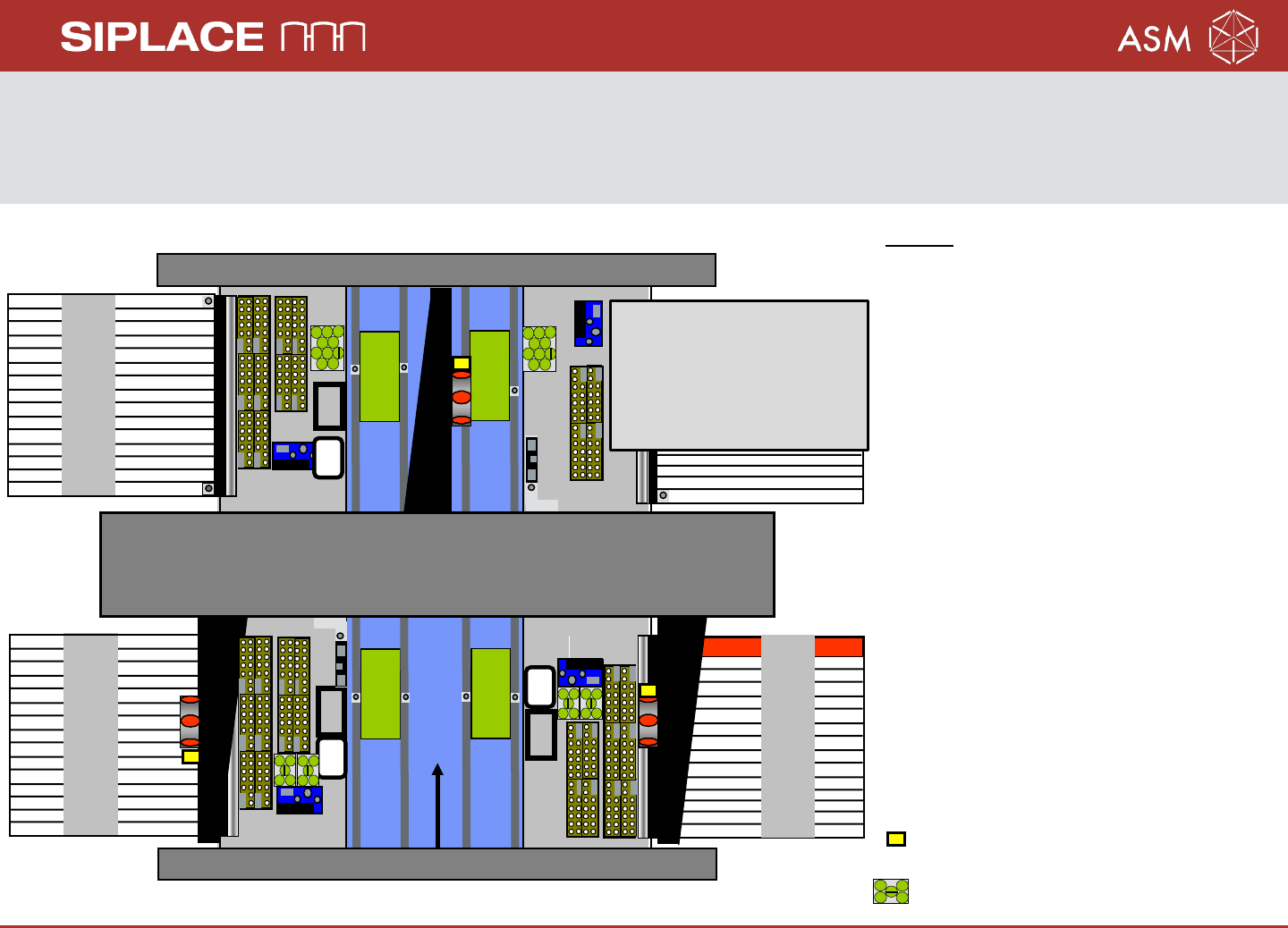

Configuration 1 – X3 S (X2 S) with WPC5/6 and CPP head
Note:
Option SPS:3 tracks on
location 1 are not reachable
Dummy Feeder with Fiducial
- Table position 3
- Gantry 1 Pin Picker left
- Gantry 3/4 Pin Picker right
- 5 or 10 Pins for each track
in each placement area, only
with Q10 magazine
- SPS Pin Picker (Left/Right)
- SPS magazine W5
Siplace X3 S
Location 3
Location 1
Gantry 1
Location 4
Gantry 4
SST33
Gantry 3
SST 33
Reject
Bin
SST 33
Reject
Bin
Reject
Bin
WPC 5/6
Location 2
Note: FC camera and/or 3D-Sensor with CPP head is not possible!
Note: SIPLACE X2 S - no SPS possible!
SIPLACE WPC @ X-Series S
09.09.2014 Page 12

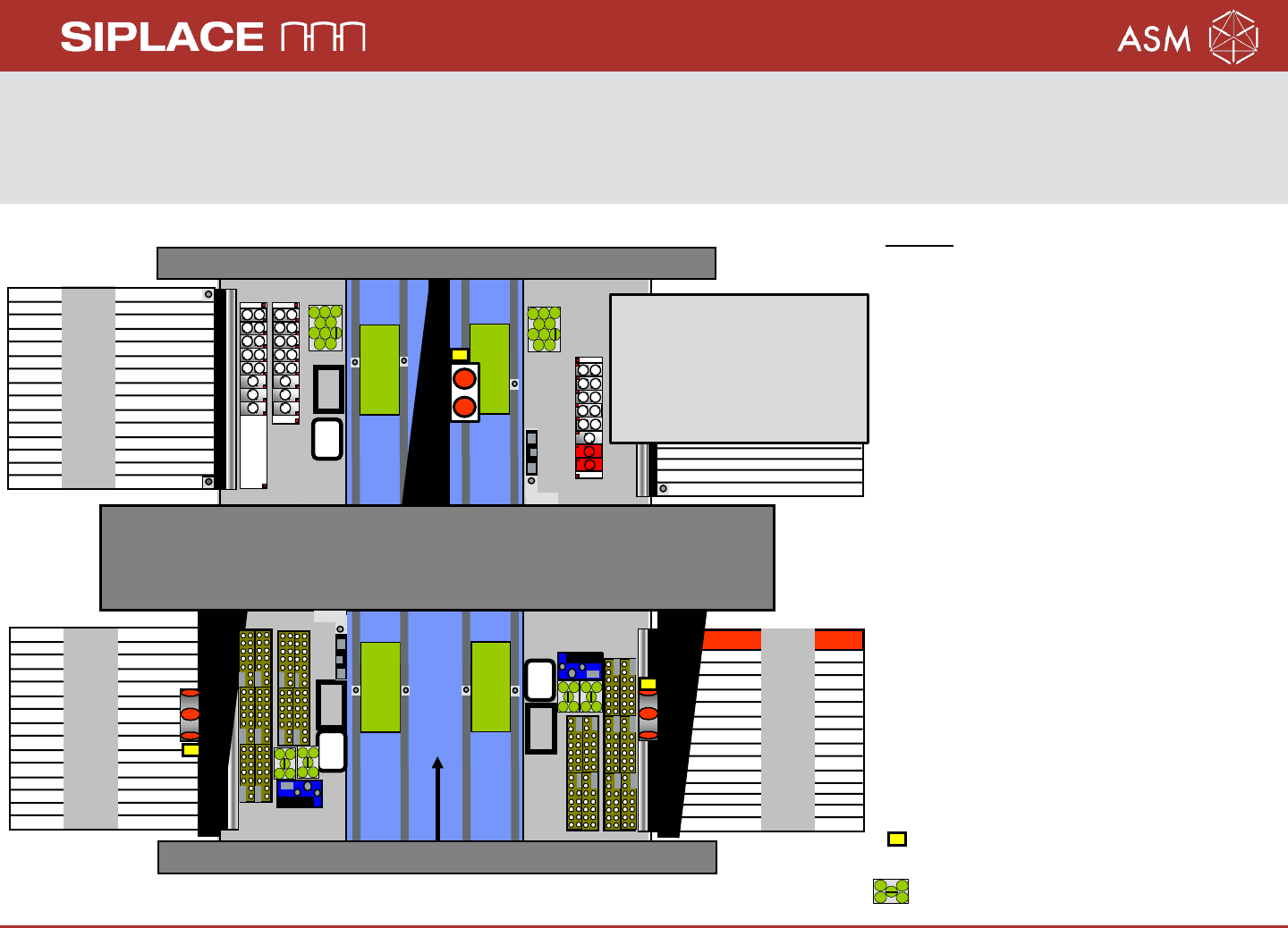

Configuration 1 – X3 S (X2 S) with WPC5/6 and TH head
Note:
Option SPS:3 tracks on
location 1 are not reachable
Dummy Feeder with Fiducial
- Table position 3
- Gantry 1 Pin Picker left
- Gantry 3/4 Pin Picker right
- 5 or 10 Pins for each track
in placement area 2, with
Q10 magazine
- SPS Pin Picker (Left/Right)
- SPS magazine W5
Siplace X3 S
Location 3
Location 1
Gantry 1
Location 4
Gantry 4
SST33
SST 33
Reject
Bin
SST 33
Reject
Bin
Reject
Bin
WPC 5/6
Location 2
Gantry 3
Note: SIPLACE X2 S - no SPS possible!
SIPLACE WPC @ X-Series S
