09.09.2014 Page 7

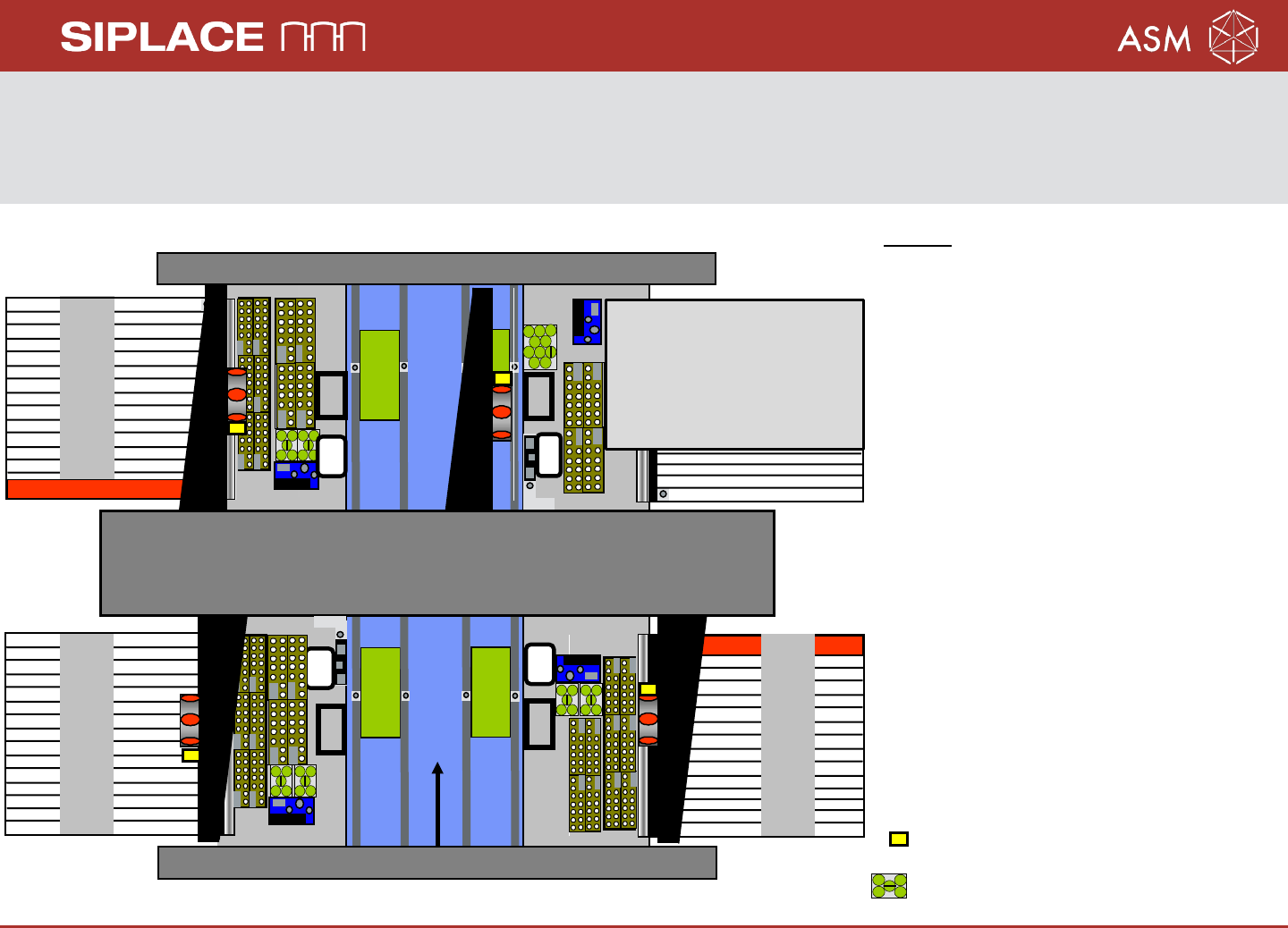

Configuration 1 - X4 S with WPC5/6 and CPP head
Note:
Option SPS:3 tracks on
location 1/3 are not reachable
Dummy Feeder with Fiducial
- Table position 3
- Gantry 1/3 Pin Picker left
- Gantry 2/4 Pin Picker right
- Q10 on Location 2
- SPS Pin Picker (Left/Right)
- SPS magazine W5
WPC 5/6
Location 2
Siplace X4 S
Location 3
Location 1
Gantry 1
Location 4
SST33
Gantry 2
SST33
Gantry 3
SST 33
SST 33
Reject
Bin
Gantry 4
Reject
Bin
Reject
Bin
Reject
Bin
Note: FC camera and/or 3D-Sensor with CPP head is not possible.
SIPLACE WPC @ X-Series S
09.09.2014 Page 8
Parts for Configuration 1
Option WPC on X-Serie S with CPP Config upgrade kit WPC 03111747- (110)
1x Sales-Article No.: 00119743-xx COT insert WPC X-Series S
= 03110607-xx COT insert WPC X-Series
Additional parts to be ordered separately:
- 00119827-xx WPC 5 Standard or 00119828-xx WPC 6 Non Stop module
- 03113144-xx Basic assembly NC 2 array_WPC (compl. for CPP)
- 03016339-xx stat. camera SST 33 (IC-camera), optional
- 03087508-xx Smart Pin Support SPS Magazine Q10 (optional, if SPS)
+
03088072-xx Magazine holder Q10cpl.
+ 03099054-xx IC camera adapter assembly
- 00119995-xx SmartPinSupport set 5 Pins (optional, if SPS)
SIPLACE WPC @ X-Series S
09.09.2014 Page 9
Configuration 2 - SPS on X4 S with WPC5/6 and Twin Head
Note:
Option SPS:3 tracks on location
1/3 are not reachable Dummy
Feeder with Fiducial
Table position 3
Gantry 1/3 Pin Picker left
Gantry 2/4 Pin Picker right
Location 2 FC/3D or Q10
possible!
- SPS Pin Picker (Left/Right)
- SPS magazine W5
Note: 3D-Sensor always on location 2!
Siplace X4 S
Location 3
Location 1
Gantry 1
Location 4
Gantry 4
Gantry 2
SST33
Gantry 3
Reject
Bin
WPC 5/6
Location 2
SST33
Reject
Bin
FC
Camera
3D
Coplan
or
or
FC
Camera
