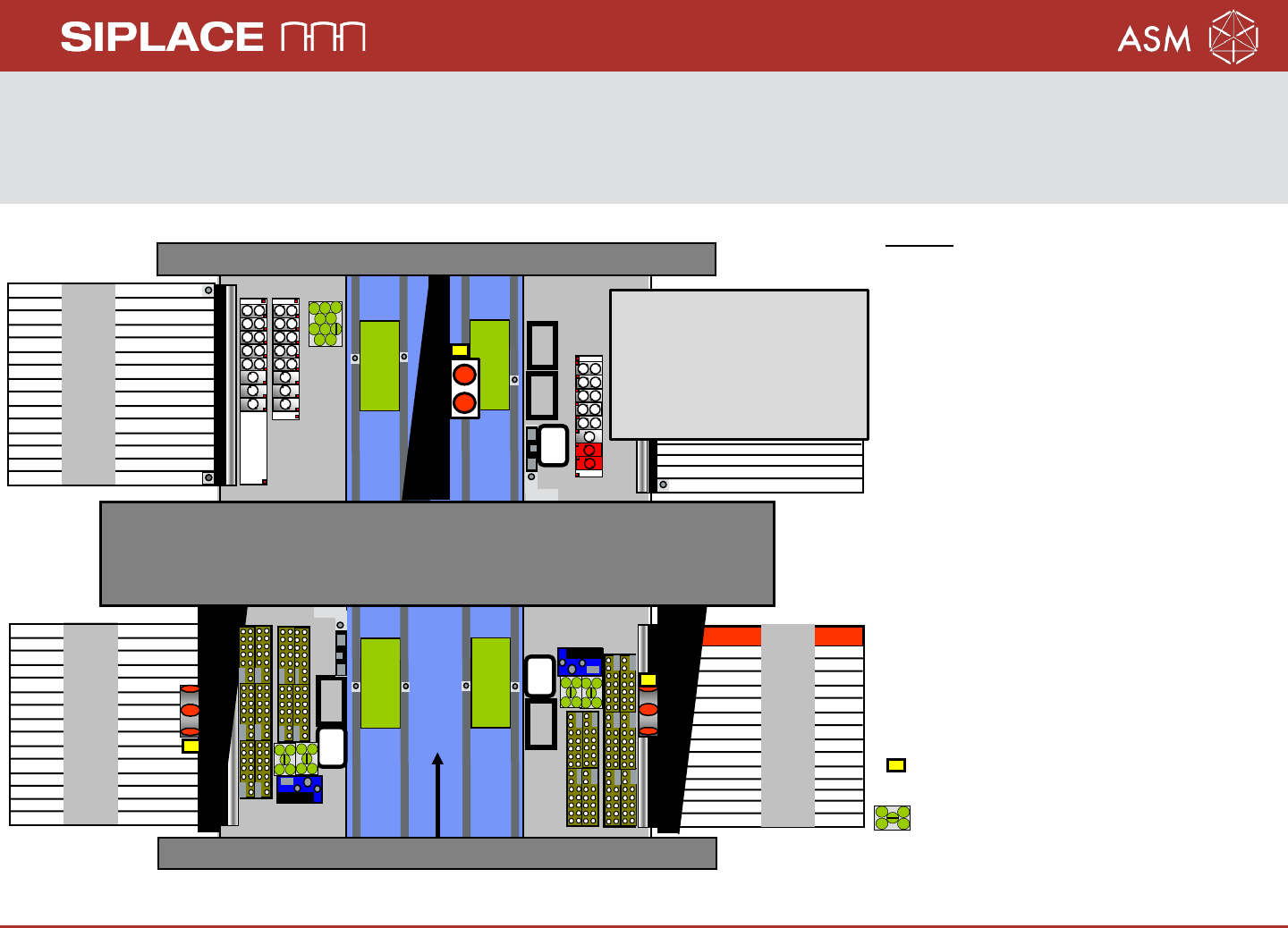

Configuration 2 – X3 S (X2 S) with WPC5/6 and TH head
Note:
Option SPS:3 tracks on
location 1 are not reachable
Dummy Feeder with Fiducial
- Table position 3
- Gantry 1 Pin Picker left
- Gantry 3/4 Pin Picker right
- Only 5 Pins for each track
in placement area 2
- SPS Pin Picker (Left/Right)
- SPS magazine W5
Siplace X3 S
Location 3
Location 1
Gantry 1
Location 4
Gantry 4
SST33
SST 33
Reject
Bin
SST 33
Reject
Bin
Reject
Bin
WPC 5/6
Location 2
Gantry 3
Note: SIPLACE X2 S - no SPS possible!
FC
Camera
SIPLACE WPC @ X-Series S
09.09.2014 Page 14

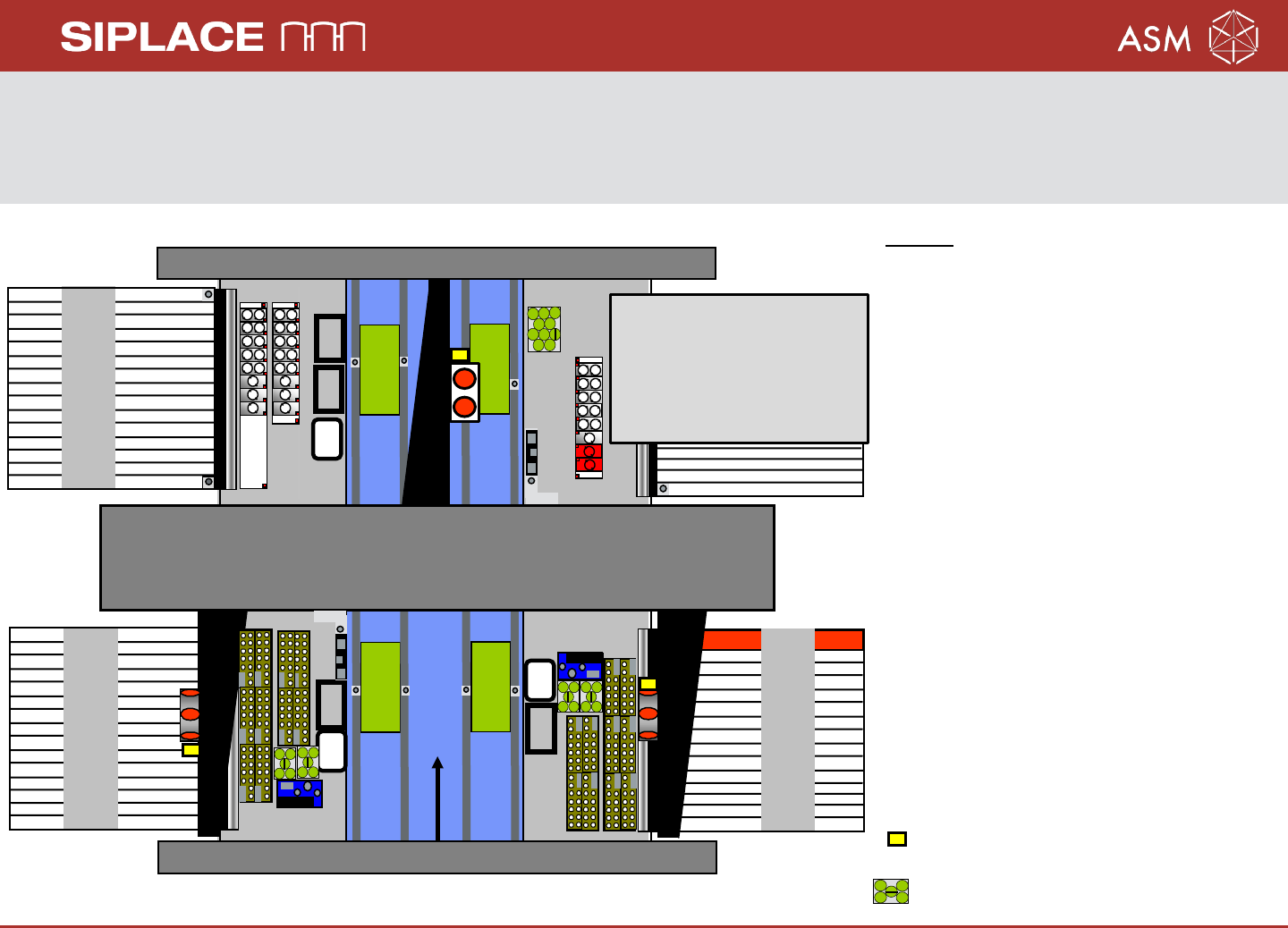

Configuration 3 – X3 S (X2 S) with WPC5/6 and TH head
Note:
Option SPS:3 tracks on
location 1 are not reachable
Dummy Feeder with Fiducial
- Table position 3
- Gantry 1 Pin Picker left
- Gantry 3/4 Pin Picker right
- Only 5 Pins for each track
in placement area 2
- SPS Pin Picker (Left/Right)
- SPS magazine W5
Note: The 3D-Sensor will be mounted always on location 2, then the IC-camera on location 2, too.
In all other cases the stationary cameras are mounted in location 3!
Siplace X3 S
Location 3
Location 1
Gantry 1
Location 4
Gantry 4
SST33
SST 33
Reject
Bin
SST 33
Reject
Bin
Reject
Bin
WPC 5/6
Location 2
Gantry 3
3D
Coplan
Note: SIPLACE X2 S no SPS possible!
SIPLACE WPC @ X-Series S
