E2E
3
Ordering Information
Sensors
Shielded Models [Refer to Dimensions on page 12.]
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-C04S12-WC-C1 5M)
*2. Models with robot (bending-resistant) cable are also available with "-R" in the model number. (Example: E2E-C04S12-WC-C1-R 2M)
*3. Models with 5-m robot (bending-resistant) cable are also available with "-R" and the "5M" suffix in the model number. (Example: E2E-C04S12-
WC-C1-R 5M)
Appear-
ance
Sensing
distance
Connecting
method
Cable
specifications
Operation
mode
Wire color /
pin arrangement
Model
NPN output PNP output
3 dia.
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-C03SR8-WC-C1 2M *1 E2E-C03SR8-WC-B1 2M *1
NC E2E-C03SR8-WC-C2 2M *1 E2E-C03SR8-WC-B2 2M *1
M8 Pre-wired
Connector
Models (0.3 m)
PVC
(oil-resistant)
NO
1: +V,
3: 0 V,
4: Control output
E2E-C03SR8-CJ-C1 0.3M E2E-C03SR8-CJ-B1 0.3M
NC E2E-C03SR8-CJ-C2 0.3M E2E-C03SR8-CJ-B2 0.3M
4 dia.
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-C04S12-WC-C1 2M *1 *2 *3 E2E-C04S12-WC-B1 2M *1 *2 *3
NC E2E-C04S12-WC-C2 2M *1 *2 *3 E2E-C04S12-WC-B2 2M *1 *2 *3
M8 Pre-wired
Connector
Models (0.3 m)
PVC
(oil-resistant)
NO
1: +V,
3: 0 V,
4: Control output
E2E-C04S12-CJ-C1 0.3M E2E-C04S12-CJ-B1 0.3M
NC E2E-C04S12-CJ-C2 0.3M E2E-C04S12-CJ-B2 0.3M
M8 Connector
Models
---
NO E2E-C04S12-MC-C1 E2E-C04S12-MC-B1
NC E2E-C04S12-MC-C2 E2E-C04S12-MC-B2
5.4 dia.
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-C05S01-WC-C1 2M *1 *2 *3 E2E-C05S01-WC-B1 2M *1 *2 *3
NC E2E-C05S01-WC-C2 2M *1 *2 E2E-C05S01-WC-B2 2M *1 *2
6.5 dia.
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-C06S02-WC-C1 2M *1 *2 *3 E2E-C06S02-WC-B1 2M *1 *2 *3
NC E2E-C06S02-WC-C2 2M *1 *2 *3 E2E-C06S02-WC-B2 2M *1 *2 *3
M8 Pre-wired
Connector
Models (0.3 m)
PVC
(oil-resistant)
NO
1: +V,
3: 0 V,
4: Control output
E2E-C06S02-CJ-C1 0.3M E2E-C06S02-CJ-B1 0.3M
NC E2E-C06S02-CJ-C2 0.3M E2E-C06S02-CJ-B2 0.3M
M8 Connector
Models
---
NO E2E-C06S02-MC-C1 E2E-C06S02-MC-B1
NC E2E-C06S02-MC-C2 E2E-C06S02-MC-B2
M4
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-S04SR8-WC-C1 2M *1 E2E-S04SR8-WC-B1 2M *1
NC E2E-S04SR8-WC-C2 2M *1 E2E-S04SR8-WC-B2 2M *1
M8 Pre-wired
Connector
Models (0.3 m)
PVC
(oil-resistant)
NO
1: +V,
3: 0 V,
4: Control output
E2E-S04SR8-CJ-C1 0.3M E2E-S04SR8-CJ-B1 0.3M
NC E2E-S04SR8-CJ-C2 0.3M E2E-S04SR8-CJ-B2 0.3M
M5
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-S05S12-WC-C1 2M *1 *2 *3 E2E-S05S12-WC-B1 2M *1 *2 *3
NC E2E-S05S12-WC-C2 2M *1 *2 *3 E2E-S05S12-WC-B2 2M *1 *2 *3
M8 Pre-wired
Connector
Models (0.3 m)
PVC
(oil-resistant)
NO
1: +V,
3: 0 V,
4: Control output
E2E-S05S12-CJ-C1 0.3M E2E-S05S12-CJ-B1 0.3M
NC E2E-S05S12-CJ-C2 0.3M E2E-S05S12-CJ-B2 0.3M
M8 Connector
Models
---
NO E2E-S05S12-MC-C1 E2E-S05S12-MC-B1
NC E2E-S05S12-MC-C2 E2E-S05S12-MC-B2
0.8
mm
1.2
mm
1
mm
2
mm
0.8
mm
1.2
mm
E2E
4
Unshielded Models [Refer to Dimensions on page 13.]
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-C04N03-WC-C1 5M)
*2. Models with robot (bending-resistant) cable are also available with "-R" in the model number. (Example: E2E-C04N03-WC-C1-R 2M)
Appear-
ance
Sensing
distance
Connecting
method
Cable
specifications
Operation
mode
Wire color /
pin arrangement
Model
NPN output PNP output
3 dia.
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-C03N02-WC-C1 2M *1 E2E-C03N02-WC-B1 2M *1
NC E2E-C03N02-WC-C2 2M *1 E2E-C03N02-WC-B2 2M *1
M8 Pre-wired
Connector
Models (0.3 m)
PVC
(oil-resistant)
NO
1: +V,
3: 0 V,
4: Control output
E2E-C03N02-CJ-C1 0.3M E2E-C03N02-CJ-B1 0.3M
NC E2E-C03N02-CJ-C2 0.3M E2E-C03N02-CJ-B2 0.3M
4 dia.
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-C04N03-WC-C1 2M *1 *2 E2E-C04N03-WC-B1 2M *1 *2
NC E2E-C04N03-WC-C2 2M *1 *2 E2E-C04N03-WC-B2 2M *1 *2
M8 Pre-wired
Connector
Models (0.3 m)
PVC
(oil-resistant)
NO
1: +V,
3: 0 V,
4: Control output
E2E-C04N03-CJ-C1 0.3M E2E-C04N03-CJ-B1 0.3M
NC E2E-C04N03-CJ-C2 0.3M E2E-C04N03-CJ-B2 0.3M
M8 Connector
Models
---
NO E2E-C04N03-MC-C1 E2E-C04N03-MC-B1
NC E2E-C04N03-MC-C2 E2E-C04N03-MC-B2
6.5 dia.
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-C06N04-WC-C1 2M *1 *2 E2E-C06N04-WC-B1 2M *1 *2
NC E2E-C06N04-WC-C2 2M *1 *2 E2E-C06N04-WC-B2 2M *1 *2
M8 Pre-wired
Connector
Models (0.3 m)
PVC
(oil-resistant)
NO
1: +V,
3: 0 V,
4: Control output
E2E-C06N04-CJ-C1 0.3M E2E-C06N04-CJ-B1 0.3M
NC E2E-C06N04-CJ-C2 0.3M E2E-C06N04-CJ-B2 0.3M
M8 Connector
Models
---
NO E2E-C06N04-MC-C1 E2E-C06N04-MC-B1
NC E2E-C06N04-MC-C2 E2E-C06N04-MC-B2
M4
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-S04N02-WC-C1 2M *1 E2E-S04N02-WC-B1 2M *1
NC E2E-S04N02-WC-C2 2M *1 E2E-S04N02-WC-B2 2M *1
M8 Pre-wired
Connector
Models (0.3 m)
PVC
(oil-resistant)
NO
1: +V,
3: 0 V,
4: Control output
E2E-S04N02-CJ-C1 0.3M E2E-S04N02-CJ-B1 0.3M
NC E2E-S04N02-CJ-C2 0.3M E2E-S04N02-CJ-B2 0.3M
M5
Pre-wired Models
(2 m)
PVC
(oil-resistant)
NO
Brown: +V
Black: Output
Blue: 0 V
E2E-S05N03-WC-C1 2M *1 *2 E2E-S05N03-WC-B1 2M *1 *2
NC E2E-S05N03-WC-C2 2M *1 *2 E2E-S05N03-WC-B2 2M *1 *2
M8 Pre-wired
Connector
Models (0.3 m)
PVC
(oil-resistant)
NO
1: +V,
3: 0 V,
4: Control output
E2E-S05N03-CJ-C1 0.3M E2E-S05N03-CJ-B1 0.3M
NC E2E-S05N03-CJ-C2 0.3M E2E-S05N03-CJ-B2 0.3M
M8 Connector
Models
---
NO E2E-S05N03-MC-C1 E2E-S05N03-MC-B1
NC E2E-S05N03-MC-C2 E2E-S05N03-MC-B2
2
mm
3
mm
4
mm
2
mm
3
mm
E2E
5

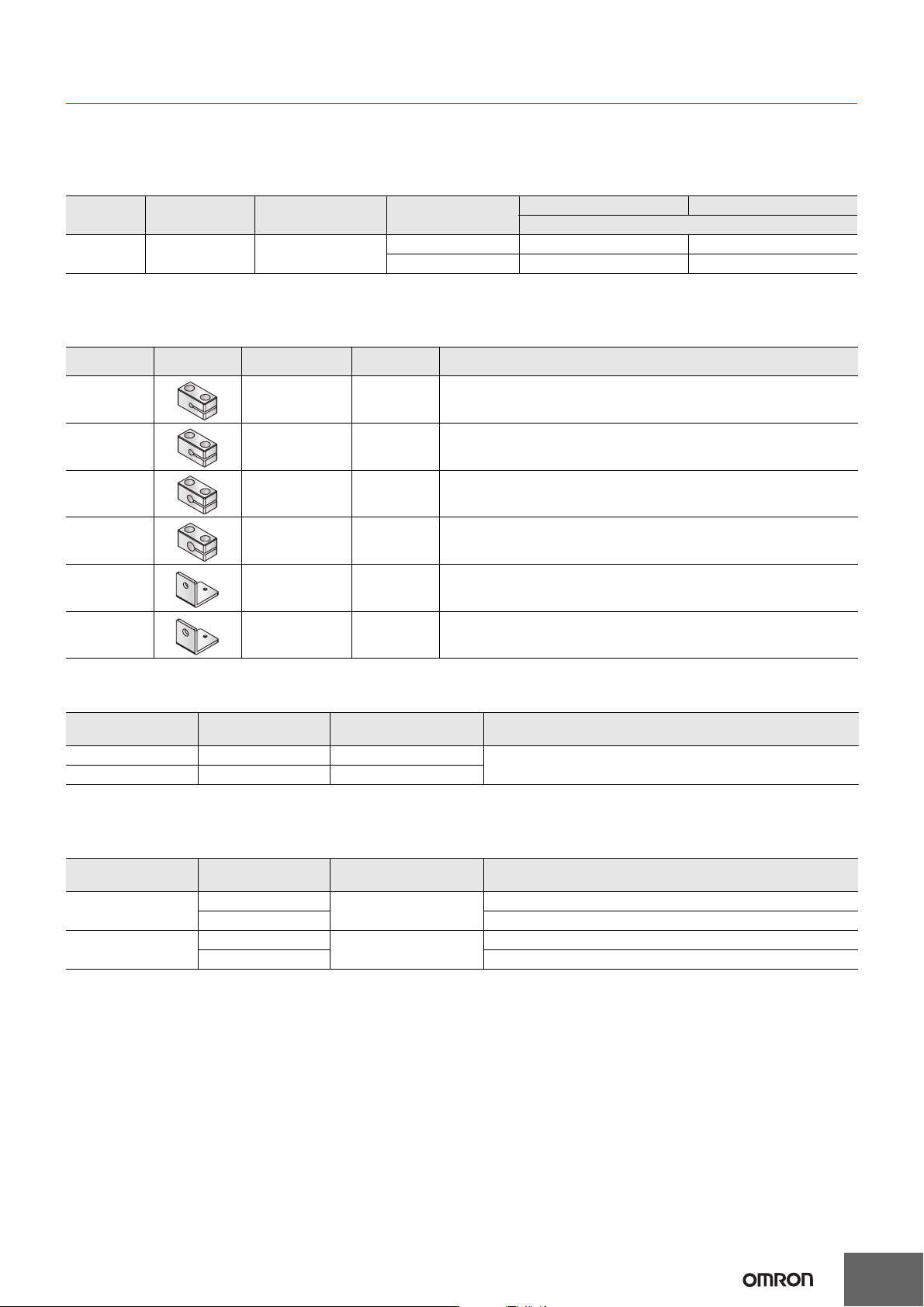

Accessories (Sold separately)
Sensor I/O Connector (Socket on One Cable End)
A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.
[Refer to Dimensions on page 16.]
Mounting Brackets
A Mounting Bracket is not provided with the Sensor. It must be ordered separately as required.
[Refer to Dimensions on page 15.]
Nut Set
A Nut Set is included with the Sensor. Order a Nut Set when required, e.g., if you lose the nuts.
Protective Stainless-steel Spiral Tube against Wire Breakage
A Spiral Tube is not provided with the Sensor. It must be ordered separately as required.
[Refer to Dimensions on page 16.]
Size
Cable
specifications
Number of cable
wires (conductors)
Cable length L (m)
Straight Right-angle
Model
M8
Robot (bending-
resistant) cable
3
2 XS3F-M321-302-R XS3F-M322-302-R
5 XS3F-M321-305-R XS3F-M322-305-R
Applicable
Sensors
Appearance
Model Quantity Remarks
E2E-C03@ Y92E-SC03 1
Mounting block for 3 dia., M3-20 Hexagon socket head cap screws:
2pieces, M3 × P0.5 Hexagon nuts: 2pieces, Washers: 2pieces
E2E-C04@ Y92E-SC04 1
Mounting block for 4 dia., M3-20 Hexagon socket head cap screws:
2pieces, M3 × P0.5 Hexagon nuts: 2pieces, Washers: 2pieces
E2E-C05@ Y92E-SC05 1
Mounting block for 5.4 dia., M3-20 Hexagon socket head cap screws:
2 pieces, M3 × P0.5 Hexagon nuts: 2 pieces, Washers: 2 pieces
E2E-C06@ Y92E-SC06 1
Mounting block for 6.5 dia., M3-20 Hexagon socket head cap screws:
2pieces, M3 × P0.5 Hexagon nuts: 2pieces, Washers: 2pieces
E2E-S04@ Y92E-SS04 1 L-shaped Mounting Bracket for M4 screws
E2E-S05@ Y92E-SS05 1 L-shaped Mounting Bracket for M5 screws
Applicable Sensors Model
Applicable sensor outer
diameter
Set contents
E2E-S04@ Y92E-NWS04 M4
Clamping nuts: 2 pieces, toothed washer: 1 piece
E2E-S05@ Y92E-NWS05 M5
Applicable Sensors Model
Applicable sensor outer
diameter
Length
E2E-S04@
Y92E-STS04-05
M4
0.5 m
Y92E-STS04-10
1 m
E2E-S05@
Y92E-STS05-05
M5
0.5 m
Y92E-STS05-10
1 m
