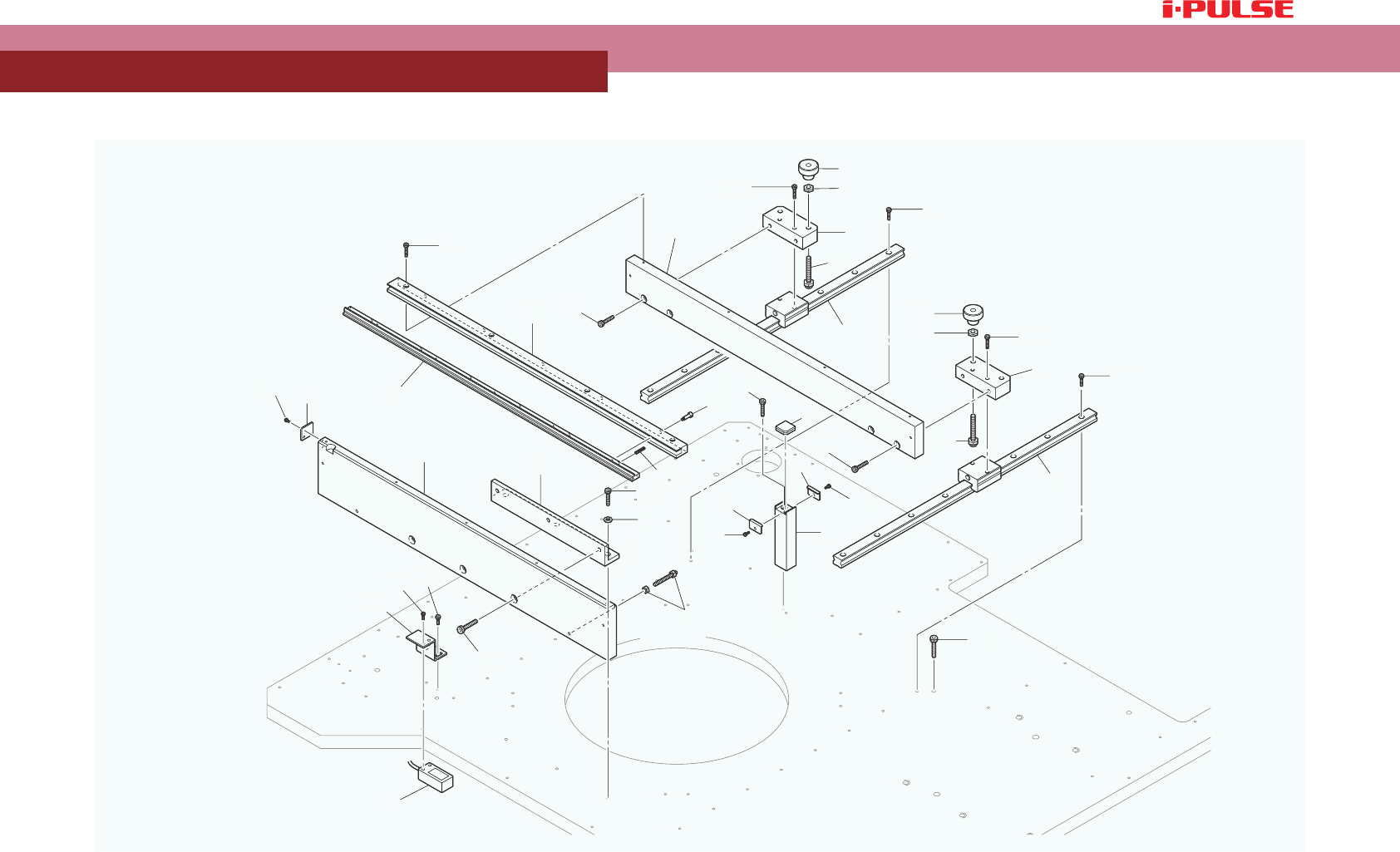

9. PCB Holder Section
9-1. PCB Holder
12
25
24
12
25
4
24
11
4
13
3
13
28
7
20
20
8
15
8
28
22
6
1
5
19
9
10
21
18
30
23
14
26
29
17
27
31
16
11
13
2
13
12
25
24
12
25
4
24
11
4
13
3
13
28
7
20
20
8
15
15
15
8
28
22
6
1
5
19
9
10
21
18
30
23
14
26
29
17
17
27
27
31
31
16
11
13
2
13
16
9. PCB Holder Section
9-1. PCB Holder
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M9011-01 PLATE,FRONT 1
2 LE1-M9012-01 STAY 1
3 LE1-M9013-01 PLATE,REAR 1
4 LE1-M9014-02 PLATE,MOVEMENT 2
5 LE1-M9015-00 HOLDER 1
6 LE1-M9016-01 CLAMPER 1
7 LE1-M9018-01 BRACKET 1
8 LE1-M900C-00 COVER 2
9 LE1-M9019-01 STOPPER,PCB 1
10 LE1-M901D-01 BRACKET,SENSOR 1
11 LG9-M90A0-00 LINEAR GUIDE 2
12 90990-47J002 KNOB 2
13 90990-33J033 BOLT STOPPER 2
14 90990-33J034 BOLT STOPPER 2
15 KHW-M8806-20 LIGHT ADJUSTER S 1
16 LE1-M9007-00 PIN,GUIDE 5
17 LE1-M90A4-10 SPRING 6
18 LE1-M66MP-00 PCB SEN ASSY 1 1
19 91317-03005 BOLT HEX.SOCKET HEAD 2 M3X6
20 91317-03006 BOLT HEX.SOCKET HEAD 2 M3X5
21 91317-03006 BOLT HEX.SOCKET HEAD 2 M3X5
22 91317-03014 BOLT HEX.SOCKET HEAD 4 M3X14
23 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8
24 91317-04018 BOLT HEX.SOCKET HEAD 16 M4X18
25 91317-04025 BOLT HEX.SOCKET HEAD 4 M4X25
26 91317-04055 BOLT HEX.SOCKET HEAD 2 M4X55
27 91317-05016 BOLT HEX.SOCKET HEAD 3 M5X16
28 91317-05018 BOLT HEX.SOCKET HEAD 4 M5X18
29 91317-06010 BOLT HEX.SOCKET HEAD 4 M6X10
30 91317-06014 BOLT HEX.SOCKET HEAD 3 M6X14
31 92907-05200 WASHER PLAIN 3
